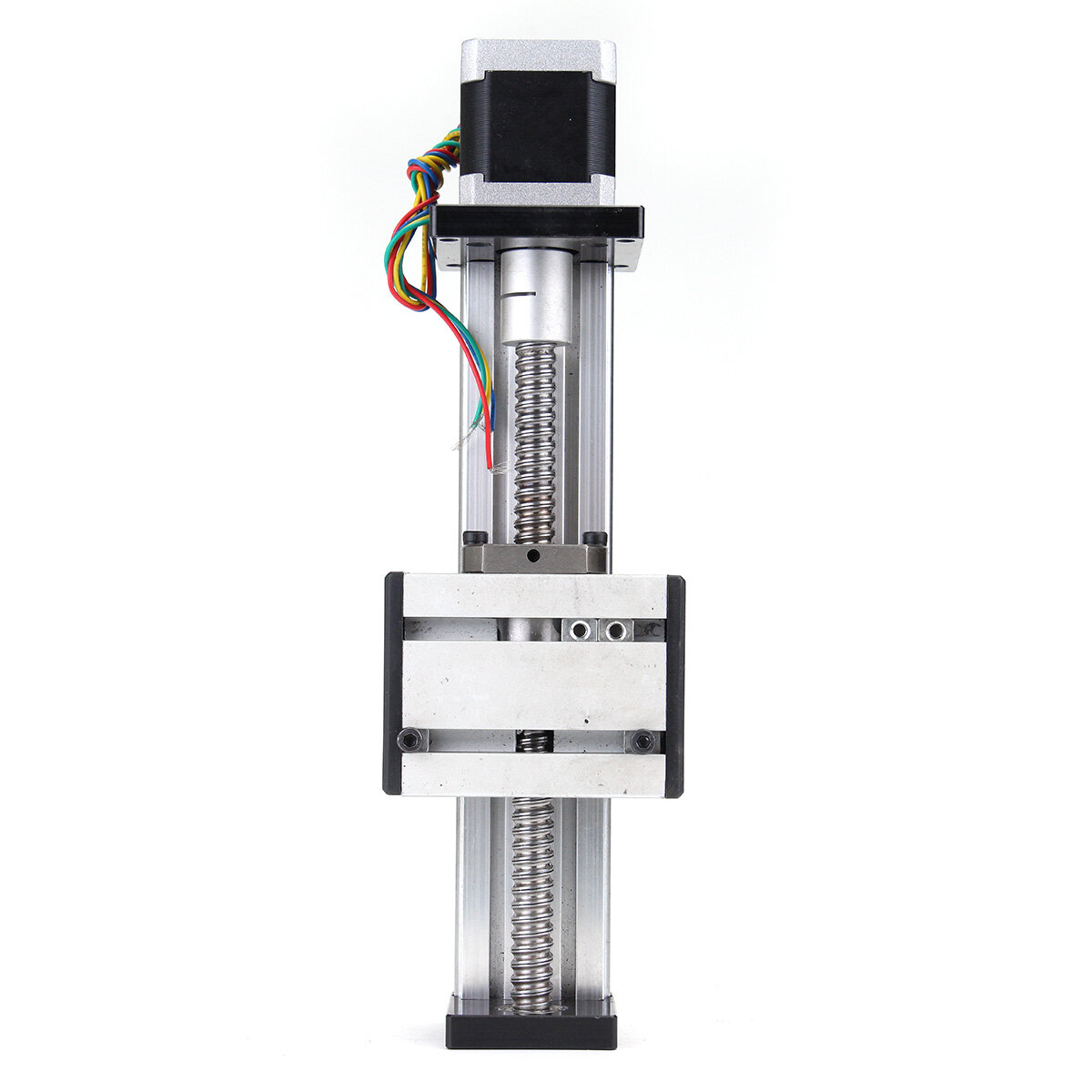

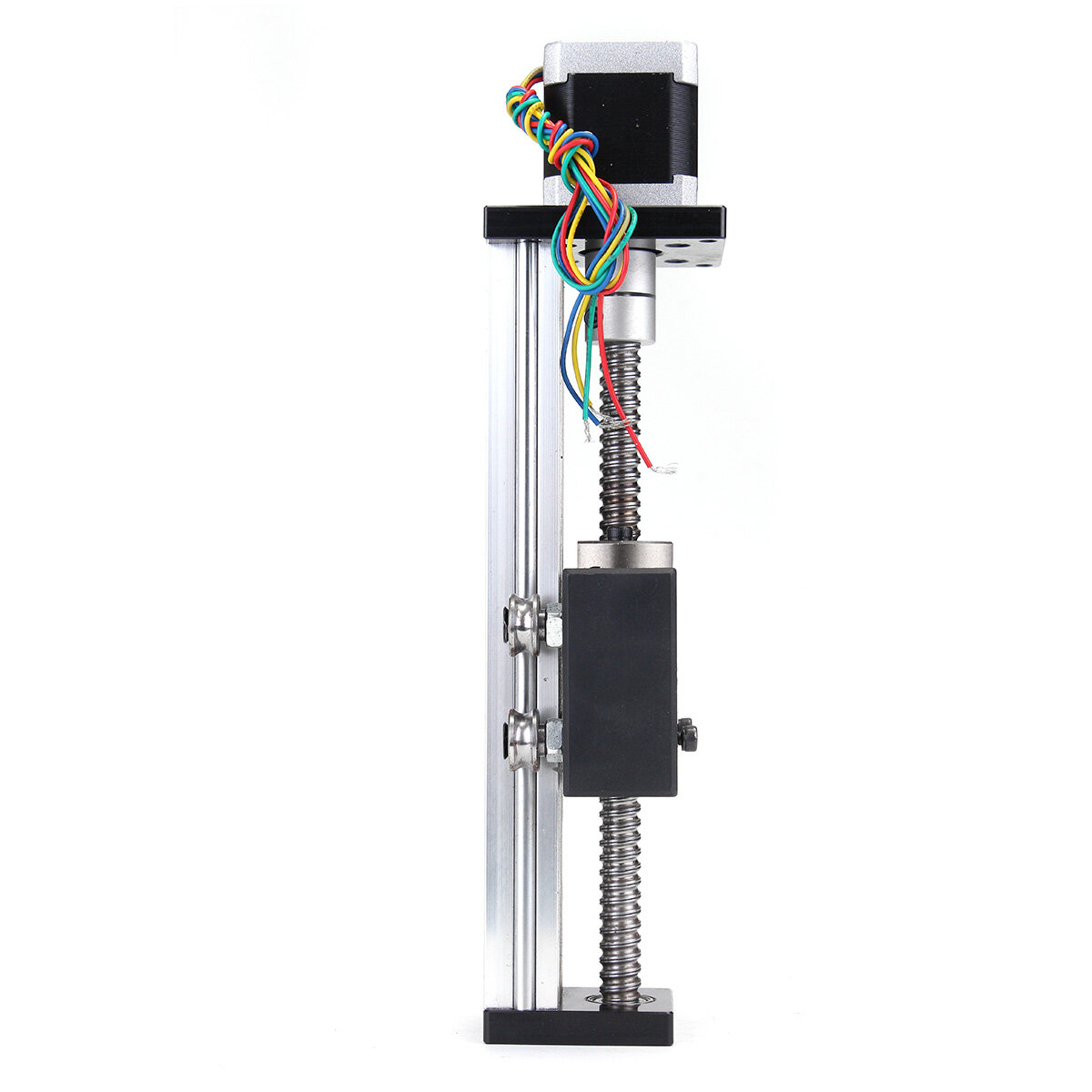

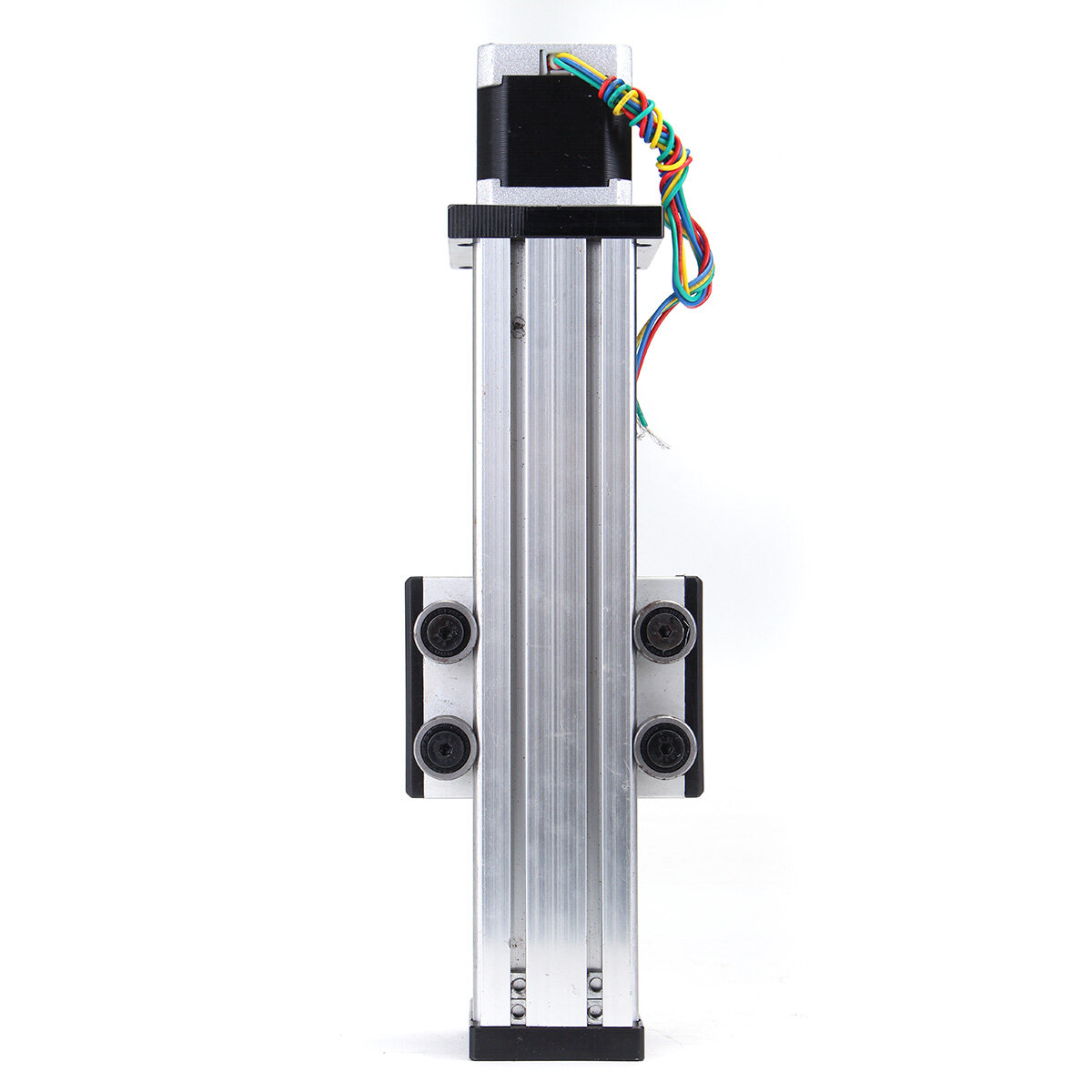

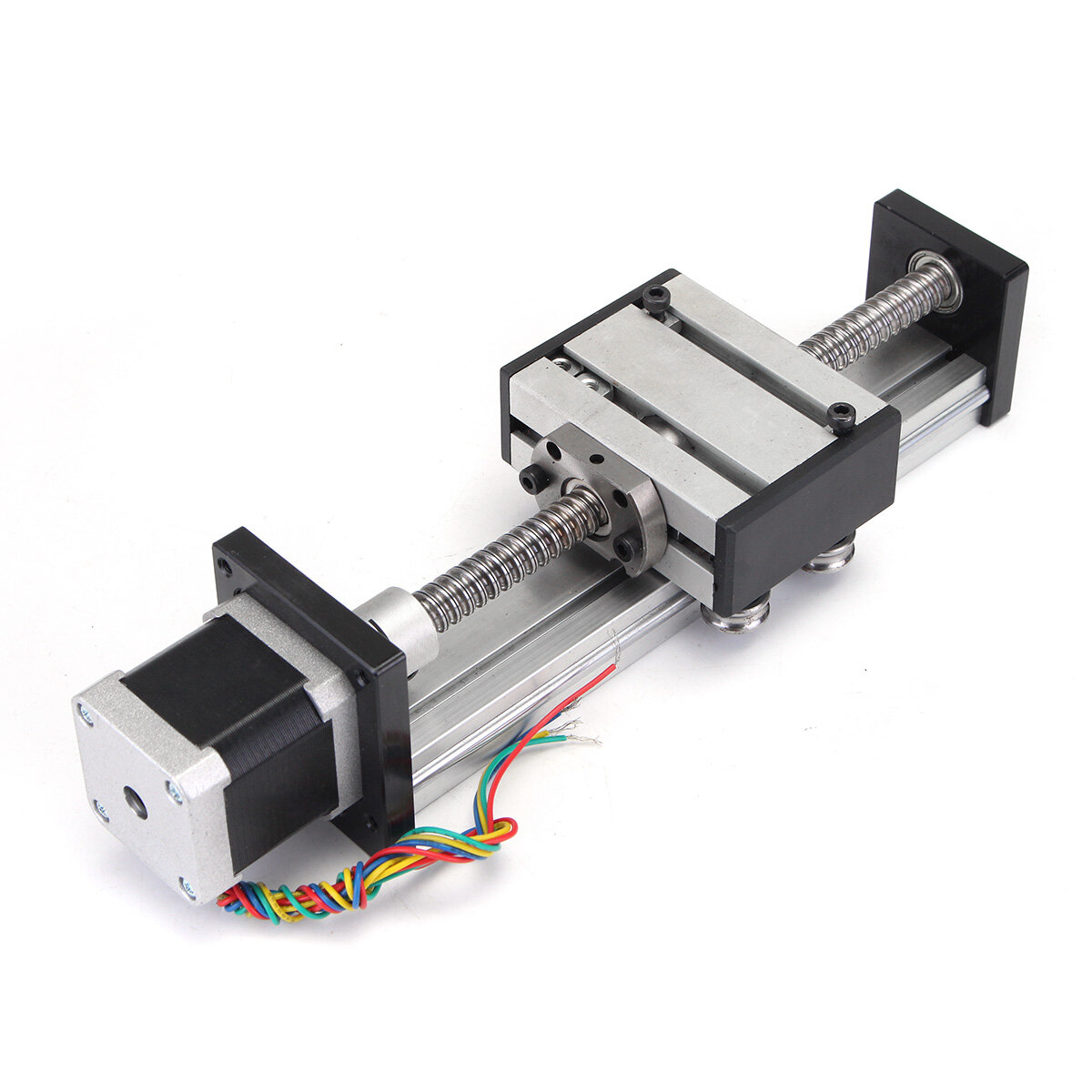

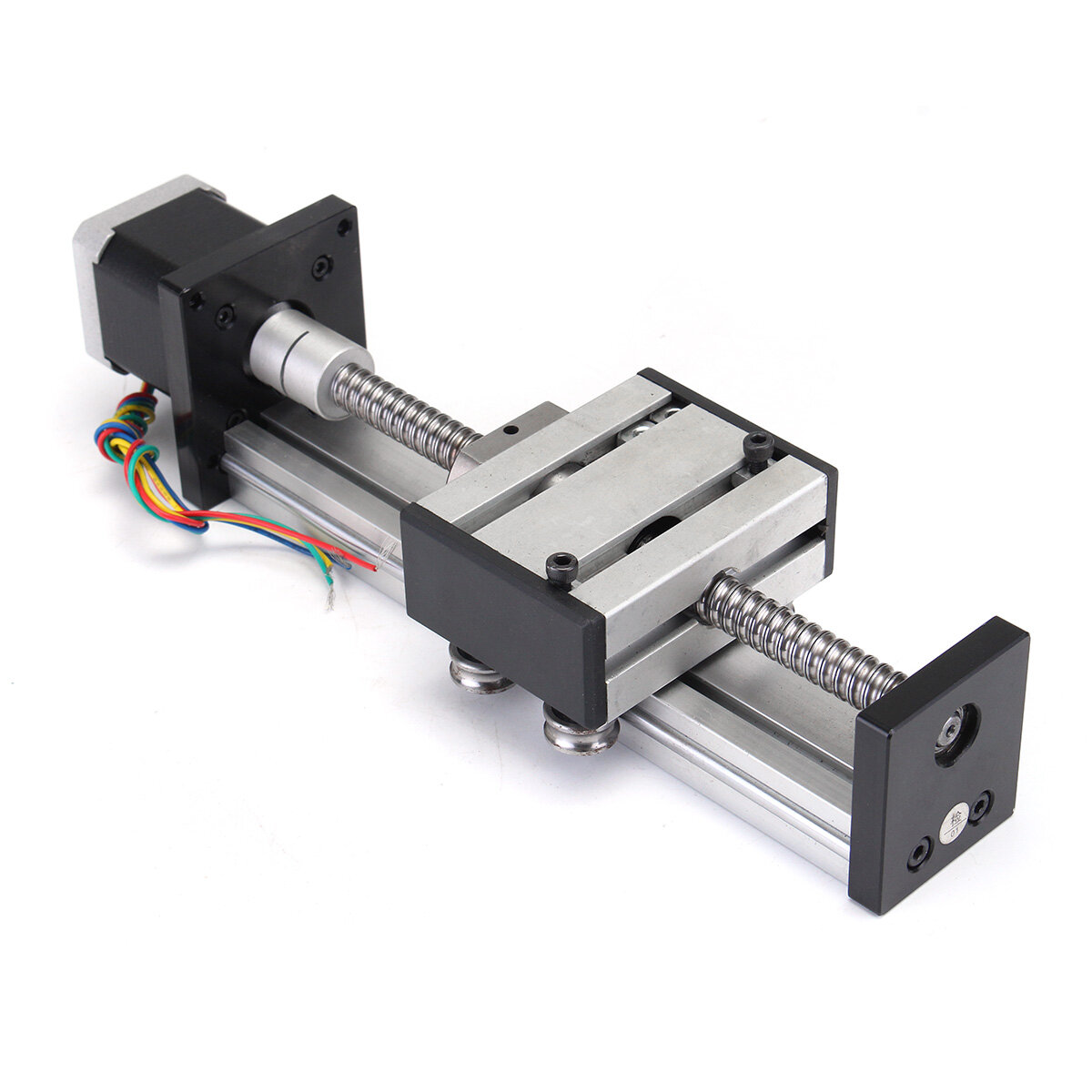

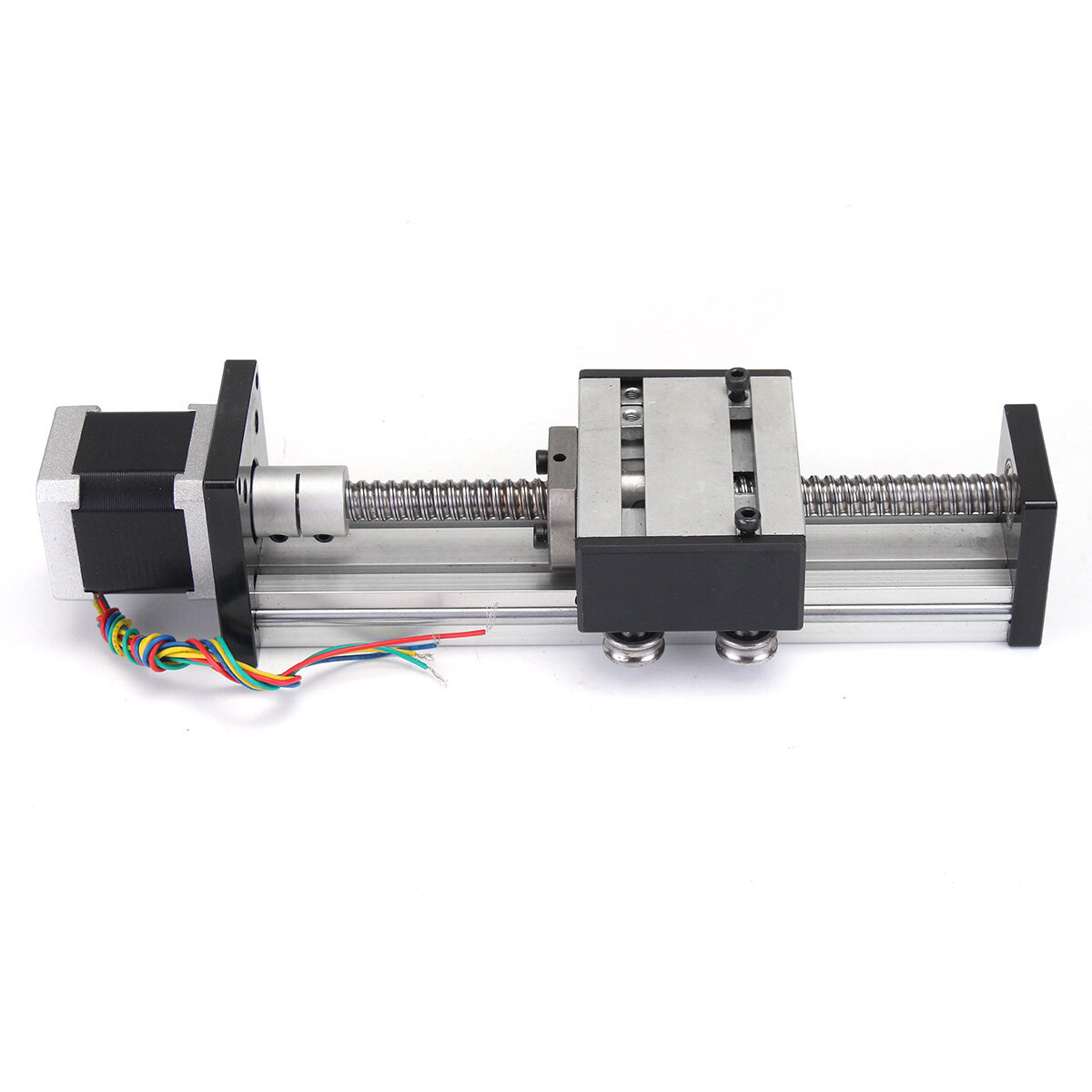

100mm Long Stage Actuator Linear Stage 1204 Ball Screw Linear Slide Stroke With 42mm Stepper Motor COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

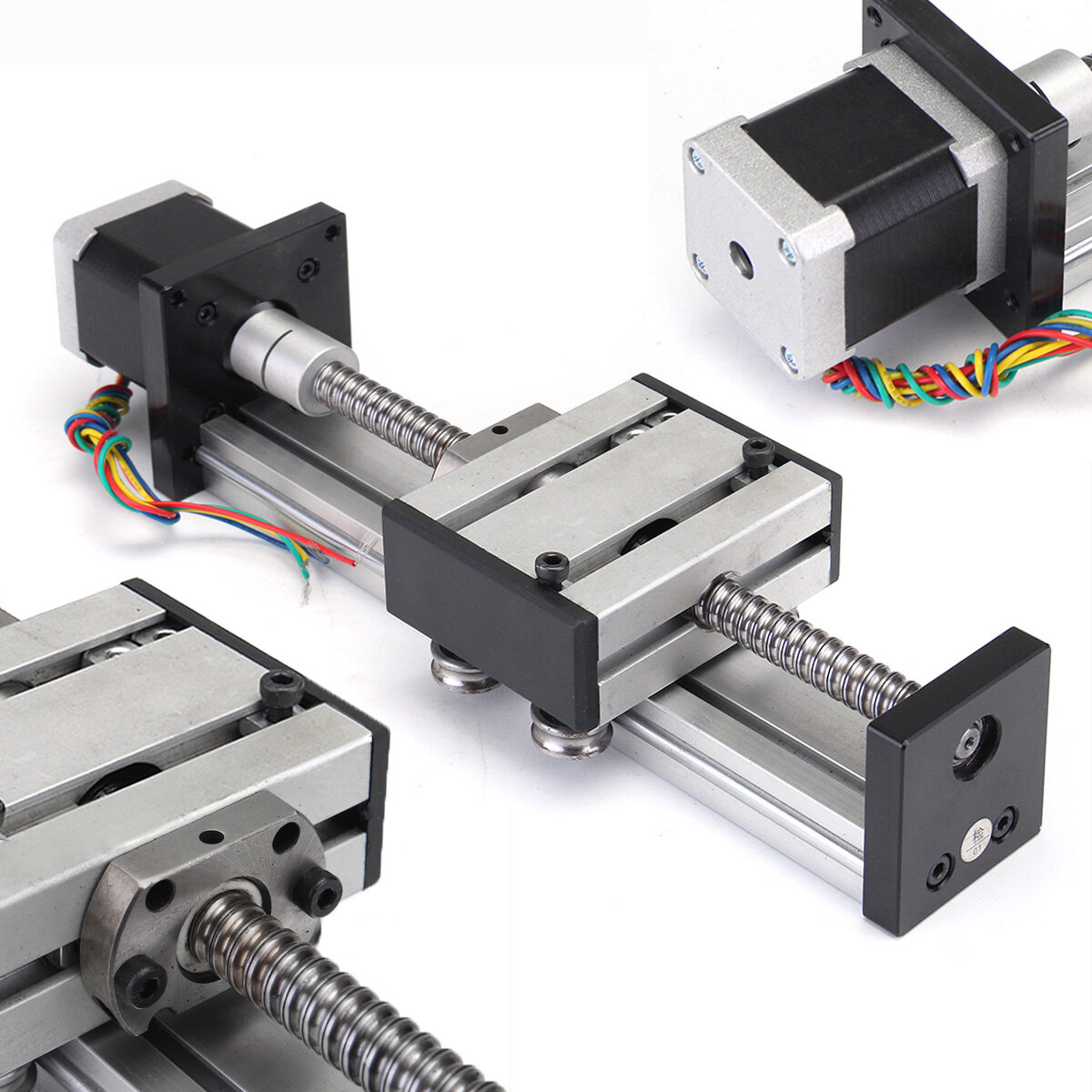

Description: 100mm Long Stage Actuator 1204 Ball Screw Linear Slide Stroke With 42mm Stepper Motor Specification:

Material	Aluminum alloy
Size	270mm*50mm
Slide Width	40mm
The Number Of Sliders	1

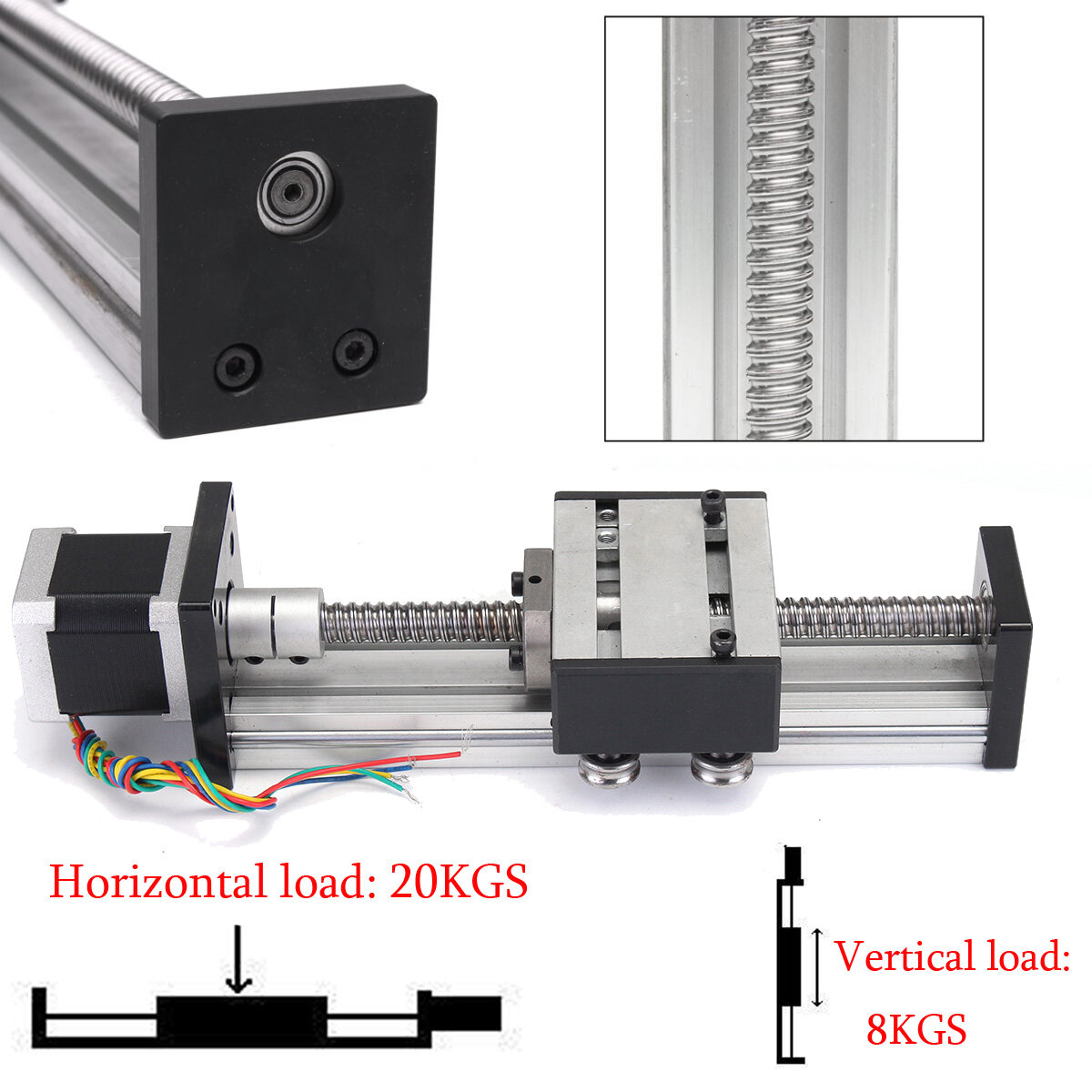

Horizontal load	20KGS
Vertical load	8KGS
Current	1.2A
Resistance	3.2 ohms
Step Angle	1.8 Degree
Torque	45N.cm
Accuracy	0.01mm
Round Trip Accuracy	0.05-0.08mm
Ambient Temperature	-10℃-50℃
Slide Stroke	100mm

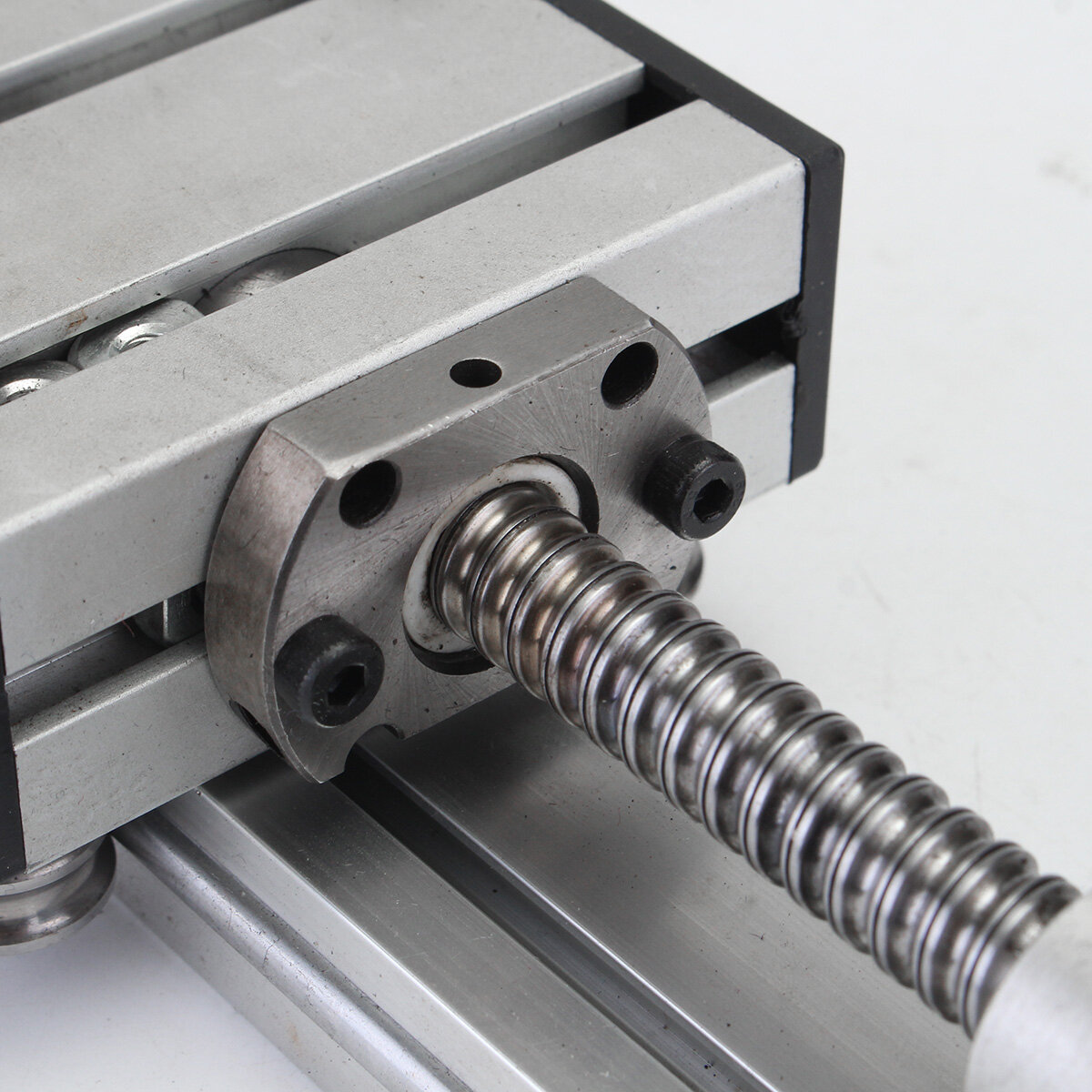

  -High precision, heavy load resistance. -Long life, low coefficient of friction, versatility. -The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance.   1pc x ball screw slide(with a 42mm stepper motor)   1.Please allow a bit error due to manual measurement. please make sure you do not mind before you bid. 2.The color may have different as the difference display, pls understand.
