10/20/30/40/50A 12V/24V Light &Time Control Auto Adapte Solar Charge Controller Dual USB Port LED Indicator PWM Solar Controller COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

1.Build-in industrial micro controller. 2.Fully 4-stage PWM charge management. 3.One-key setting,digital display, auto memory function. 4.Dual mosfet Reverse current protections, low heat productions. 5.Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.

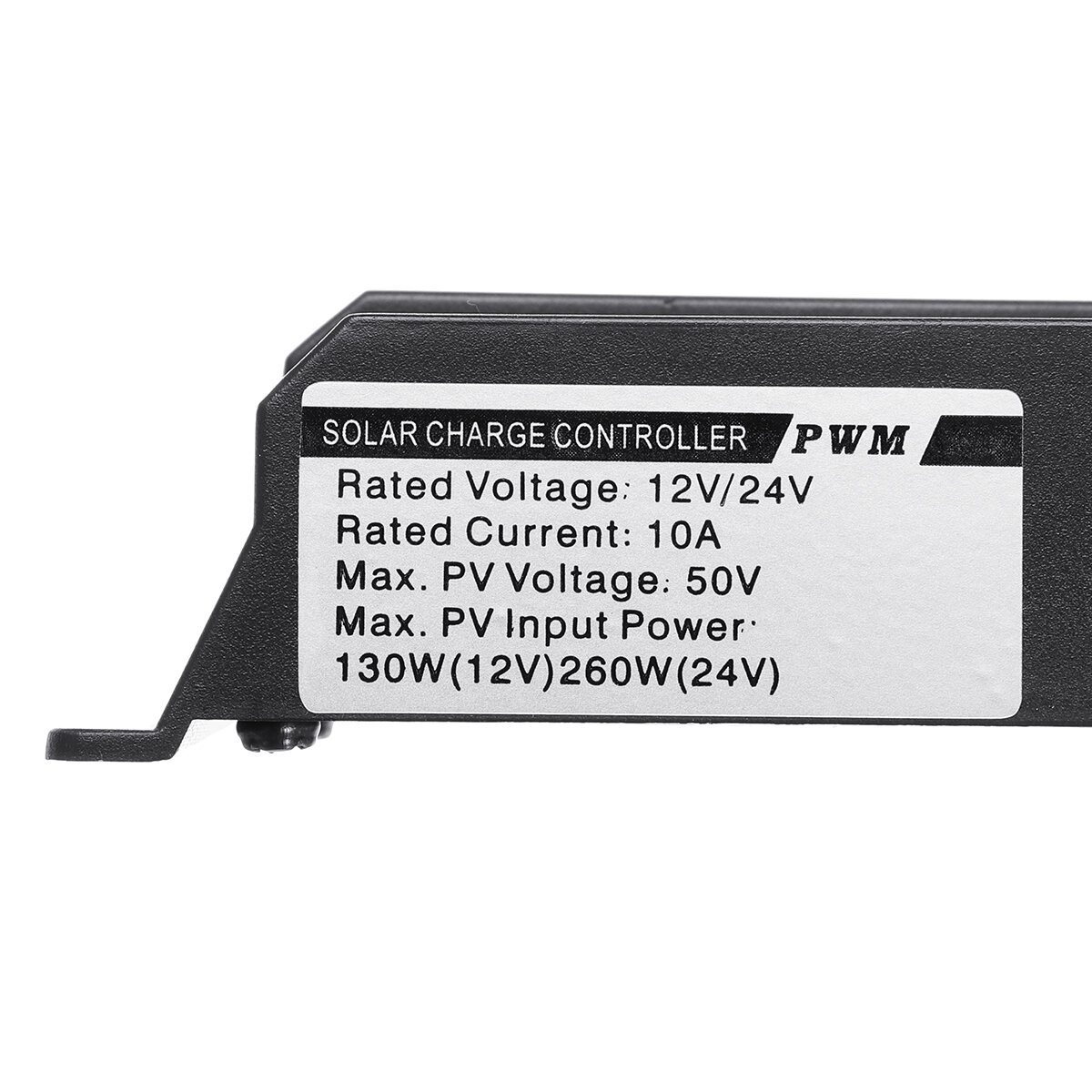

	Model: PWM Buck charge: 28.8V Float charge: 27.4V USB output: 5V/3A Self-consume: <10mA Discharge stop: 21.4V Voltage: DC 12V/24V Max solar input: <50V Current: 10A/20A/30A/40A Rated working current: ≤20A Discharge reconnect: 25.2V Working temperature: -35℃~60℃ Output voltage: 12V/24V Automatically distinguish voltage
	With Timer and light sensor, it could work for solar light system(Only For off-Grid PV Solar System): -For 10A 12V Pv System: 120W Solar Panel, 12V Lead-acid Battery, 21V for Max input Voltage. -For 10A 24V Pv System: 240W Solar Panel, 24V Lead-acid Battery, 42V for Max input Voltage.
Safety Instructions:
System Connection:
