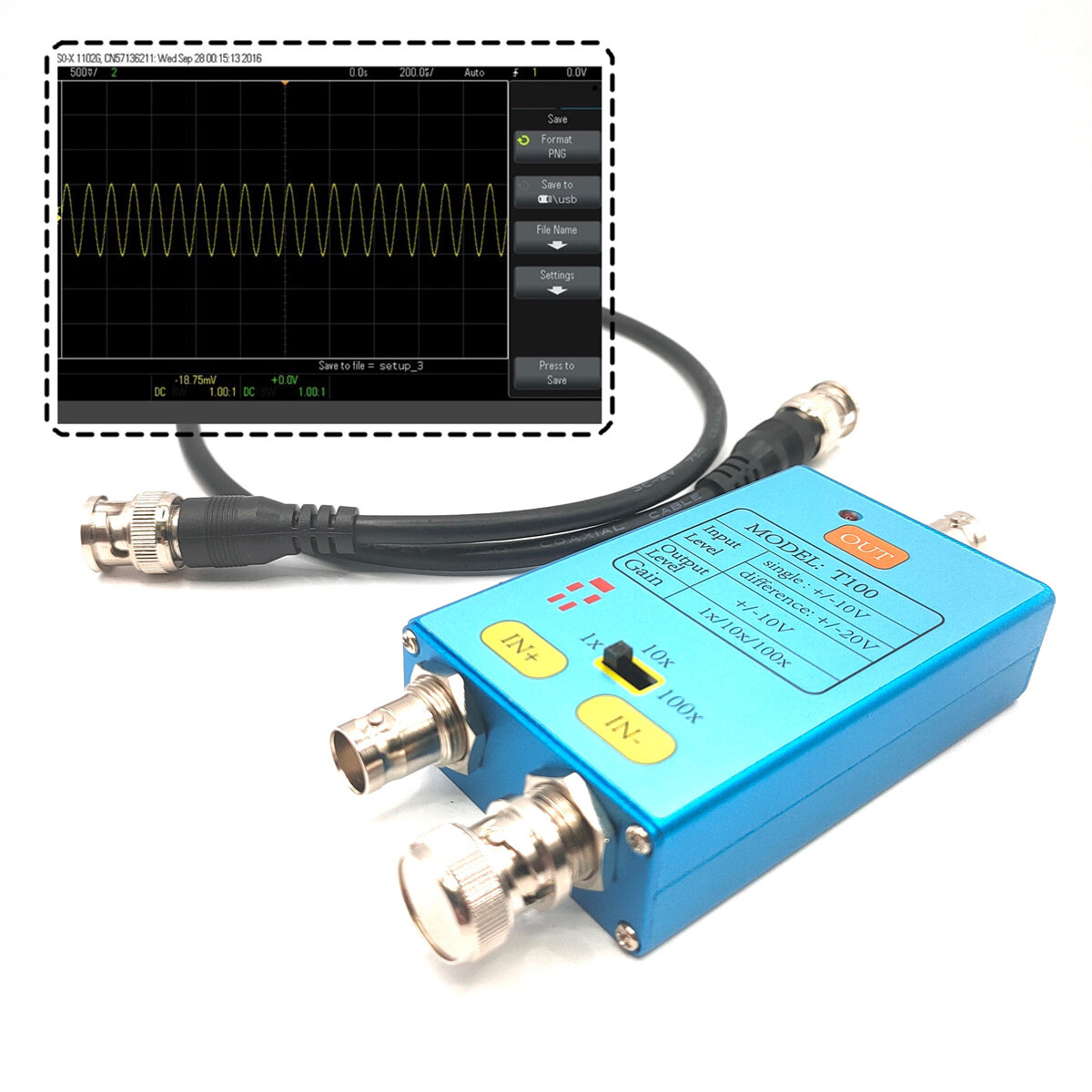

10M Bandwidth Oscilloscope Differential Probe Signal Amplifier For Weak Electrical Signal Measurement With Metal Shell COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

This product is specially designed to amplify weak signals. For weak current, the noise is small, the precision is high, and the original signal is restored well.

Oscilloscopes are sometimes unable to measure small signals, and the instrument needs to be amplified before measuring.



Application:

Electronic engineers, maintenance, R&D personnel, college students and other oscilloscope users.

It can also be used in industrial automation measurement and control, because the sensor signal is very weak and needs to be amplified before output.



Note: This product is not a high voltage probe. The high-voltage probe is for high-voltage operation. For strong electricity, it is generally used to measure high-voltage electricity, and the accuracy requirements are not high.





- Support differential input and single-ended input

- Wide input voltage range, up to +/-10V

- 1x/10x/100x optional magnification

- Up to 10M bandwidth

- Battery powered, support USB TYPEC interface charging

- Ultra low noise, high common mode rejection ratio

- long battery life

- Exquisite metal shell, strong anti-interference ability





Single-ended input voltage: -10V to +10V

Differential Input Voltage: -10V to +10V

Single-ended input impedance: 2M

Differential input impedance: 4M

Output Voltage: -10V to +10V

Magnification: 1x/10x/100x

Bandwidth:

G=1 -- 10M

G=10 -- 10M

G=100 -- 2M

Common mode rejection ratio: >80DB

Noise : 5nV/√ @1KHz

Power supply: built-in rechargeable lithium battery

Charging interface: USB TYPEC

Battery life: about 5 hours

Working temperature: 0°C-40°C

Working humidity: ≤90%RH

Power consumption: ≤0.2W

Volume (L×W×H): 115*50.5*21 mm

Host weight: 150g





1 x Host

1 x 0.5m BNC straight cable

1 x BNC shorting cap- 1 x Main Unit

1 x Antenna
