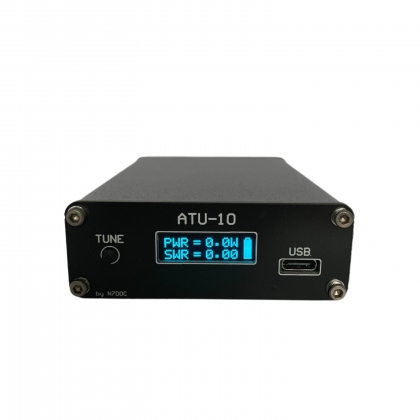

1.4 version 1W-15W ATU-10 ATU10 QRP by N7DDC The Tyny QRP Automatic Antenna Tuner For Radio with Battery COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Input power: Minimum 1W, Maximum 15W

The control button has only 3 functions ：

1. a short press resets the tuner and sets all relays to their initial state, in which all reactive elements are disabled and do not affect the signal flow through the tuner,

2. a long press causes the tuner to enter the tuning mode

3. a very long press for more than 5 seconds causes the firmware version to be displayed on the display.

The tuner has 3 power consumption modes:

Parameter:

Power supply working voltage: 5V DC (type C)

Maximum operating current: 12 mA

Maximum operating power: 10 watts

Maximum measurable power: 15 watts

Minimum tuning power: 1 watts

Minimum measurable power: 0.1 watts

Power measurement step: 0.1 Watt

Power measurement accuracy: 10%

Maximum tuning inductance: 18.37 µH

Minimum tuning inductance: 0.1 μH

Maximum tuning capacitance: 4079 pF

Minimum tuning capacitance: 22 pF

Tuning frequency range: 1.8 ~ 30MHz (can be extended to: 1.8-50MHz or higher)

Control protocol: Icom protocol

Equipment size: L*W*H:100*75*26 mm

Equipment weight: 0.3kg

Display screen: 0.91" OLED 128*32

Charging voltage: 5V DC (Type C)

Built-in battery: 2xLi-Ion 14500 (3.7V/ 850 mAh)

RF interface: BNC

Current consumption: 12 mA in active mode, 170 μA in sleep mode, 37 μA in shutdown state
