1. Module: MLX90640_CSB
2. Use MLX90640ESF_BAB IR Sensor
3. Resolution : 32x24
4. Temperature measurement range : ‐40℃~300℃
5. Measurement accuracy : +/‐2℃(Central area,0~100℃)
6. Operate temperature : 10℃~50℃
7. Operate humidity: <=70%
8. Refresh rate : 8HZ
9. No need to calibrate
10. FOV : 55°x35°
11. Display center point ,maximum and minimum temperature
12. Make photo(Can saved 90PCS photos, connect to computer, copy and delete)
13. Rechargeable Battery
14. TFT size : 1.8inch(display resolution：160x128)
15. Product size : 66x46x20mm

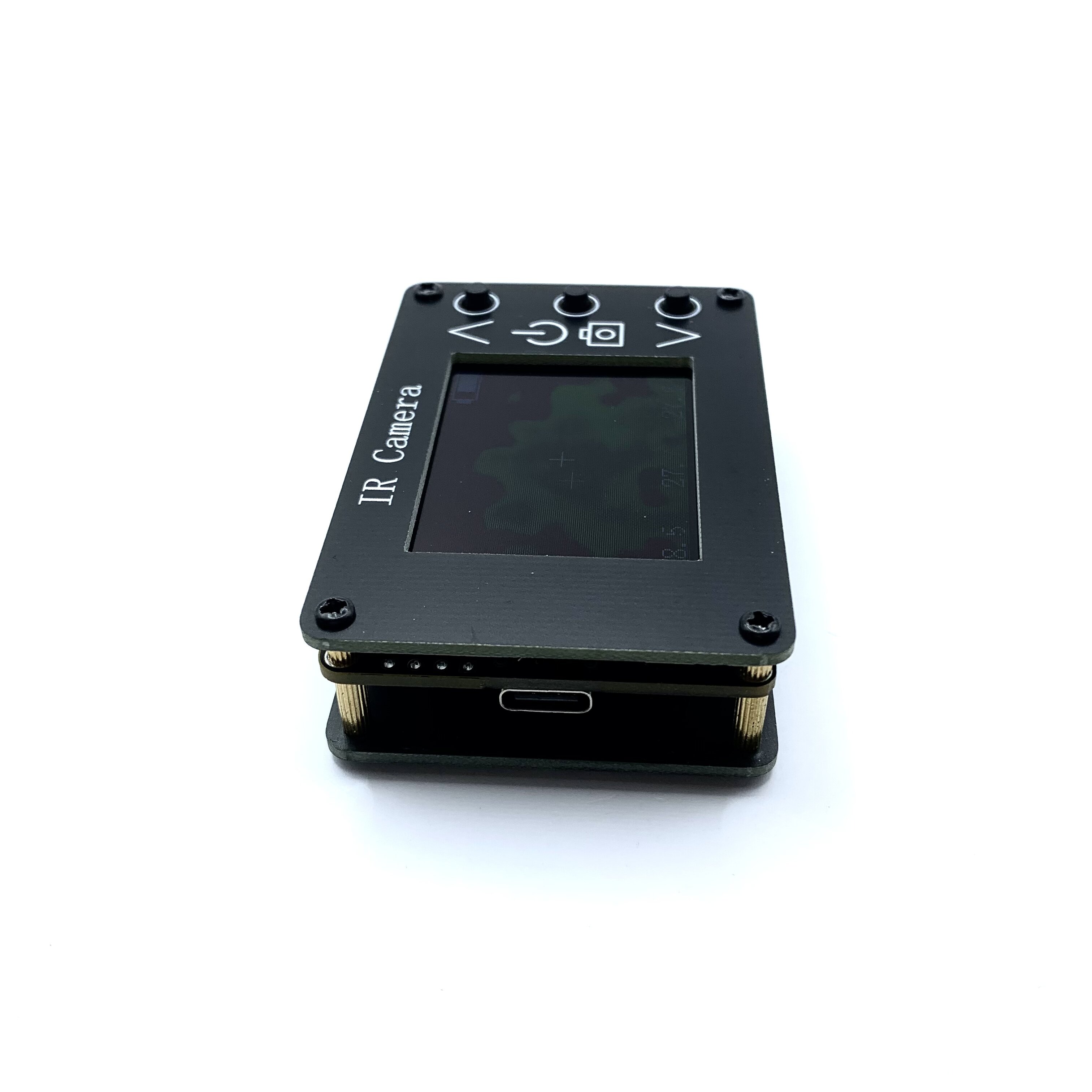

16. Power port : USB Type‐C 5V/1A
17. Built-in 4M memory chip, which can store about 90 pictures
1. Charging : Use USB Type‐C line, 5V/1A
2. Open/Close : Press Middle Key Long
4. Make photo: Press Middle Key
5. Review photo: Press Up or Down Key
6. Quit photo: Press Up or Down Key Long
7. Copy photo : connect computer with usb line, computer will get a disk.
Note: can not change photo in disk or put other file into the disk. Before
connect computer , pls fully charged and shutdown.
1 x Mini Thermal Imager
