24 * 32 Pixel Infrared Sensor Simple Thermal Imager 2.0inch LCD 240*320 Resolution Clear Definition Imaging Camera -40℃ to 300℃ COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

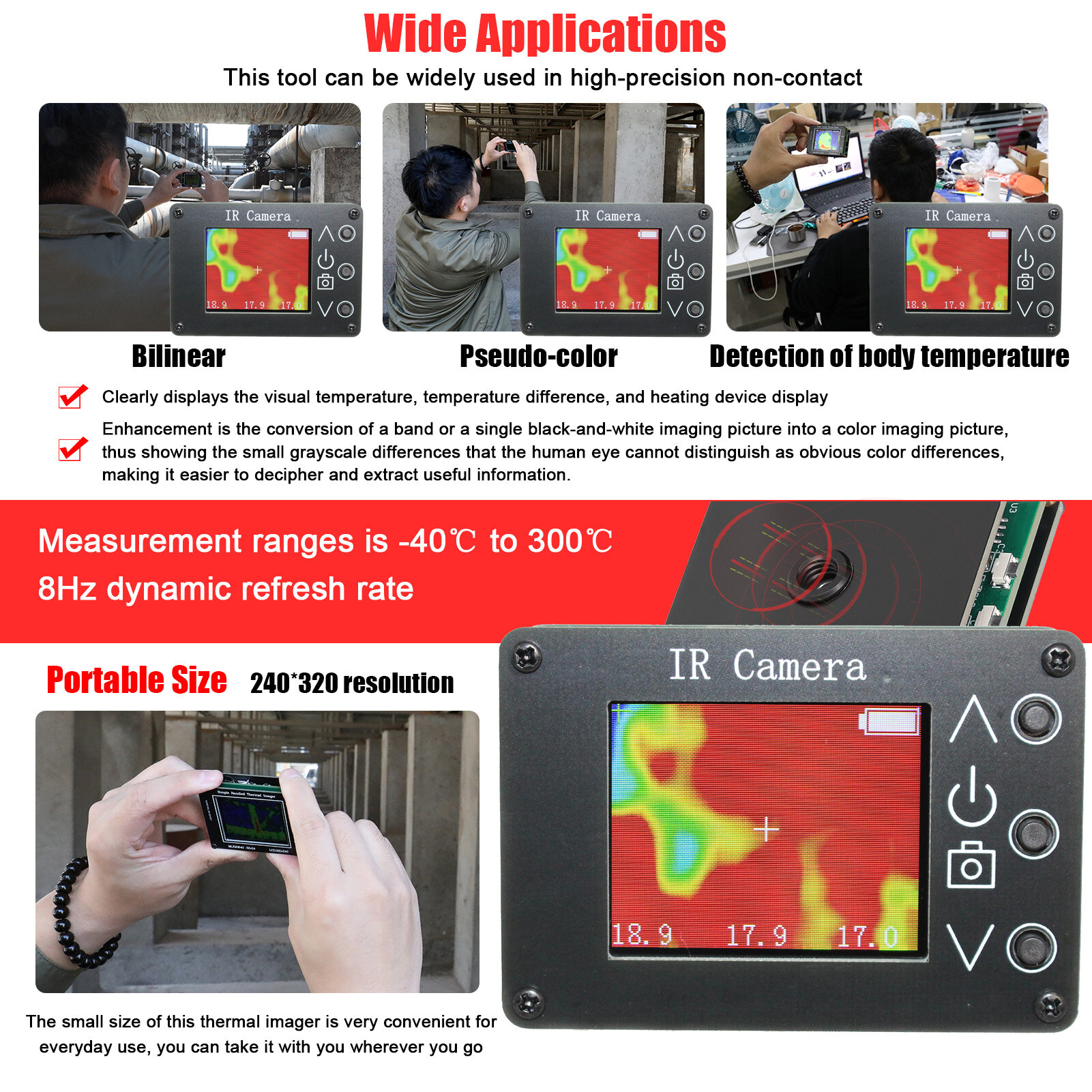

Features:

-

-

-

-

-

-

-

High-precise contactless temperature measurement and body temperature detection.

Intelligent ambient temperature measurement and control of buildings.

Car repairs and maintenance inspection, automotive parts temperature detection.

Microwave oven and oven temperature detection and control.

Temperature monitoring of industrial parts.

Visual temperature sensors.

Floor heating equipment side leakage and maintenance.

Thermal inspection of circuit board and component.

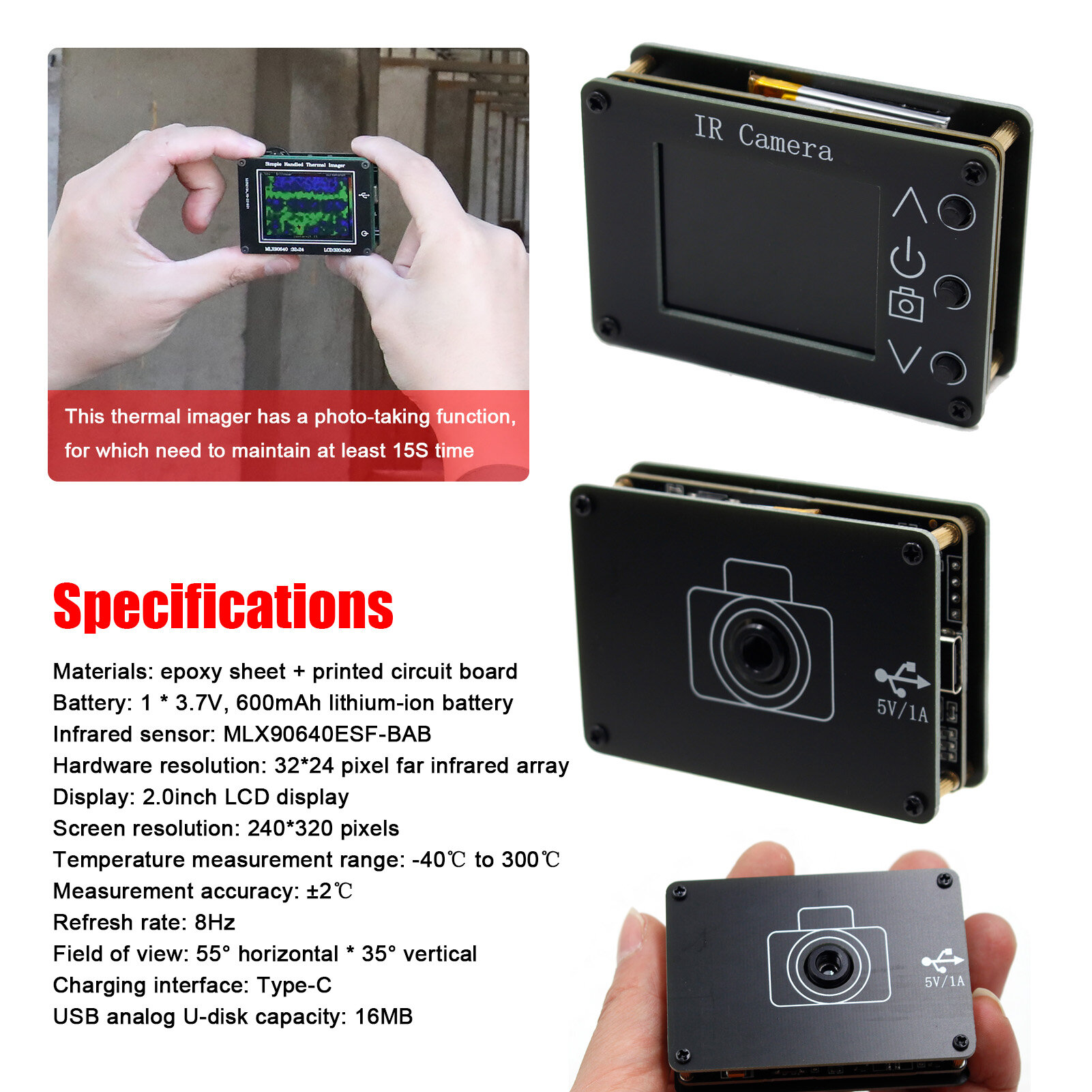

Name: Thermal Imager

Materials: epoxy sheet + printed circuit board

Battery: 1 x 3.7V, 600mAh lithium-ion battery (included)

Infrared sensor: MLX90640ESF-BAB

Hardware resolution: 32*24 pixel far infrared array

Display: 2.0inch LCD display

Screen resolution: 240*320 pixels

Temperature measurement range: -40℃ to 300℃

Measurement accuracy: ±2℃

Refresh rate: 8Hz

Field of view: 55° horizontal * 35° vertical

Charging interface: Type-C

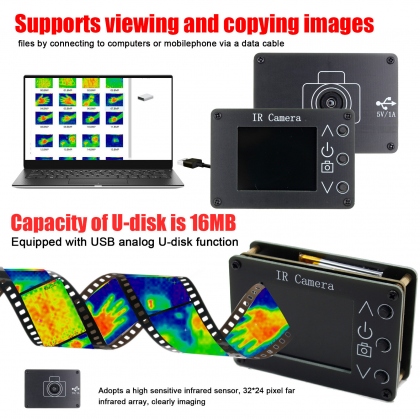

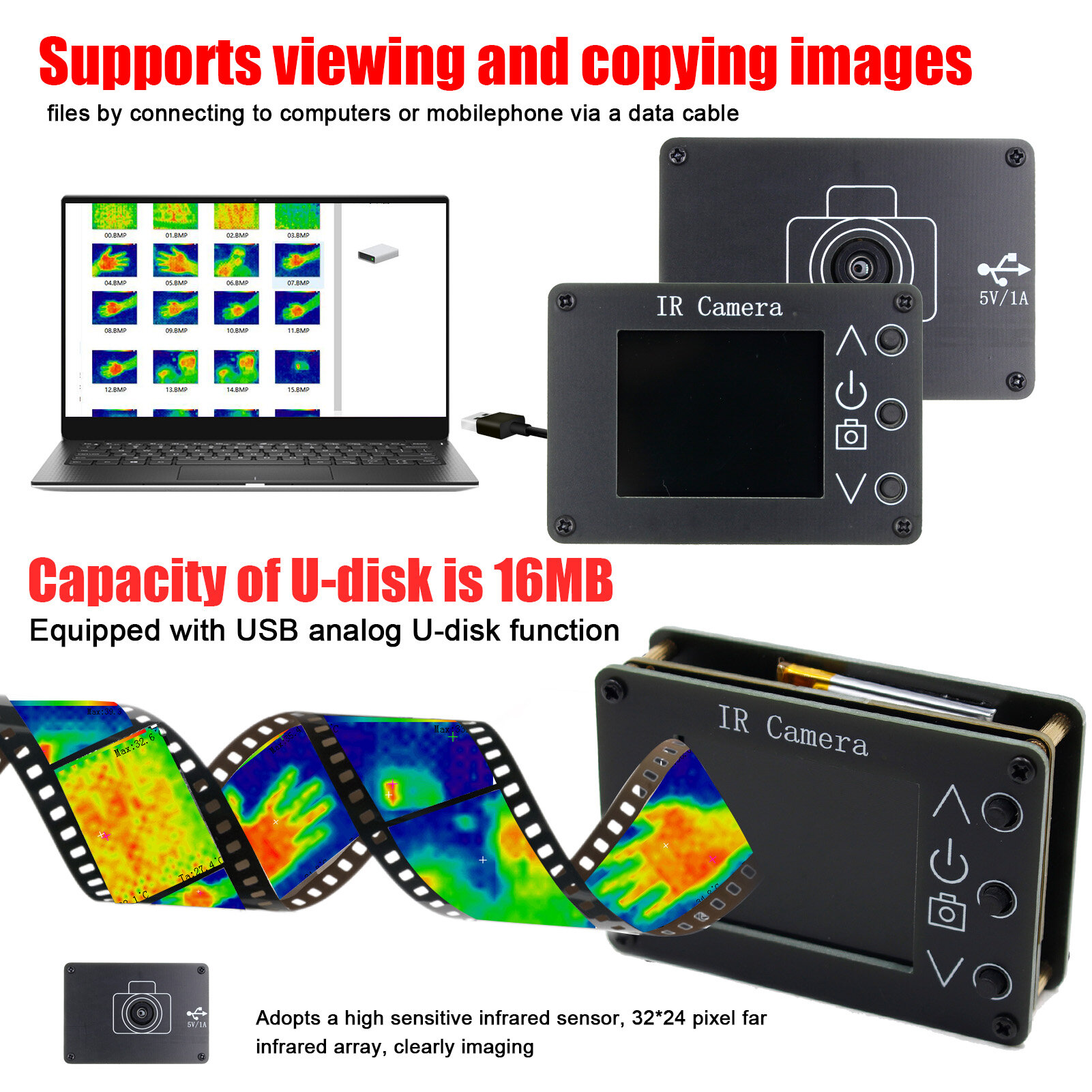

USB analog U-disk capacity: 16MB

Item size: 62 * 50 * 20mm / 2.44 * 1.97 * 0.79in

Item weight: 70g / 2.47ounce

Package size: 110 * 80 * 50mm / 4.33 * 3.151 * 1.97in

Package weight: 80g / 2.82ounce



1 x Thermal Imager

1 x Cable
