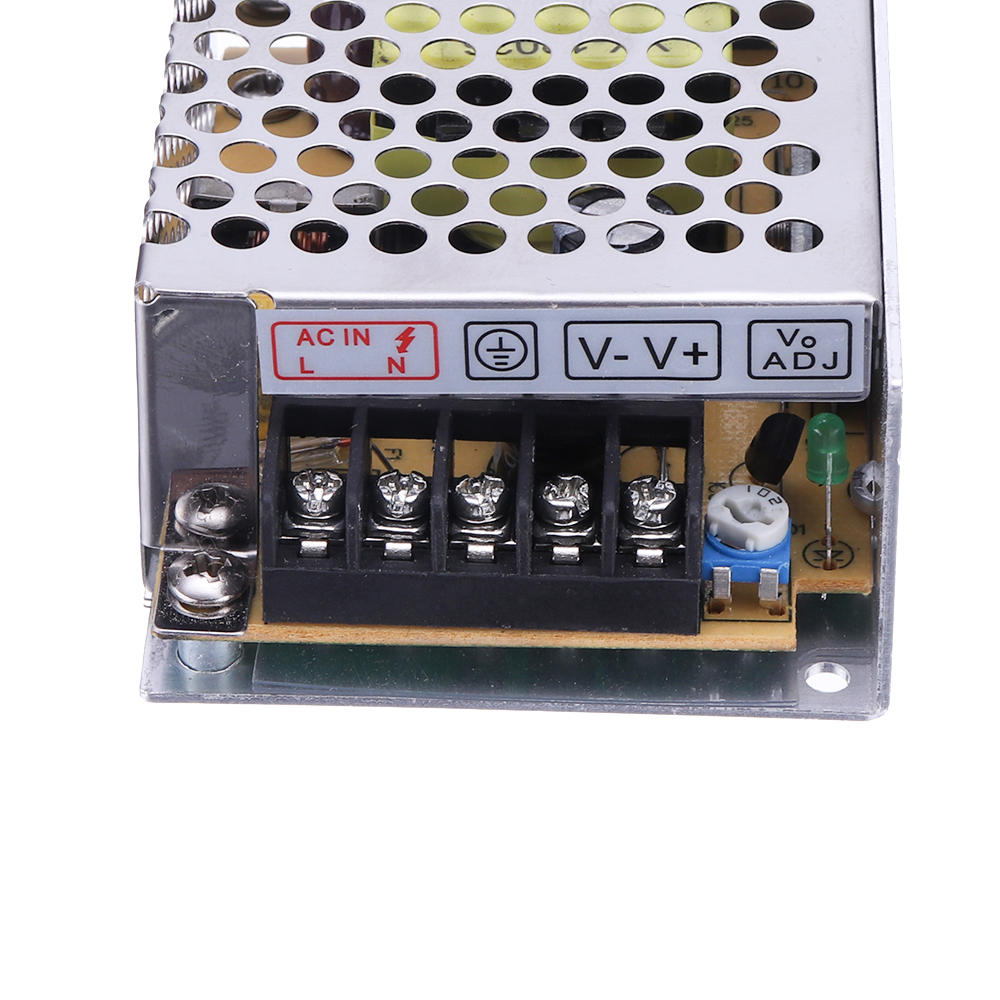

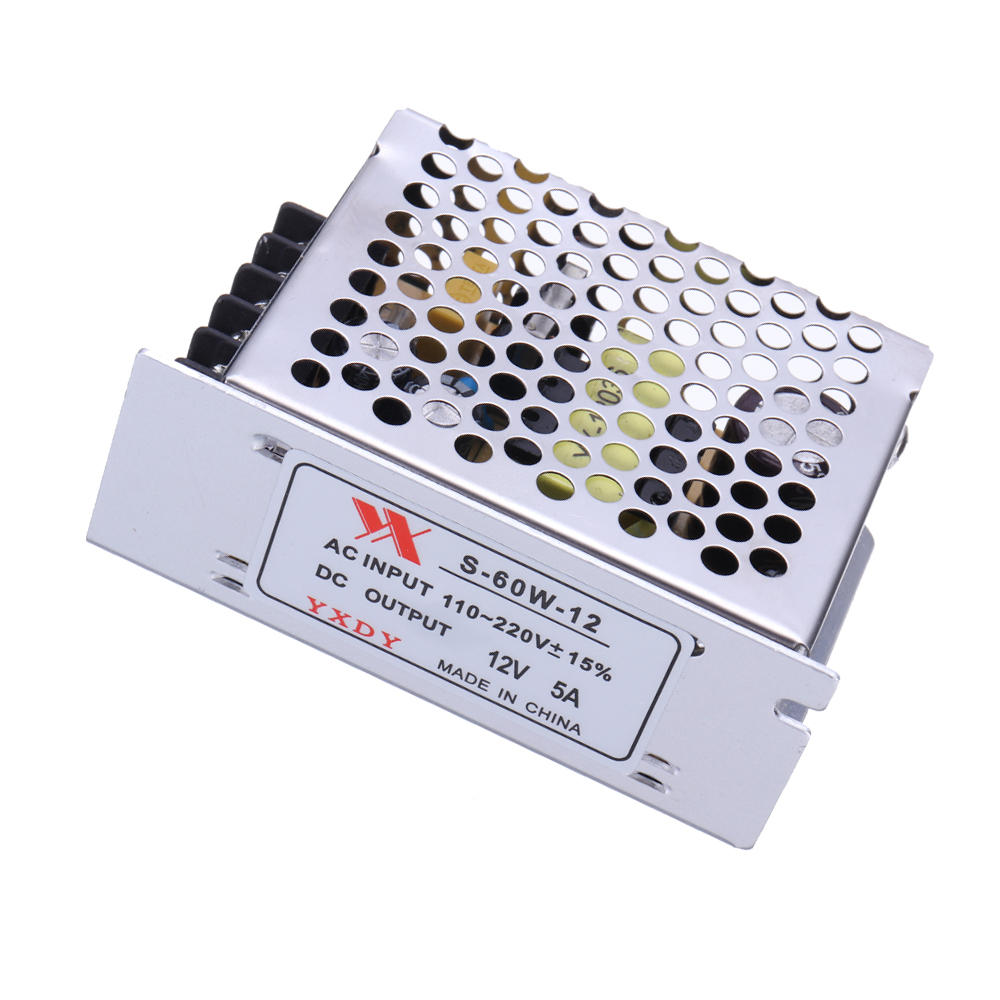

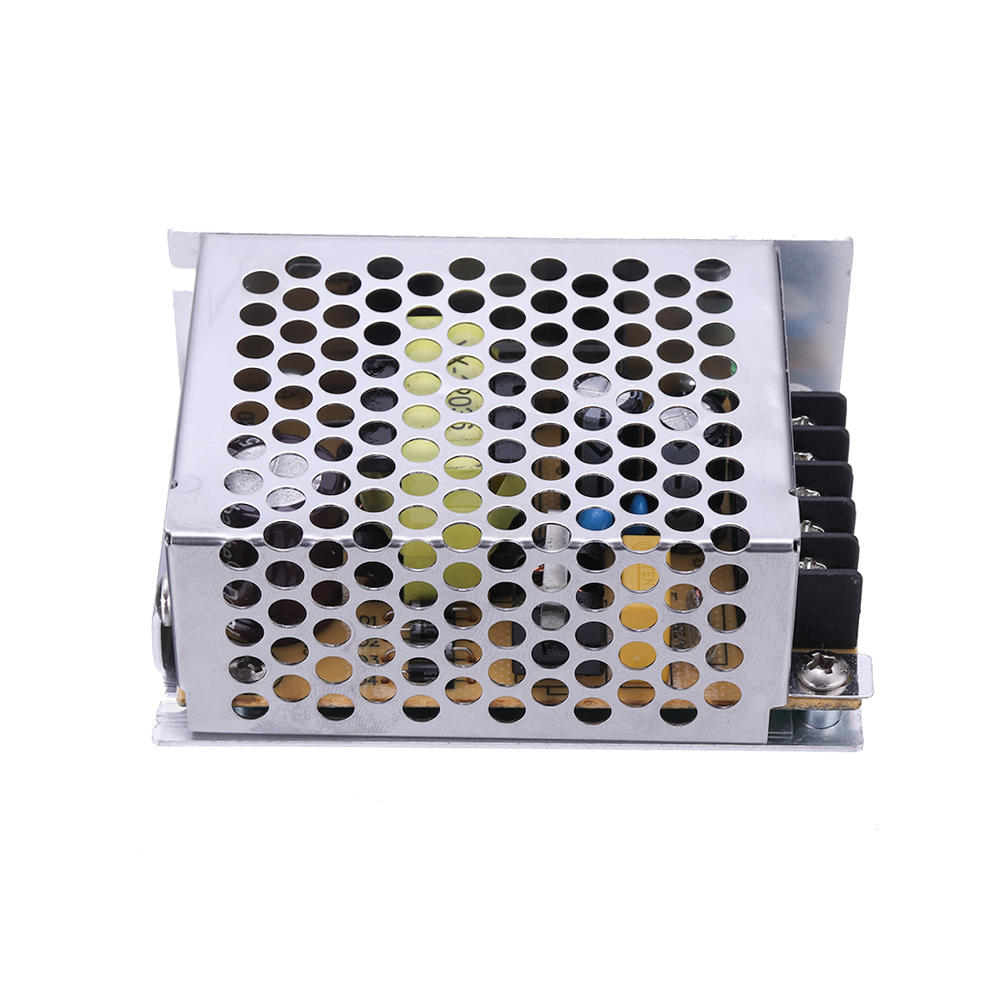

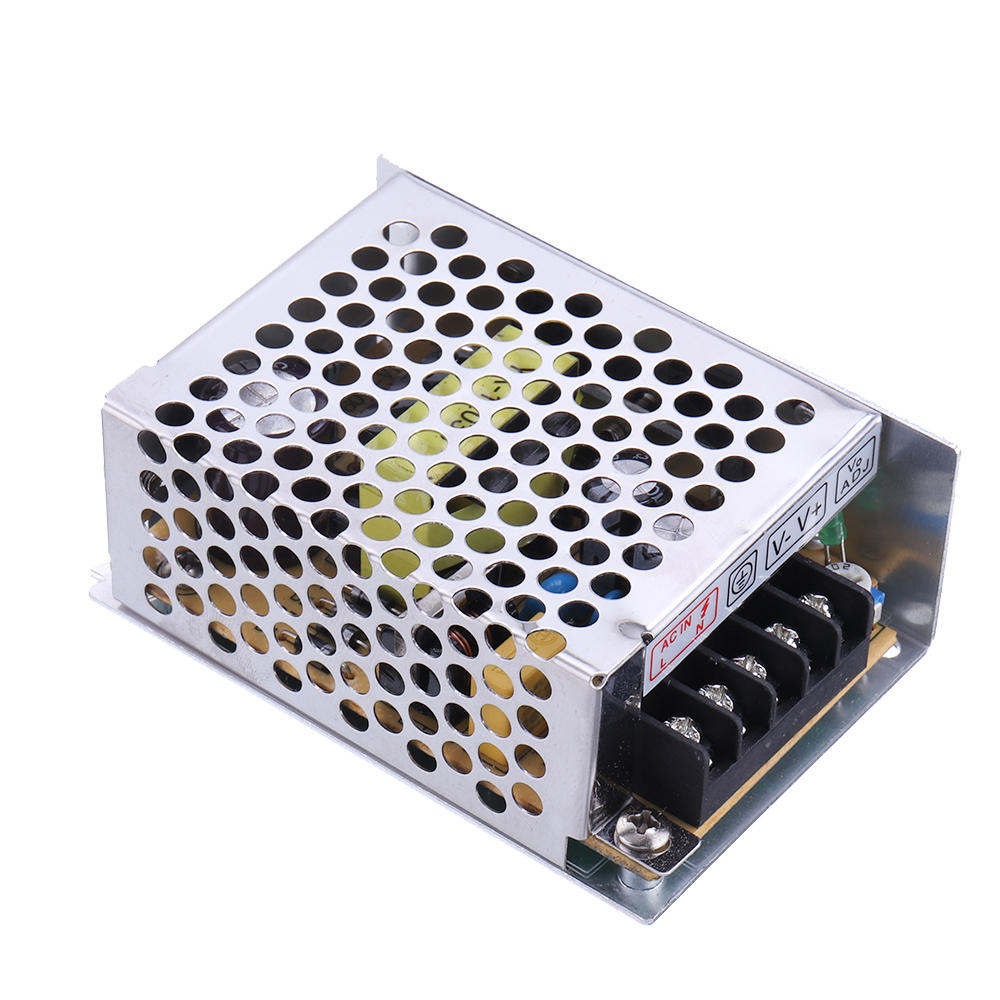

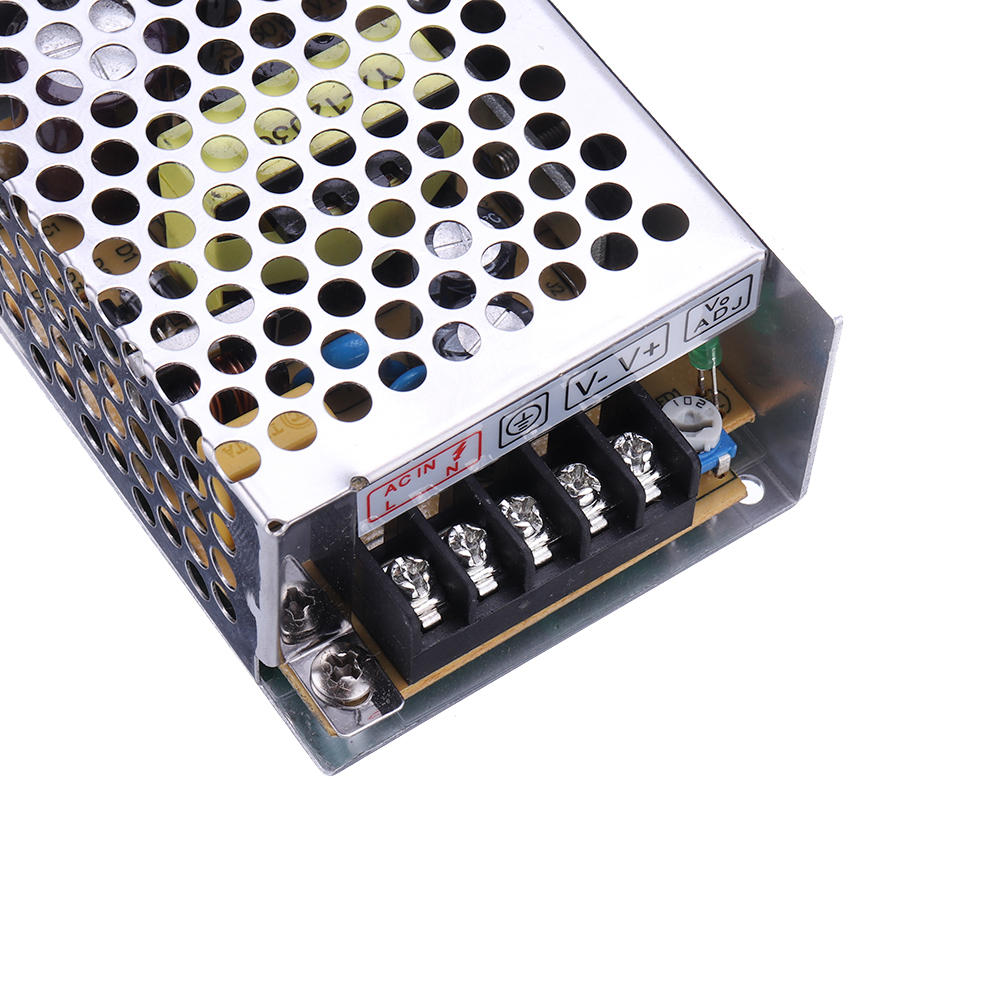

2pcs AC 100-240V to DC 12V 5A 60W Switching Power Supply Module Driver Adapter LED Strip Light COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

1. Good anti-interference performance and high reliability. 2. Low operating temperature and long service life. 3. Wide input voltage range, (100-240V) in line with global usage standards. 4. Good insulation performance and high electric strength. 5. Full load high temperature burning machine, 100% aging test. Model: HS-60-12 DC output voltage: 12V Output voltage tolerance: ±1% Rated output current: 5A Output current range: 0 - 5A Ripple and noise: 100mVp-p Line stability: ±0.5% Load stability: ±0.5% DC output power: 60W Efficiency: 85% DC voltage adjustable range: ±10% Input voltage range: 100 ~ 240VAC 47 ~ 63Hz; 120-370VDC Input current: 2A/115V 1A/230V Inrush current: cold start current 30A/115V 60A/230V Leakage current: <3.5mA/240VAC Overload protection: 105%~150% Overvoltage protection: 15%-135% Temperature coefficient: ±0.03%/°C (0-50°C) Start, rise, hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC Shock resistance: 10 - 500Hz, 2G 10min, / 1 cycle, a total of 60 points, each axle Pressure resistance: input and output: 3KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC Isolation resistance: input and output, input and housing, output and housing: 500VDC/100MΩ Working temperature, temperature: -10 ° C - +60 ° C, 20% - 90% RH Storage temperature, temperature: -20 ° C -+85 ° C, 10% - 95% RH Dimensions: 85 × 60 × 34mm 2 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
