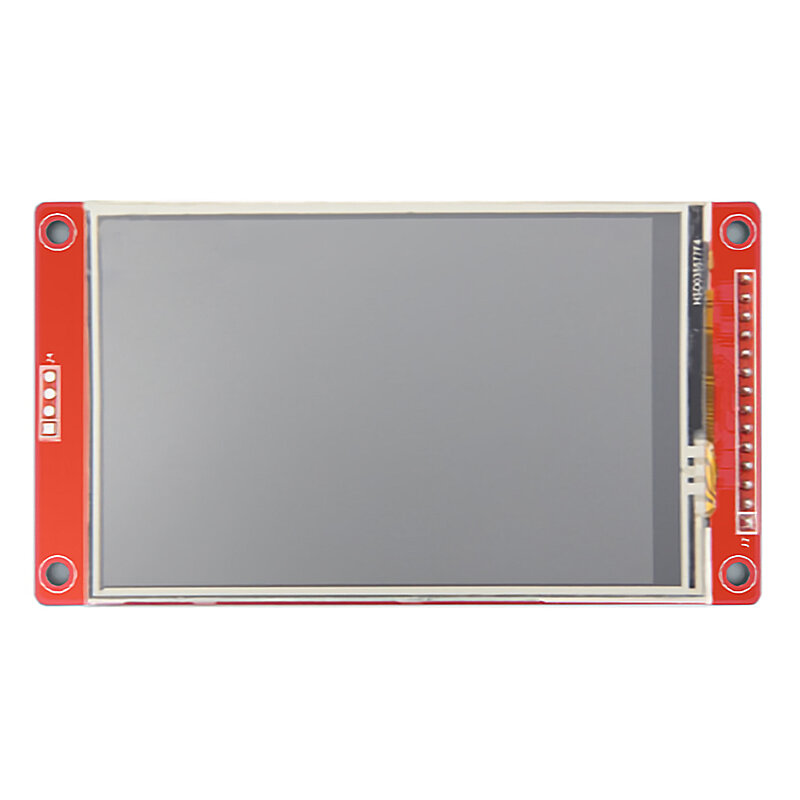

3.5inch 320*480 ILI9488 Touch Display Screen 3.5" SPI Serial TFT LCD Module Resistive/Capacitive Smart Display Screen COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Model: CTC3.5inch

Driver Chip: ILI9488

PIN Spacing: 2.54MM

Display Size: 73.44(L)X48.96 (W) MM

Backlight Parameters: Six LEDs in parallel, Current: 120mA

Storage Temperature: -30°C~ +80 °C

Touch Type: Resistive or Capacitive(Optional)

Connection: 2.54 pin

1	Display pin	VCC	5V/3. 3V power input
2		GND	Grounding
3		CS	LCD chip selection signal, active low
4		RESET	LCD screen reset signal, low level reset
5		D/C	LCD screen register/data selection signal, 0: register 1: data
6		SDI(MOSI)	SPI bus write data signal
7		SCK	SPI bus clock signal
8		LED	Backlight control, high level light, connected to 3.3V always on
9		SD0(MISO)	SPI bus read data signal, if you don’t need to read, you don't need to connect
10	T-Touch resistance	T_CLK	Resistive touch SPI bus clock signal
11		T_CS	Resistive touch screen chip selection signal, low level enable
12		T_DIN	Resistive touch SPI bus input
13		T_DO	Resistive touch SPI bus output
14		T_IRQ	Resistive touch screen interrupt signal, low level when a touch is detected
10	C-Touch capacitor	C_SCL	Capacitive touch 12c bus clock signal
11		C_RST	Capacitive touch screen reset signal, low level enable
12
13		C_SDA	Capacitive touch 12c bus data port
14		C_INT	Capacitive touch screen interrupt signal, low level when a touch is detected

Features:

1. High Resolution Display: The 3.5-inch TFT LCD module offers a crisp and clear RGB resolution of 320x480, providing excellent visual clarity for various applications.

3. Easy Integration: The 4-line SPI serial interface and 2.54 pin spacing make it simple to integrate this display into various electronic projects and devices.

5. Backlight Control: The display features a backlight with six parallel LEDs, allowing users to adjust the brightness to meet their specific requirements, ensuring optimal visibility in different lighting conditions.

Package Include:

1x Display Screen Module
