35mm Concealed Door Hinge Jig Accurate Locking Cabinet Hinge Jig Cabinet Door Opener Woodworking Hole Drilling Guide Locator COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

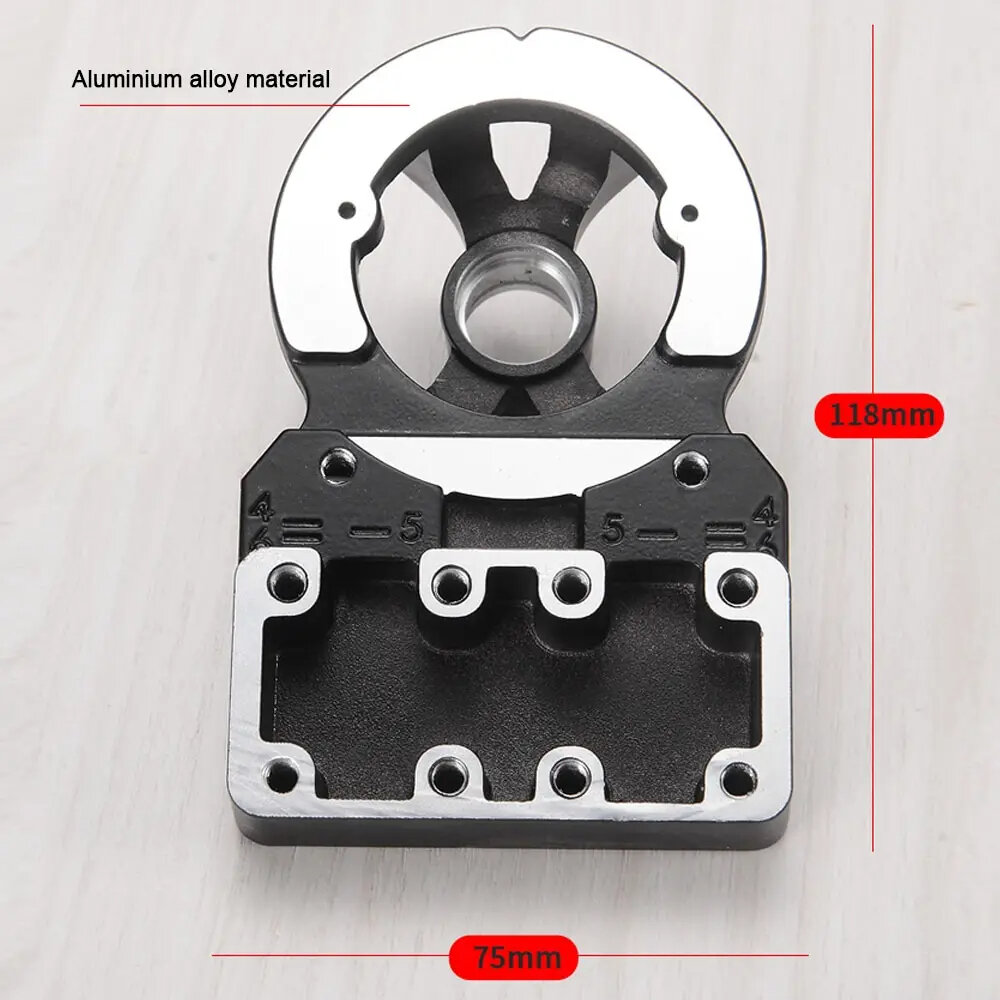

Durable Construction: Made from aluminium alloy, this hinge hole opener is resilient against wear and corrosion, providing a long service life.

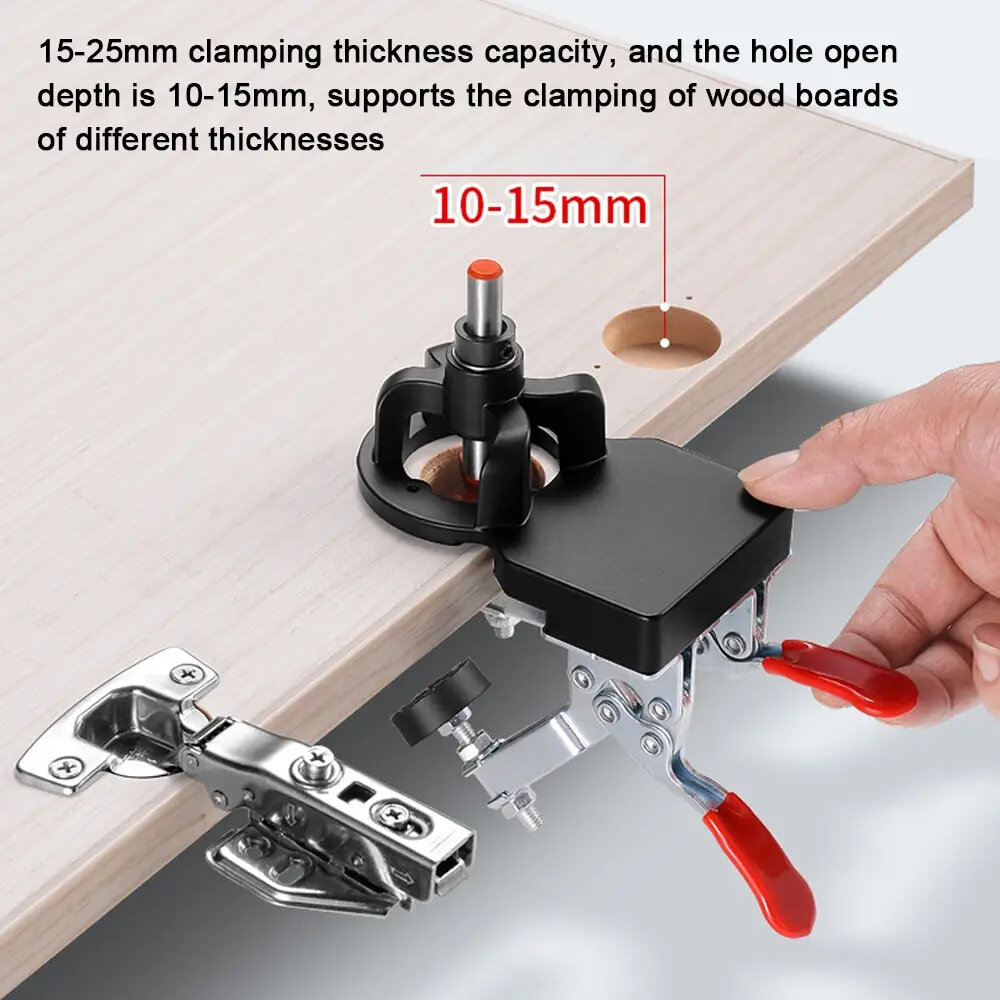

Adjustable Specifications: With a 10-15mm hole open depth and a clamping thickness capacity of 15-25mm, it can accommodate wood boards of varying thickness.

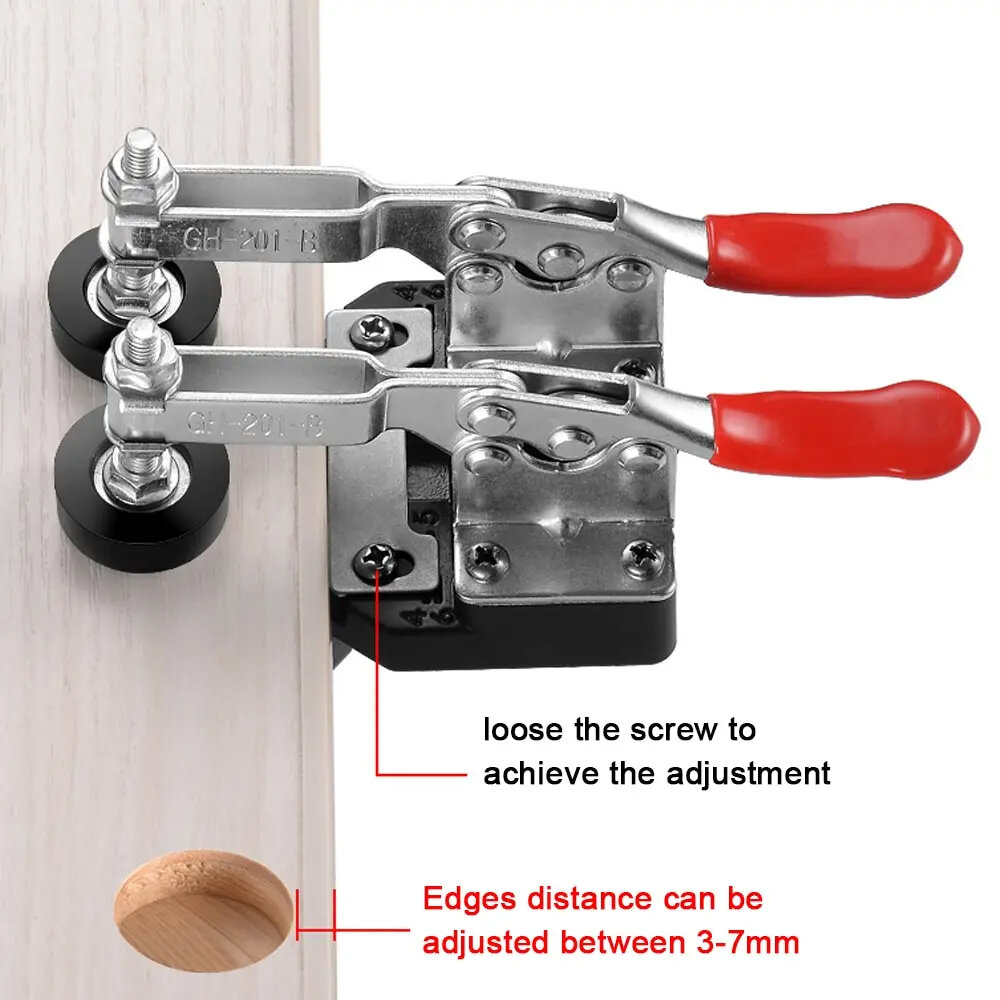

Customizable Margins: Adjust the hole to edge distance ranging from 3-7mm by simply loosening the screw, providing flexibility in your woodworking projects.

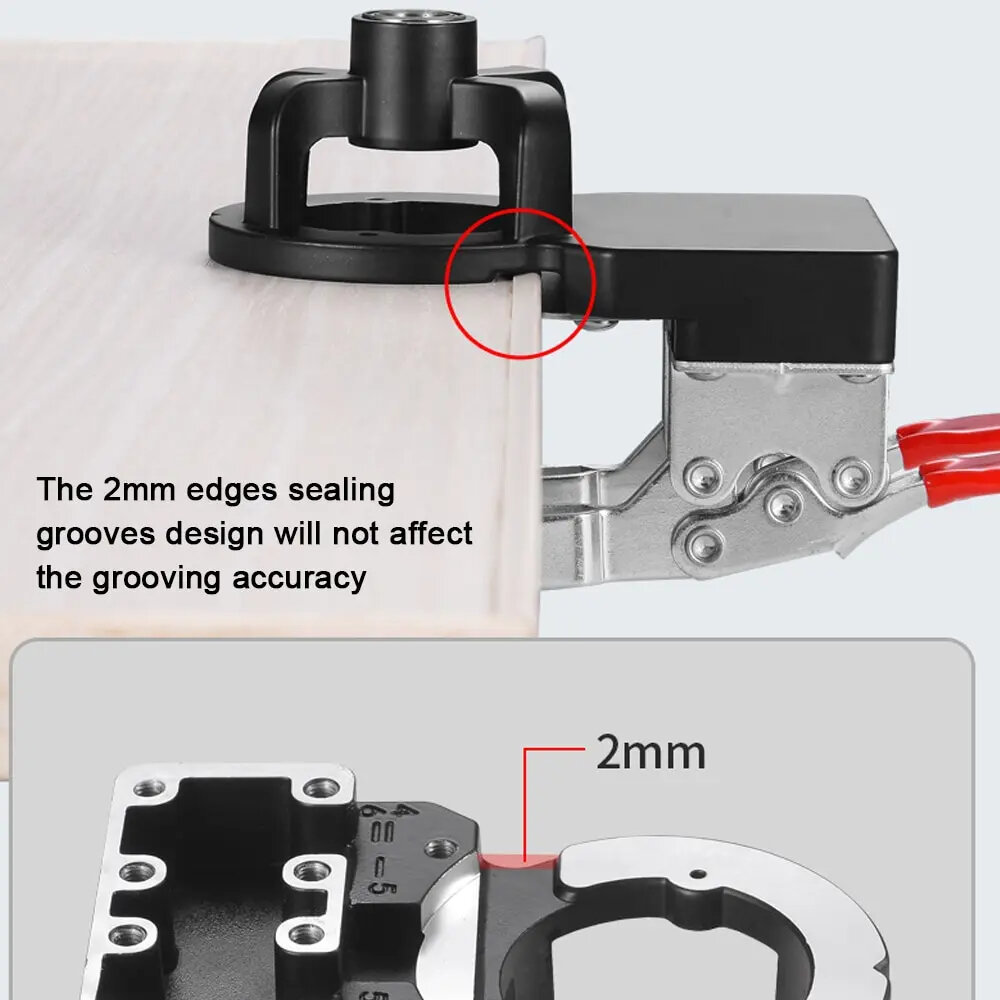

Precision Grooving: Equipped with a 2mm edge sealing grooves design, ensuring accuracy in grooving even when the wood board has been edge sealed.

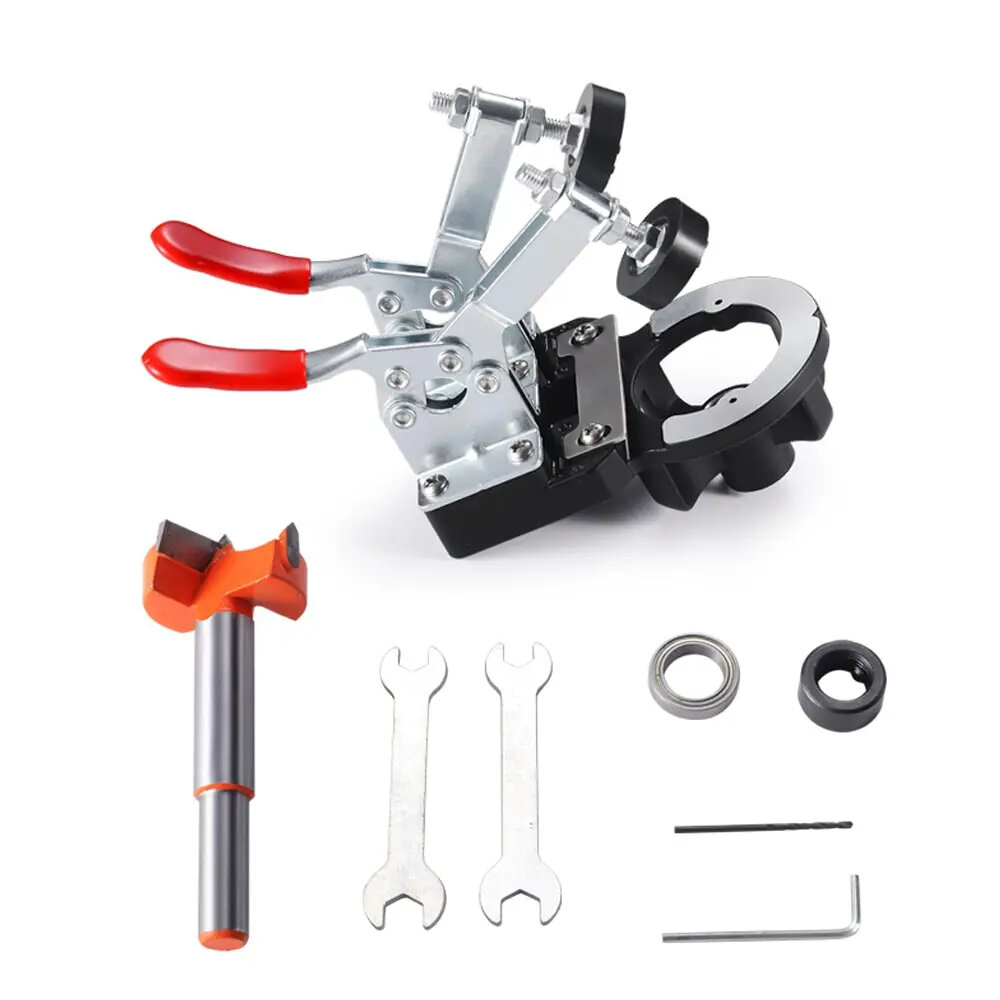

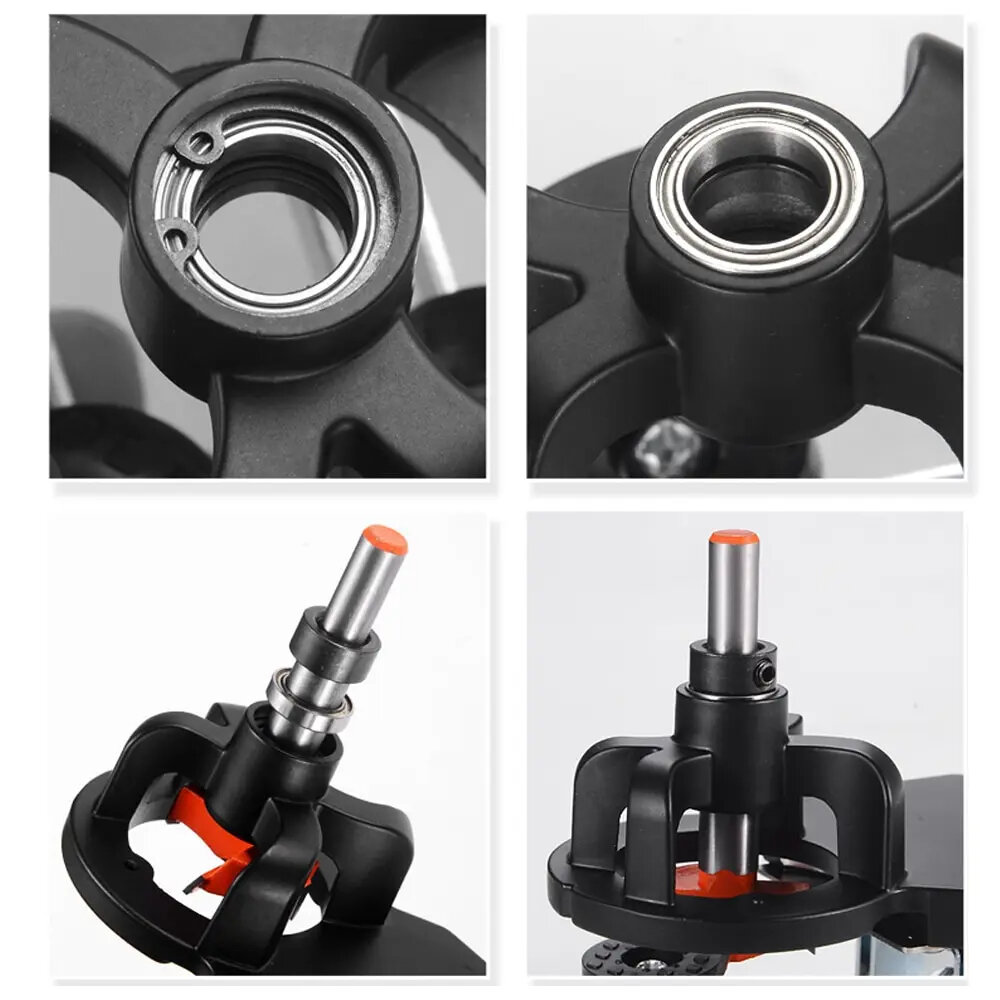

Comprehensive Set: This set includes everything needed for your hinge hole operation, including wrenches, a limit ring, a bearing and a drill bit.



Material: Aluminium Alloy

Hole Open Depth: 10-15mm

Clamping Thickness Capacity: 15-25mm

Hole Position Margin Adjust Range: 3-7mm

Package Size: 170mm x 105mm x 90mm

Package Weight: 700g



1 x Hinge Hole Opener

3 x Wrenches

1 x Limit Ring

1 x Bearing

1 x 2mm Drill Bit
