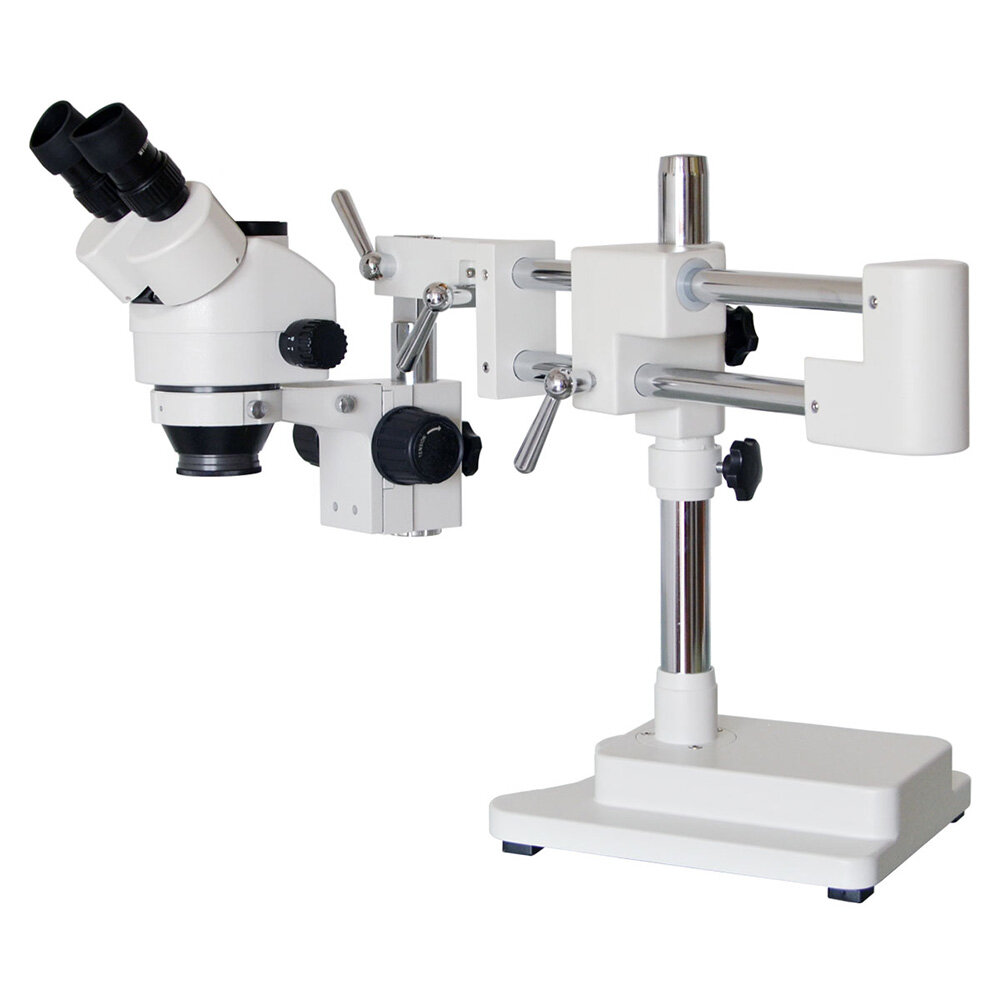

An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light

3.5X-90X super wide zoom magnification power

Bright cool light 56LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes

Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters

Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eye-guards included

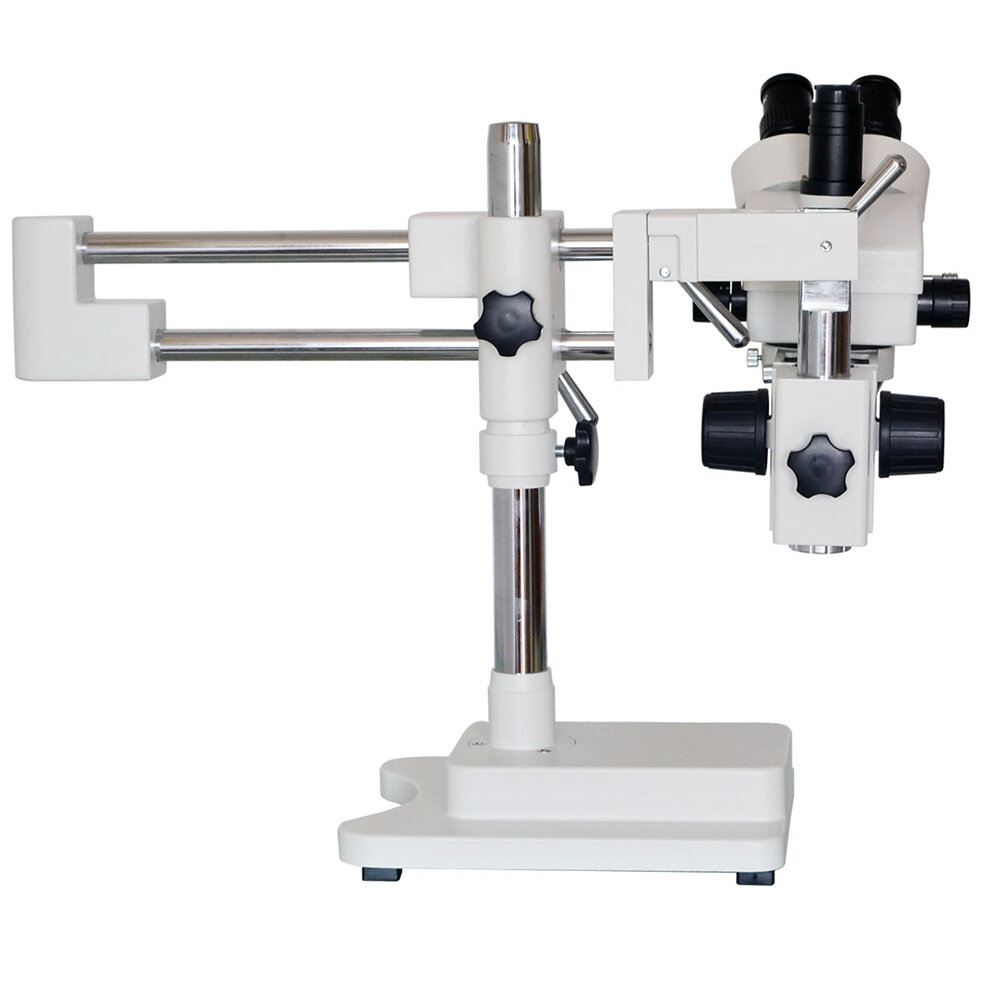

Expand the scope of operations,any orientation and angle observed the objectives.

Vertical Pillar: high 380mm,Diameter Ø32mm

Horizontal moving: 235mm

Base size: 210x260x40mm

Steel Gears on Focusing Holder.

Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm

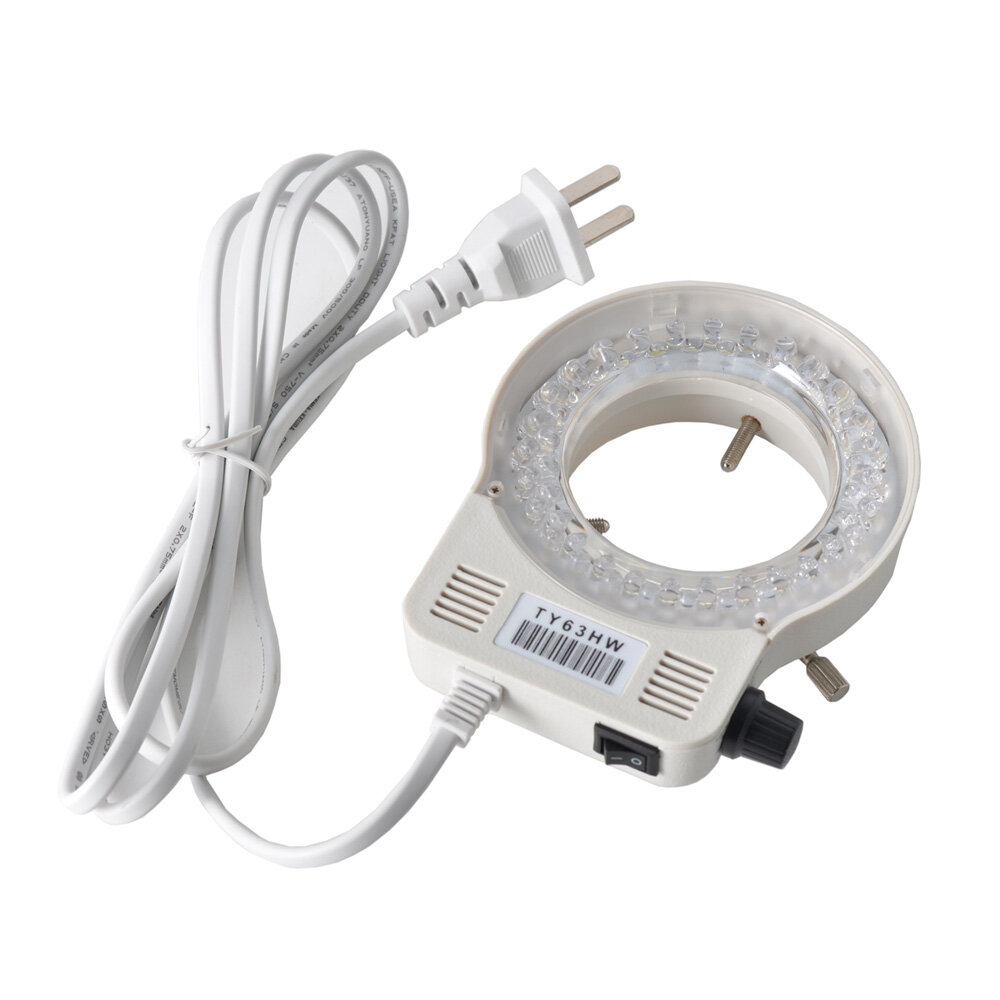

56 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm

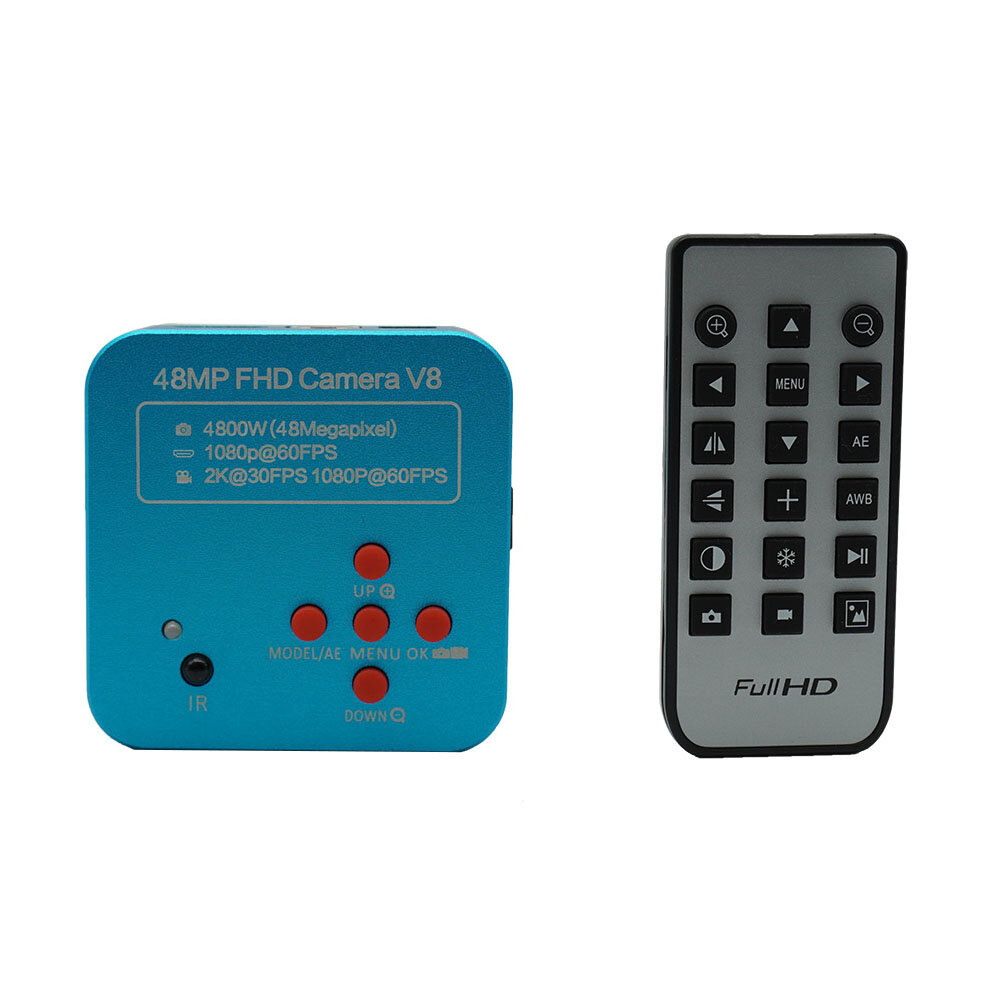

Module: 1135

Sensor: 48 million pixels CMOS

Optical format: 1/2.3 inch

pixel size: 1.335μm x1.335μm

Interface: HDMI(Type A).USB(Type B).TF Card

HDMI Image resolution: 48 MegaPixel

Video record resolution: 2K@30FPS 1080p@60FPS

HDMI resoltion: 1920*1080p 60FPS

HDMI scale: Support 4:3,16:9,16:10 screen

USB2.0(Drive free): 1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

TF card: MAX 128GB

AWIB: WB color correction/Auto/Manual

R.G.B value setting independent

Exposure: Auto/Manual.AE value can set

Cross lines: 8lines.Can set color& width& position

Scale mark lines: 2lines.

Dotted lines: 2lines.Can set color& width& position

Sharpness Contrast Color gain: Support

Mono Negative: Support

Mirror: Horizontal vertical mirror

Language: English/simplified Chinese

Digital Zoom: Support

IR remoter: Support

Voltage in: DC 12V 55-21mm size

Power consumption: MAX 0.15W  12V,0.12A

Lens interface: C/CS口

Net weight: 180g

Gross weight: 400g

Camera size: 70*70*35mm

Packaging size: 160*100*80mm

Problem solving method:

LCD no video or flicker

1. Check power supply. Check red LED be onlight. Press PowerKey to Up it.

2. Check lens cover. Increase the lighting.

LCD have black bar Image warp

1. change resolution of LCD

2. change resolution of camera

Have dirty spot

1. Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser



Package including:

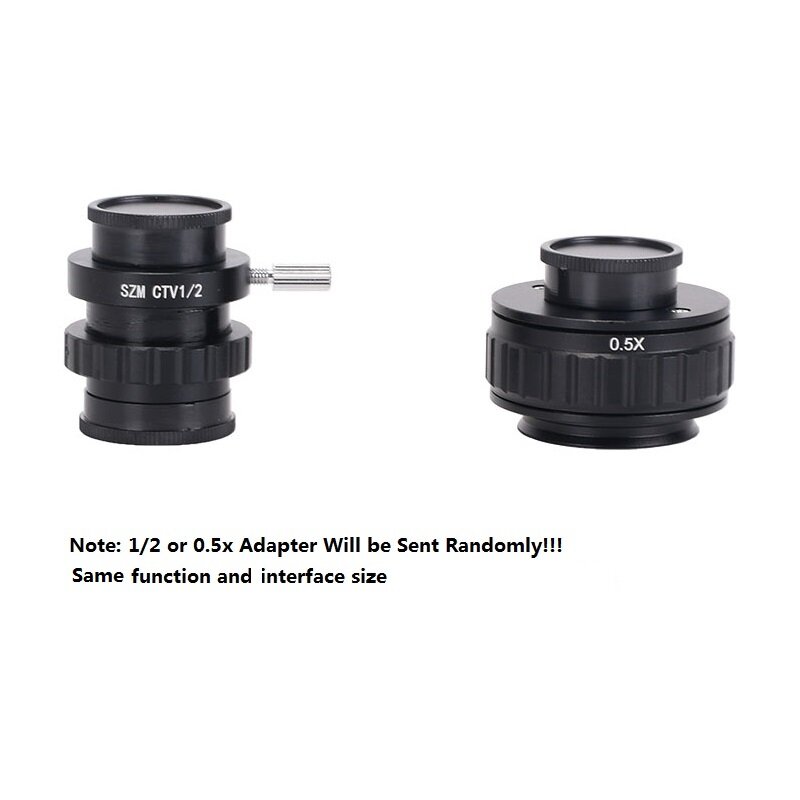

(CTV 1/2 or 0.5X send randomly)

Gift：Repair and dismantle 8 pcs
