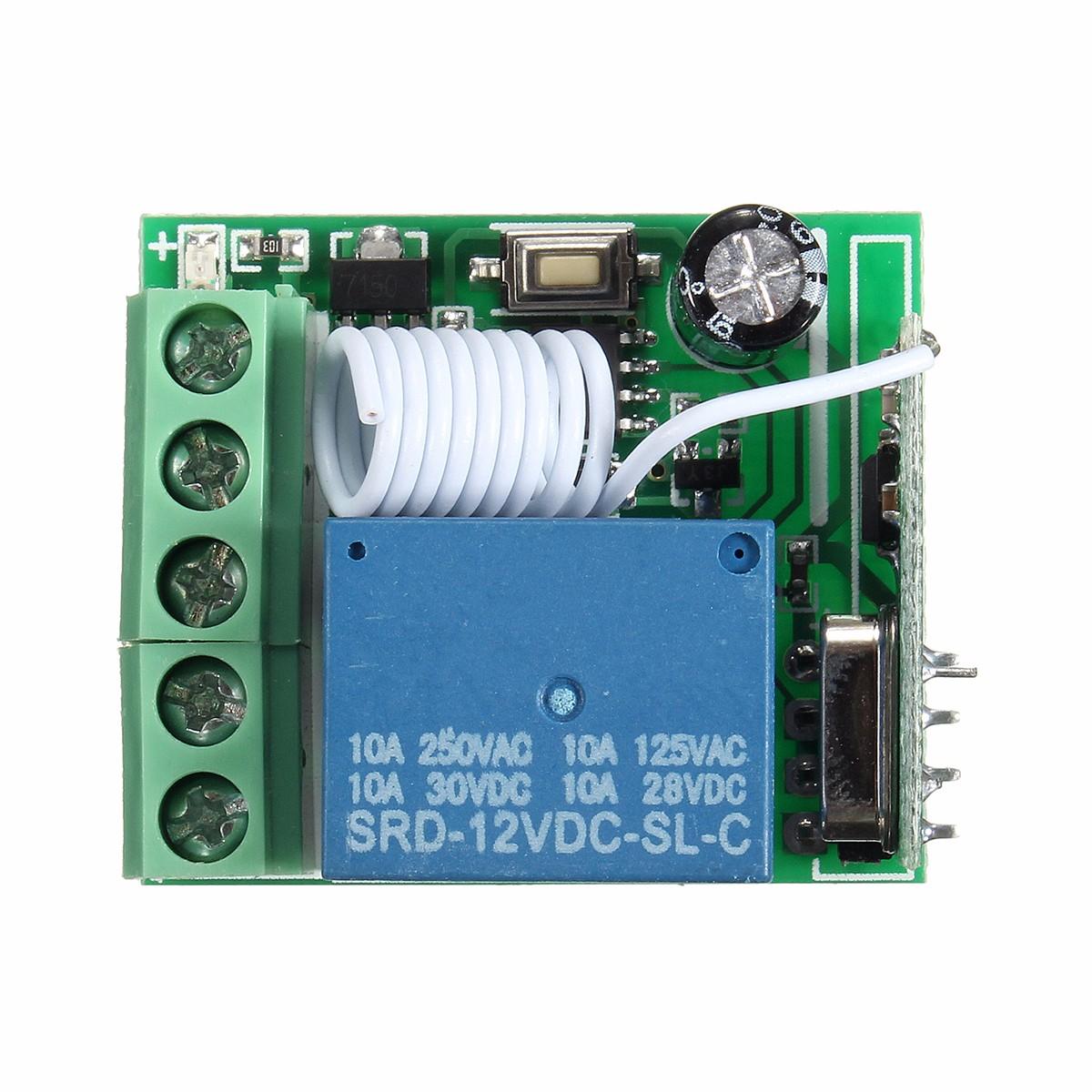

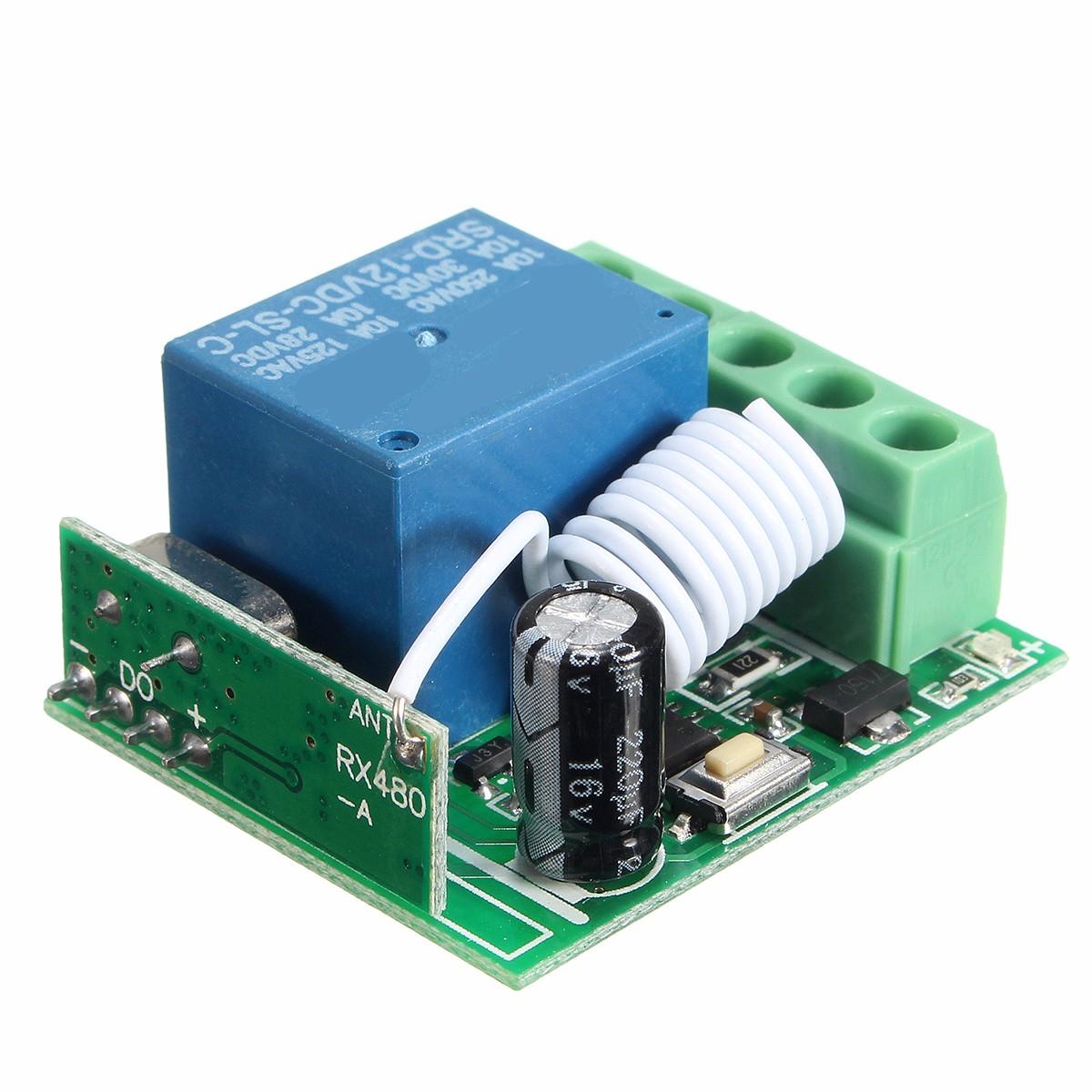

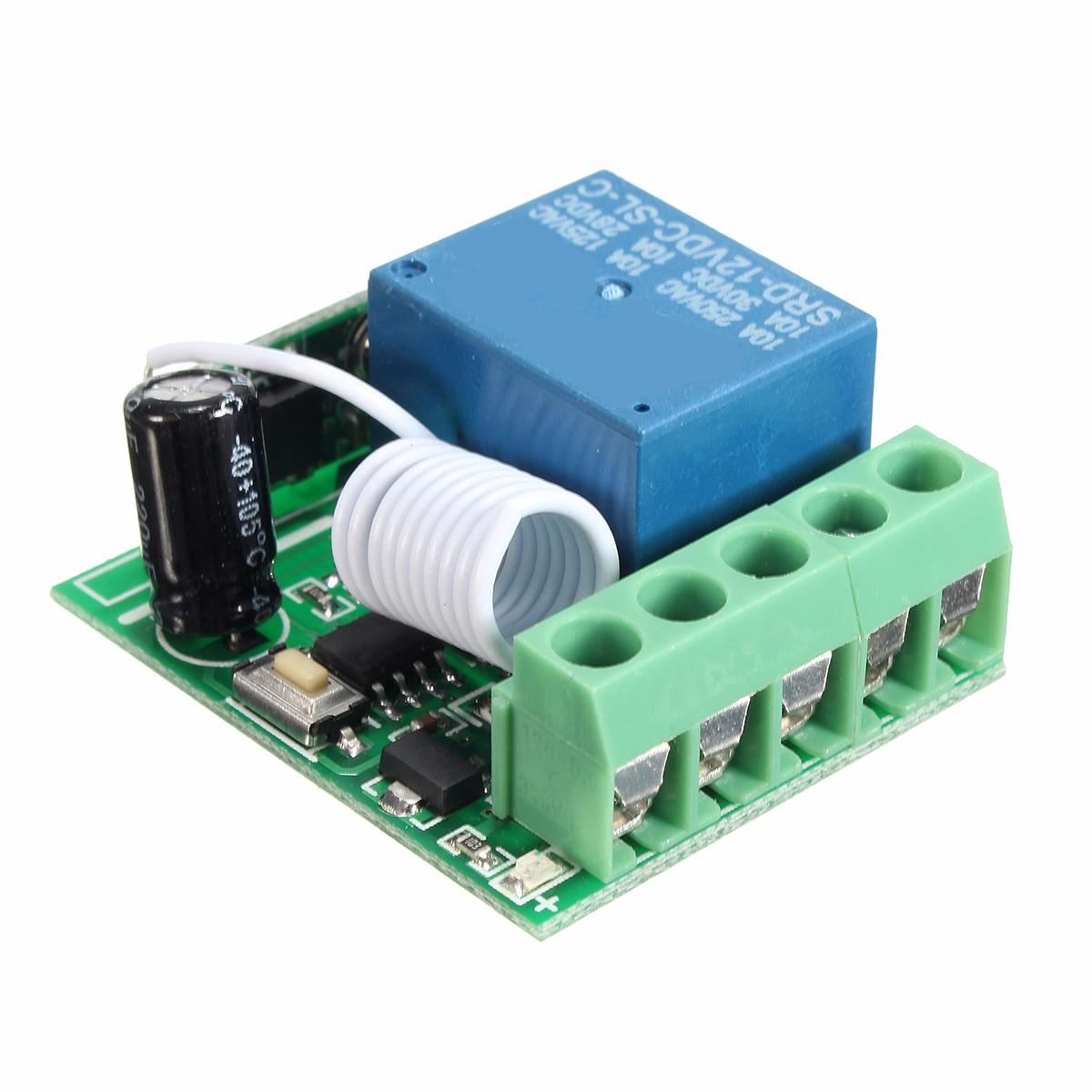

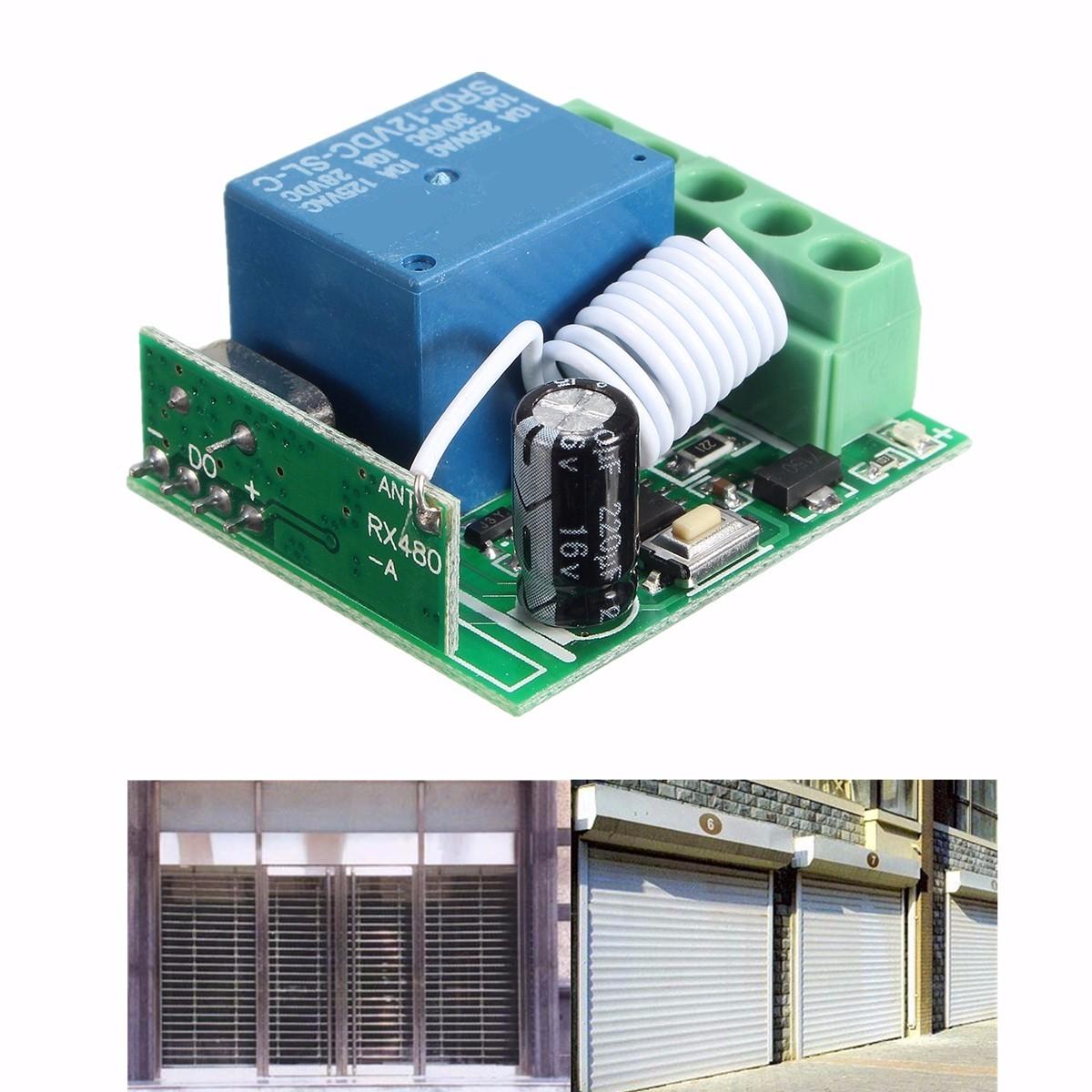

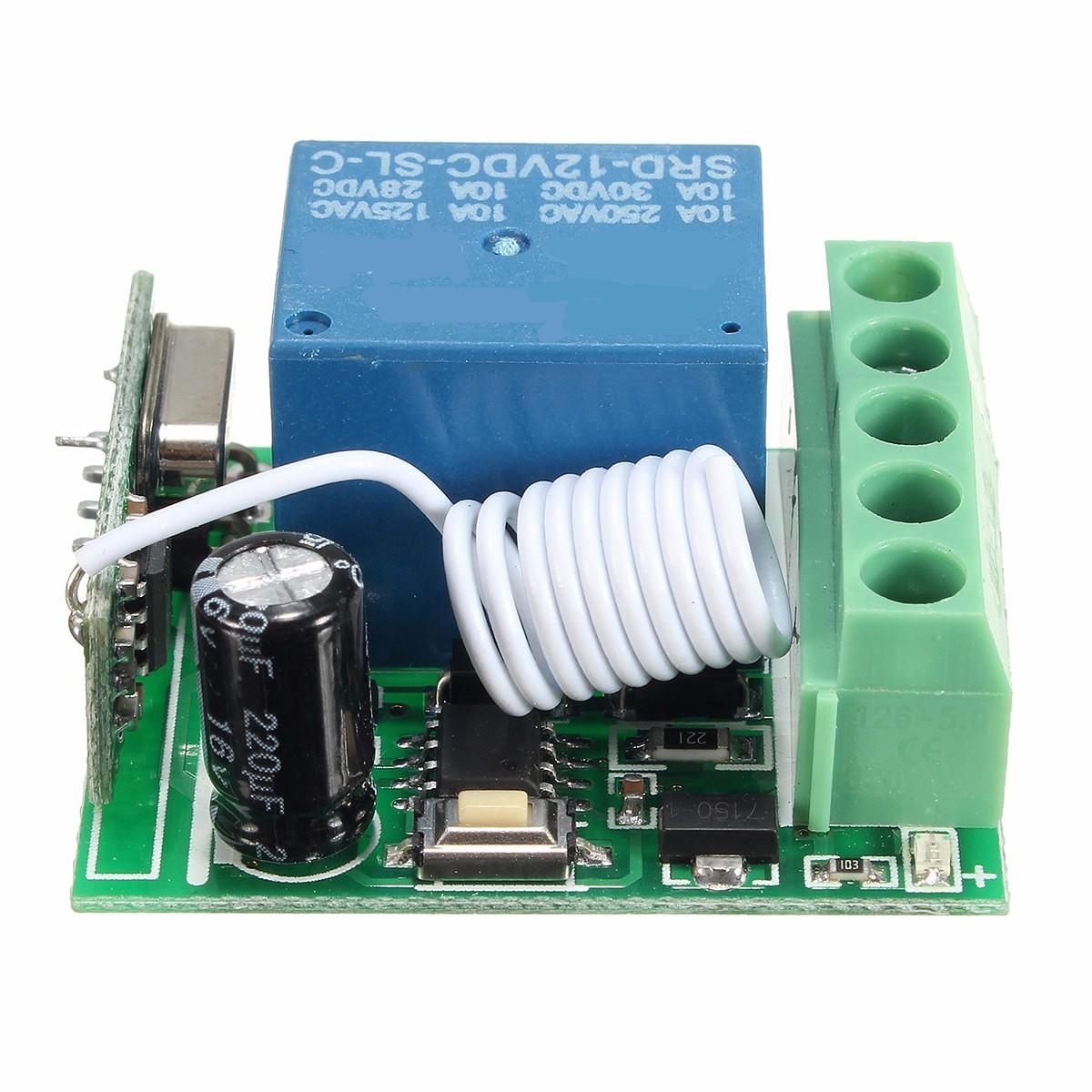

3pcs DC12V 10A 1CH 433MHz Wireless Relay RF Remote Control Switch Receiver Board COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Specification:


2.Standby Current: <5MA

4.RF Working mode:Super heterodyne receiver

6.Remote Control Distance: >100 meter(In open environment)

8.Can store the number of remote control:50

10.Channel: 1CH

12.Wiring Method:Fixed wiring terminal

14.Output Current: 10A

10A 30VDC / 10A 28VDC

17.Dimension:3.5cm*3cm*1.6cm



1.Jog: Press the learning button then release, set the mode from the system automatically working mode to action mode, wait for a while, when the board LED off, said it is into the learning state, press the remote control, the system received the signal. The LED flashes 5 times and goes off again. After 3S delay, LED light marked learning success, the system automatically withdraw from the learning state.

3.Interlock: press the learning button, then release, press 3 times in succession, the system is set to interlock mode.


Description:


the indicator flash 2 times and off .it mean you learn it successfully .

3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .



3 x 12V 1CH 433MHz Wireless Relay Switch
