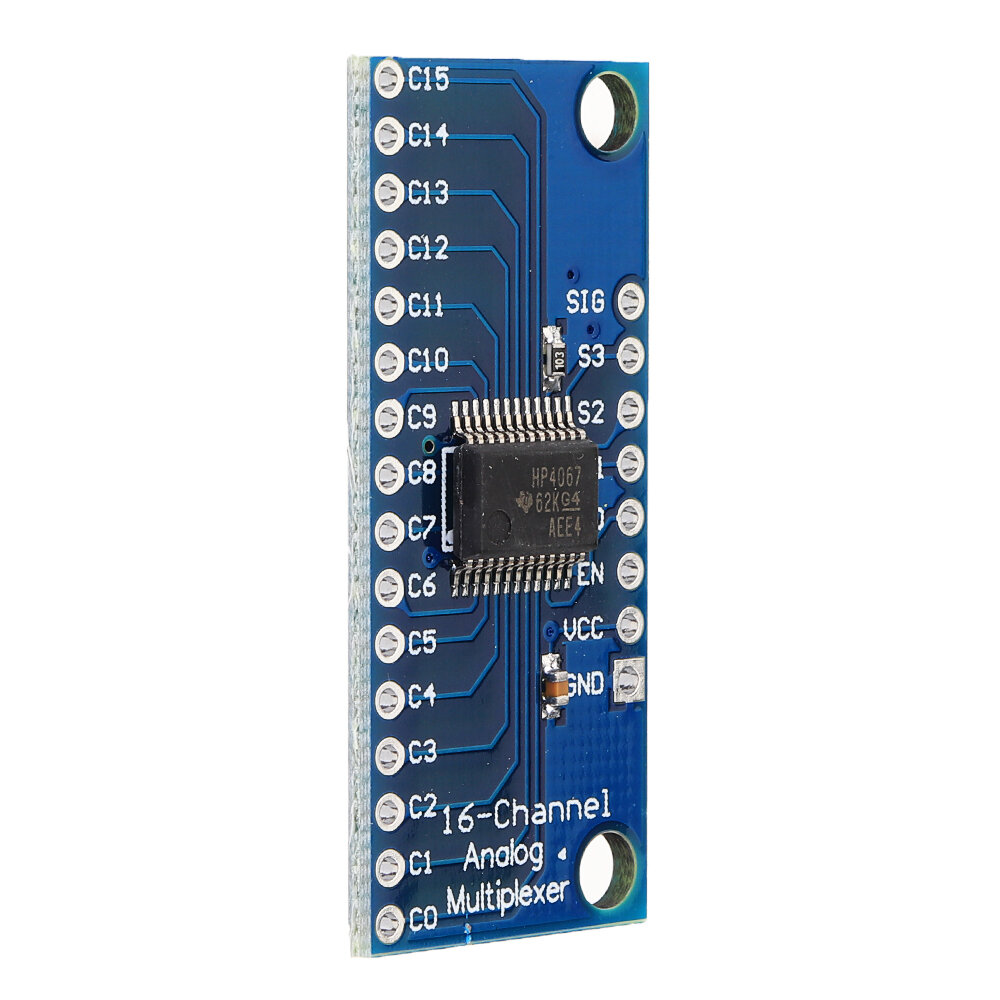

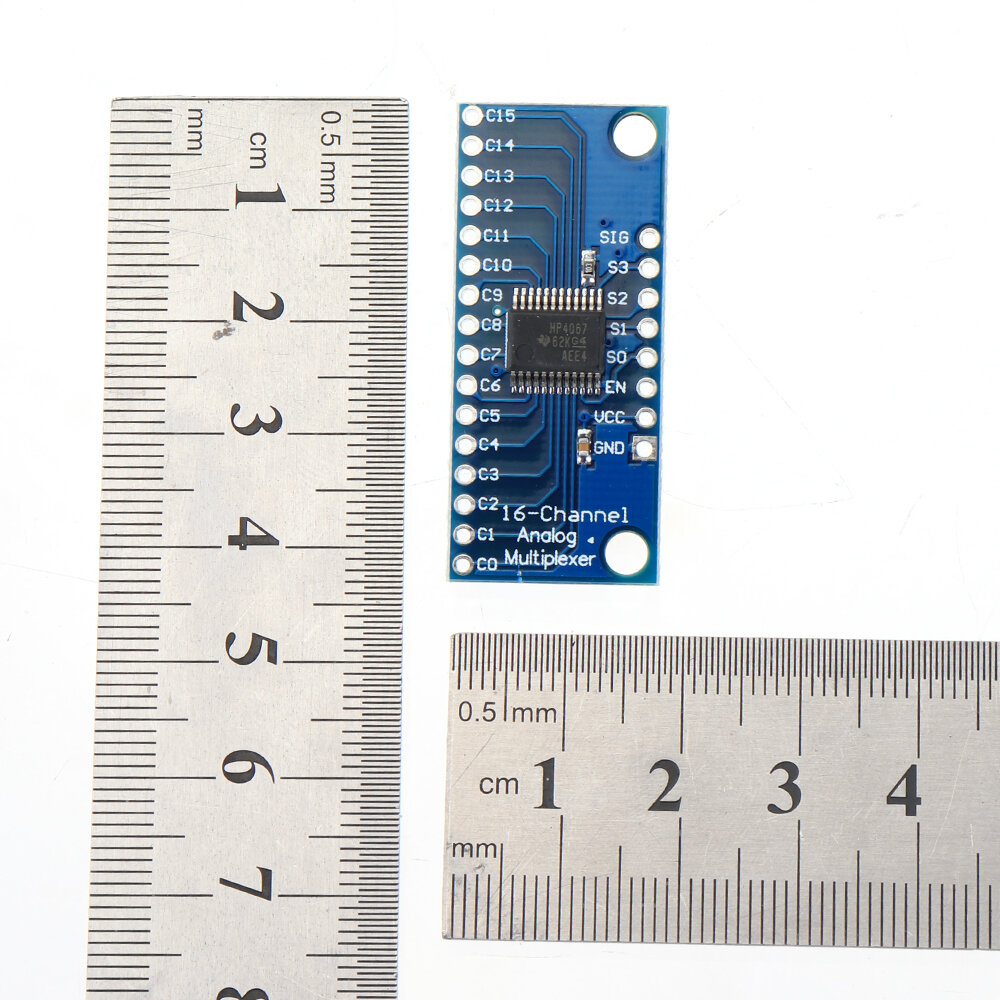

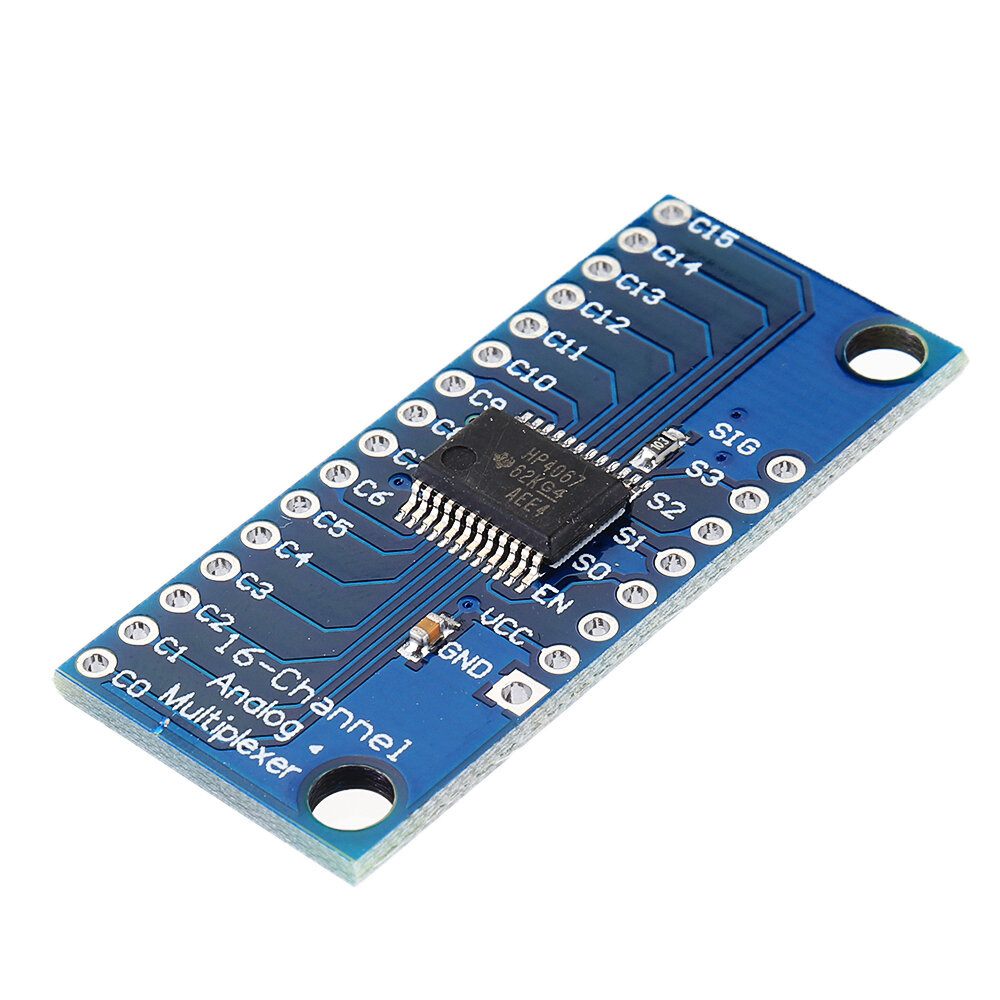

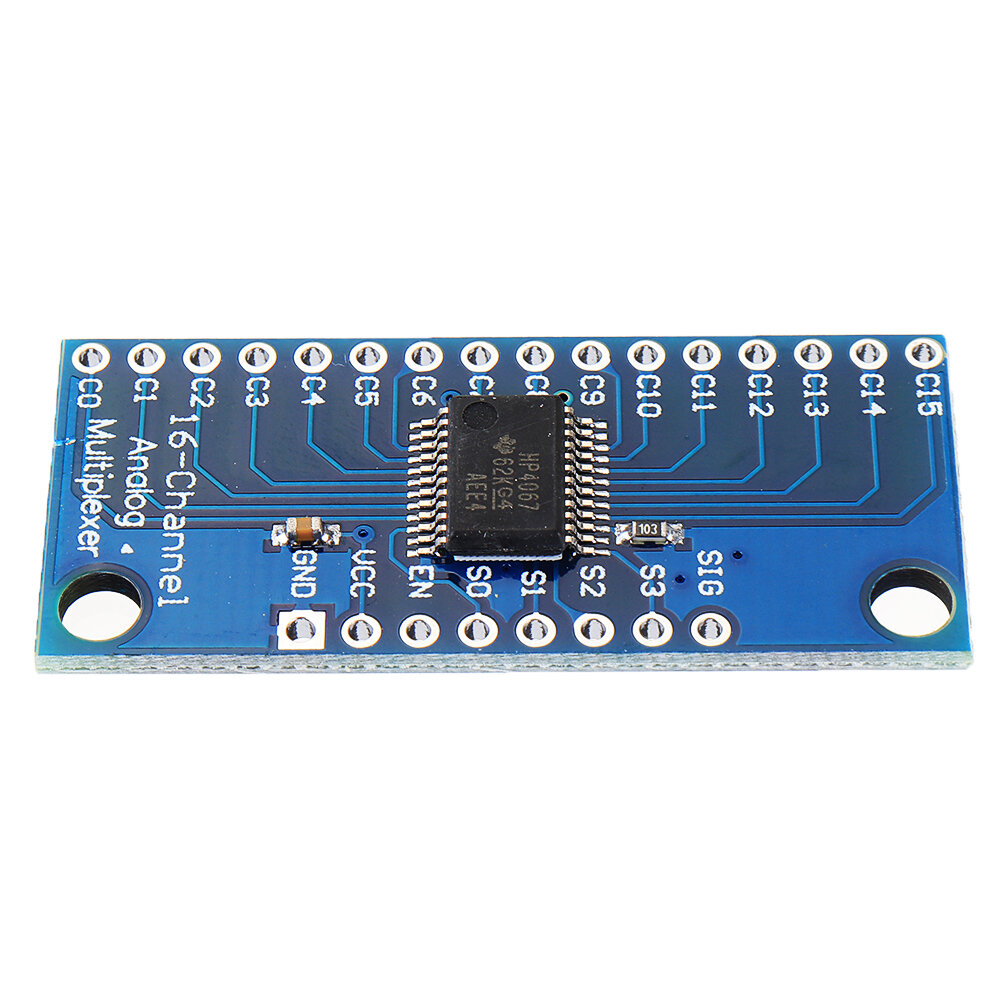

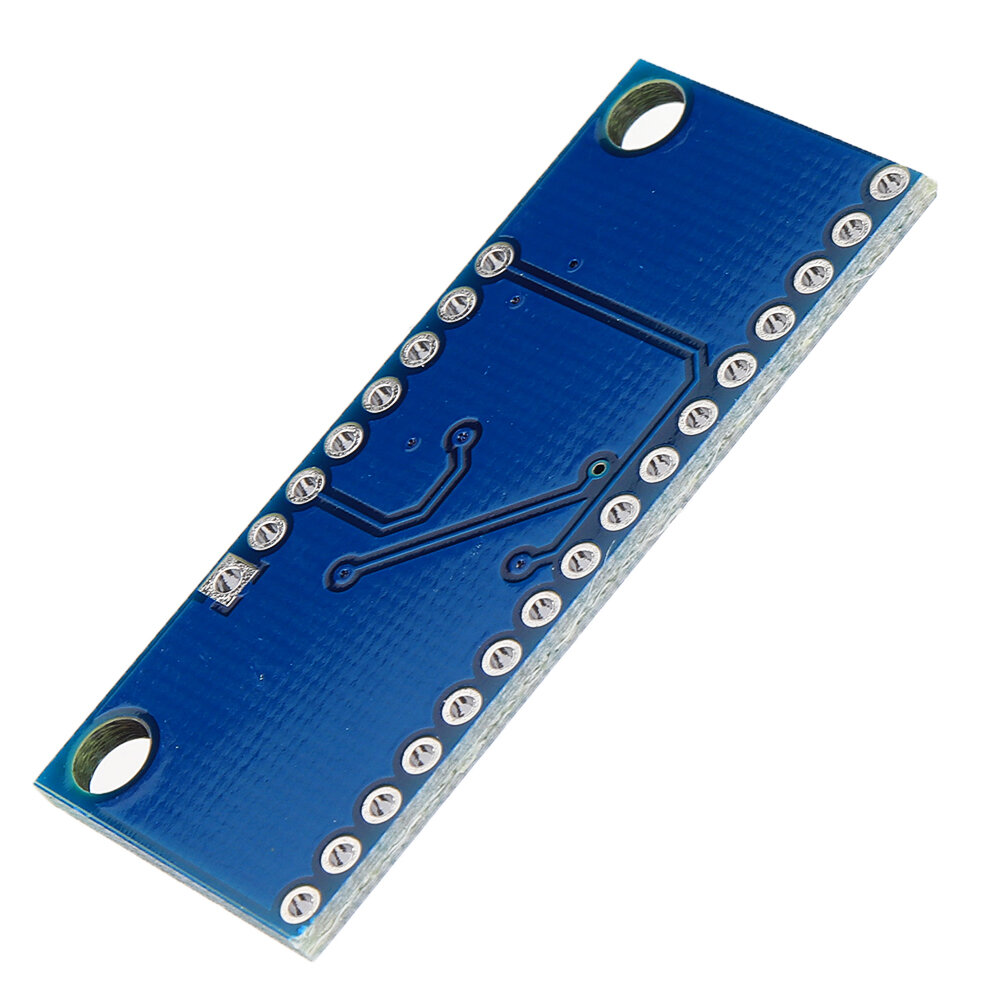

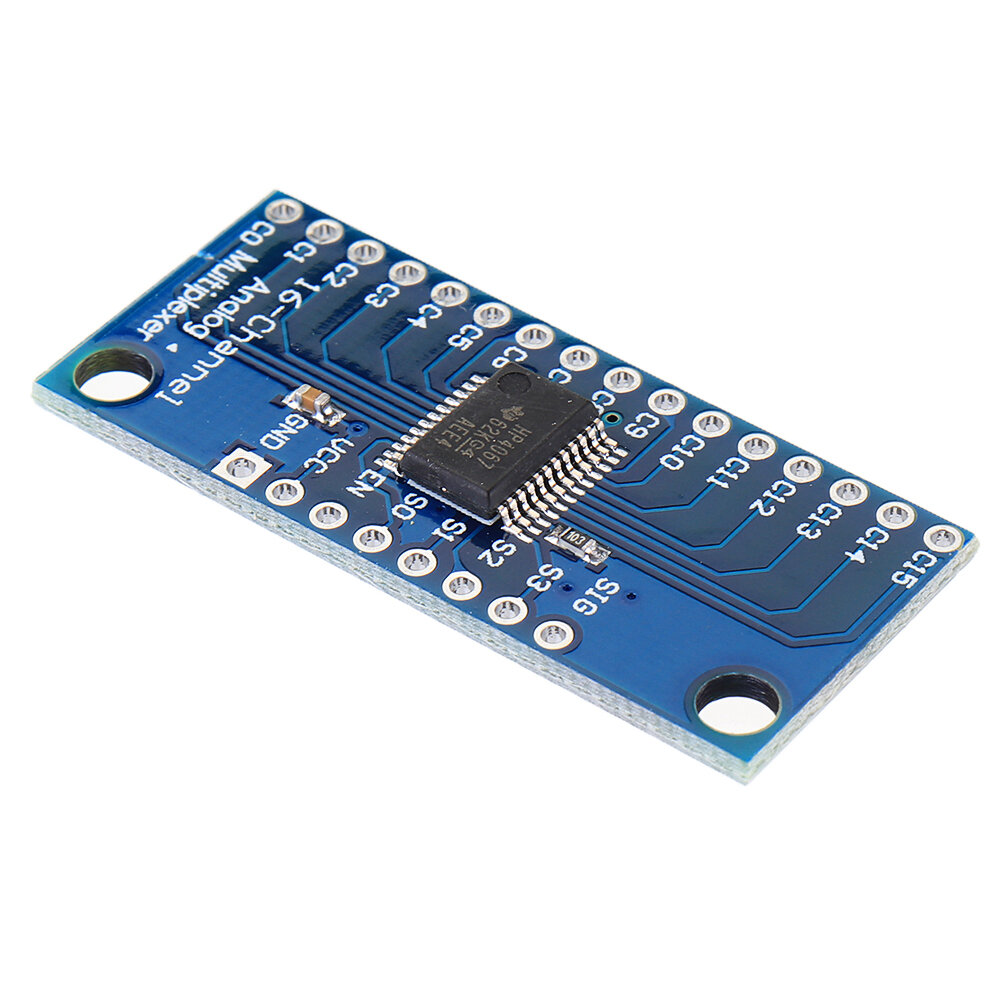

3pcs Smart Electronics CD74HC4067 16-Channel Analog Digital Multiplexer PCB Board Module

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Specifications: Features:
For example, you could use it to connect the TX pins of 16 devices to one RX pin on your microcontroller.You can then select any one of those 16 devices to listen to.If you want two-way communications, you can add a second board to route your microcontroller's TX line to 16 device's RX lines. By using multiple boards, you can create similar arrangements for I2C, SPI, etc. The internal switches are bidirectional, support voltages between ground and VCC, have low "on" resistance and low "off" leakage, and to prevent crosstalk, perform "break-before-make" switching.The board also breaks out the chip's "enable" pin, which when driven high, will completely disconnect the common pin (all switches "off").
Package Included:
