4 Strings 12V 15A-250A Iron Lithium LifePO4 Lithium Battery Protection Panel Sprayer Lighting Energy Storage Inverter COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

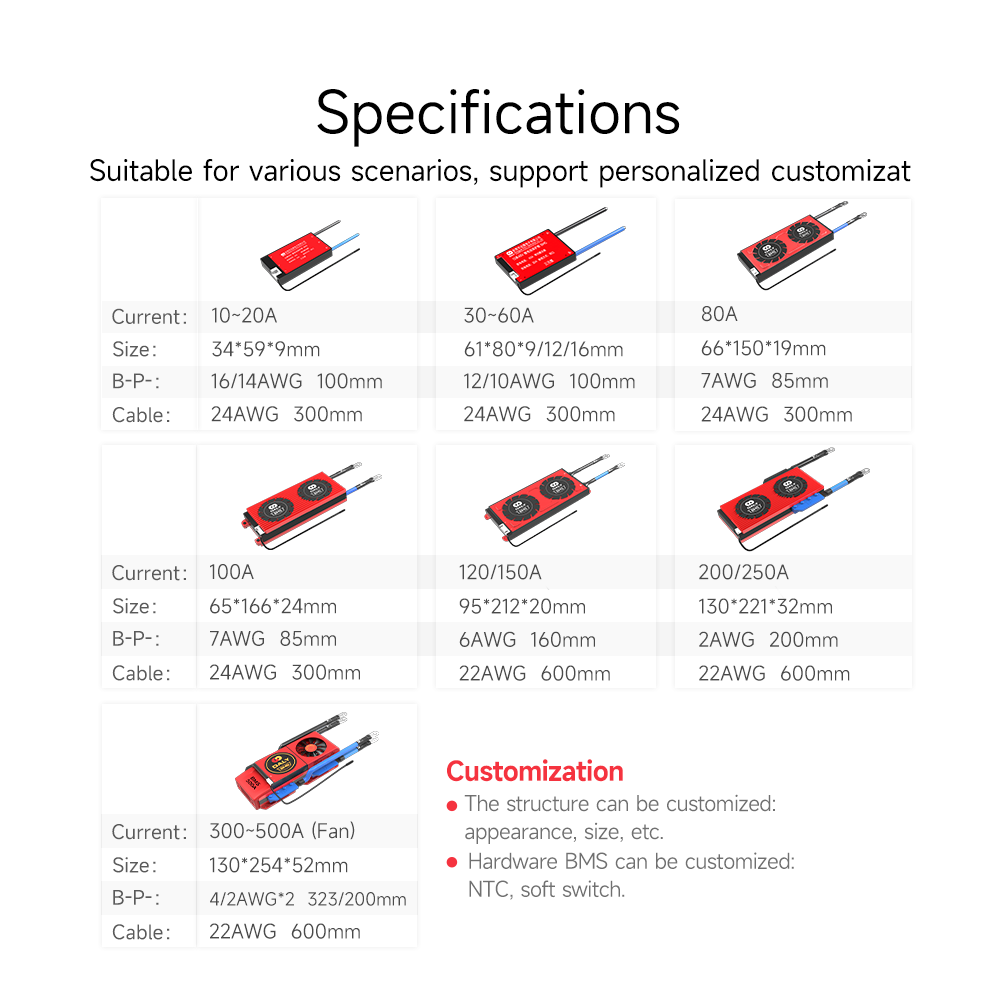

Product Parameters:

Charge voltage

LifePO4: N(strings)*3.65V

Discharge current (A)

10

15

20

30

40

50

60

80

100

120

150

200

250

300

400

500

Discharge overcurrent protection value(A)

30 ±10

50 ±10

60 ±10

100 ±20

160 ±30

160 ±30

220 ±40

360 ±50

360 ±50

260 ±50

260 ±50

500 ±100

500 ±100

500 ±100

1000 ±200

1000 ±200

Charge current (A)

5

8

10

15

20

25

30

40

50

60

75

100

125

150

200

250

Charge overcurrent protection value(A)

30 ±5

20 ±3

25 ±3

45 ±5

60 ±10

75 ±10

80 ±10

140 ±20

140 ±20

100 ±20

100 ±20

200 ±30

200 ±30

200 ±30

400 ±100

400 ±100

Main Circuit Conduct Inner resistance

Balance voltage

Detect voltage: LifePo4: 3.75±0.05V

Protection delay: 1S

LifePo4: 3.55±0.05V

Over Discharge current protection

Detect voltage : LifePo4: 2.5±0.05V

Protection delay: 1S

Release voltage: LifePo4: 2.7±0.05V

Self Consumption

Protection conditon:Short circuit of external load

Detect delay: 200~500uS (Subject to actual test)

Release condition: Off load

℃ Discharge: -40~70℃ (Customizable)

℃

℃

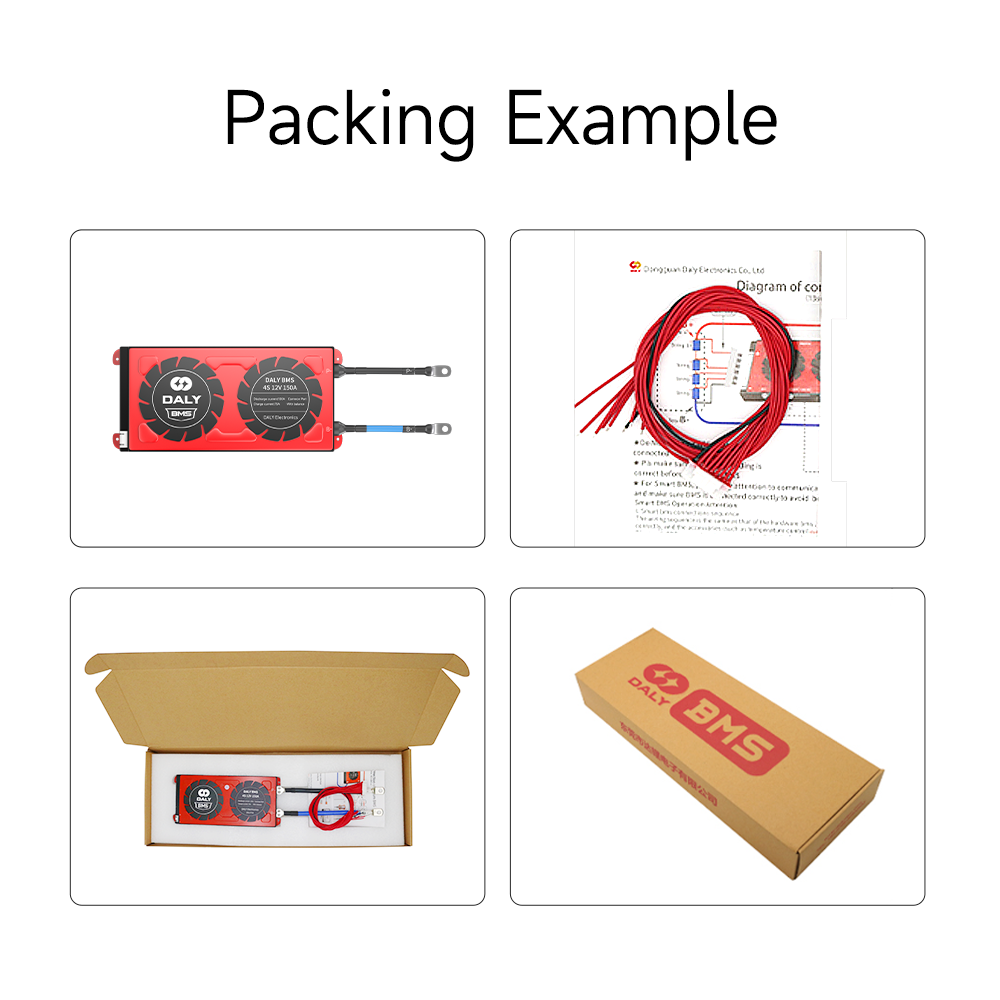

Package includes:

1 x Battery Protection Panel

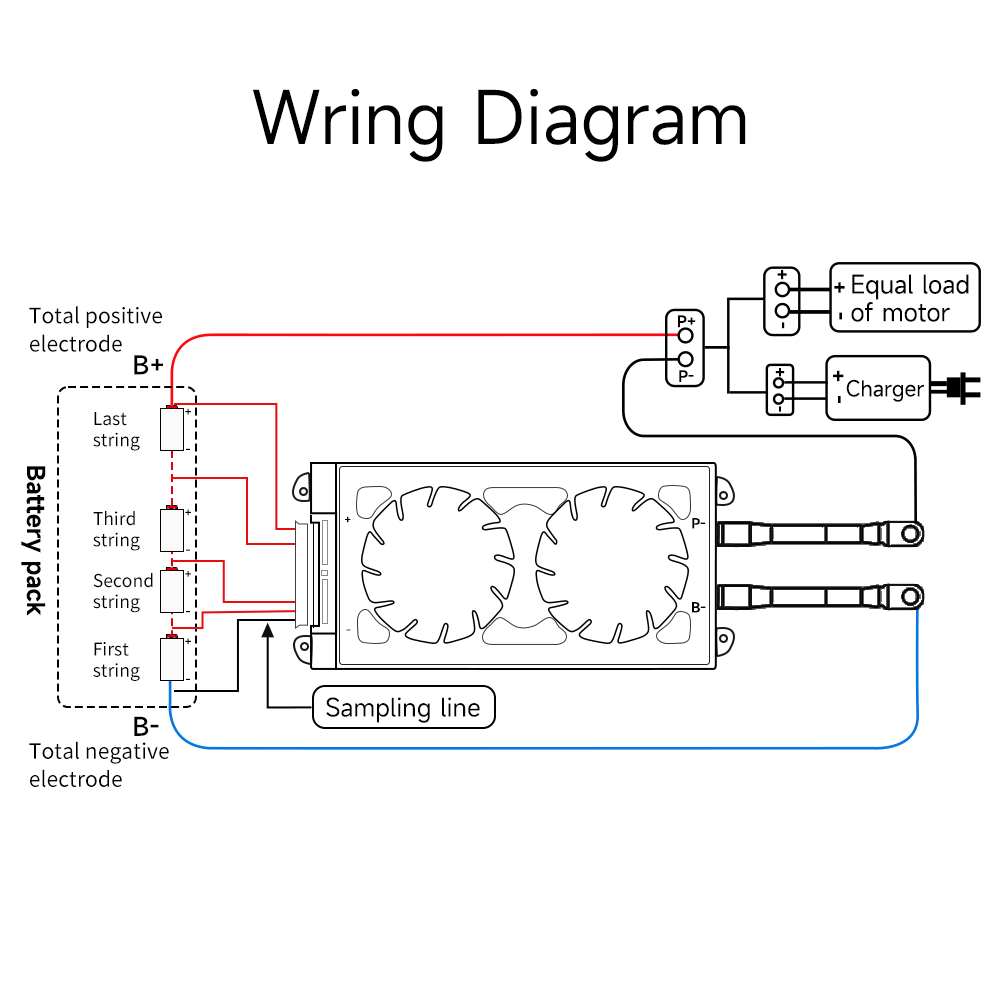

* Special attention: The wire cable of different manufacturers are not same standard, please make sure to use he matching cables; the colors of B- and P- lines of different manufacturers are different, please pay attention to the B- and P- marks. 1. Remember!!! When welding sampling wire cable, do not insert the cable into the BMS. 2. The cable connects the total negative electrode B-from the fine black line. The second wire (red wire) is connected to the positive pole of the first string of batteries.Connect the positive electrode of each string of batteries in turn until the last wire cable of the total positive B+. 3. After the cable is connected, do not insert the plug directly into the BMS.First measure the voltage between each two adjacent metal terminals on the back of the plug. If it is a ternary lithium battery, the voltage should be between 3.0~4.15V, and the iron-lithium battery should be 2.5~ Between 3.6V, lithium titanate battery should be between 1.8-2.8V, make sure the voltage is correct before proceeding to the next step. 4. Receive the BMS B-line (blue thick line) to the total battery negative electro-de (B-line length should not exceed 40cm). 5. Insert the wire cable into the BMS. 1. Measure whether the voltage of battery B+, B- is equal to the voltage of B+ and P- (that is, whether the voltage of the battery pack itself is e- qual to the voltage after passing through the protection board, if they are equal, the BMS is working normally, which can be used normally. If not, please follow Re-check the queue of the wiring above. 2. The positive electrodes of the charging and discharging end are all directly connected to the total positive pole B+ of the battery; the wiring method of the same port BMS is that the charging and discharging negative poles are connected to the P- point of the BMS; the wiring m- ethod of the branch BMS is the negative pole of charging Connected to C-, the negative electrode of discharge is connected to P-. 3. Finally, if you have any questions, please contact the customer service to help you solve it.
