                  Update log: The Crux3 1S ELRS v2.0 version comes with ELRS F4 2G4 V3.1 which was built-in OPENVTX could support max 400mw output. Please use following vtxtable

                  # VTX Table

                  # vtxtable

                  vtxtable channels 8

                  vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866

                  vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880

                  vtxtable band 6 LOWRACE  L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613

                  vtxtable powervalues 1 2 14 20 26

                  save


                  Features:

                  - 40gram 1s brushless Toothpick drone

                  -

                  - CADDX ANT 1200TVL Camera

                  - New 1202.5 KV11500 brushless motor

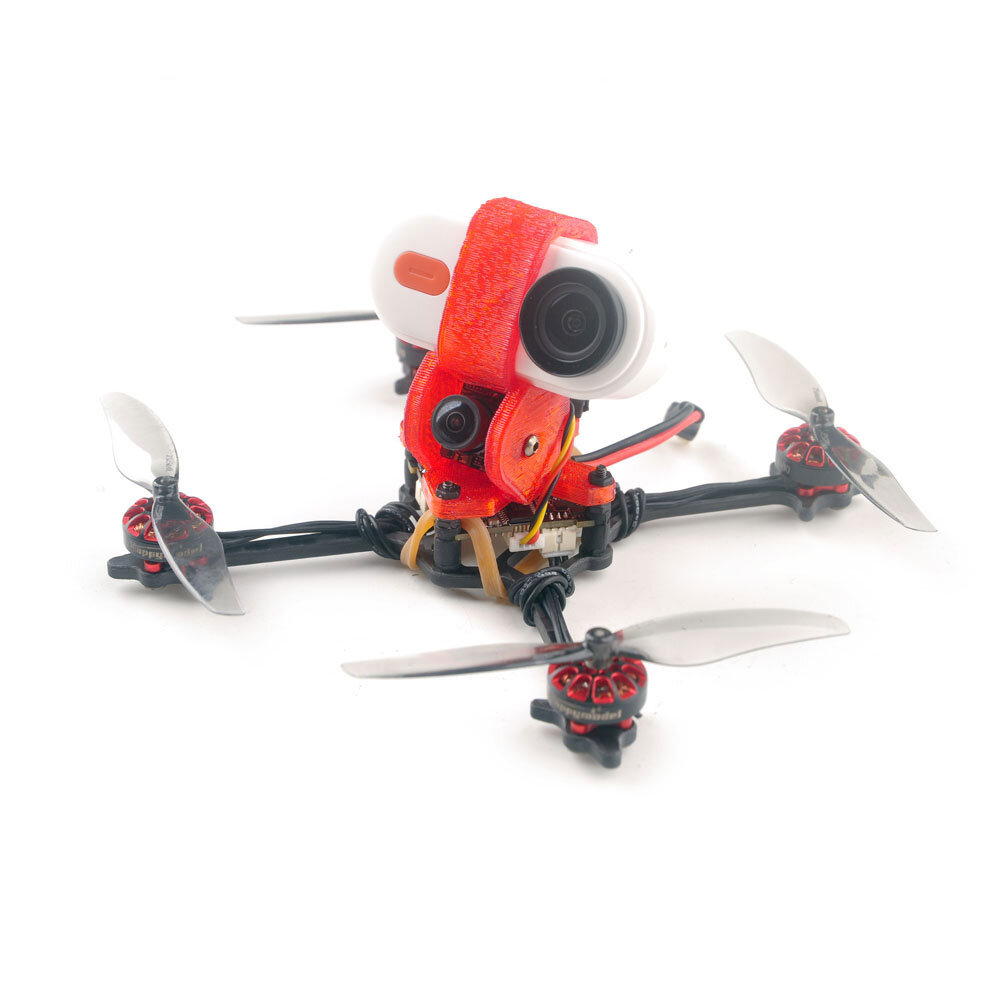

                  - Compatible with CaddxFPV Peanut and Insta360 GO2 ( NOT Included)

                  - Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery



                  Manual

                  Brand Name: Happymodel


                  Size: 97mmx97mmx35mm (without propellers)


                  Motor

                  Mode: EX1202.5 KV11500

                  Stator Diamter:12mm

                  Shaft Diameter:Φ1.5mm

                  Weight(g):4.4g


                  Sensor: MPU6000 / ICM20689 or BMI270 (SPI connection)

                  Power supply: 1S battery input (DC 2.9V-4.35V)

                  Built-in Betaflight OSD(SPI Control)

                  Built-in SPI ExpressLRS 2.4GHz receiver

                  Built-in 5V 1A BECFlight controller

                  firmware target: CRAZYBEEF4SX1280

                  Onboard 4in1 ESC

                  MCU upgraded to EFM8BB21


                  Support BLHeliSuite programmable

                  Default protocol: DSHOT300

                  Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz


                  Telemetry output Power: <12dBm

                  Receiver protocol to flight controller:  CRSF

                  Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest

                  Onboard 5.8g VTX

                  Output power: 25mw~200mw switchable

                  Input voltage: 3.3V 5.5V

                  Frequency: 5.8GHz 5bands 40 channels


                  1S 450mah / 650mah / 660mah / 720mah battery PH2.0 Plug

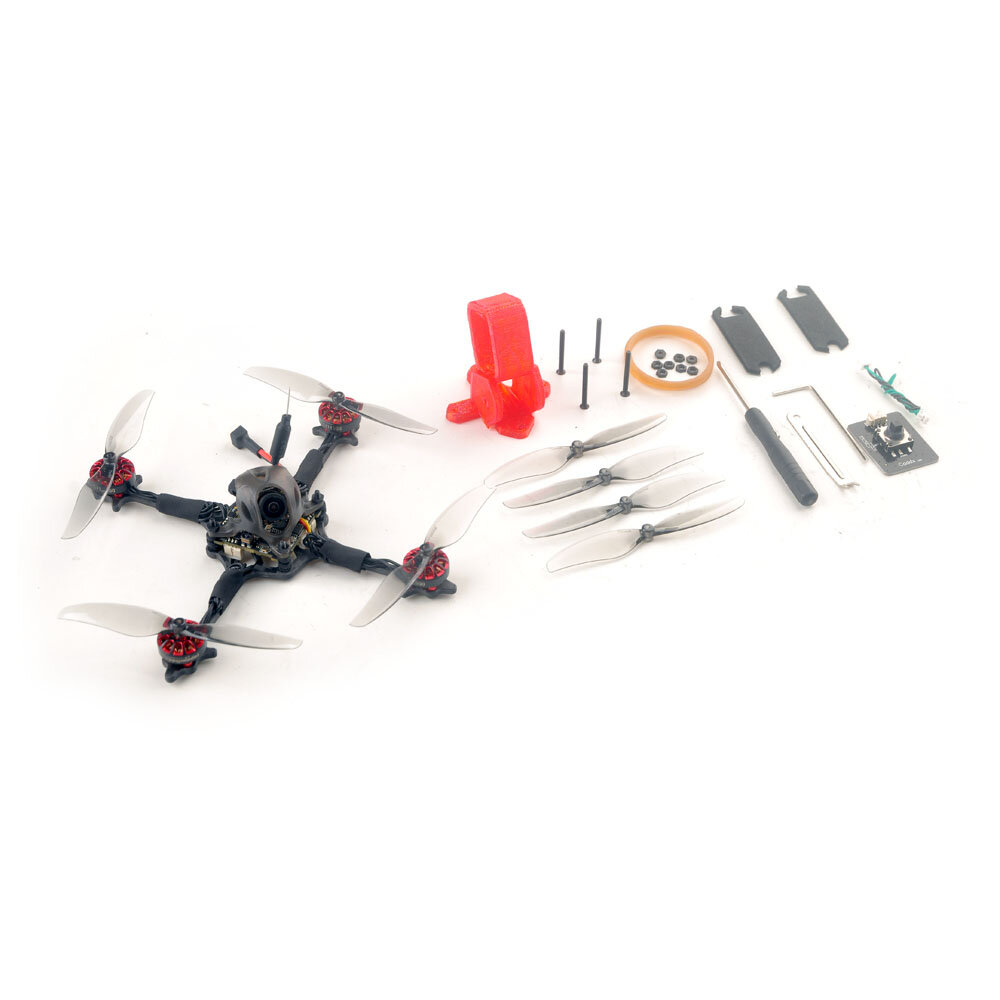

                  Package Included:
