4K 51MP HDMI USB Industrial Digital Video Microscope Camera Monocular 180X Zoom C-Mount Lens For PCB Phone Repair Soldering COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

>>Please click here to download the software<<


1. PC Support: Support for Windows XP/7/8/10 system.2. For USB output, Software operating white balance, exposure and color adjustment can adjusted. （The camera keys are not available  Remote control cannot operate ）3. For high-definition multimedia interface output, the function can  adjusted when connected to the monitor.（Camera keys available  The remote control can be operated wirelessly）4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).


Specification:
Condition: 100% Brand NewItem Type: Microscope CameraModel: High Definition Multimedia Interface USB2.0 Dual Output CameraImage Format: jpgImage Resolution: 51MPVideo Format: MP4 (for Memory Card)Video Recorder: 1080P at 60FPSHigh Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS （For HDMI）USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPSWhite Balance: Automatic / ManualLight: Automatic / ManualExposure: Automatic / Manual, Value AdjustableDirection: Left / Right, Up / DownFreeze: SupportOSD: English / Chinese / French / Spanish / Japanese / GermanLines: Different colors, 5 horizontal lines, 5 vertical lines, any positionImage Sensor: 51MP CMOS Sensor 1/2.33 InchesEffective Pixels: 51MPPixels Size: 1.335μm x 1.335μmFrame Rate: 60fpsDefinition: Full High DefinitionHousing: MetalLens: C/CSVideo Format: MOVDigital Zoom: SupportBrightness Control: Automatic / ManualColor: R / G / B AdjustableFilm and Records: SupportCross Cursor: Support multi-color, adjustable sizeHorizontal and Vertical Lines:Support multi-color, 5 horizontal / vertical lines, movableDifferent colors, 5 horizontal lines, 5 vertical lines, any positionMemory Card Interface: up to128G ()High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)USB Interface: Standard USB2.0 Interface (Type B)Input Voltage: DC 12V
180X C-MOUNT Lens

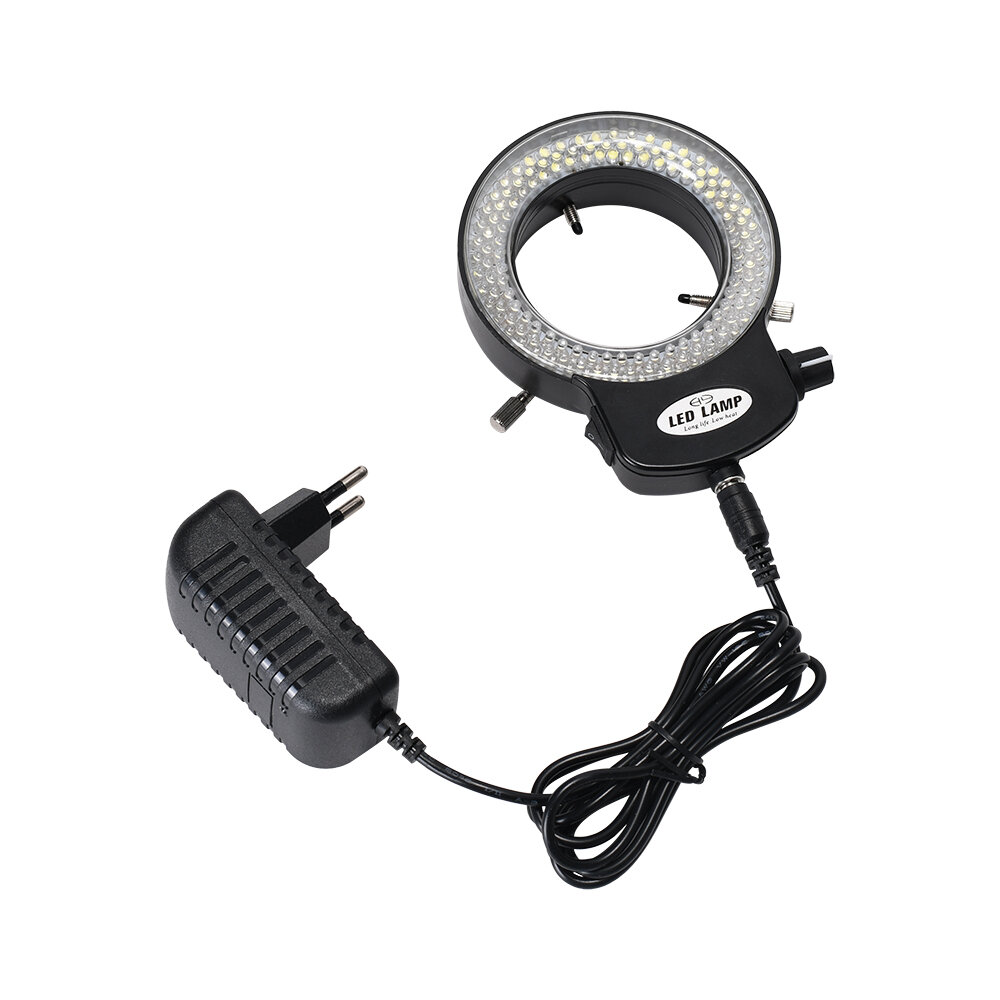

Provides intense and focused shadow-free illumination56 bright white LED bulbsLighting direction changeableVariable intensity controlIntense and focused shadow-free illumination100,000 hours of lifePower input: 100-240V, 50-60HZ, auto switchingInside diameter of the ring light: 1.0" (27mm)Overall outside diameter: 1.77" (45mm)Working Distance: 27mm-45mm
