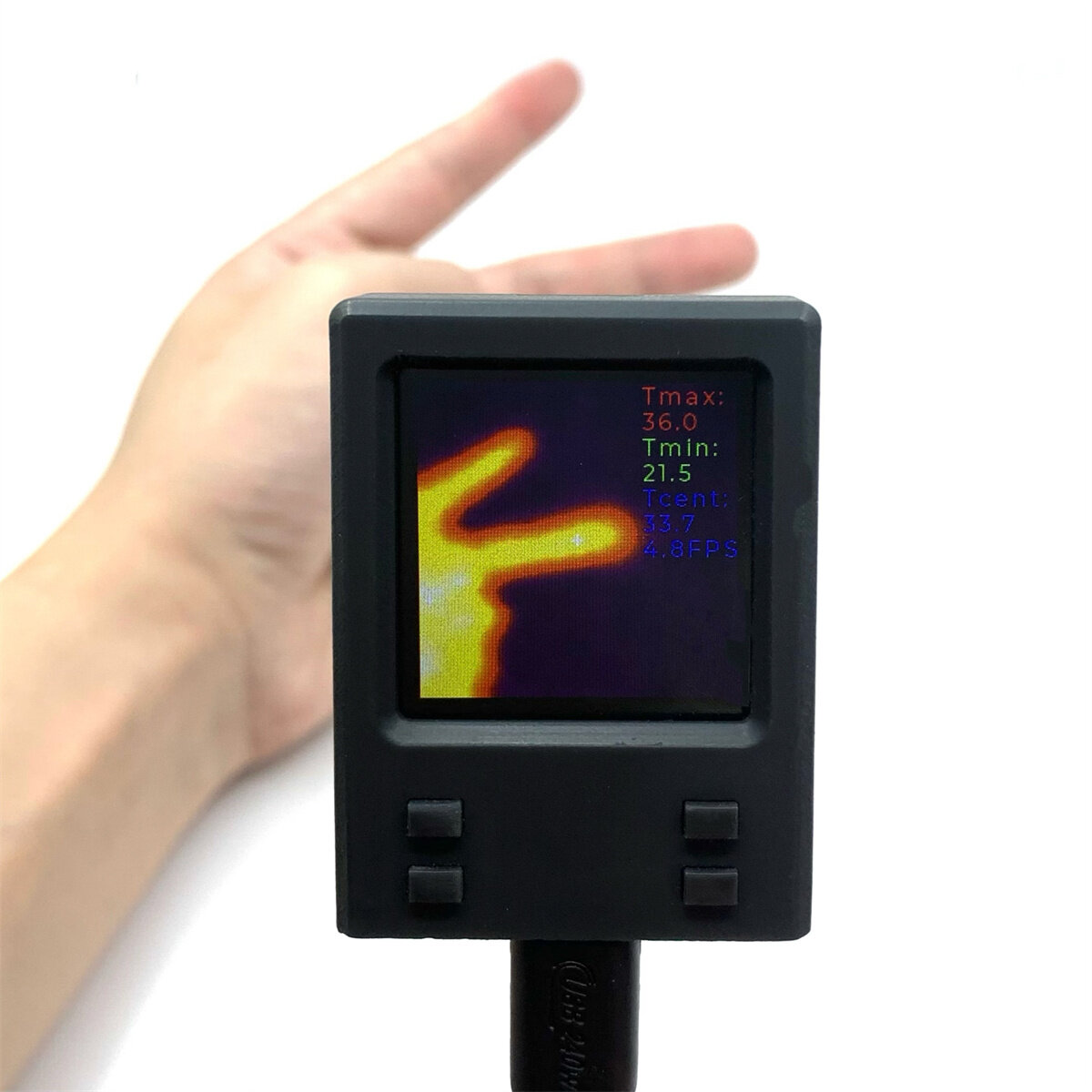

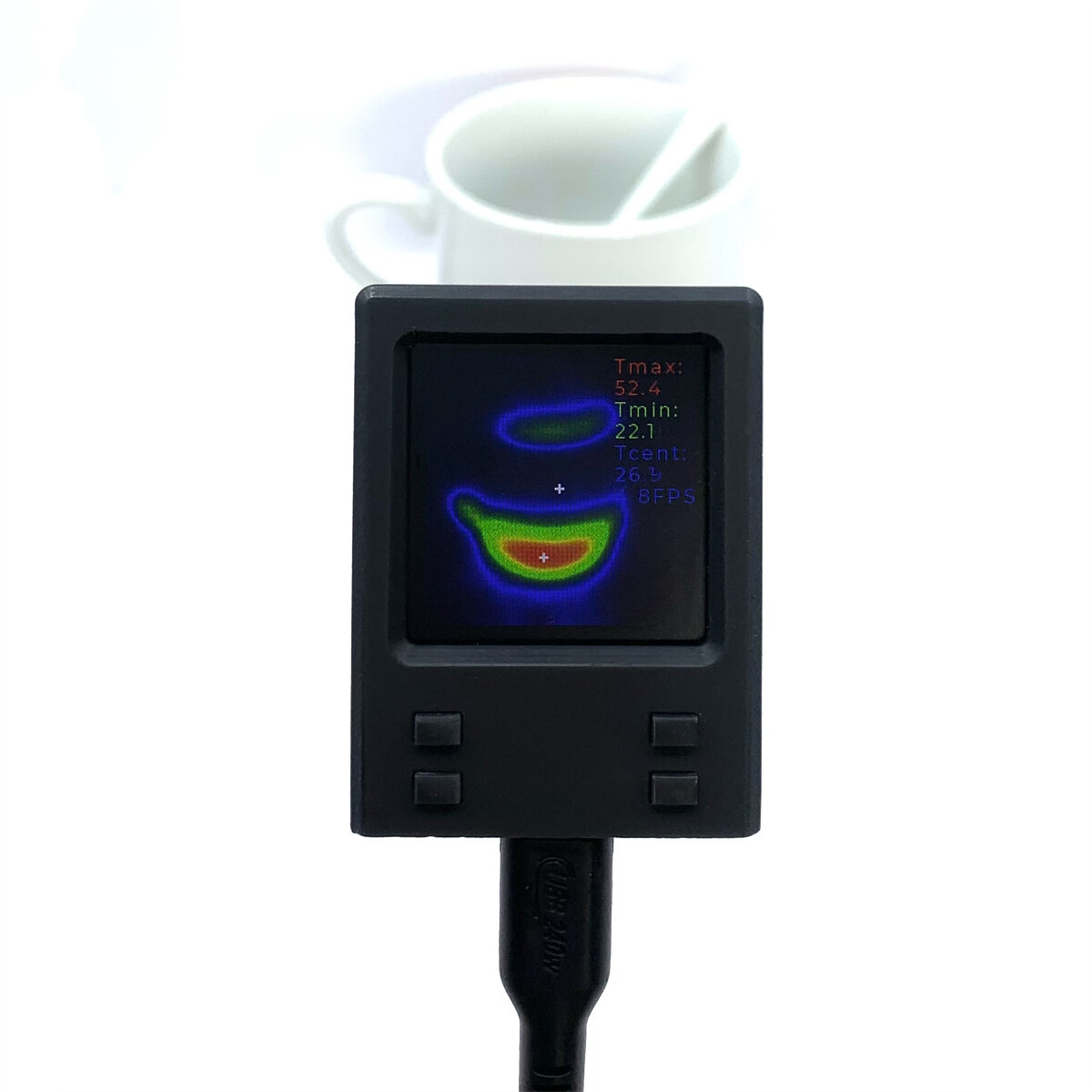

TIP is a portable thermal imager. It is based on a 32x32 resolution infrared thermal imaging array sensor, supporting 6 types of color palettes; Support for saving screenshots locally, allowing for browsing locally or managing downloads, deletions, and more using built-in file servers through the network; Supports WiFi connection and allows you to browse infrared and visible light camera videos on the local area network through a web browser.
1. Supports five color palettes: Iron Red, Rainbow, White Heat, Blue Orange, and Blue Yellow modes
2. Adjustable emissivity: if it is necessary to accurately measure the temperature of the object, it is necessary to set the corresponding emissivity of different materials, and make the measured object as full of the field of view as possible.
3. Support AP distribution network. This machine can be connected to other devices through WiFi network, and users can view thermal imaging images in real-time or browse captured
4. Support for taking photos and the ability to view the captured images locally
5. Supports multiple image display algorithms
Display: 1.54inch TFT
Screen resolution: 240x240
Net weight: 28g
Volume: 52 x 40 x 20mm
Infrared resolution: 32 x 32
Infrared FOV: 33 ° x 33 °

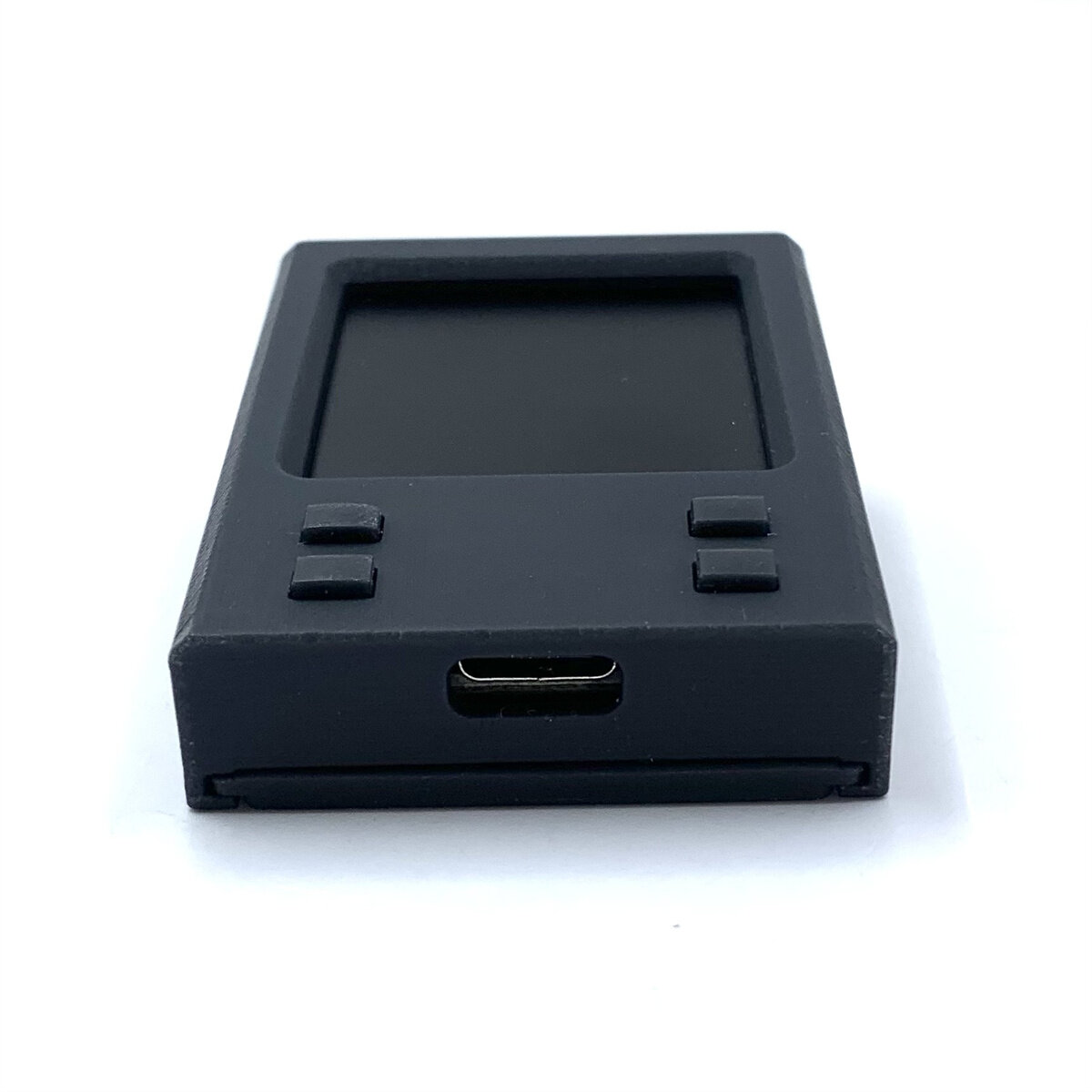

Interface: Type-C
Storage capacity: 1.5M Byte, capable of storing over 50 JPEG format screenshots
Maximum frame count: 5.3FPS
Number of color palettes: 5 types
Temperature measurement accuracy: ± 3 ℃
Temperature measurement range: -20~1000 ℃
Working temperature: 15-45 ℃
Storage temperature: 0-60 ℃
1 x Thermal Imager
