5Pcs Geekcreit® 12V 4CH Channel 315Mhz Wireless Remote Control Switch With 2 Transimittervs COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

This product does not supply any instructions, please reference the description.

Features:




2. These remote controls are designed to control a wide variety of electronic devices with a wireless signal.

4. Compatible with 2262 / 2260 / 1527 / 2240 etc chip and several code wireless remote control. So it can meet someone's need of choosing the wireless remote control as they like to work with it .



1. Press the learning code, the indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it successfully .

3. remove/clean: press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully.



1. Self-lock: connect the JP1 with the cutting out cap.

3. Inter-lock: Connect the Jp2 with the Cutting out cap,

Self -lock:press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control).

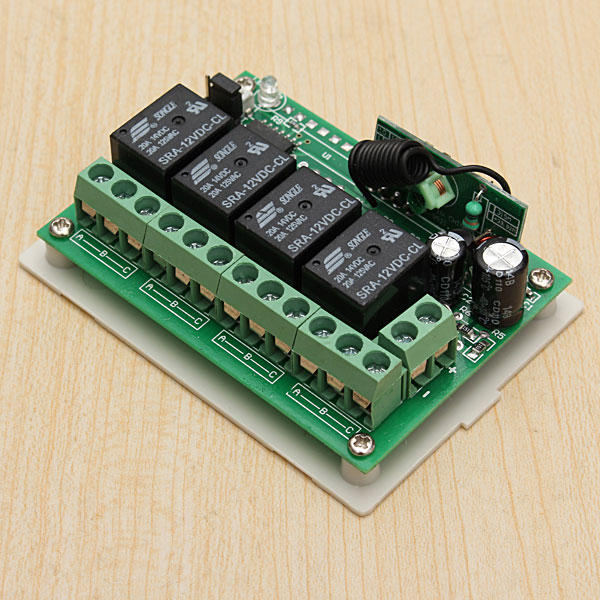

Receiver:


2. Quiescent condition: Less than 6mA

4. Receiver sensitivity: more than -105dBm

6. Output voltage: DC and AC is optional

8. Max load current: 10A

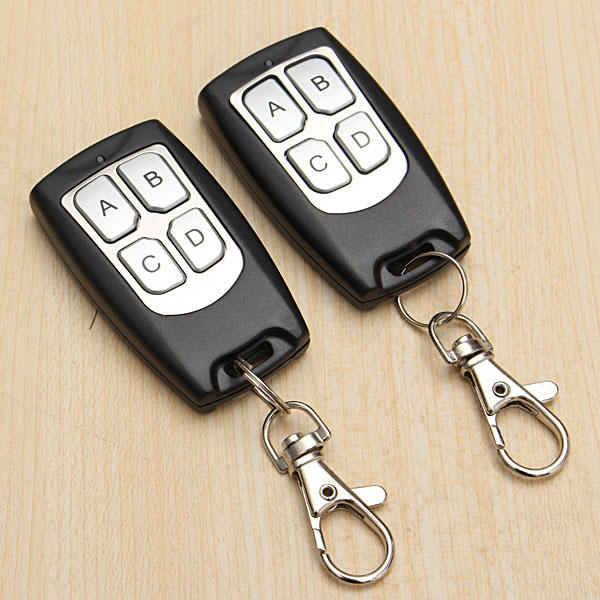

Remote control transmitter:


2. Operating Voltage: DC 12V

4. Operating Current: 13 mAh

6. Dimensions: 58 x 39 x 14mm



10 x Transimitter
