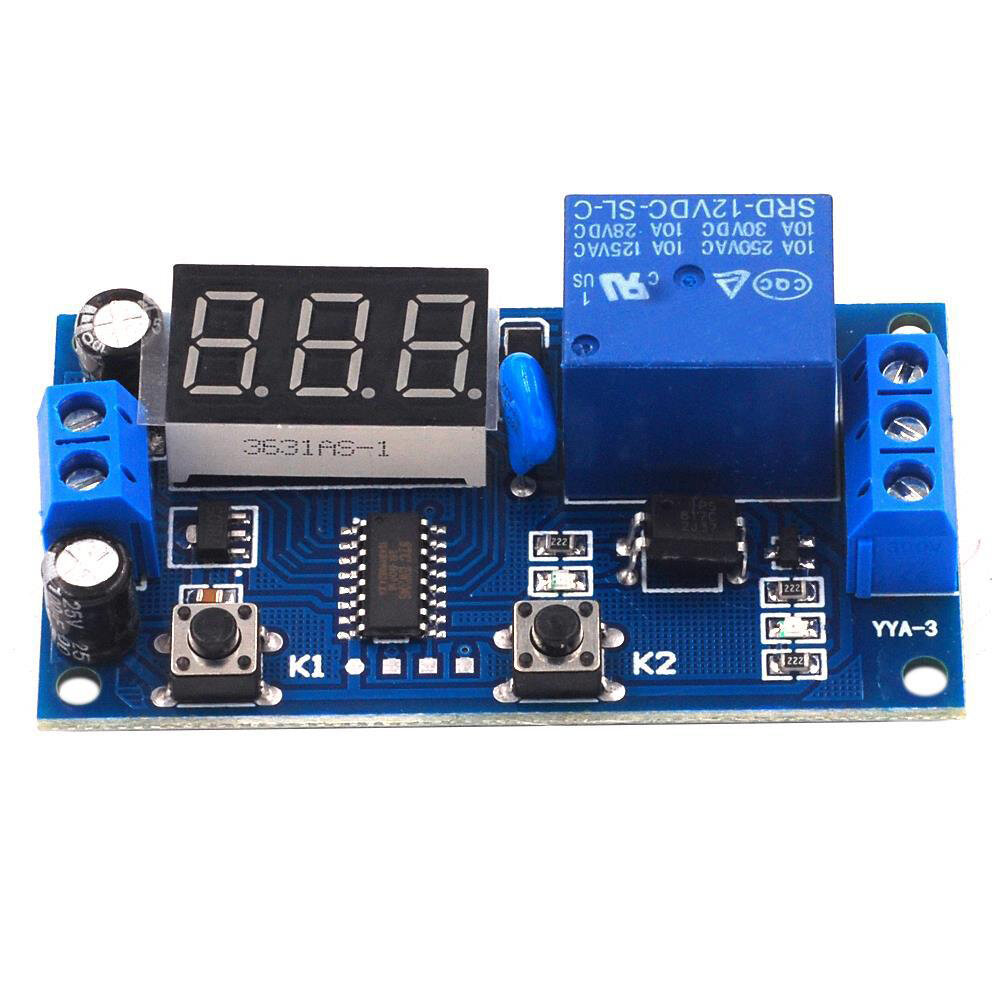

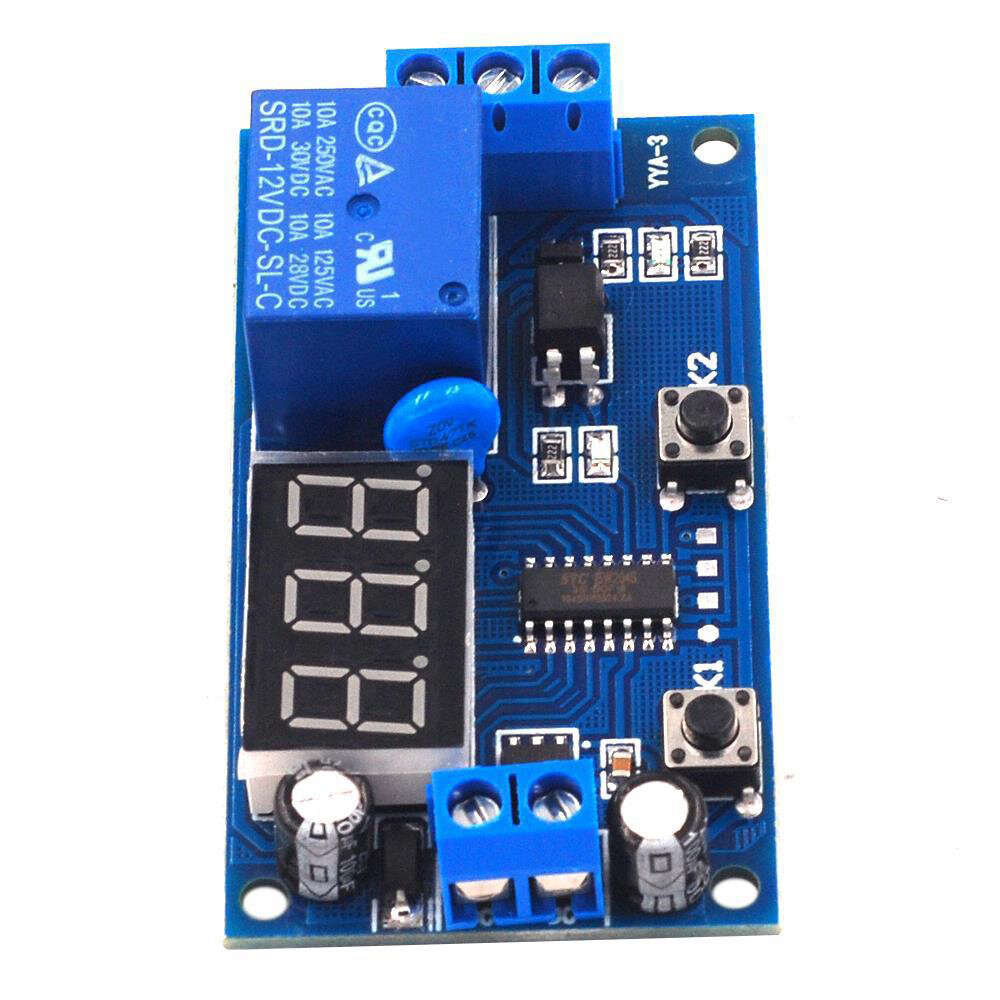

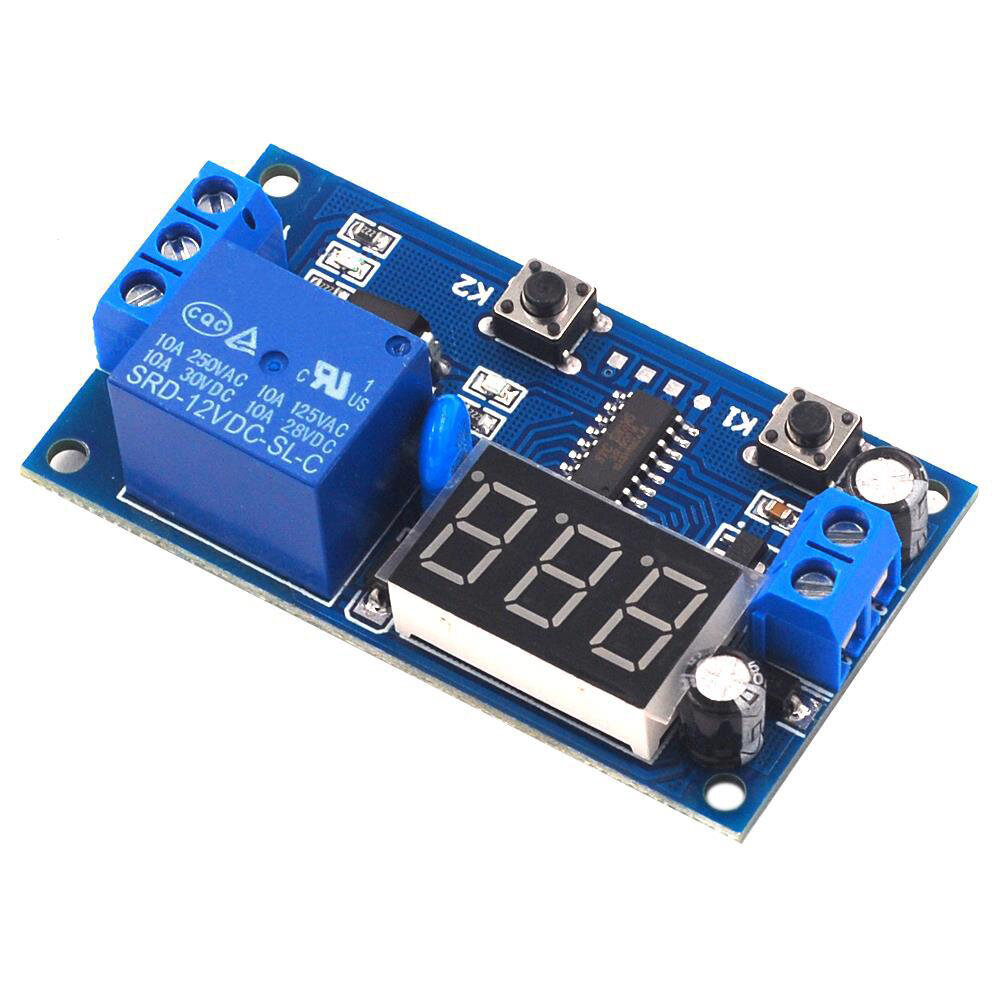

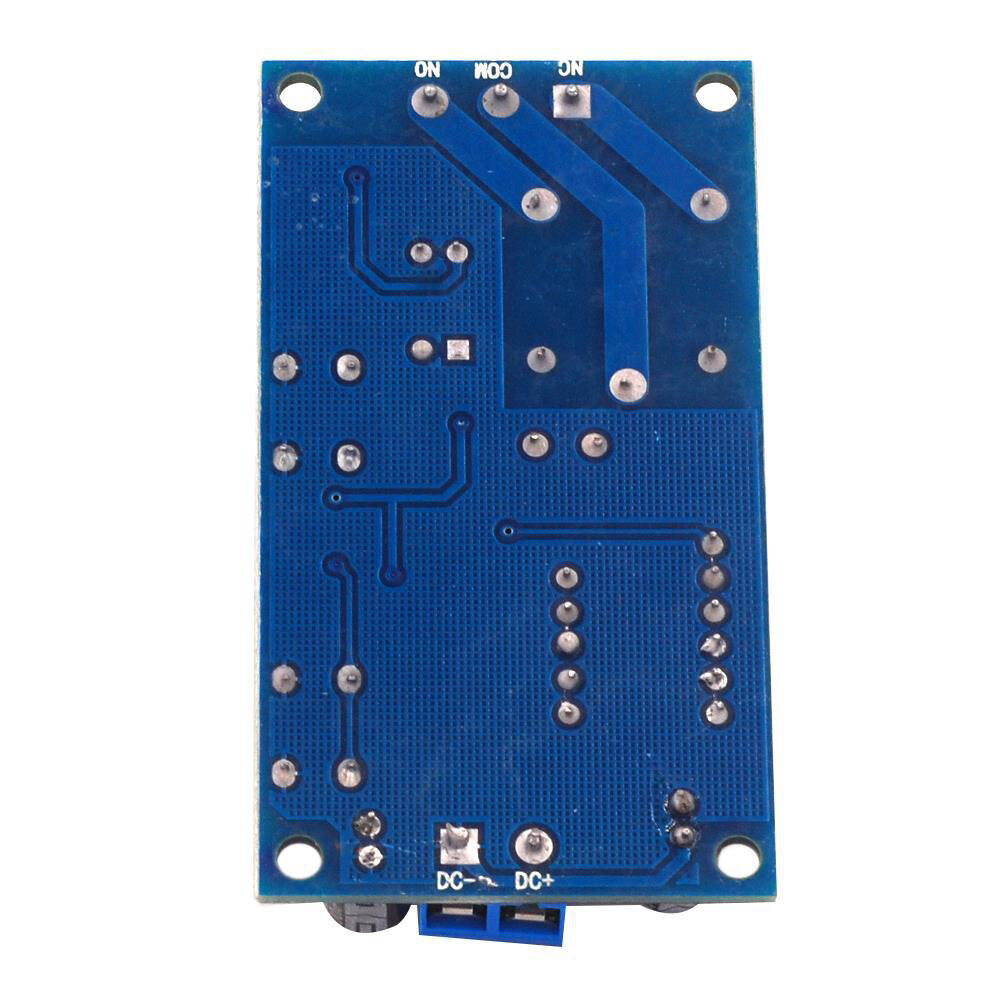

5V Time Control Switch Intermittent Infinite Loop Countdown Switch Controller Timing Relay Module COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:
Product working mode: connect for a period of time after power on, disconnect for a period of time, infinite loop (with normally open and normally closed contacts)

Specifications:
Size: 65mm*36mm*18mmOutput capacity: DC 5~30V 5A AC 220V5AStatic current: 20mA Working current: 50mAWorking voltage: DC5VService life: more than 100,000 timesWorking temperature: -40~85'CThe output adopts optocoupler isolation, which enhances the anti-interference ability and power consumption, and ensures stability. The industrial-grade circuit board is similar to PLC, and the set parameters can be remembered forever after power off.
