7 Strings 24V 7S Ternary Iron Lithium Battery Protection Board Li-ion 4.2V BMS with Bluetooth Communication 30A-250A COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Product Parameters:

Charge voltage

Li-ion: N(strings)*4.2V

<=20mΩ

Over charge protection

Detect voltage: Li-ion: 3.8V

Release voltage: Li-ion: 3.8V

Balance current: 30±5mA

Over discharge protection

Protection delay: 1S

Protection release condition: OFF load

Short circuit protection

Working current: 55mA

Sleeping currentt over-discharge): 800uA

Working Temp Charge: -40~65℃ Discharge: -40~70℃ (Customizable)

Working Temp Temp range:

Storing Temp Temp range: -40~85℃

(The appearance and weight of products with different currents are inconsistent. Please refer to the product appearance received. thank you for understanding)

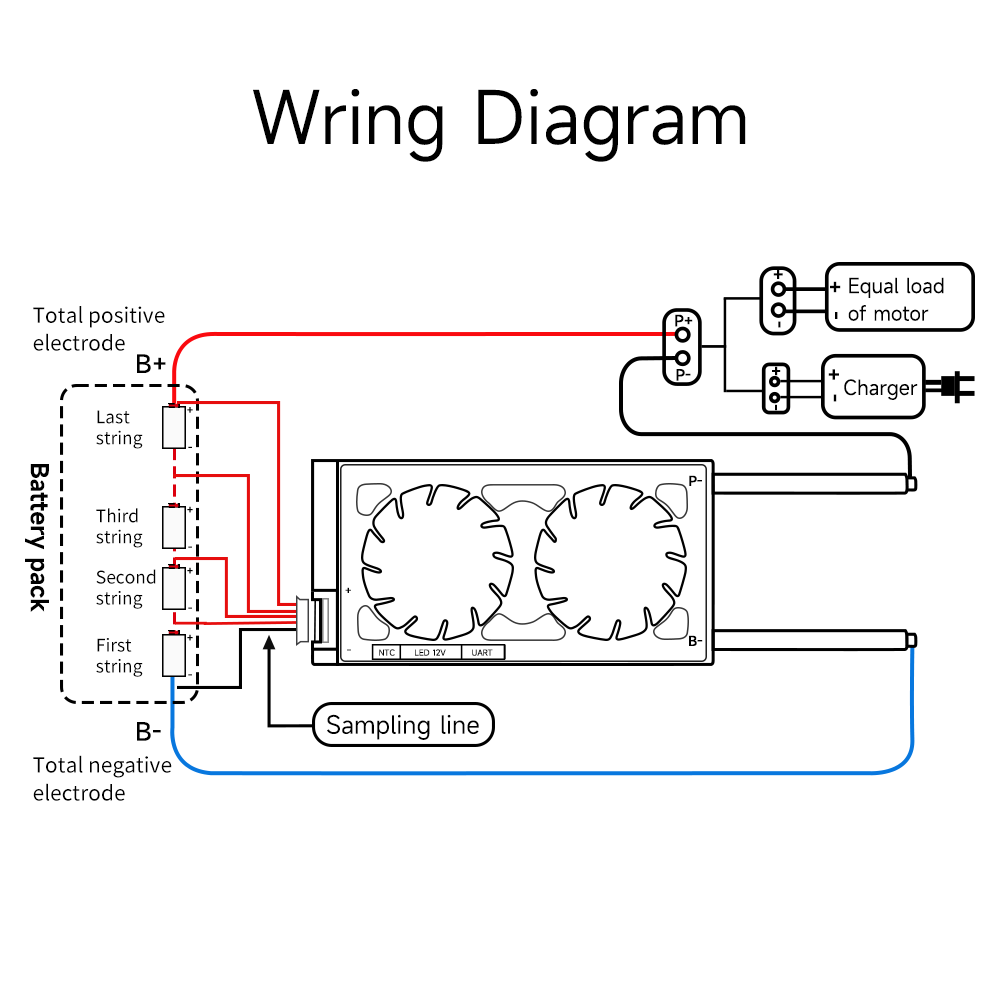

Protective board connection battery wiring:* Special attention: The wire cable of different manufacturers are not same standard, please make sure to use he matching cables; the colors of B- and P- lines of different manufacturers are different, please pay attention to the B- and P- marks.After the wiring is completed:
