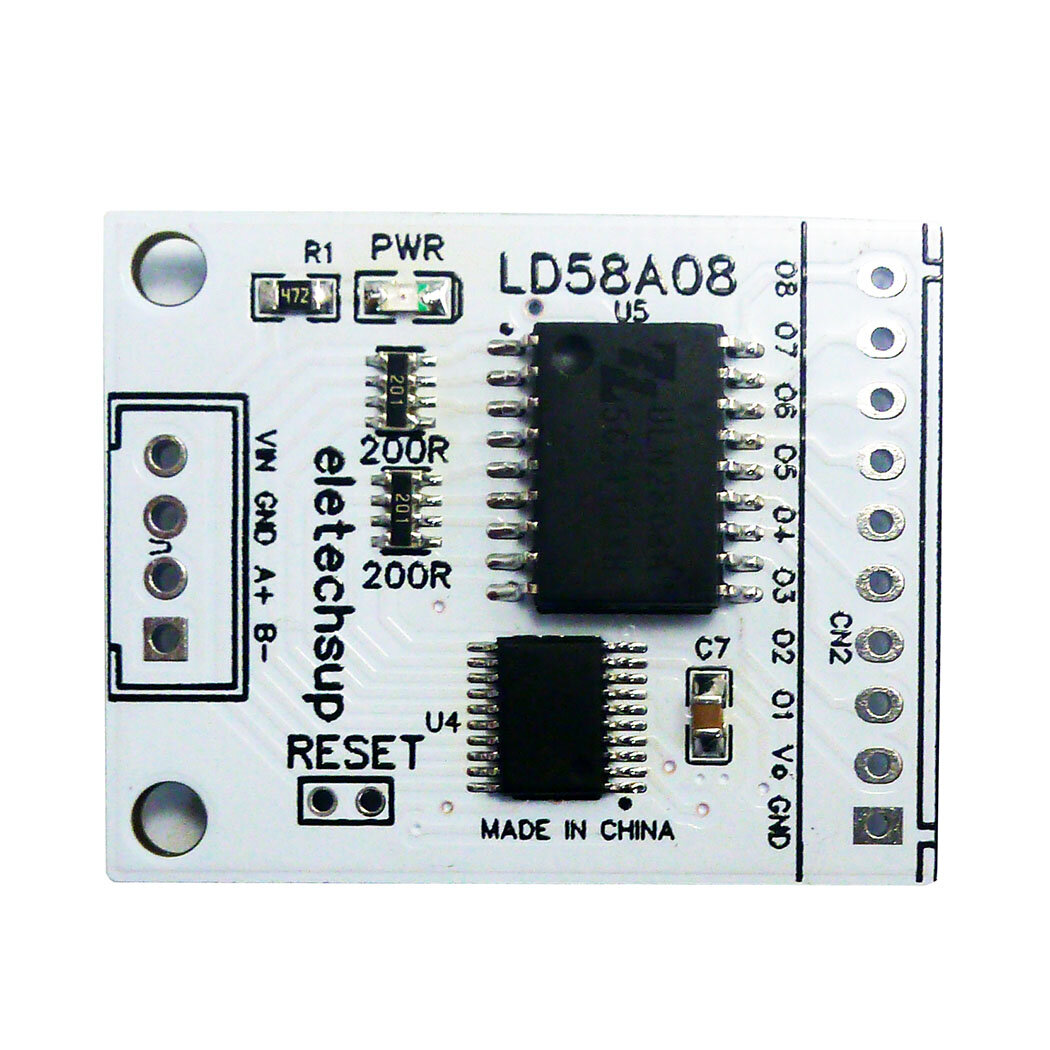

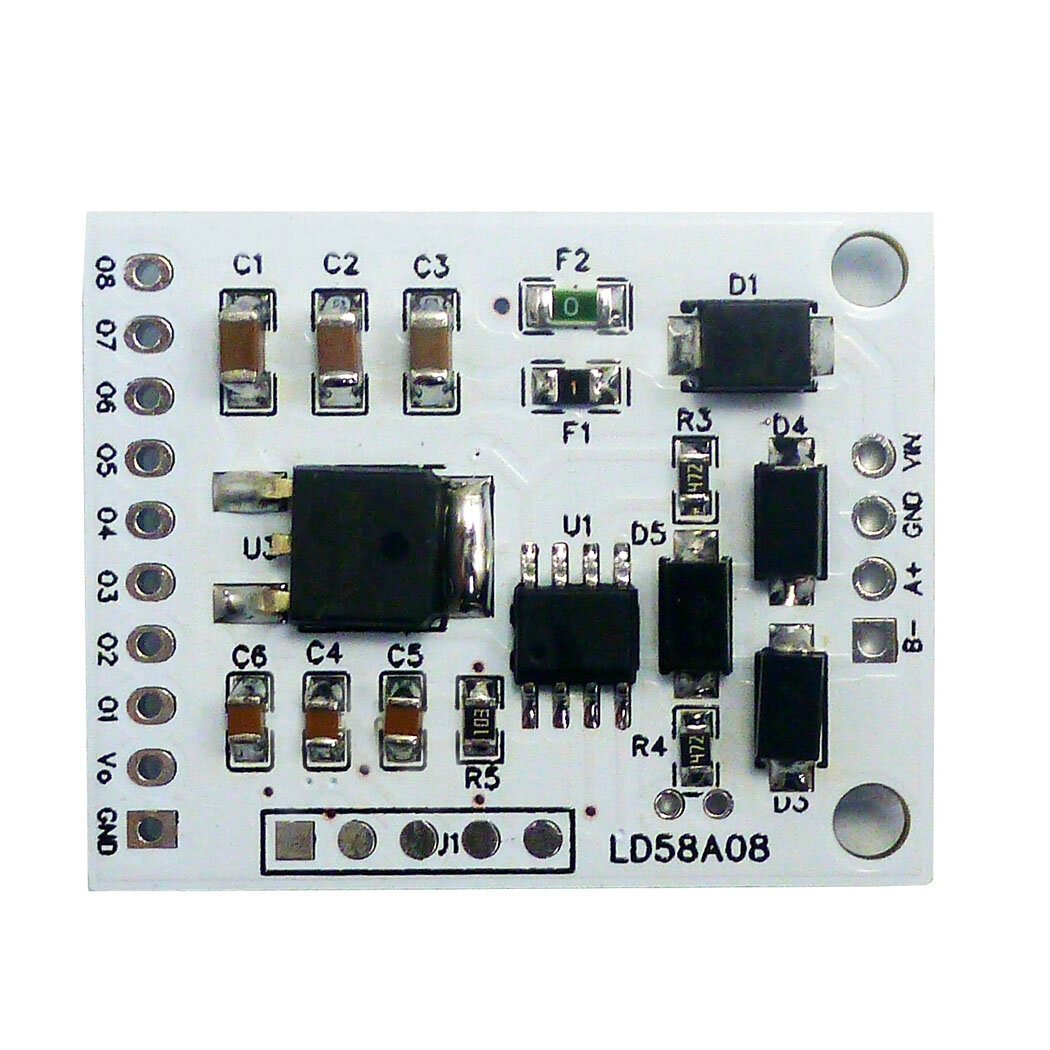

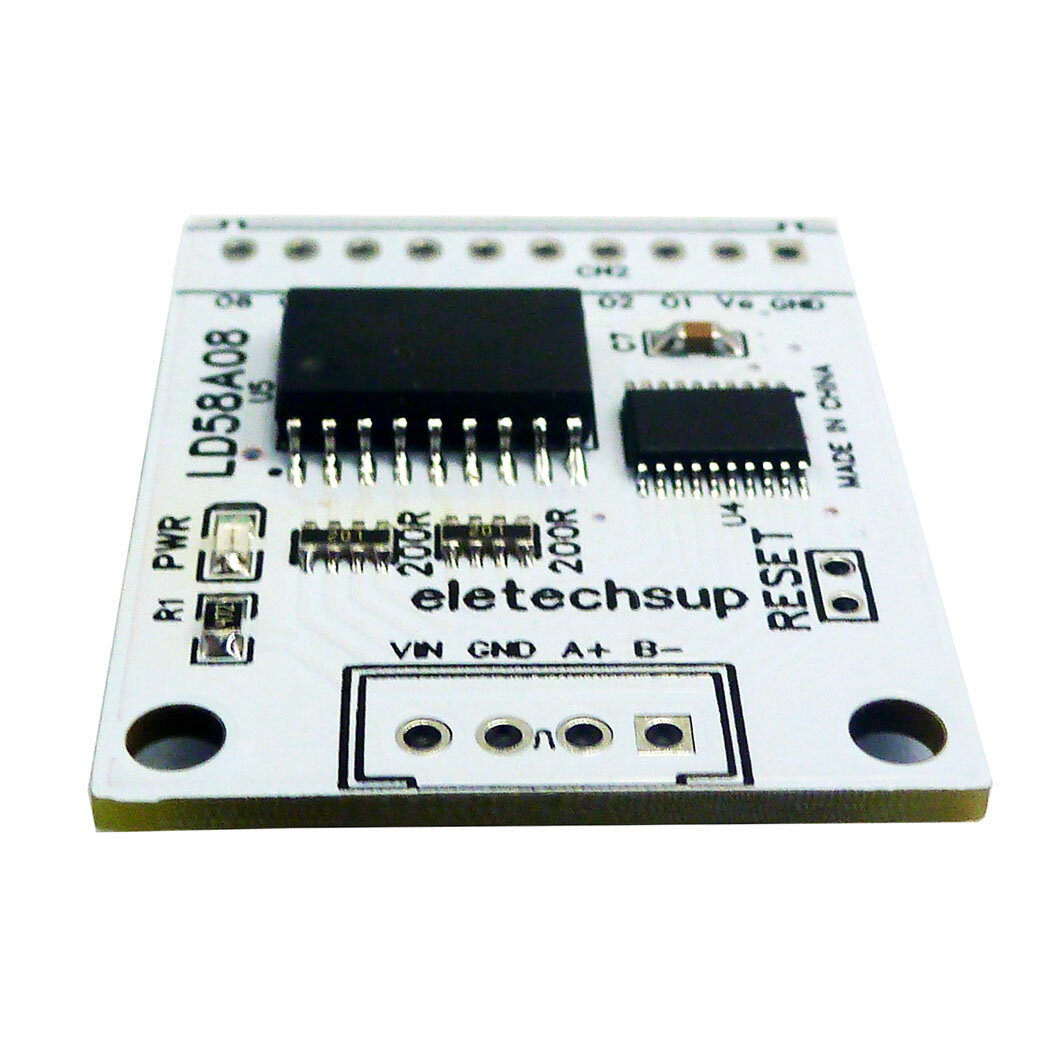

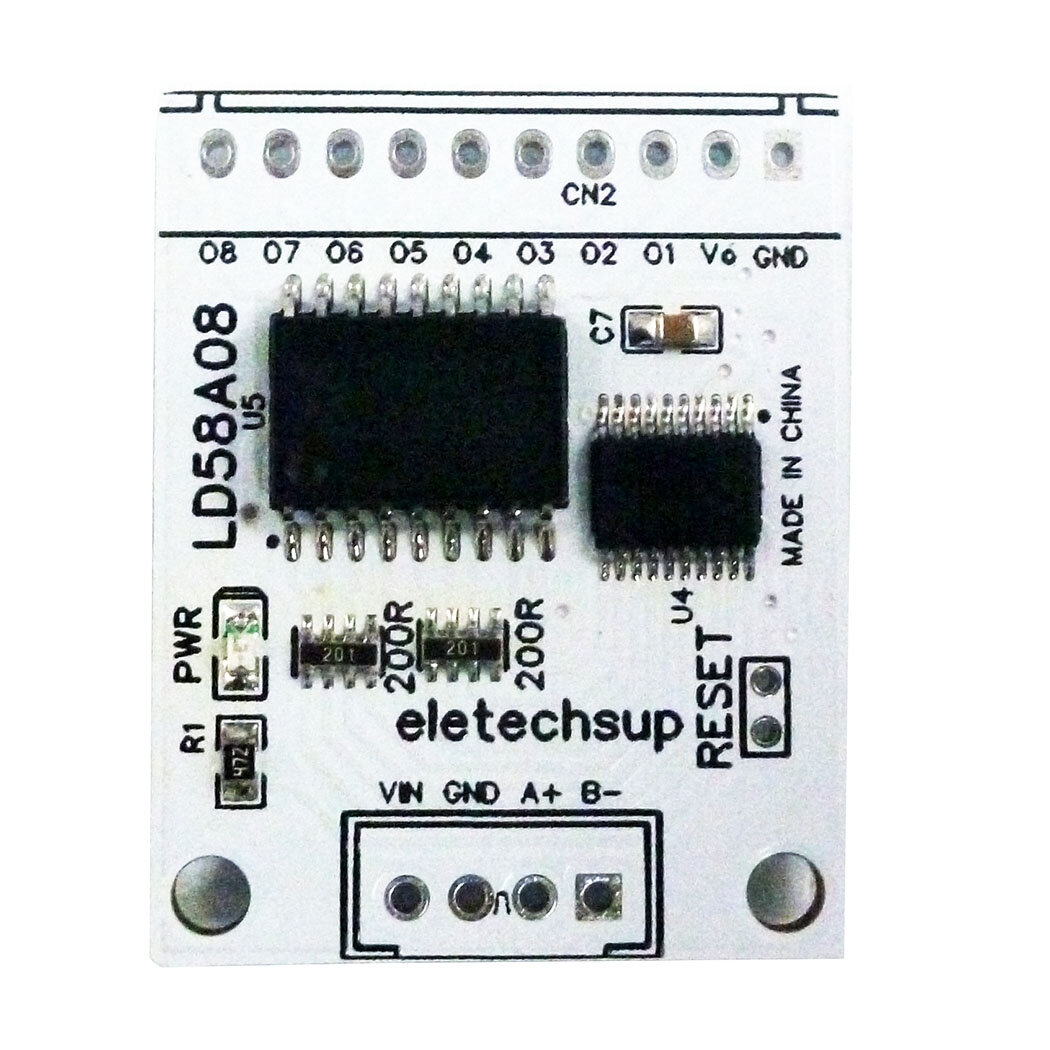

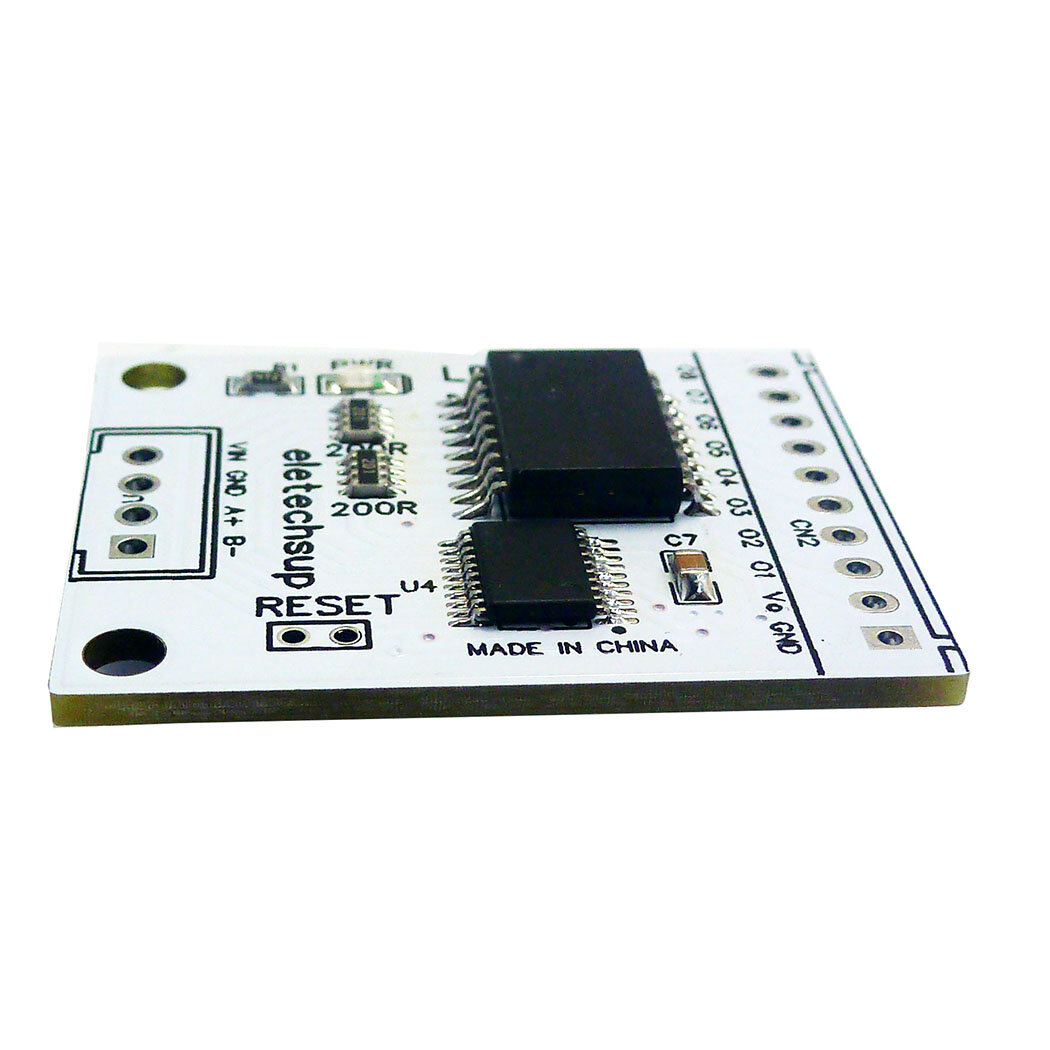

8ch RS485 Modbus RTU DO/PWM Output Multifunction MOS Driver Board for Multilayer Signal Lights LED Relay Solenoid Valves Motor COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Supply voltage:DC 6.5-25V.

Size: 35X 28X 5MM

Description:

MODBUS RTU Command support function code, 05/06/15/16 Write, 01/03 Read









8 channels can also be used as PWM output. Among them, 1-6 channels are Low-Speed PWM channels (output parameters are expressed by Period/Turn-On-Time), output Period range: 0.1-6553.5 seconds; Turn-On-Time range: 0-6553.4 seconds (not greater than Cycle time).7-8 channels are High-Speed PWM channels (output parameters are expressed by Frequency/Duty-Cycle), output Frequency range: 1-20000Hz, Duty-Cycle 0-100%

Package Include:

1× Module Board

Typical Application:

Directly drive inductive loads such as relays/solenoid valves/low power motors

Multilayer Signal Lights /Warning Light /Alarm signal indicator

The output port is a Darlington tube open-drain output, and the port level cannot be directly measured.
