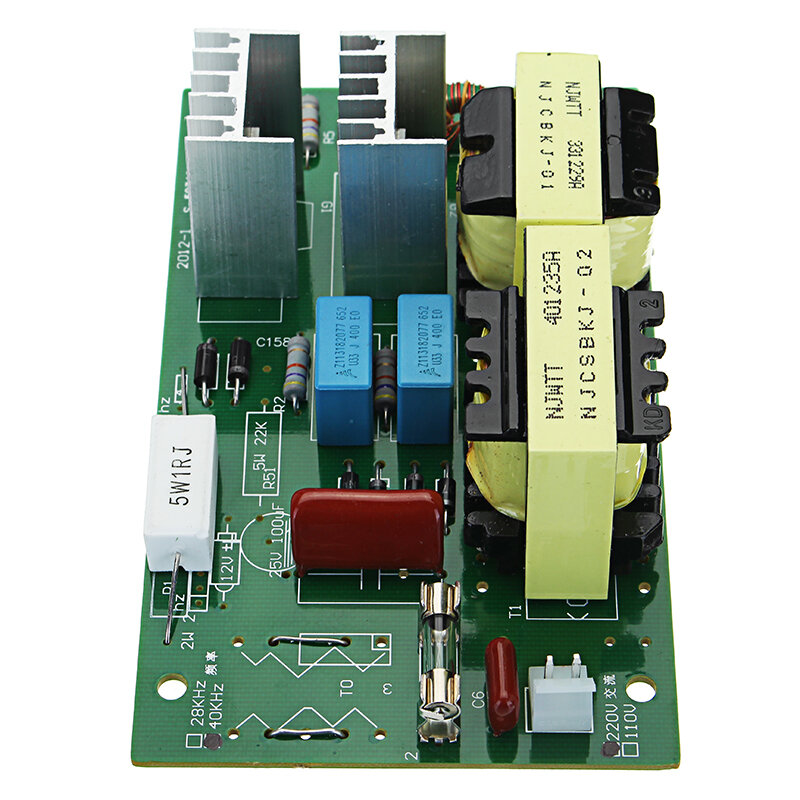

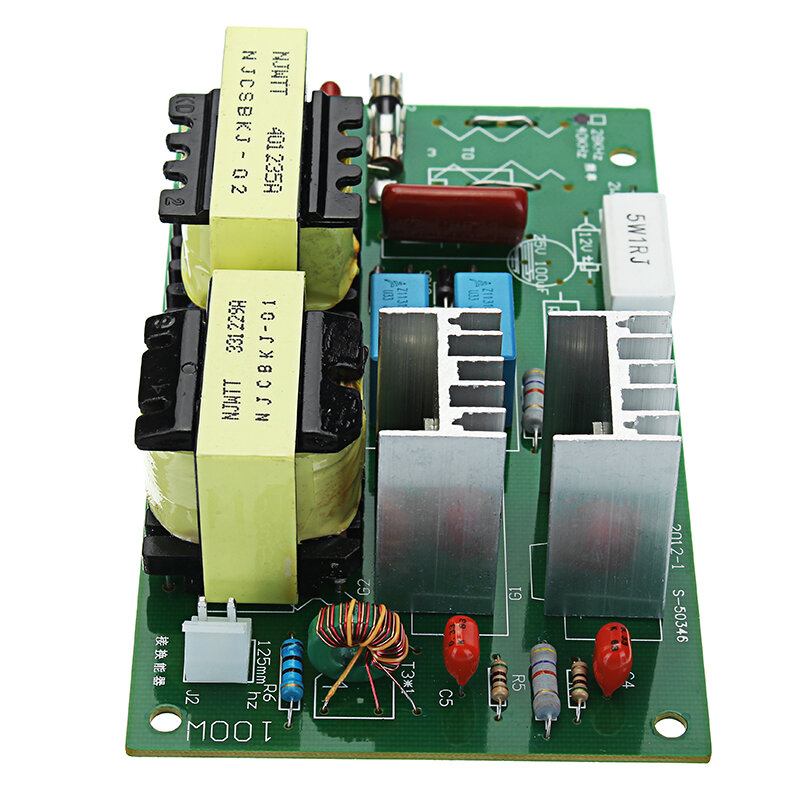

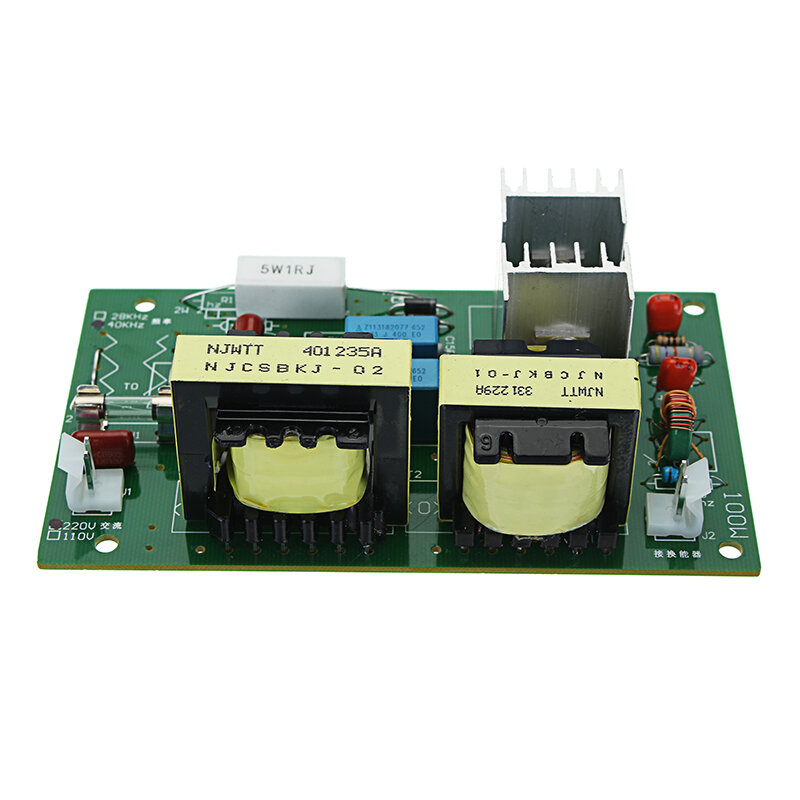

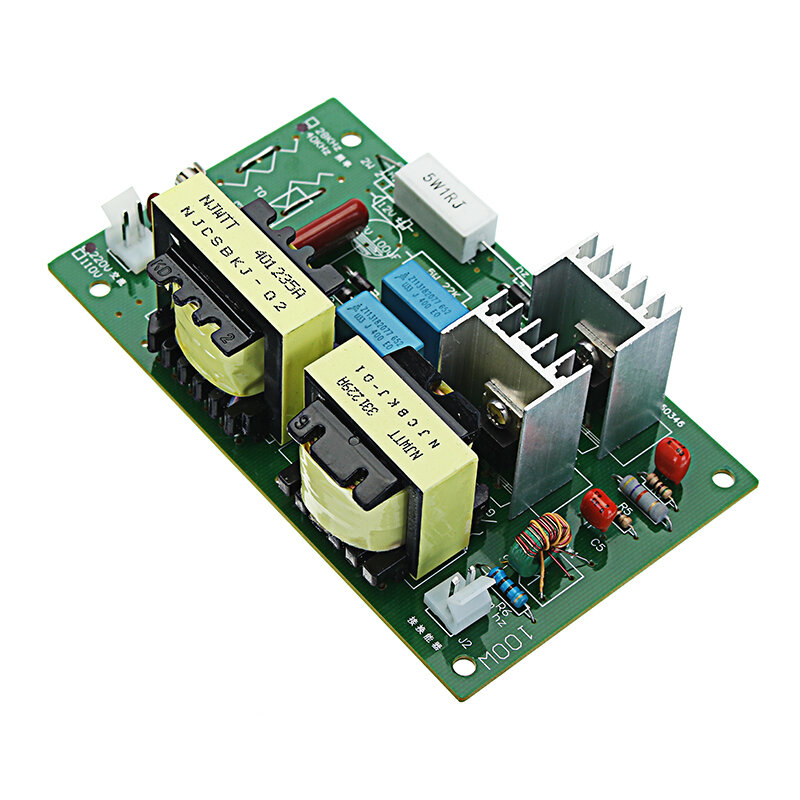

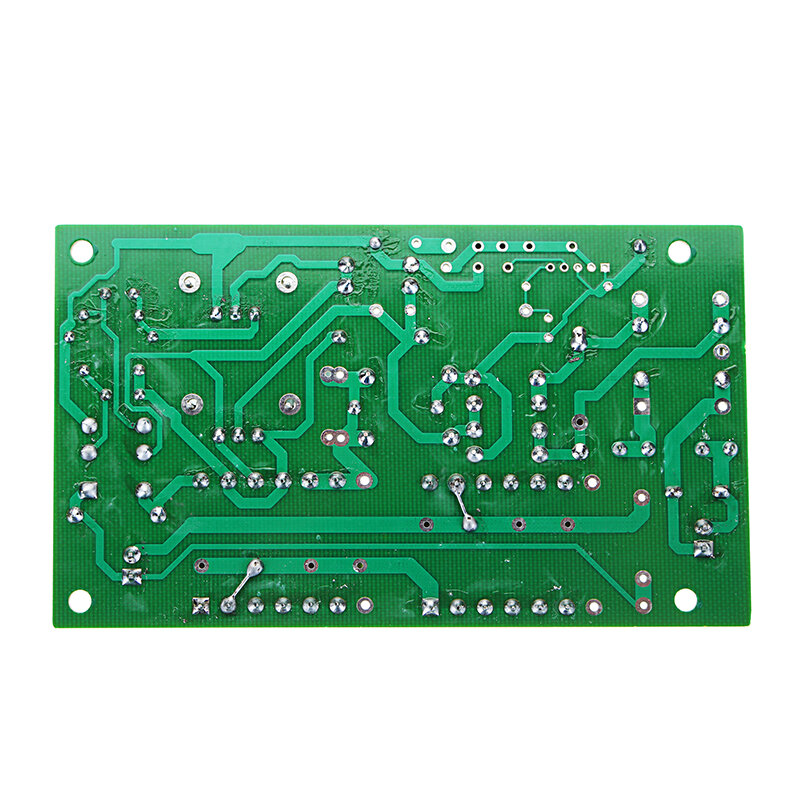

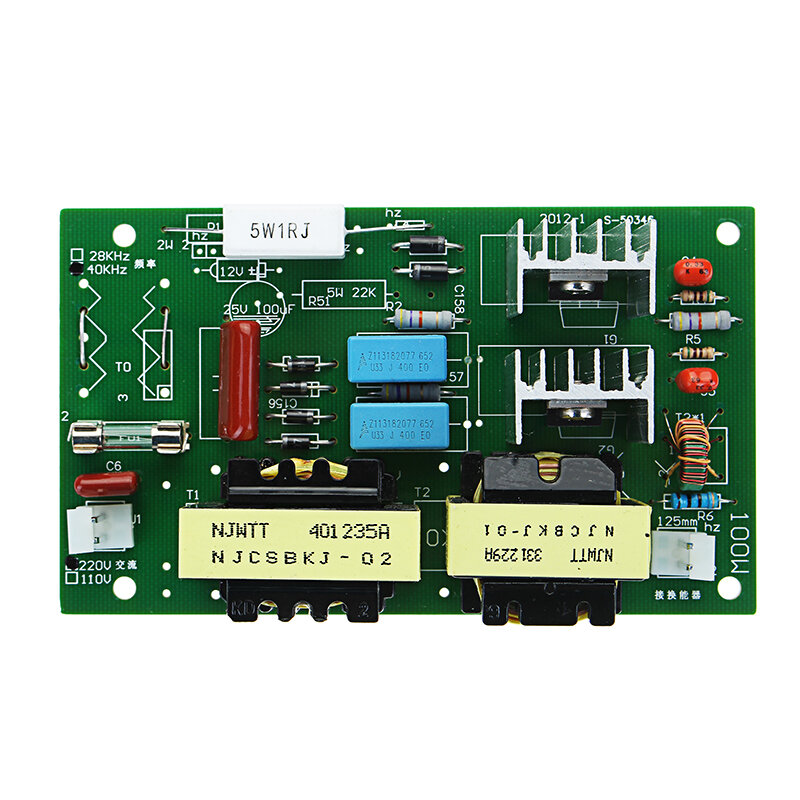

AC 220V 60W-100W Ultrasonic Cleaner Power Driver Board With 2Pcs 50W 40KHZ Transducers COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Power: 220V 60-100W

Applies to: Low-power ultrasonic cleaning machine, household cleaning machine, ultrasonic generator built machine.



The ultrasonic generator can monitor the power system frequency ultrasound power

Power tube: import power tube

Stable performance


Circuit board and vibration head (ceramic transducer) Wiring instruction:

1. The board can not no-load to power;

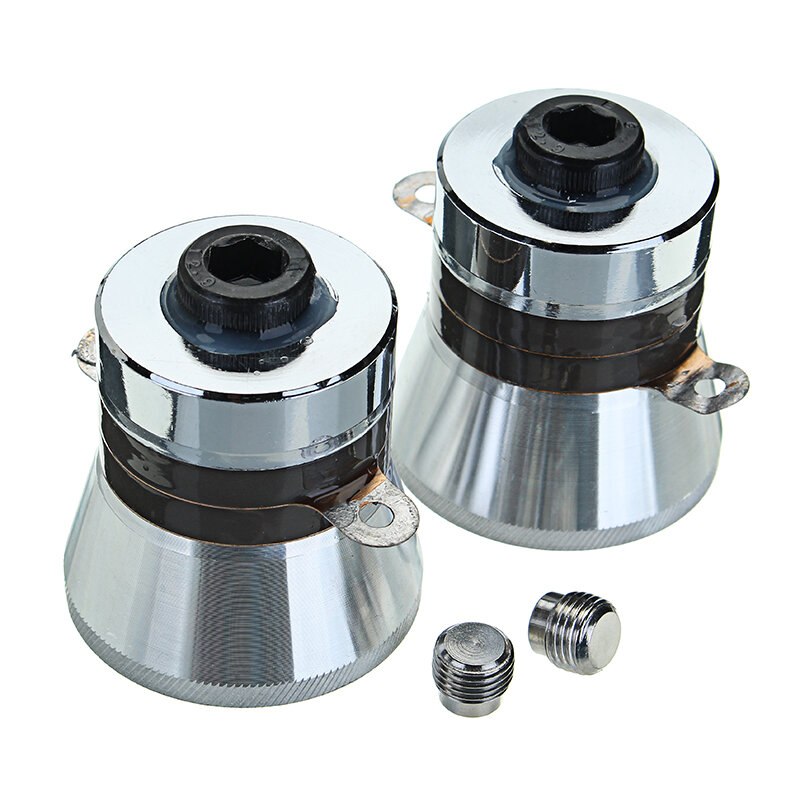

4. Transducer film on the ceramic sheet covered with a silver layer for the negative side, the other side of a large two silver layer is positive, the smaller one is negative, when the welding power supply line must be welded to the side there are two silver layer, the other side of the vibration surface, can be pasted in the washing tub; a silver layer ceramic chip is not high temperature, the power cord when welding iron temperature should not exceed 280 degrees, preferably heated iron, the iron temperature is set to 250 degrees .

6. Vibration head or transducer ceramic glue application head shock stick firmly to the pelvic floor cleaning;

8. Positive and negative, respectively positive and negative output coupled with the oscillator can not be wrong, we have questions, timely advice to ensure safety;


Package includes:


2 x Transducer

,,,
