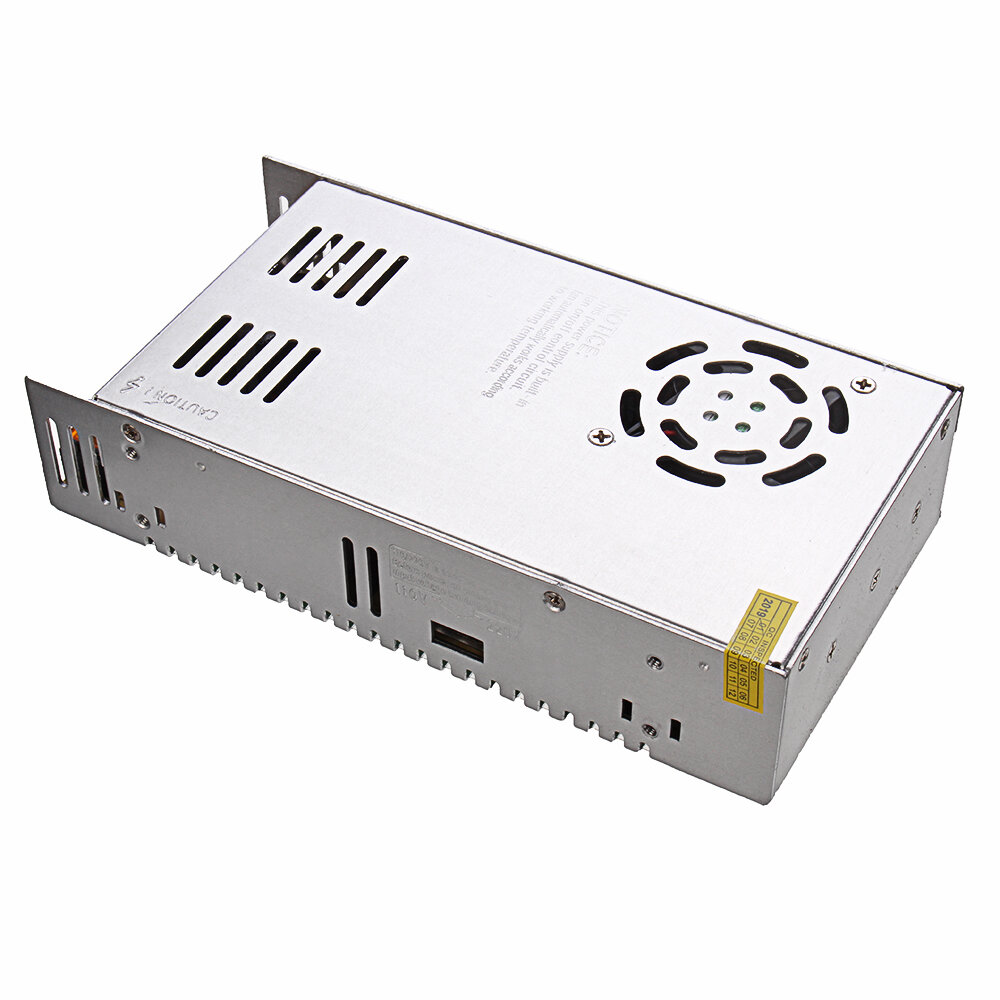

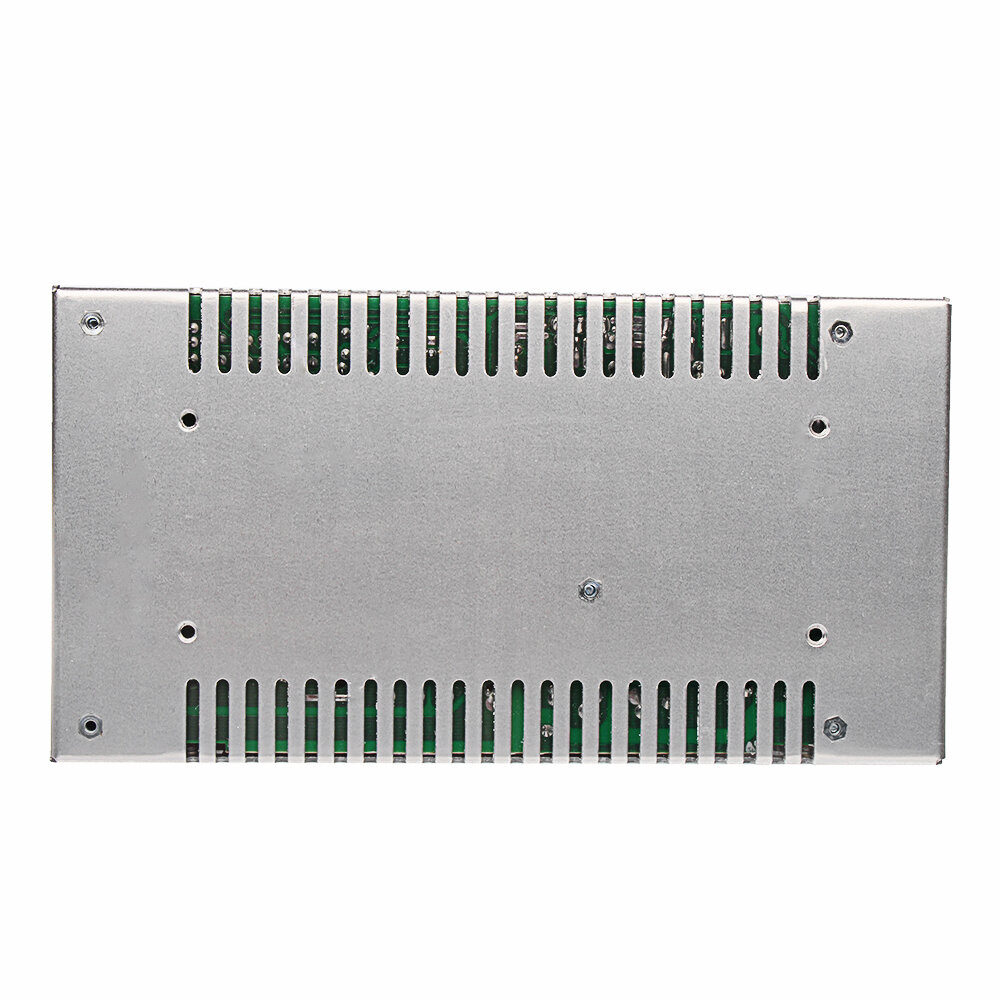

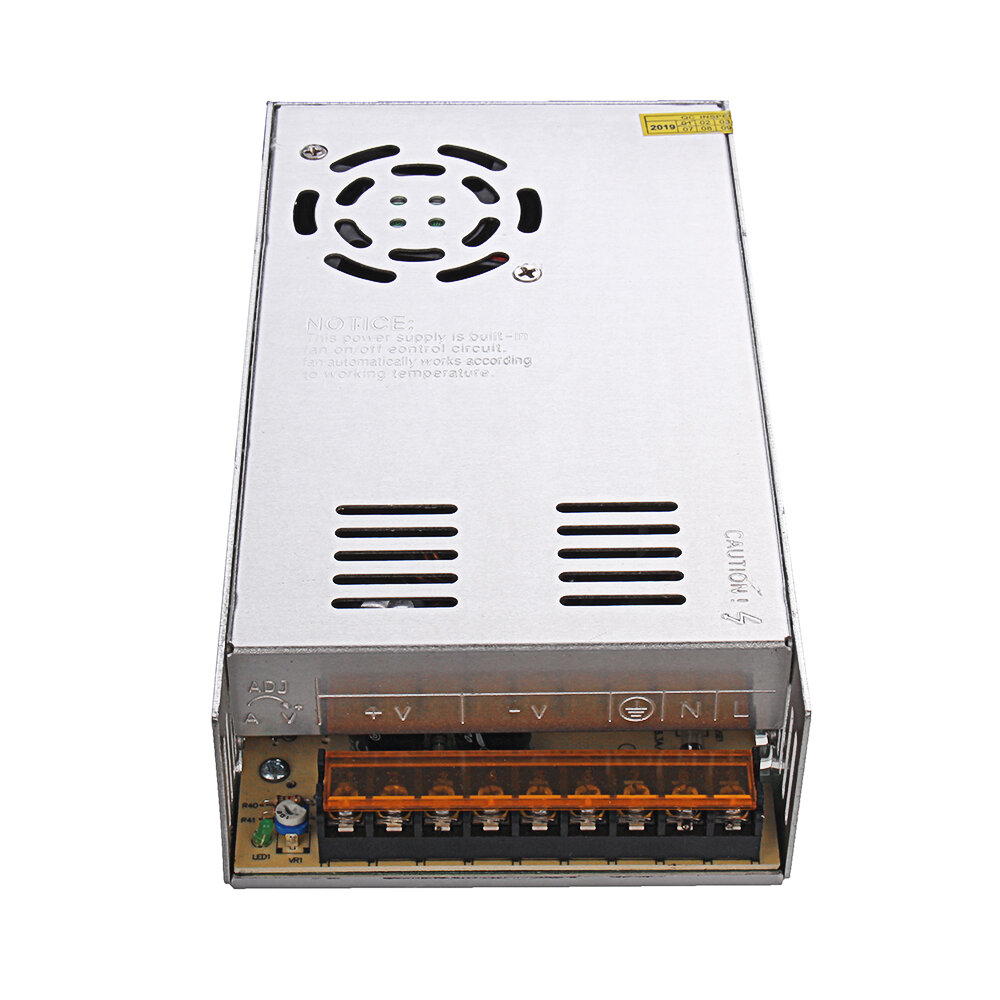

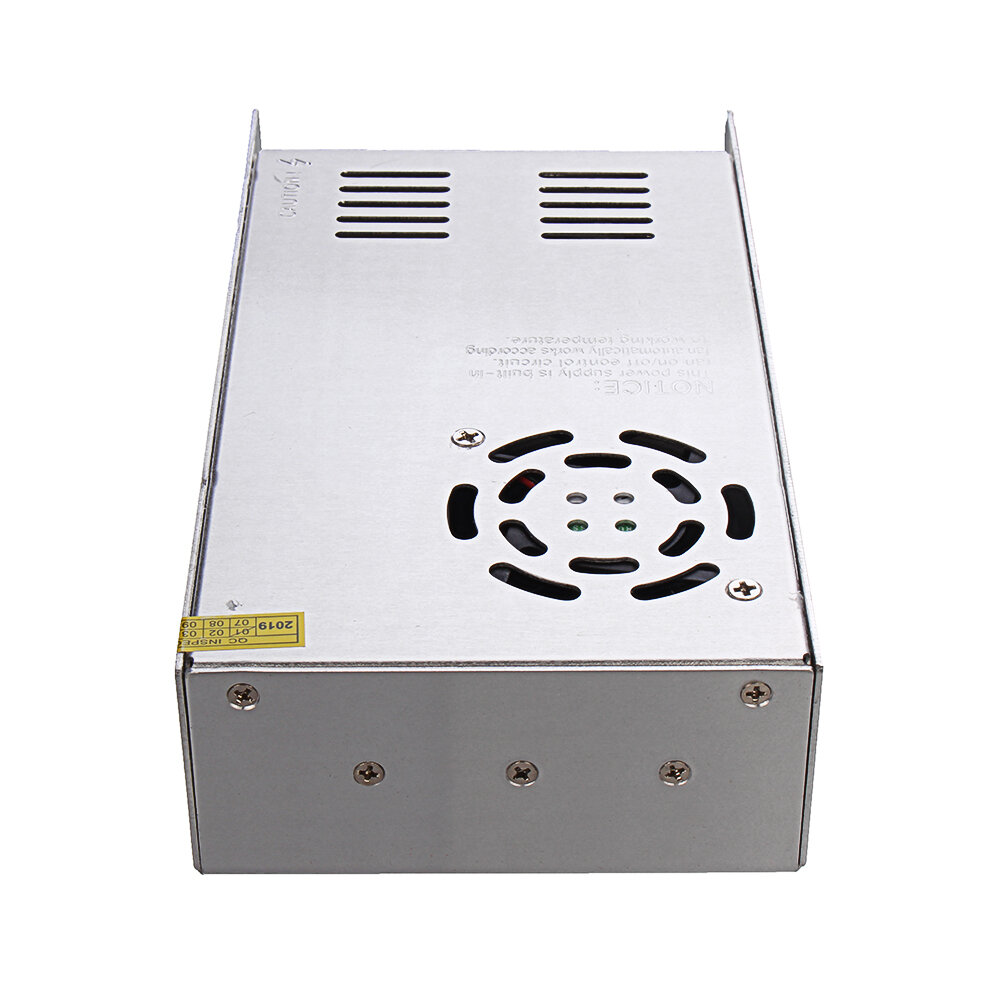

AC110V/220V to DC24V 20A 500W Switching Power Supply COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Model	S-500-24
AC input voltage range	110/220VAC
Input current	0.25A/115V 0.5A/230V
AC impulse current	Cold-start current 10.5A/115V 19A/230V
DC output voltage	24V
DC output power	500W
Rated output current	20A
Output voltage error	±1%
Efficiency	85%
Wave and noise	100mVp-p
Inlet stability	±0.5%
Load stability	±0.5%
Leakage current	<0.5mA/240VAC
Overload protection	105% - 150% rated power, automatically recovery
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Cooling method	Fan assisted cooling
Working temperature and humidity	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Store temperature and humidity	- 30 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
Safety standards	CE(EMC+LVD) , FCC.
Dimension	215x115x50mm
Weight	0.85kg

Feature: Specification: Package includes:
