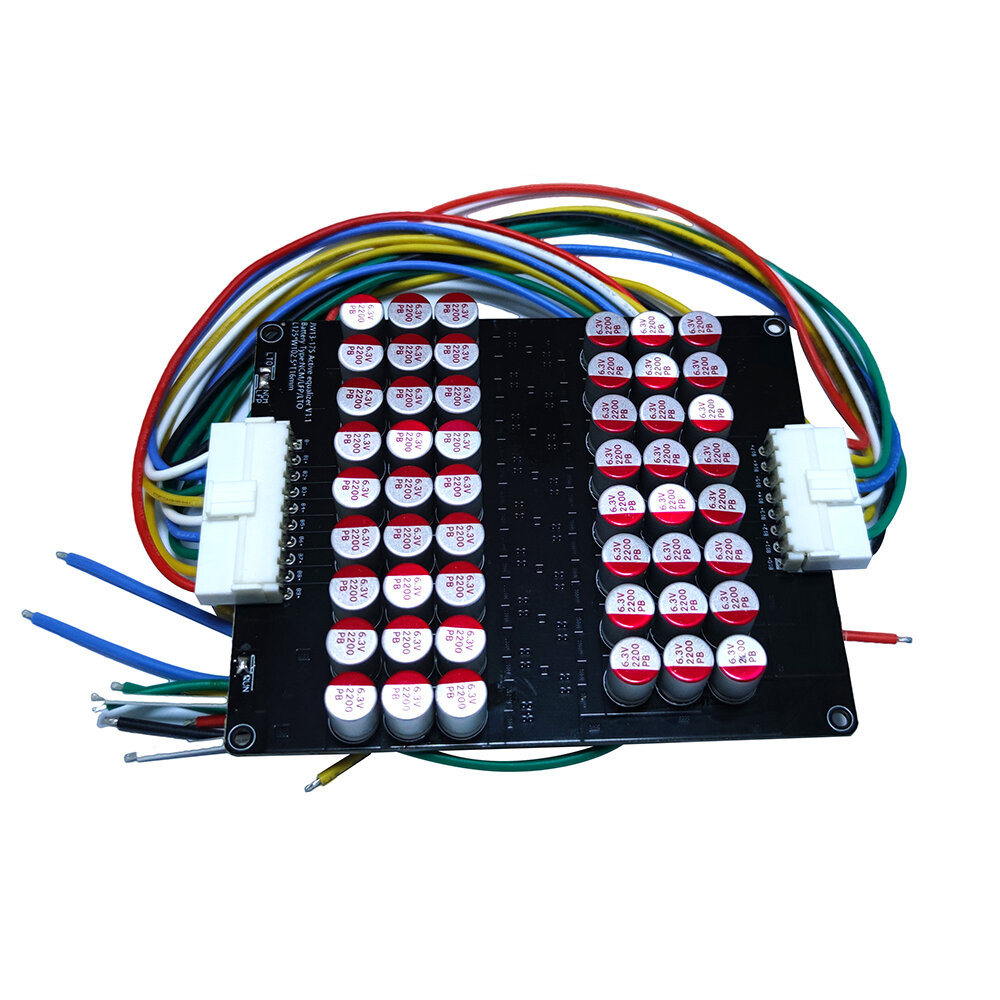

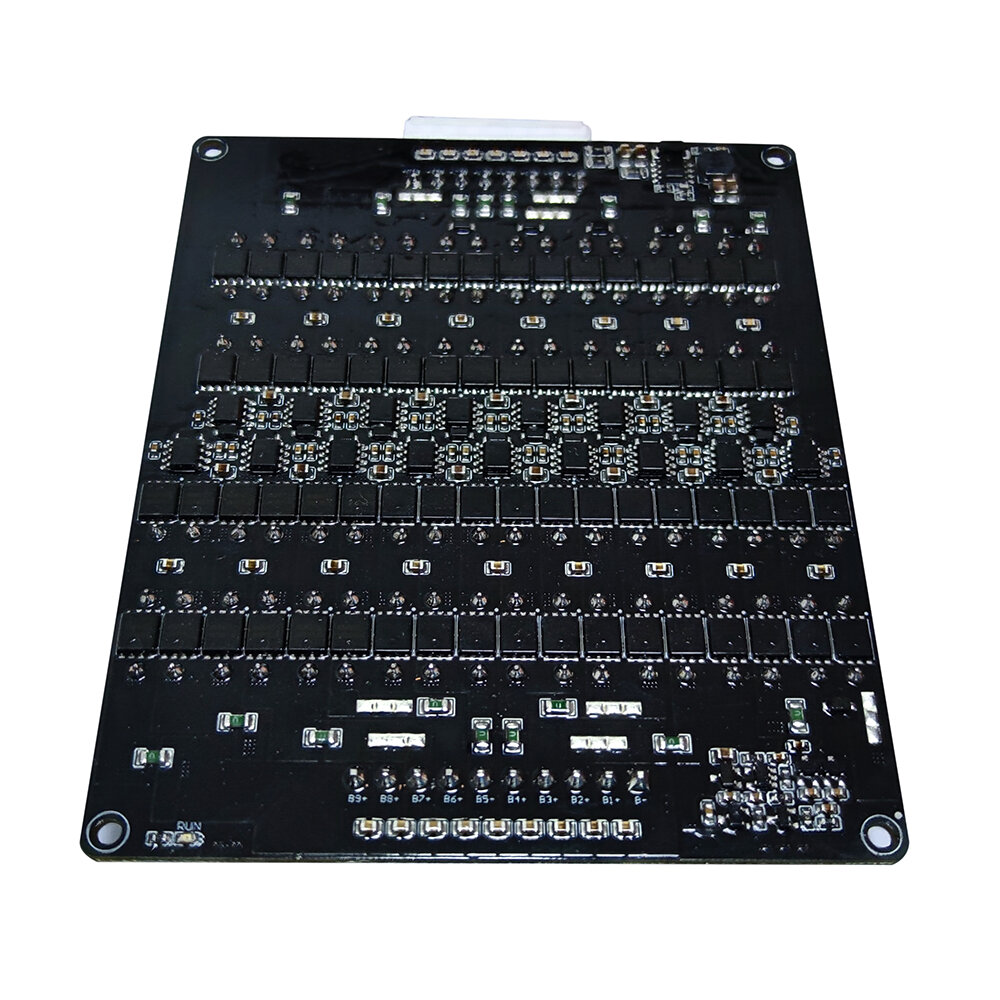

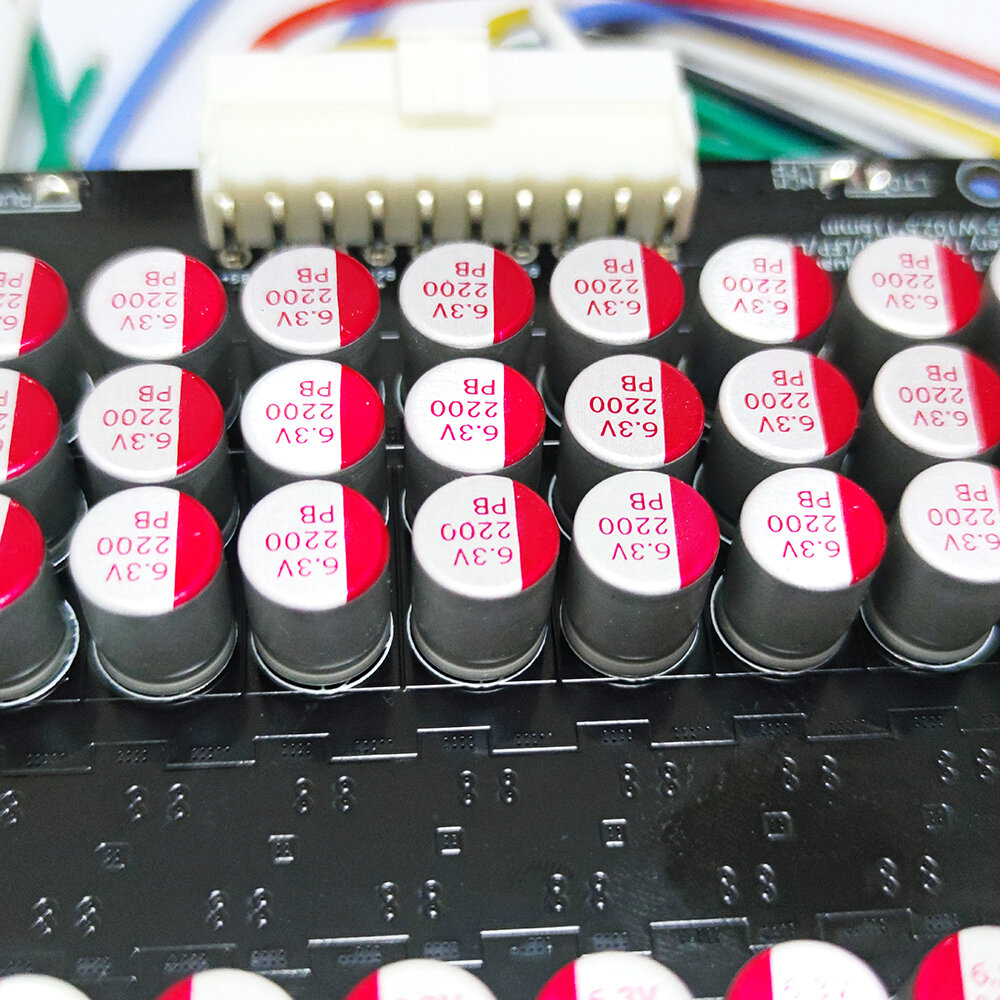

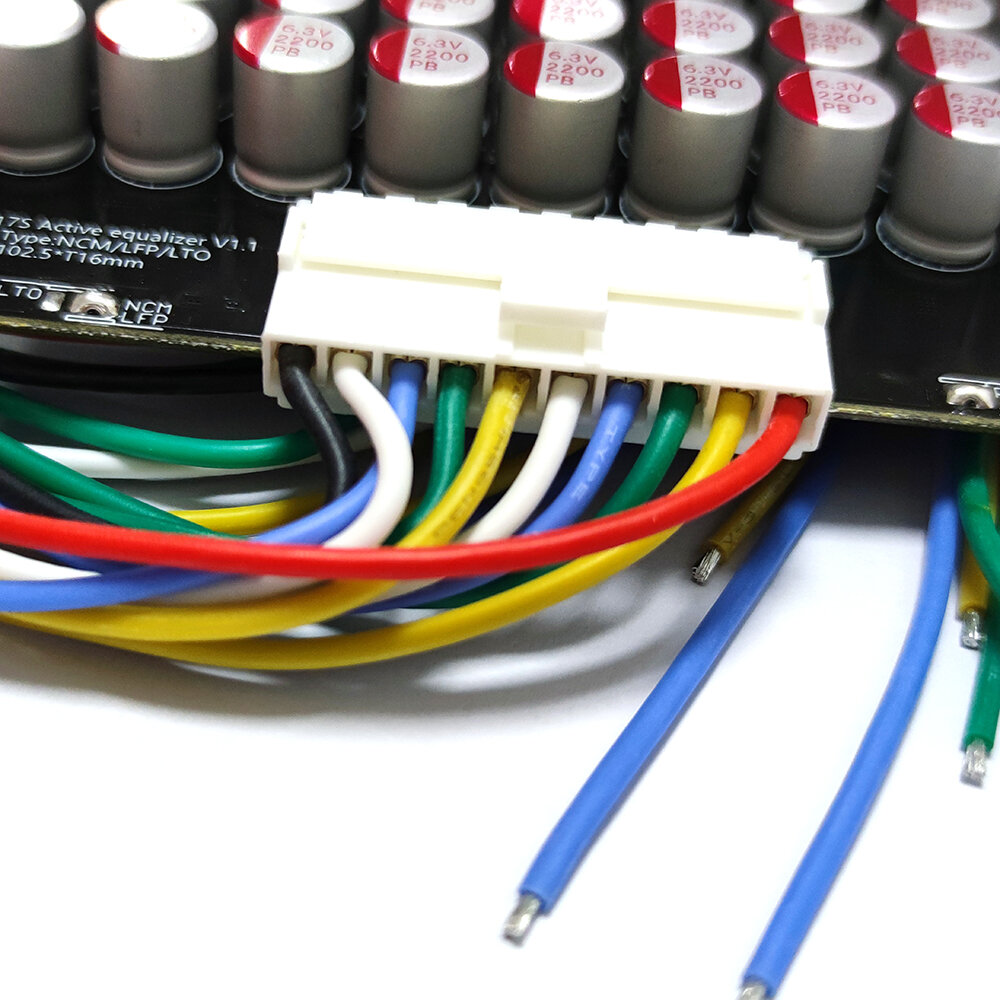

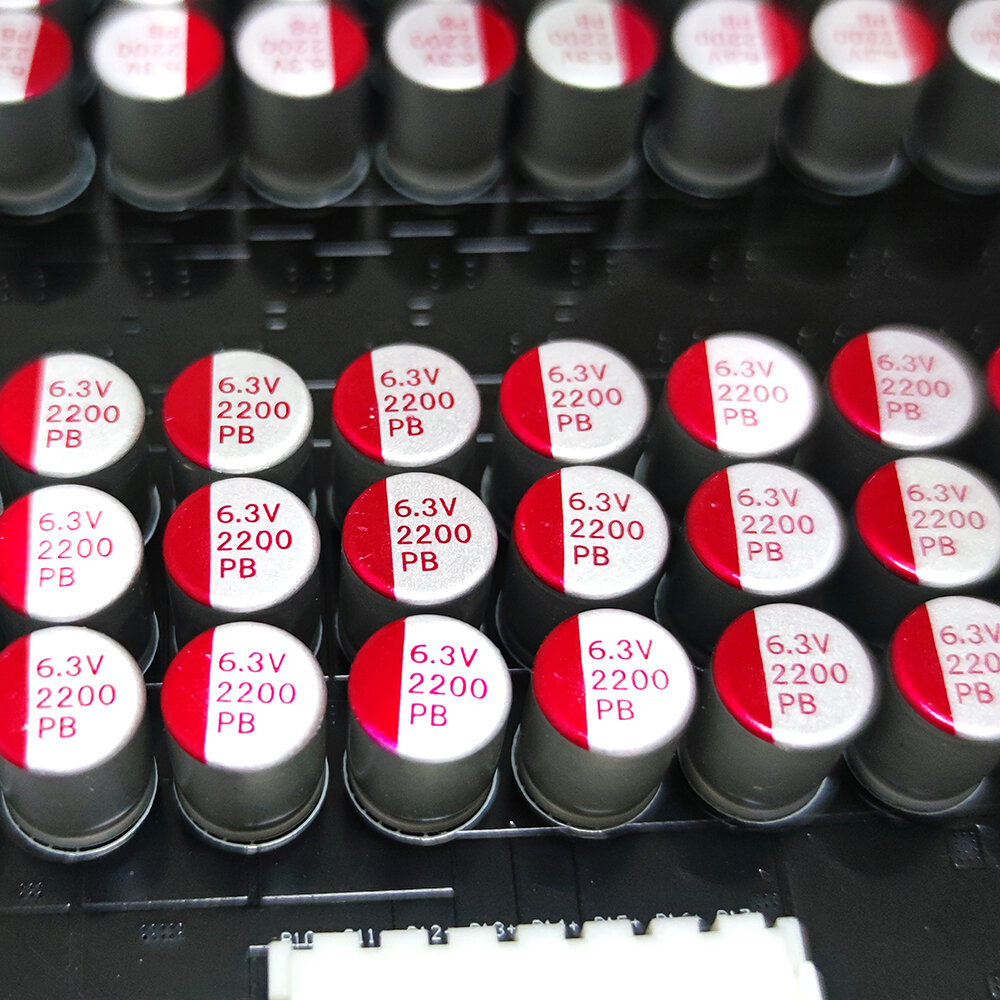

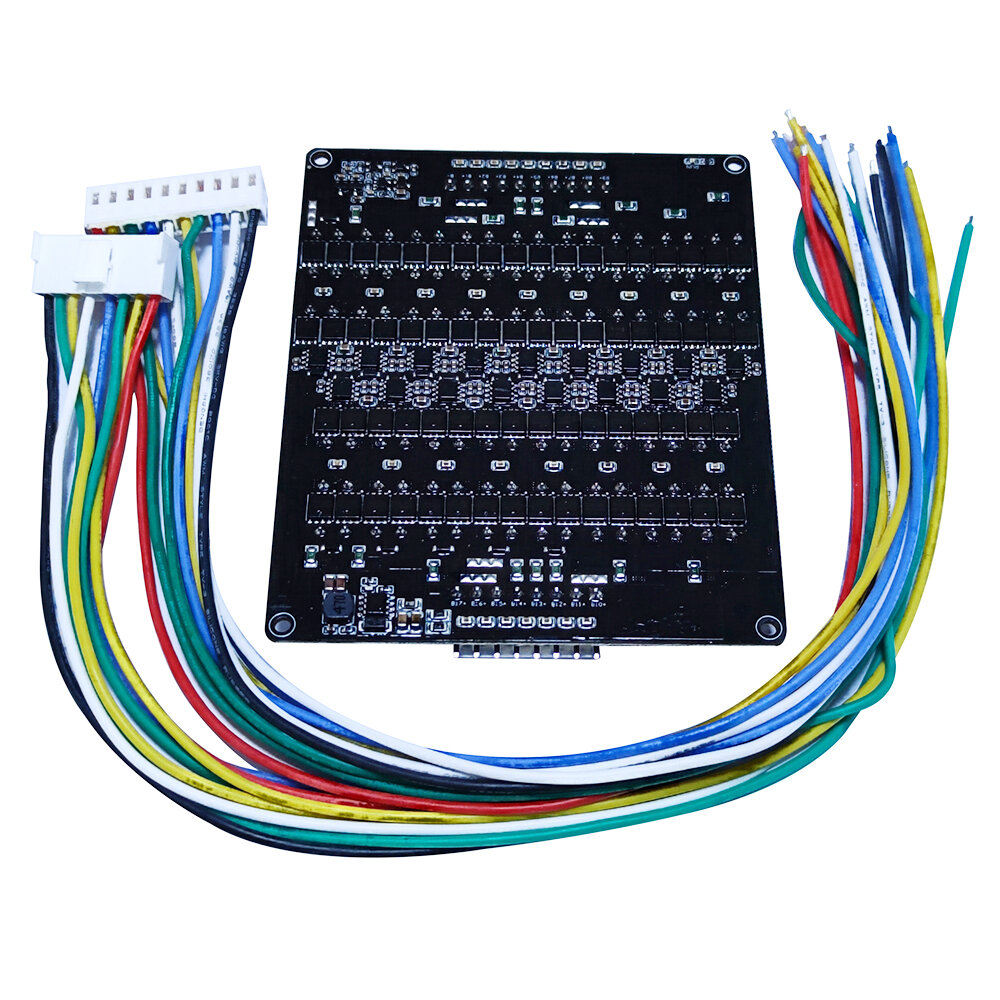

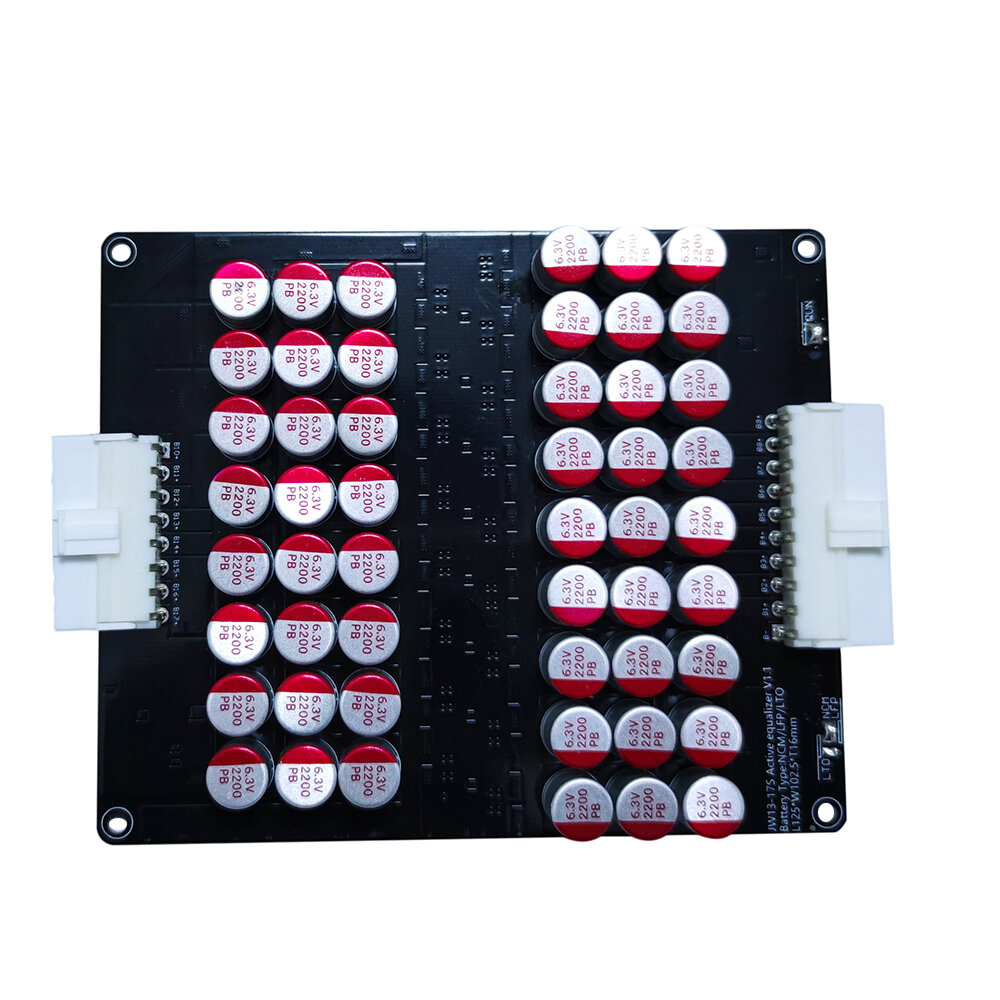

Active Equalizer Balancer 13-17S Capacitive Li-ion Lifepo4 LTO Battery Equalizer Energy Transfer COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Feature:

Li-ion/Lifepo4/Lipo 16S Capacitive Active Balancer Board

Applicable battery type: NCM/LFP/LTO

Working range of single voltage: NCM/LFP:2.7-4.2V   LTO:1.8-4.2V

Balanced method: The whole battery pack participates in the active balance of energy transfer at the same time

Static working current(mA): 17mA

Under voltage protection sleep voltage: NCM/LFP: ＜2.7V   LTO:＜1.8V

Working temperature: -10~+60 ℃

External power: No need for external power supply, relying on the internal energy transfer of the battery to achieve the balance of the whole group

Technical Index	Technical parameters of Fit Capacitor Balancing Board (VH3 96 connector version)
	3S	4S	4-5S	4£S	5-7S	6-8S	9-14S			17-21S
Applicable Battery Type	3S Li-ion/Lifepo4	3/4S	4/5S	4/5/6 S	5/6/7 S	6/7/8S	9/10/11/	12/13/14	/16/17S	/20/21S
		Li-ion/Lifepo4	Li-ion/Lifepo4/LTO
Operating voltaqe ranqe	Li-iorVLifepo4: 2 74 2V LTO: 18-4 2V
Voltage equalization accuracy	5mV (typical value)
Balanced Principle	The patented equalization architecture capacitive mode, the whole battery group simultaneously participates in the energy transfer active equalization
Equalizing Current	0.08V differential pressure 1A equalization current, the differential pressure is directly proportional to the equalization current, the maximum allowable working current is 60A
Undervoltage Protection Steep Voltage	Li-ion/Lifepo4
Static Operating Current	9mA	9mA	7 mA	7 mA	7 mA	7mA	15mA			16mA
Size(MM) L*W*T	66*	66*46*16	69*58*16	69*69*16	80*69.5*16	91*70*16	125*80*16			145*130*18
Operating Ambient Temperature	-10℃ to 60℃
Manner of Working	No external power supply, relying on the battery internal energy transfer to achieve the balance of the whole group
