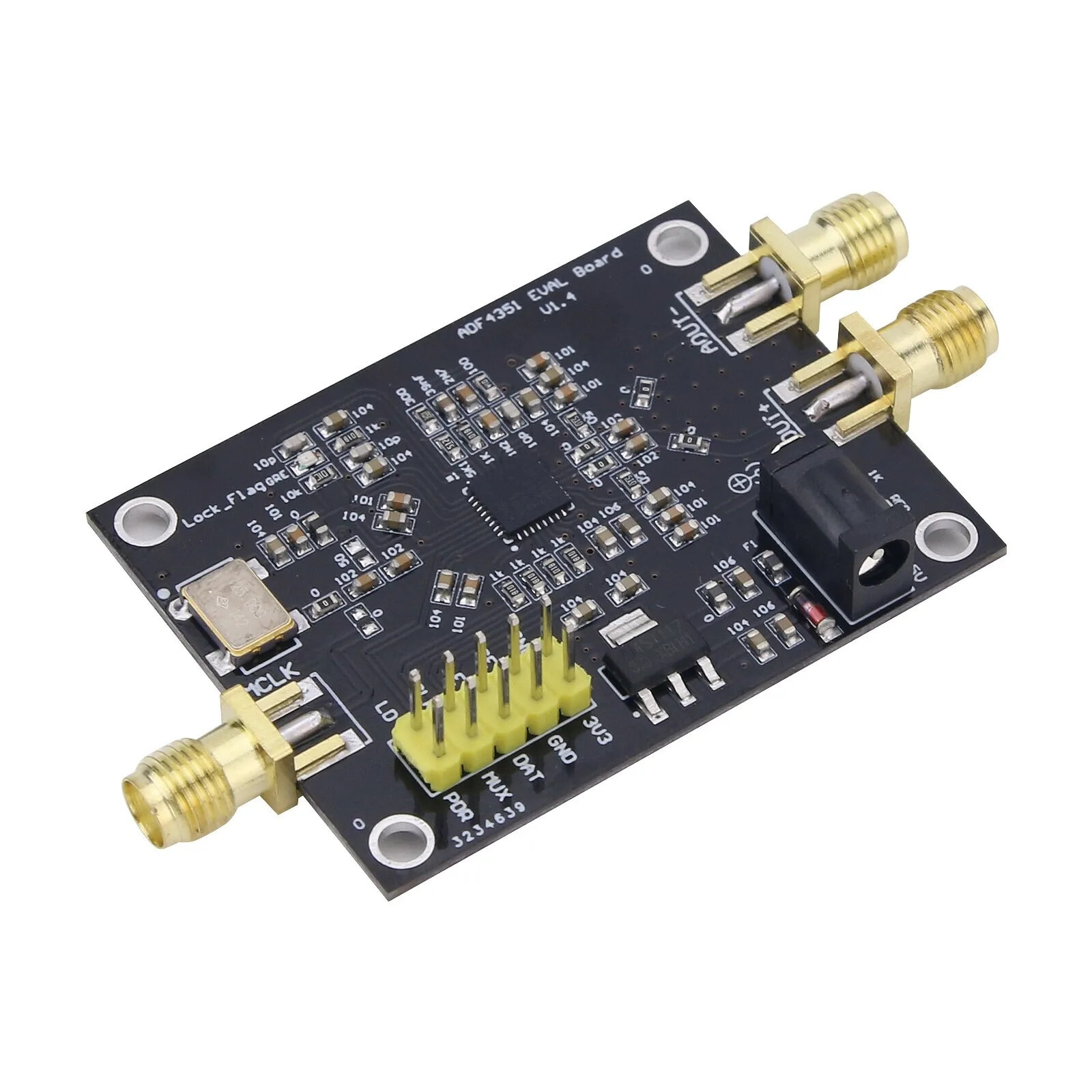

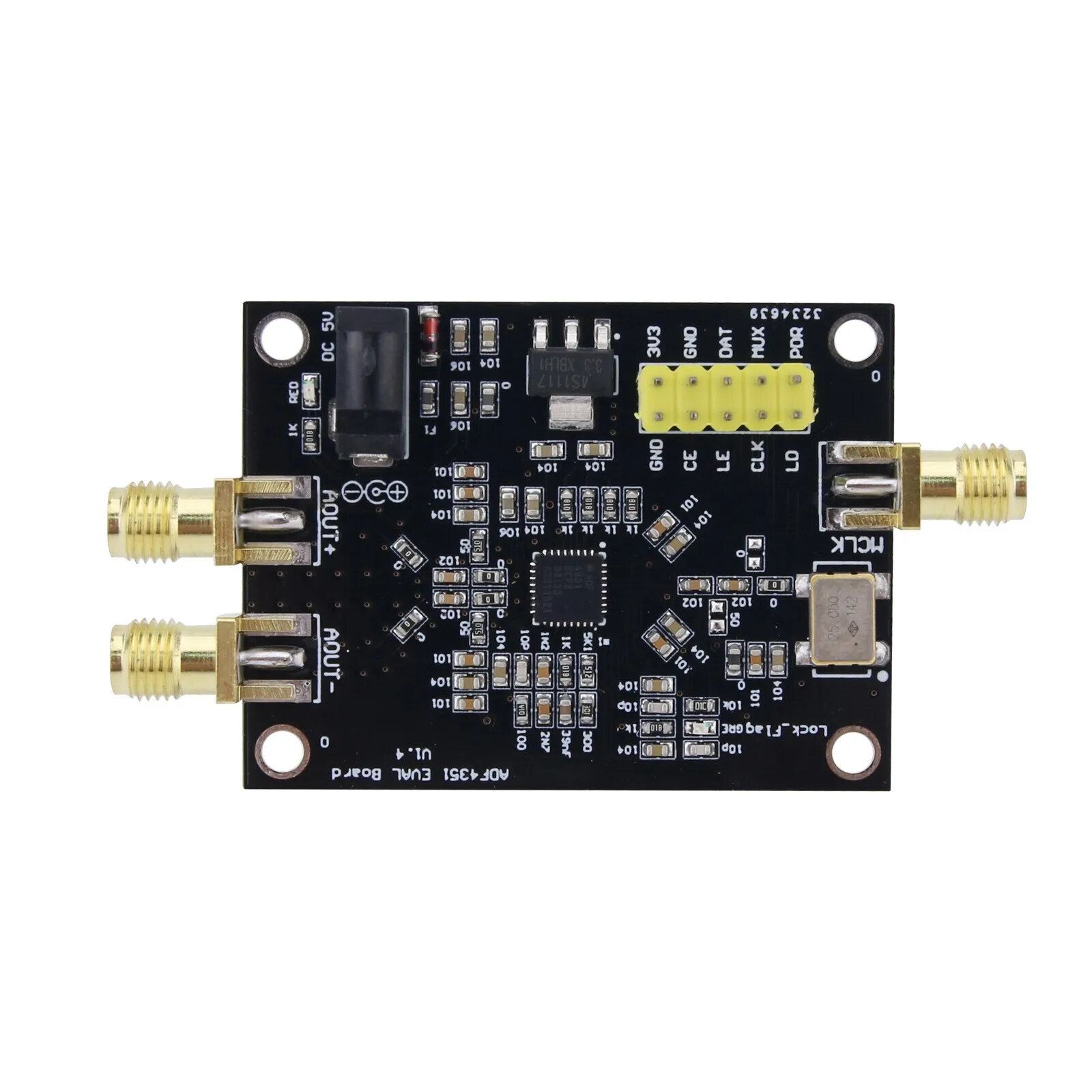

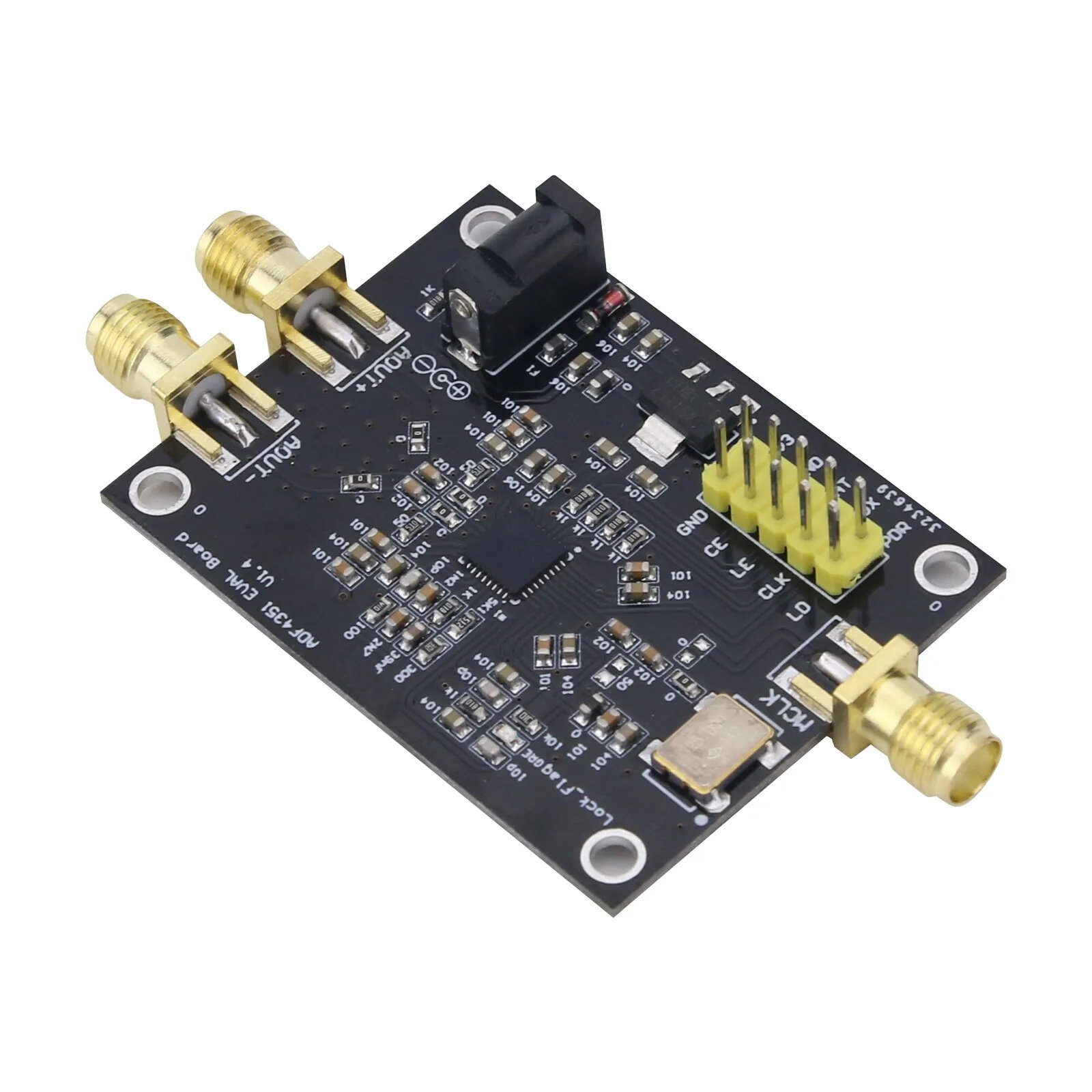

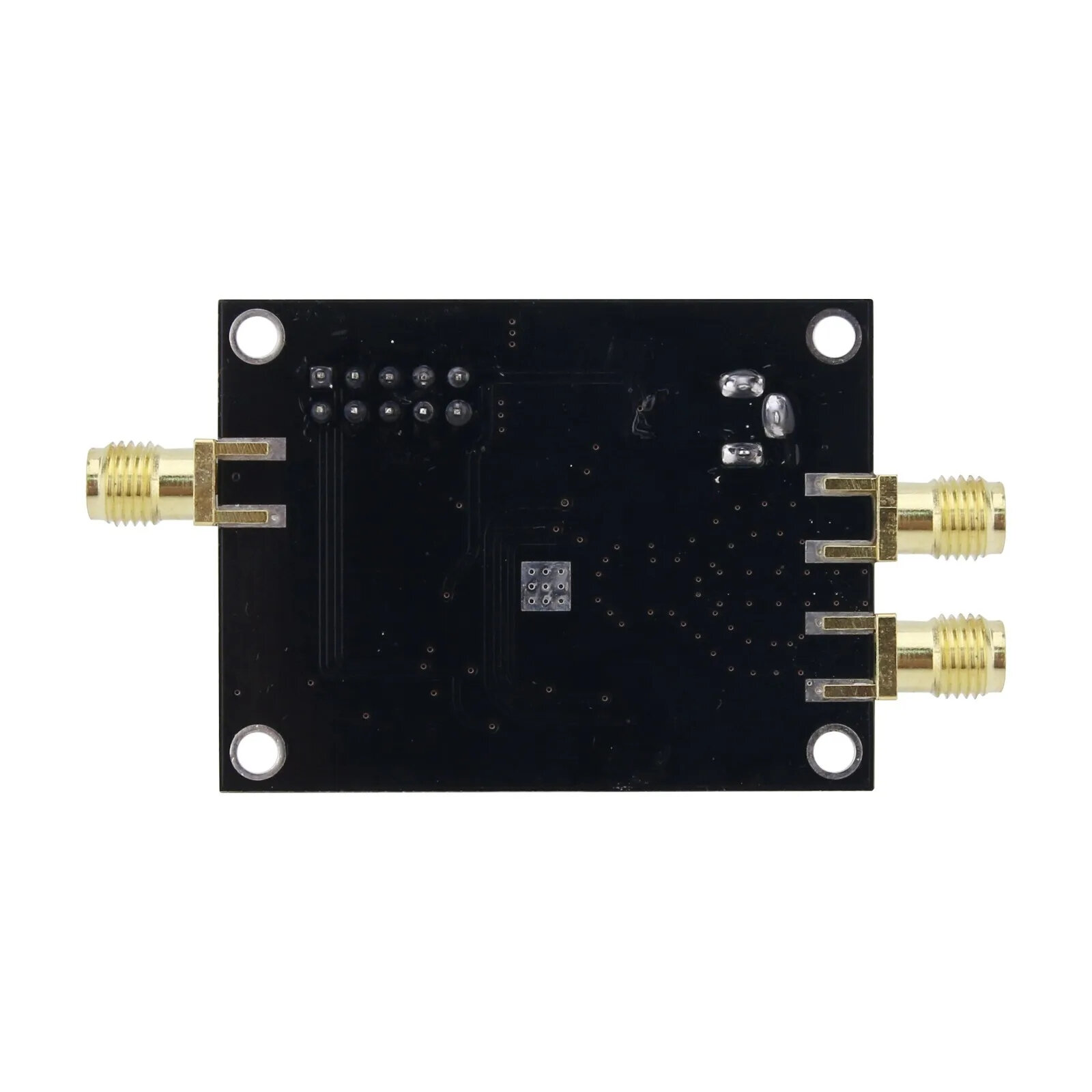

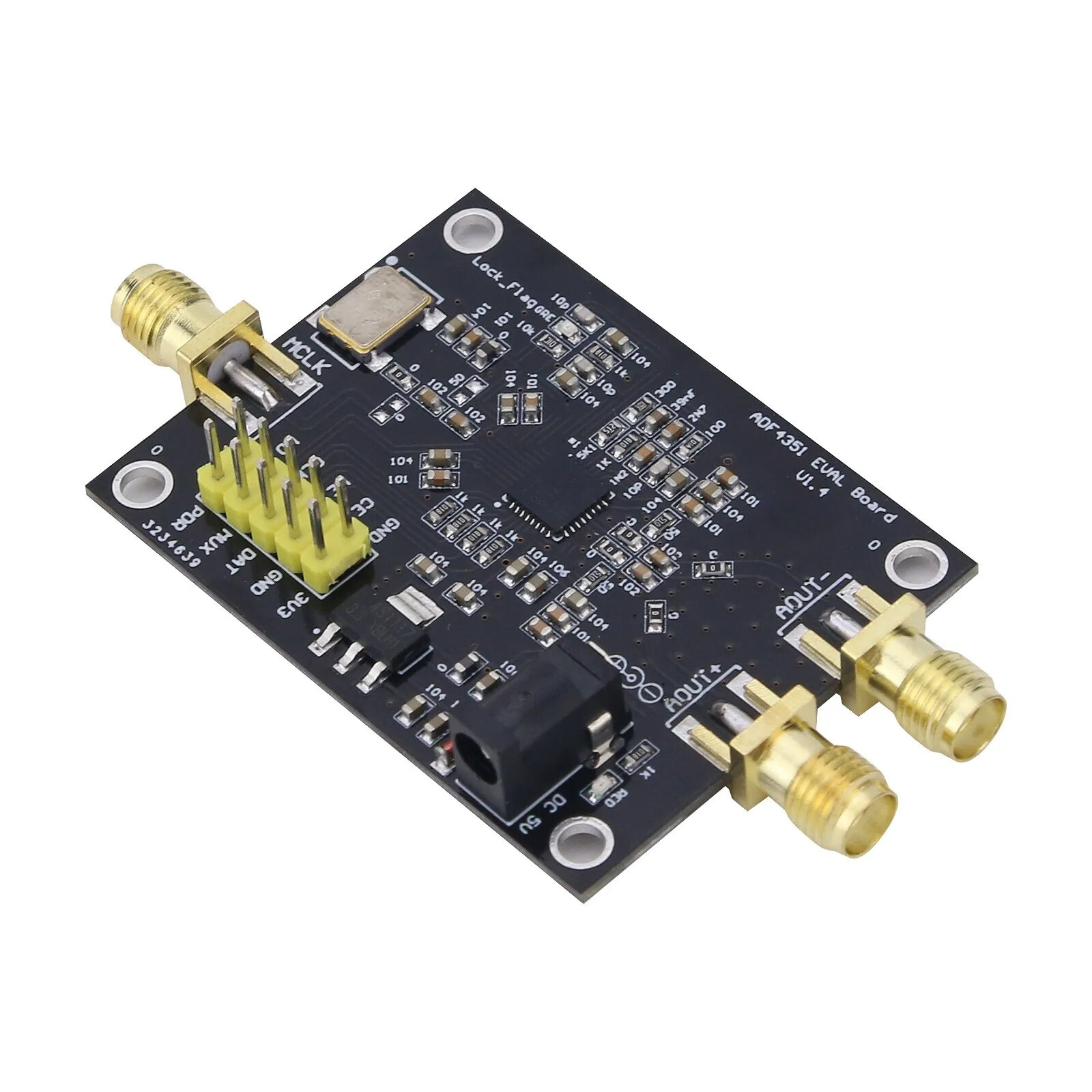

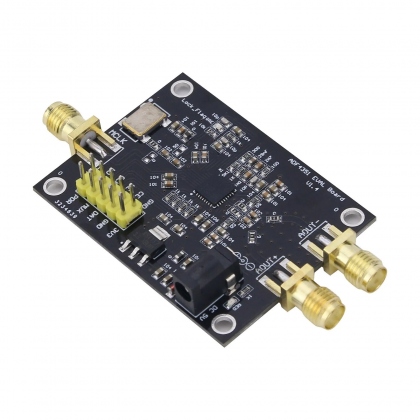

ADF4351 Development Board RF Signal Source Phase Locked Loop 35M-4400M RF Signal Generation Module COD [2008353]

Home/ Electronic Components & Supplies/ Module Board/ RF amplifier/ ADF4351 Development Board RF Signal Source Phase Locked Loop 35M-4400M RF Signal Generation Module COD

Item Description
Customer Reviews
Payment & Shipping

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

Select
Make:
Select
Submodel:
Select
Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

Year
Make
Model
Submodel
Trim
Engine

Description:Parameters:

>>>Manual: Click here to open<<< Output frequency range: ADF4351:35M-4400M(4.4G) Output signal: 2200M-4400M fundamental wave (sine wave) 35M-2200M fundamental wave frequency division (wave square) Output signal interface: SMA female Default +-50ppm 25M imported active crystal oscillator. Provides circuit diagram and STM32 test program in PDF format. Control method: three-wire SPI. Leads out control pin and lock status pin. All functions can be realized, including point frequency, frequency sweep and frequency hopping. The step can be up to 1K and the low frequency step can be up to 0.1K, according to the crystal frequency. Decide. Packaging weight 30 grams, packaging size 13cm*8.5cm*2.5cm 1. It can be powered by 3.3v pin, and the power supply can provide a current of not less than 500mA. 2. The typical power supply is 5v. 1 x 35M-4400M RF signal generation module

ADF4351 Development Board RF Signal Source Phase Locked Loop 35M-4400M RF Signal Generation Module COD
