ANENG 620A 4.7-inch Large LCD Screen Automatic + Manual Intelligent True RMS Digital Multimeter Resistance Diode Capacitance Temperature Frequency Test C

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features:
Manual + Atuo test6000 counts digital displayTrue RMSAC DC Voltage MeasurementAC DC Current MeasurementContinuity measurement
Specifications:
Overload protection throughout the range

	Range	Resolution	Accuracy
AC current	6000mA	1mA	± (1.0% reading + 8 digits)
	10 A	0.01 A
DC current	6000mA	1mA	± (1.0% reading +5digits)
	10 A	1mA
DC voltage	6V	0.001V	± (0.5% reading + 3 digits)
	60V	0.01V
	600V	0.1V
AC voltage	6V	0.001V	±(0.8% reading + 5 digits)
	60V	0.01V
	600V	0.1V
Line on-off test
Temperature	-40~1000 °C	1°C	± (1% reading +3°C)
	-40-1832 °F	1°F	± (1% reading +3℉)
Frequency	100.0 Hz	0.1Hz	土（ 1.0%reading+ 5digits)
	1000Hz	1Hz
Capacitor	6nF	0.001nF	士( 10%reading + 40 digits)
	600nF	0.1nF	±( 2.5%reading+ 20 digits)
	6uF	0.001 uF
	60uF	0.01 uF
	600uF	0.1uF
	6mF	1 uF
	60mF	0.01mF

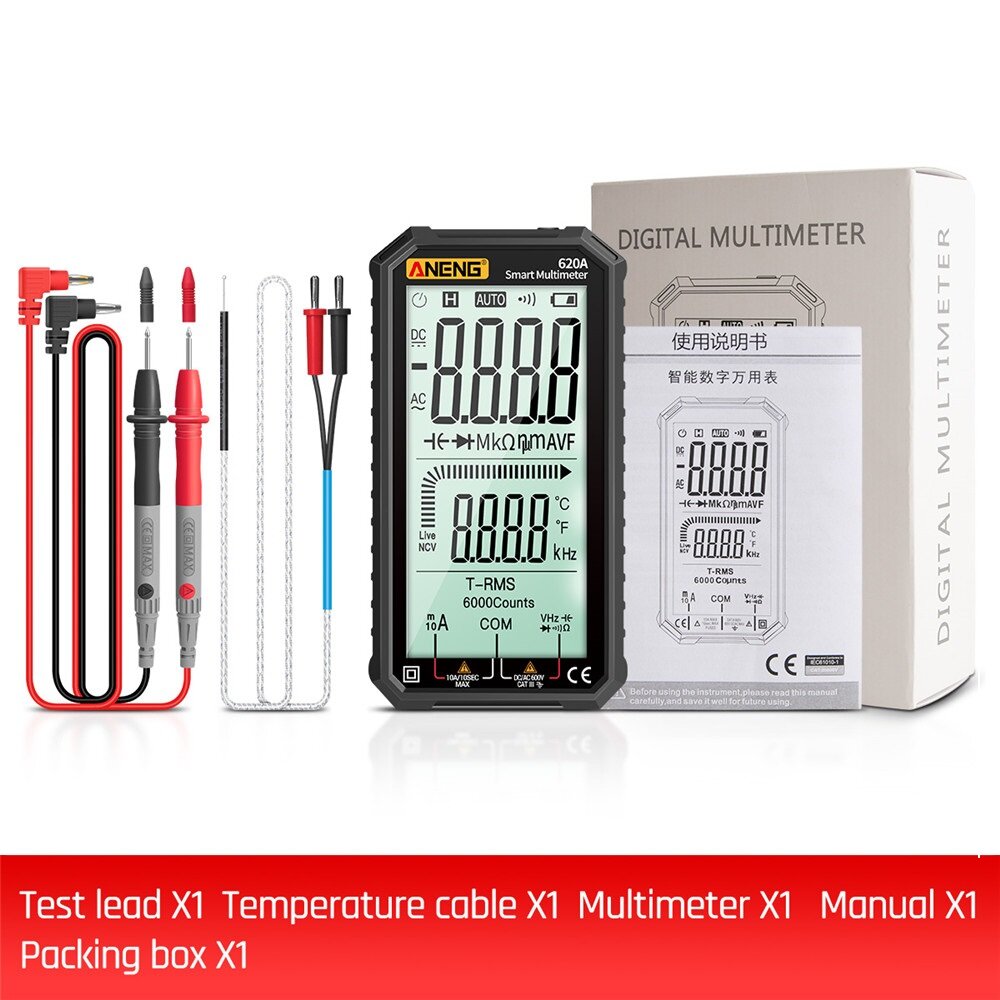

1 x Pair of Test Leads 1 x Temperature Cable1 x English User Manual1 x Packaging Box
