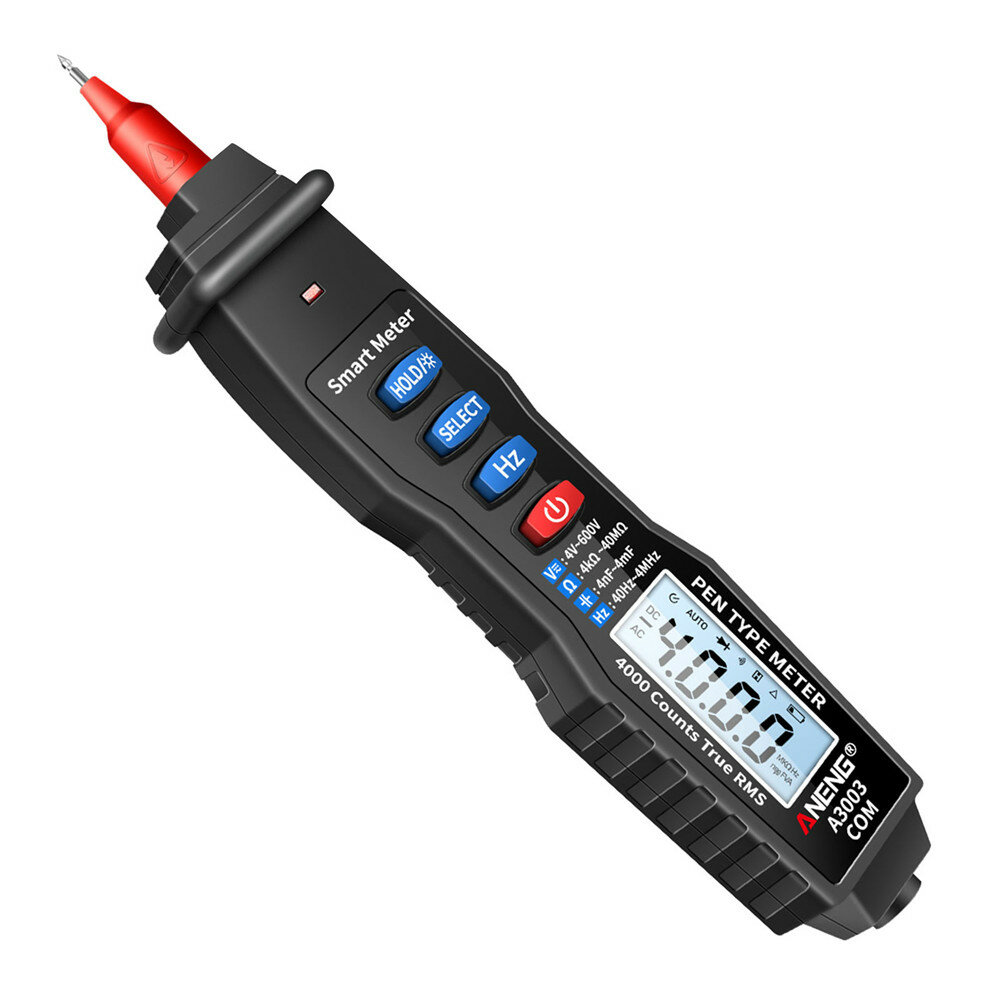

ANENG A3003 Digital Pen Multimeter Professional 4000 Counts Smart Meter with NCV AC/DC Voltage Resistance Capacitance Testers COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features:
Measuring AC / DC voltage

Measuring capacitance

Data retention

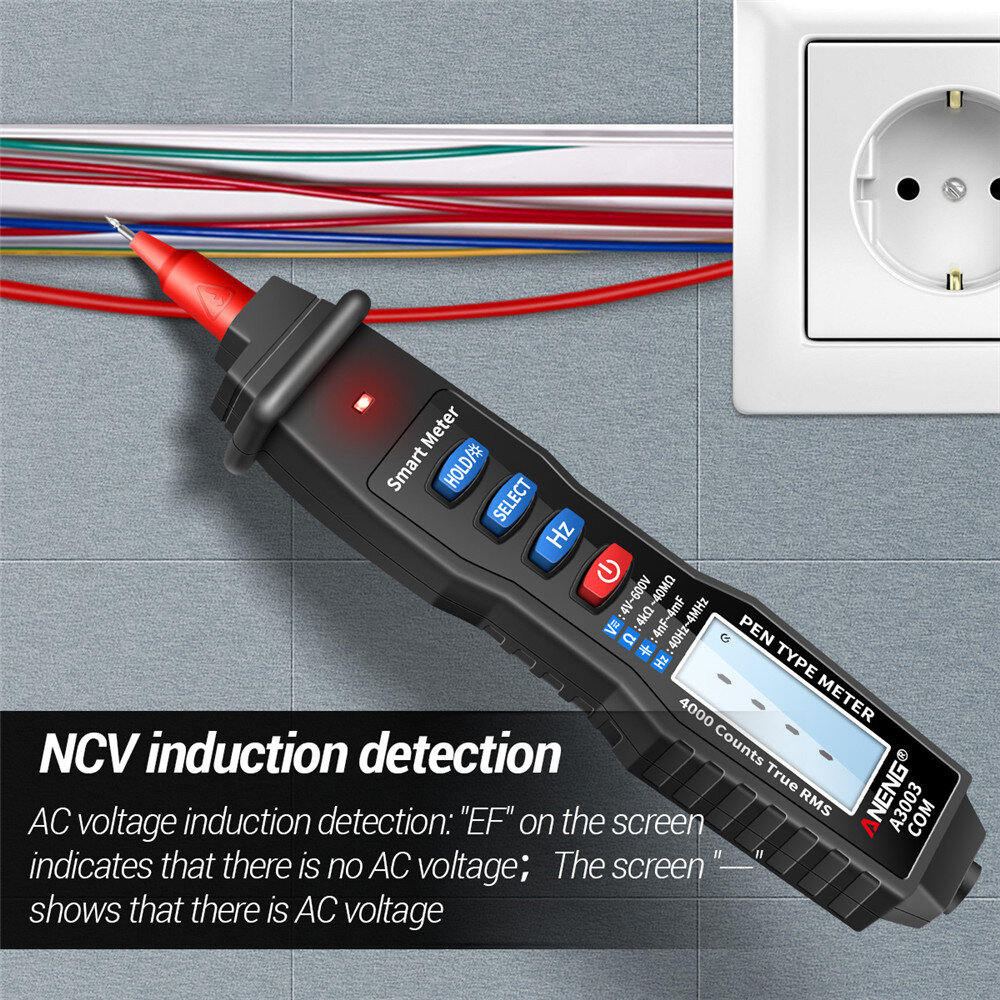

Induction detection

Zero fire detection

Automatic shut-down


Specification:

Brand

ANENG

Model

A3003

	Range	Accuracy
DC Voltage	4V/40V/400V	±(0.8%+3)
	600V	±(1%+3)
AC Voltage	4V/40V/400V	±(1%+3)
	600V	±(1.2%+5)
Capacitance	4nF/40nF/400nF/4uF/40uF/400uF	±(3%+5)
	4mF	±(5%+10)
Resistance	4kΩ/40kΩ/400kΩ/4MΩ	±(1%+5)
	40MΩ	±(1.2%+8)
Frequency	40Hz/400Hz/4kHz/40kHz/400kHz	±(0.8%+8)
	4MHz	±(1.2%+8)

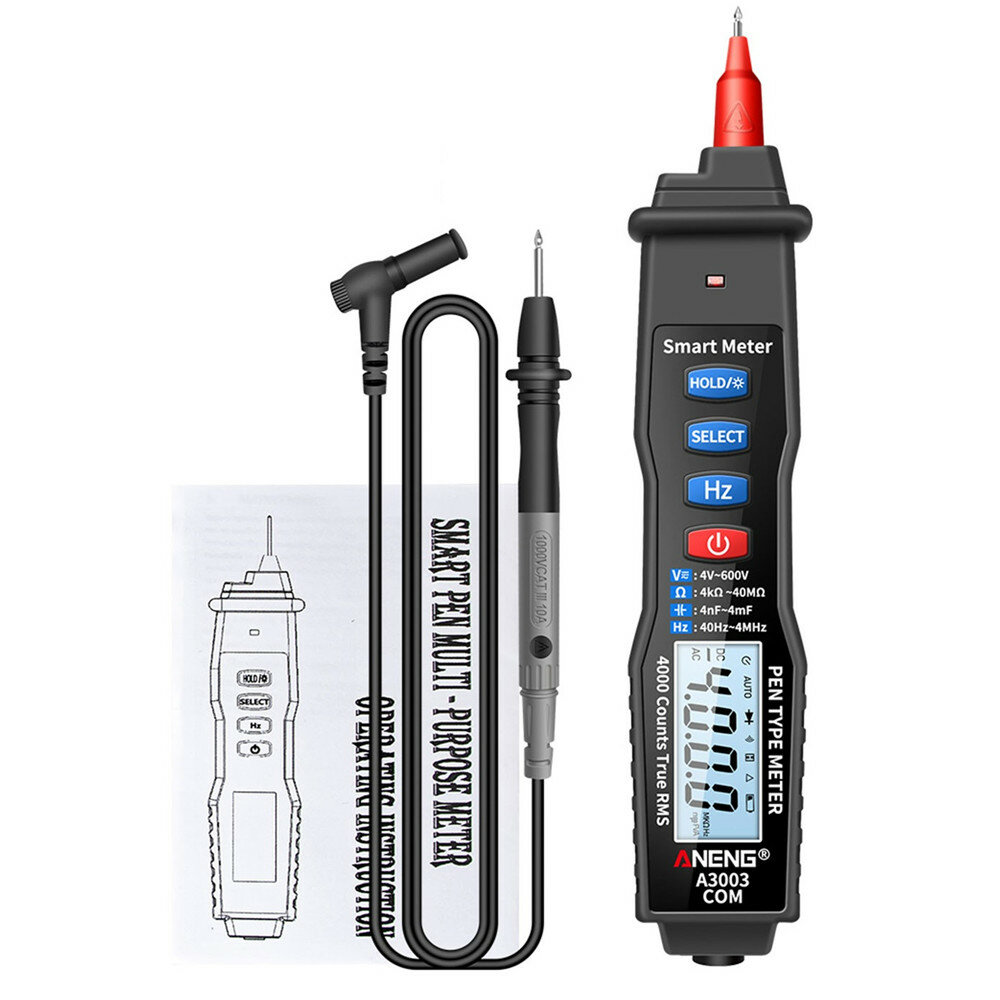

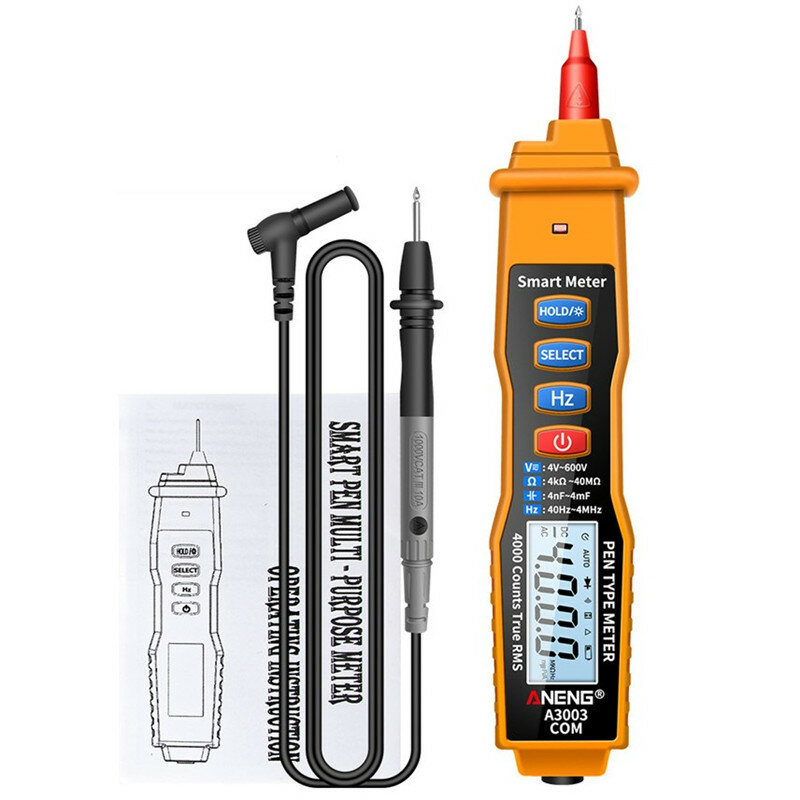

1 * Tester line

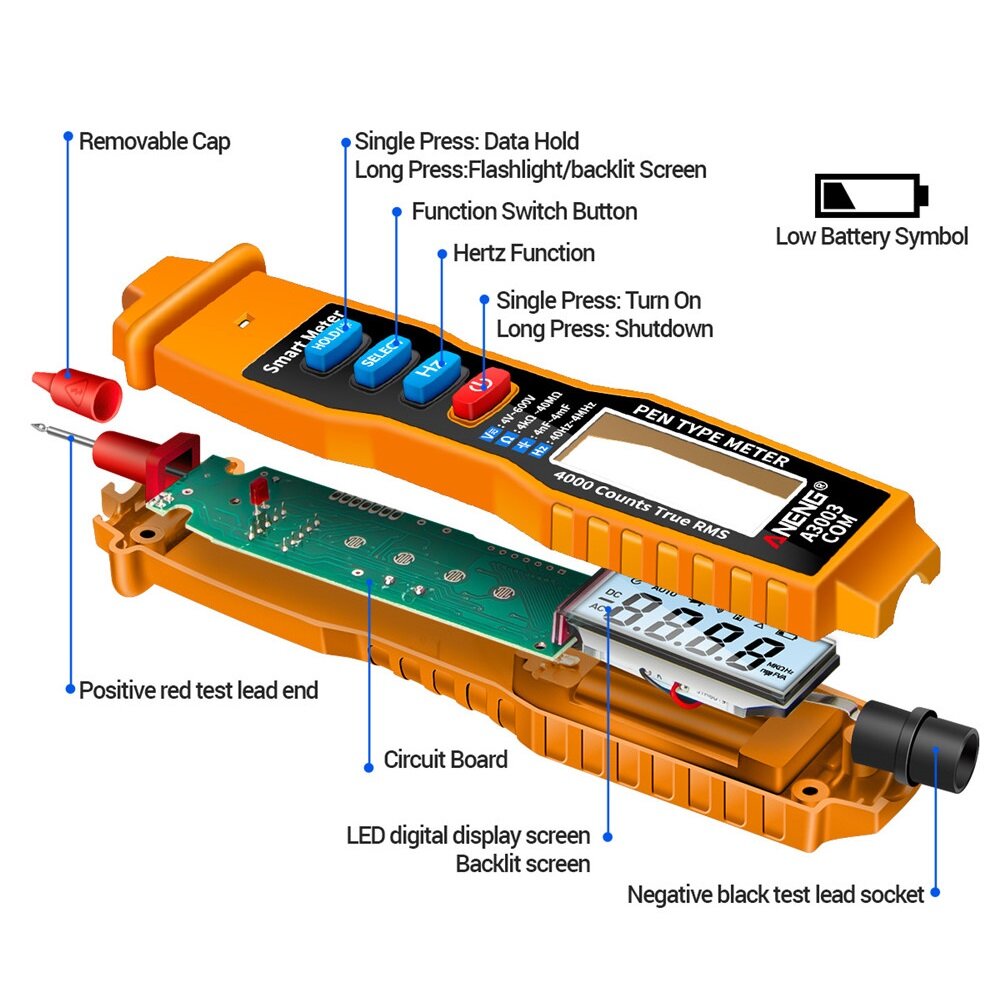

Details picture:
