Good News!

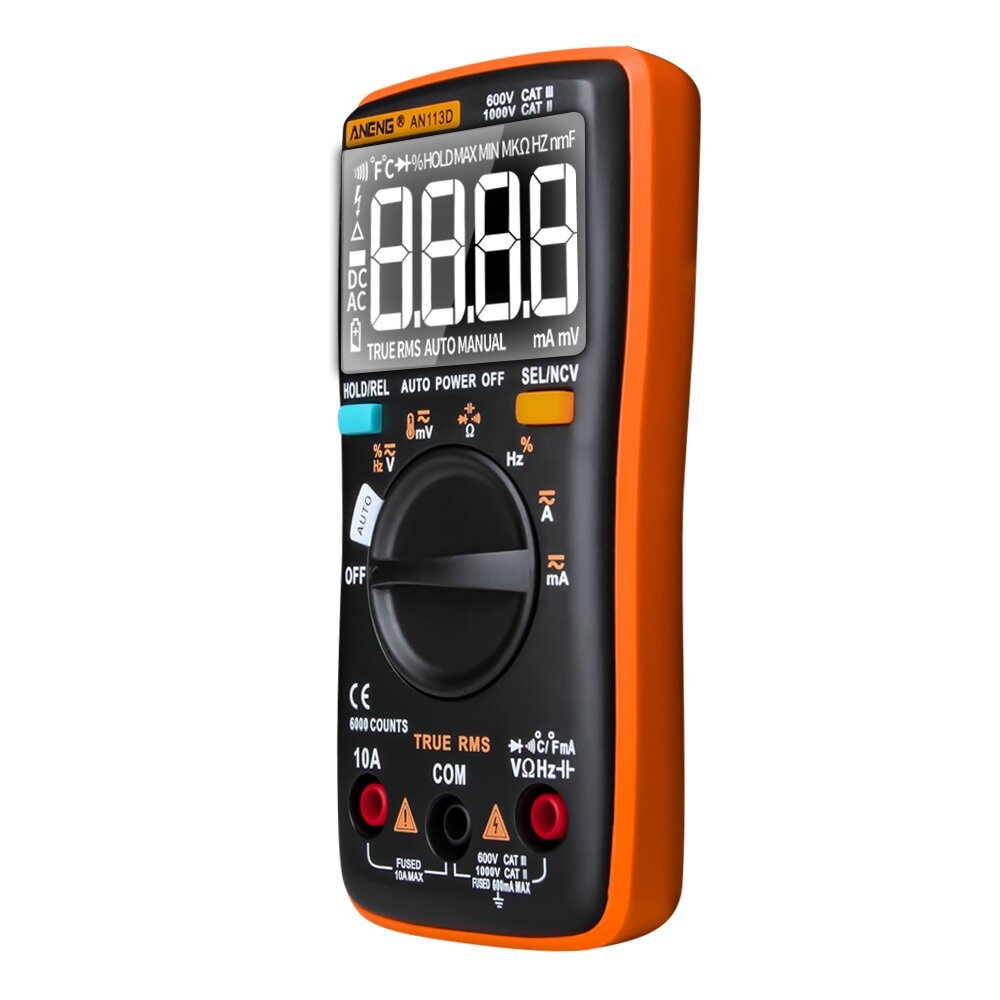

ANENG AN113D the upgrade version of ANENG AN8002 has already released.

This new product not only has the  as AN8002,but also added an which is more convenient measurement and more friendly operation for the novices.

Annnnd,It also equipped with a , which can be clearly displayed without backlighting!!!

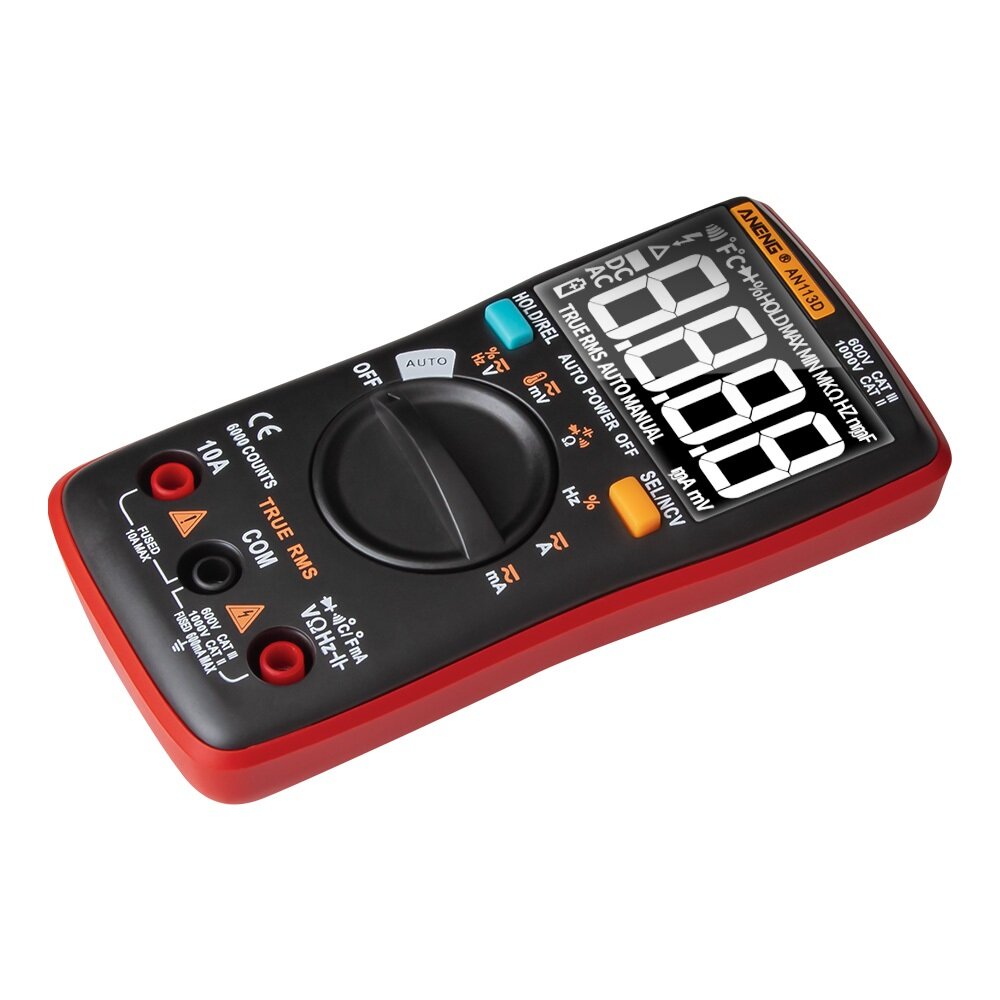

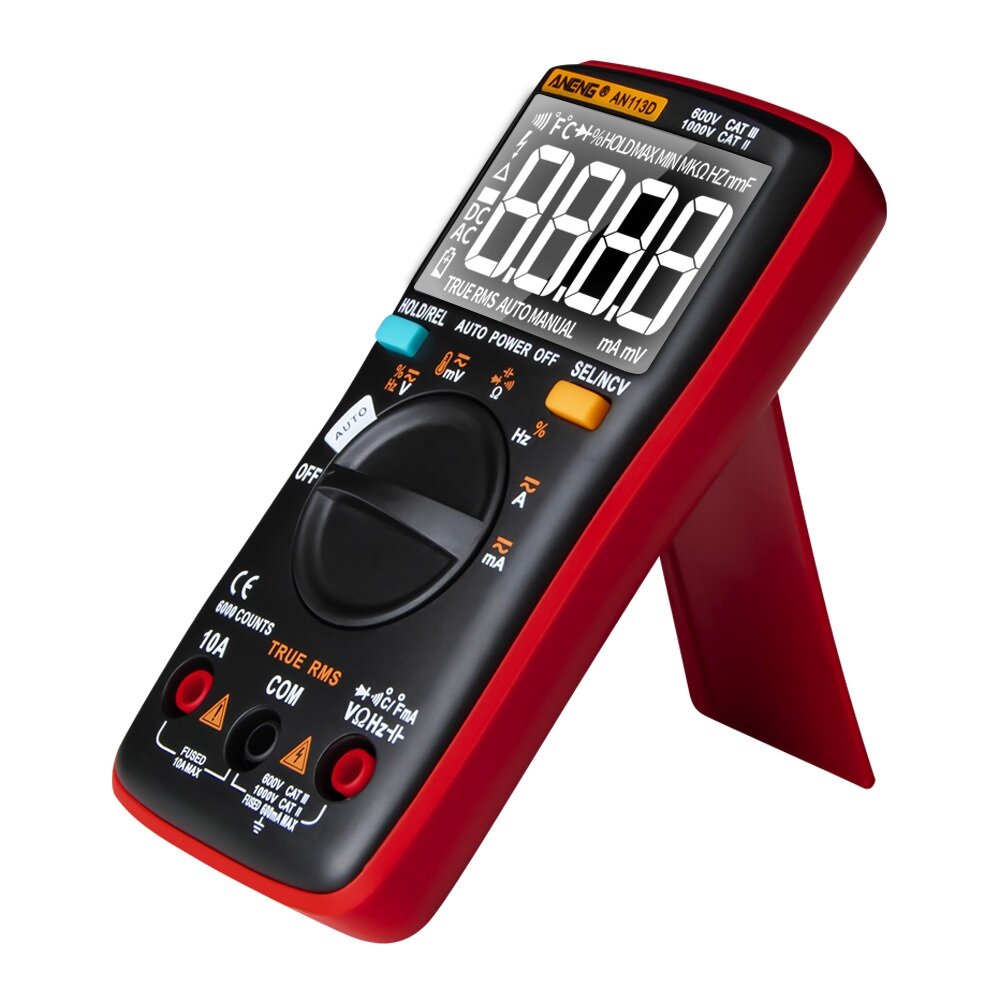

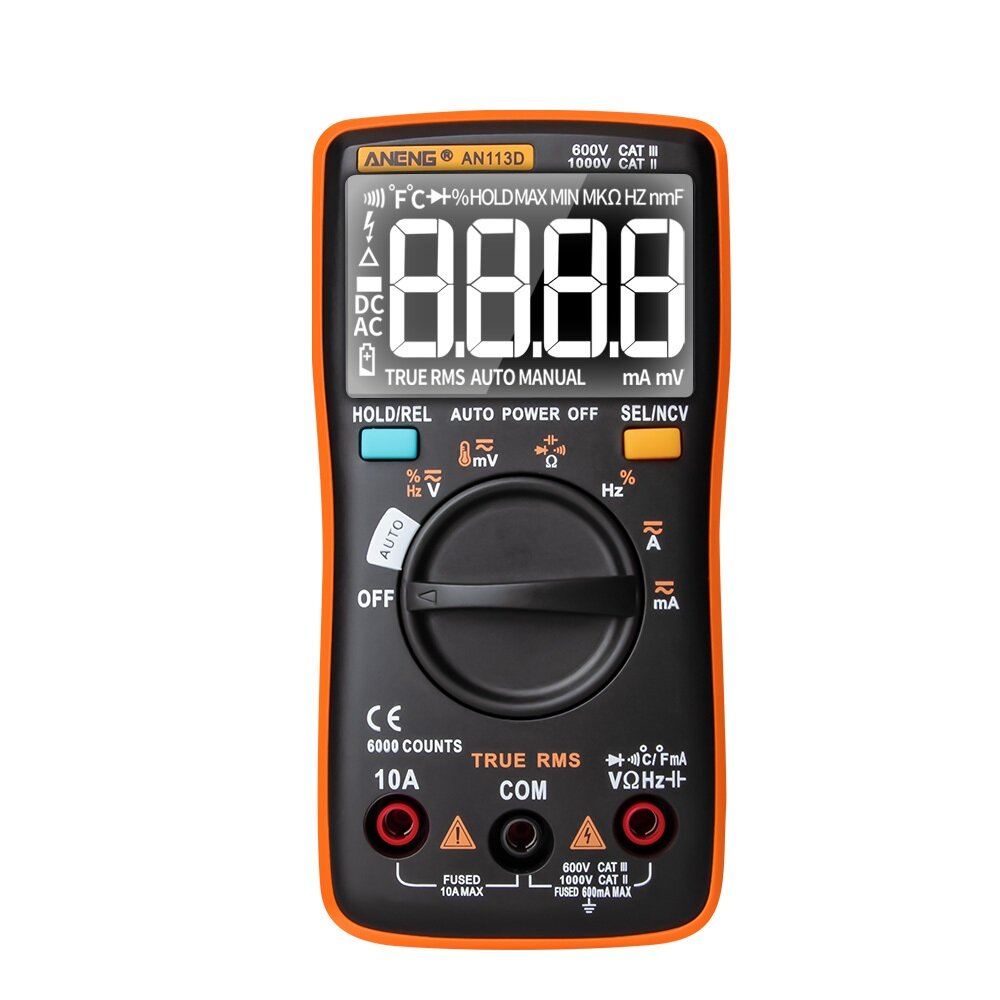

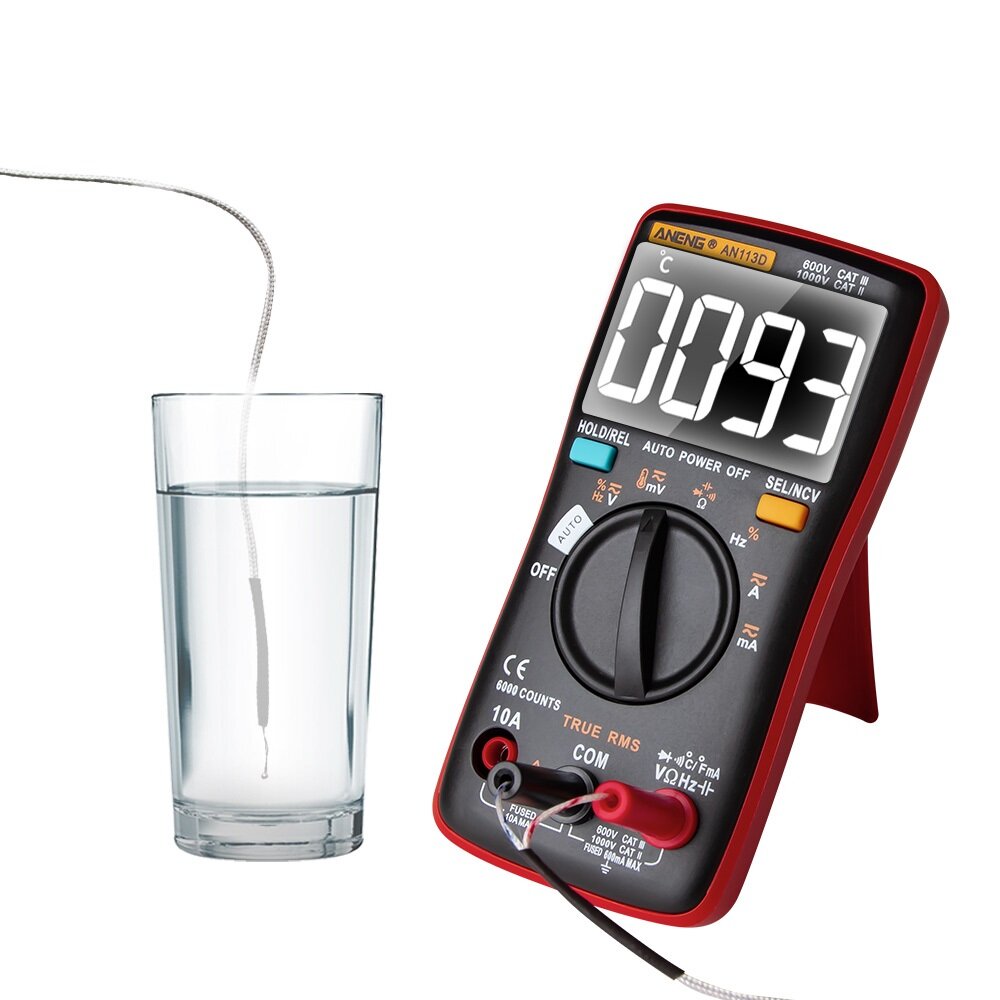

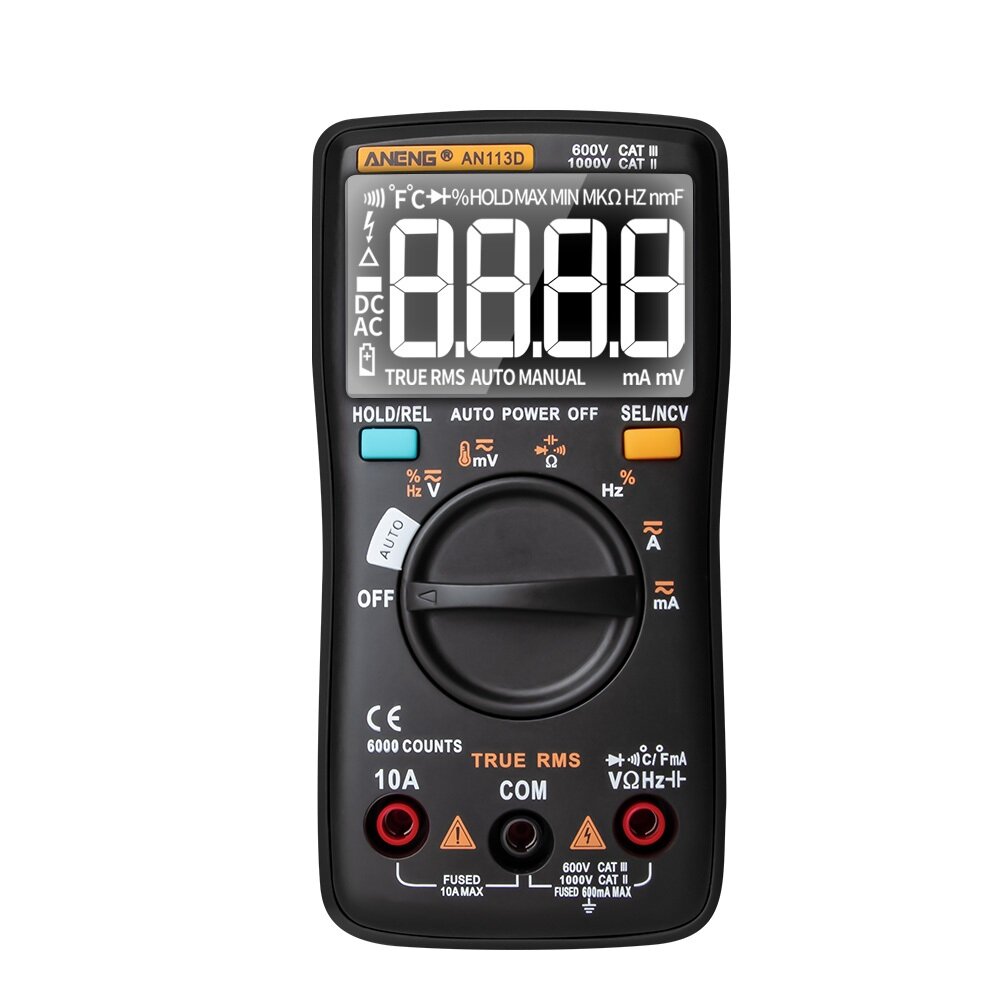

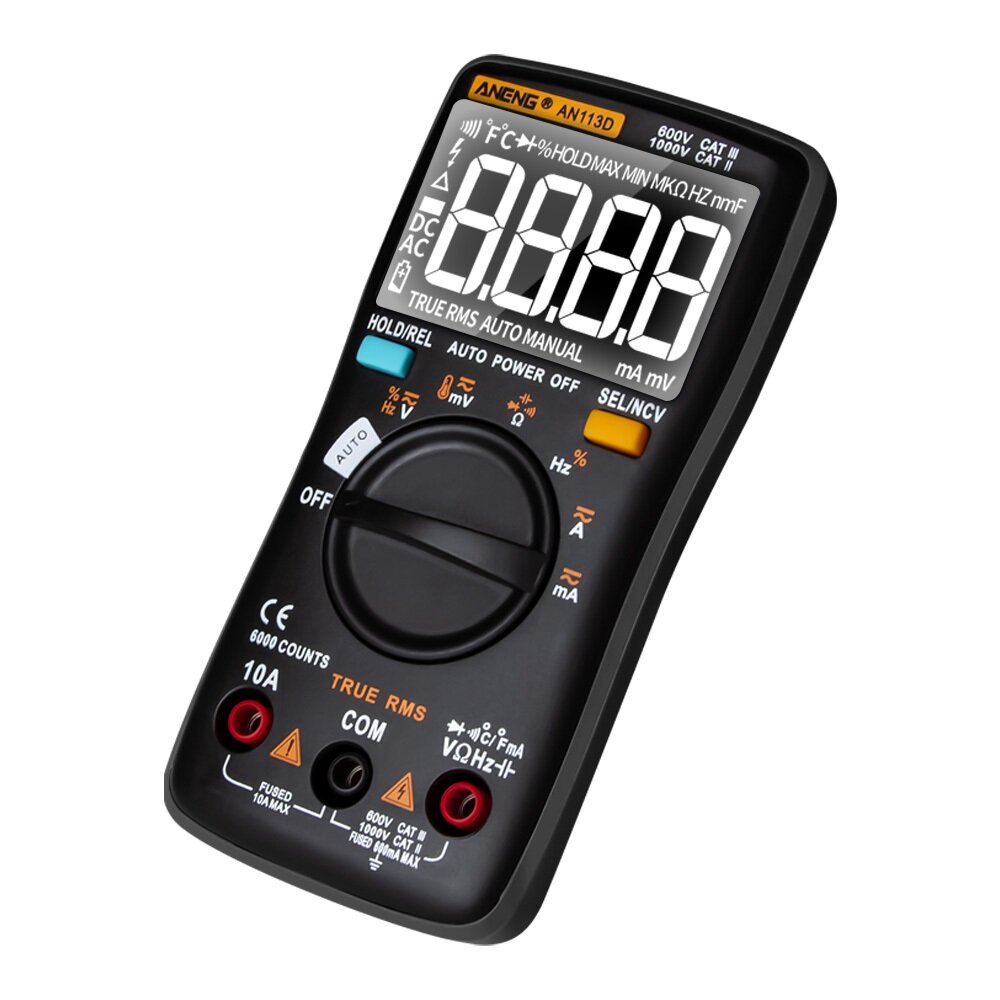

This product is a multi-functional, digital multimeter with a 6000 counts LCD display.  1. Measurement functions include AC/DC voltage, AC/DC current, resistance, diode test/continuity, NCV, frequency/duty cycle, capacitance.  2. Support True- RMS  3. Support Auto Power Off  4. Support temperature measurement  5. Support data hold
:

Display(LCD): 6000 counts
OperatingStorage: Temperature 0~40℃ Humidity <75%

DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ±(0.5%+3)

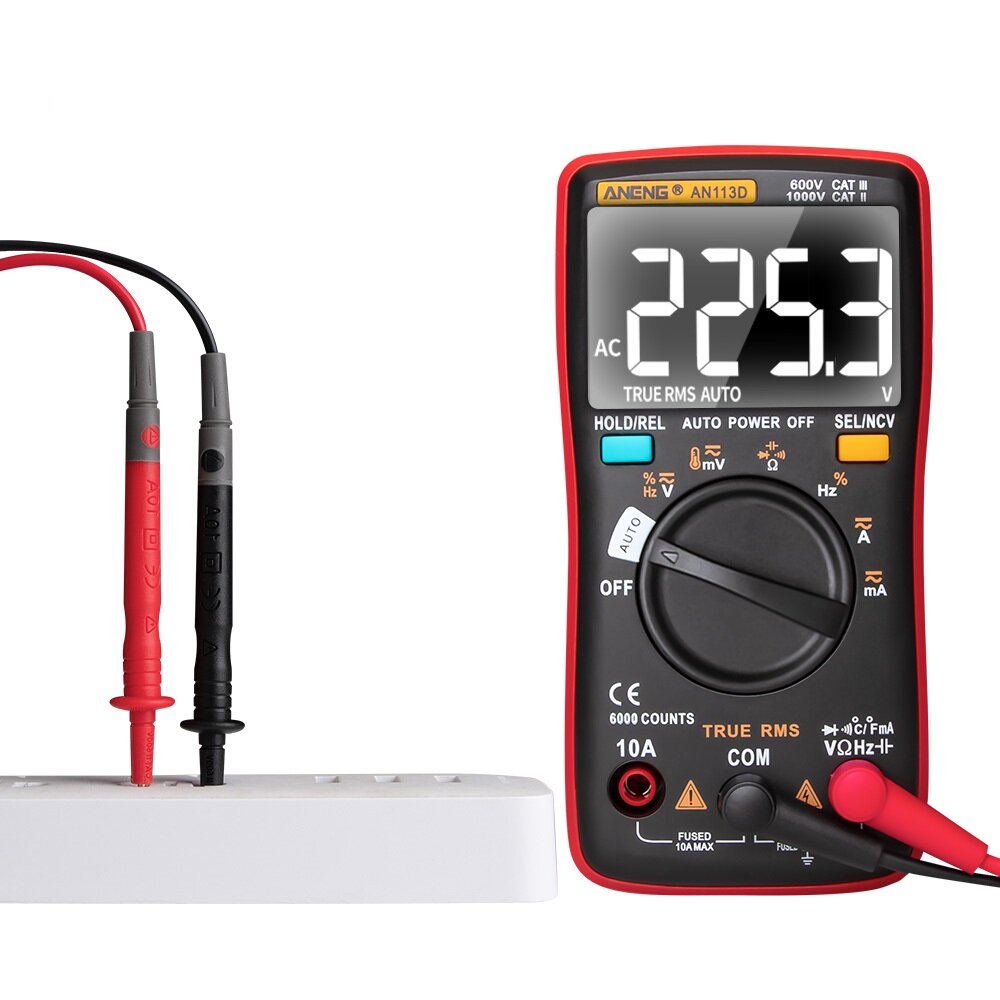

AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ±(1.0%+3)

DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)

AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ±(1.5%+3)

Capacitance : 9.999nF(0.001nF) ±(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999μF (0.001μF)/ 99.99μF(0.01μF)/ 999.9μF (0.1μF)±(2.0%+5) / 9.999mF (0.001mF) ±(5.0%+5)

Duty Cycle 1%~99% 0.1% ±(0.1%+2)

Continuity :√

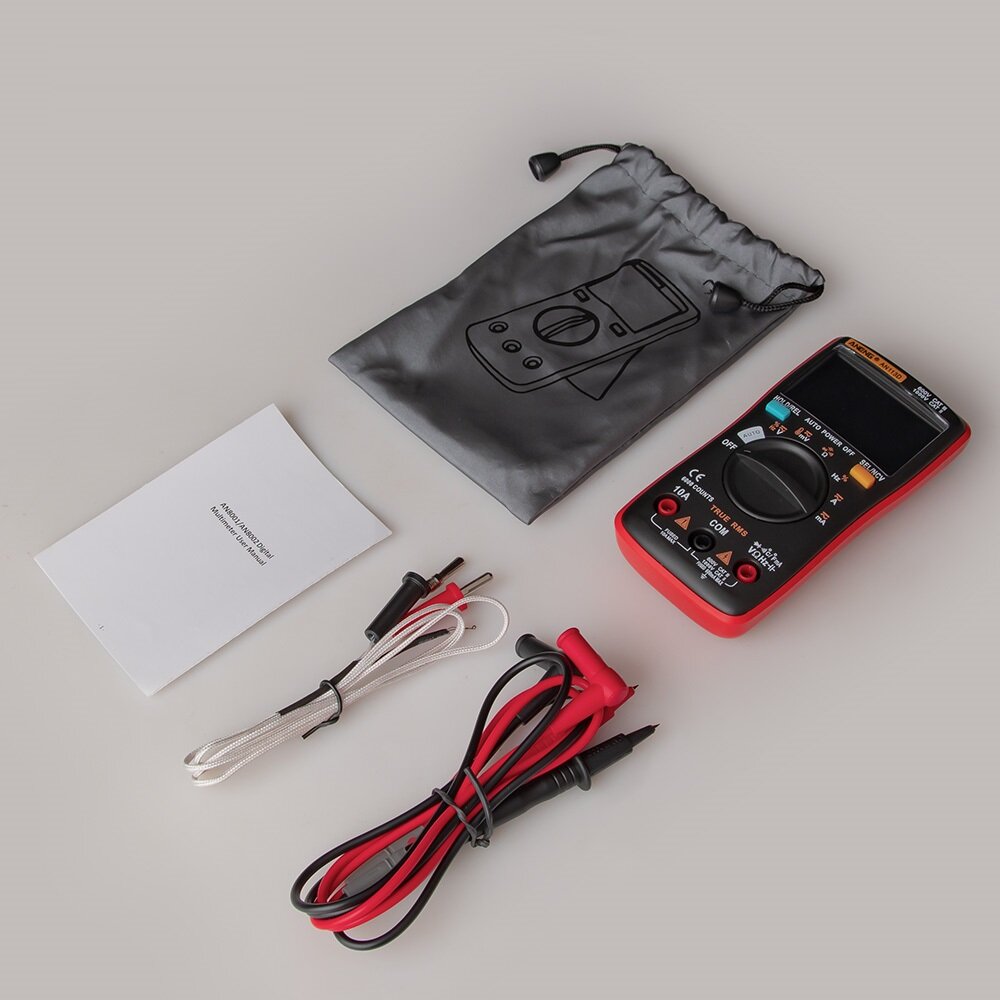

Package Includes:


1 x Pair of test leads

1 x English user manual
