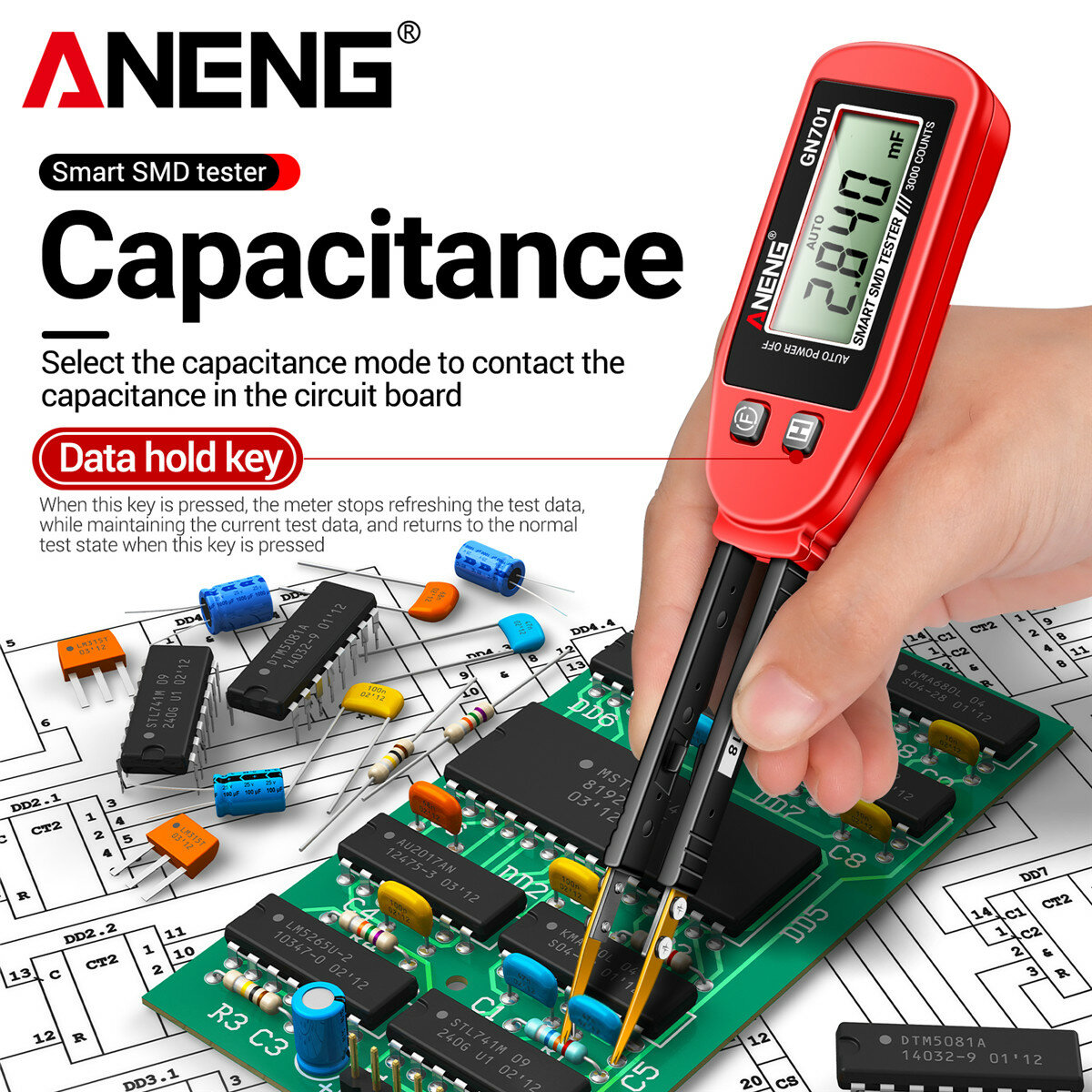

Comprehensive Component Testing: Whether you're testing resistors, capacitors, or diodes, the GN701 ensures high-precision readings every time. No longer worry about inaccurate readings that could affect the performance of your projects.

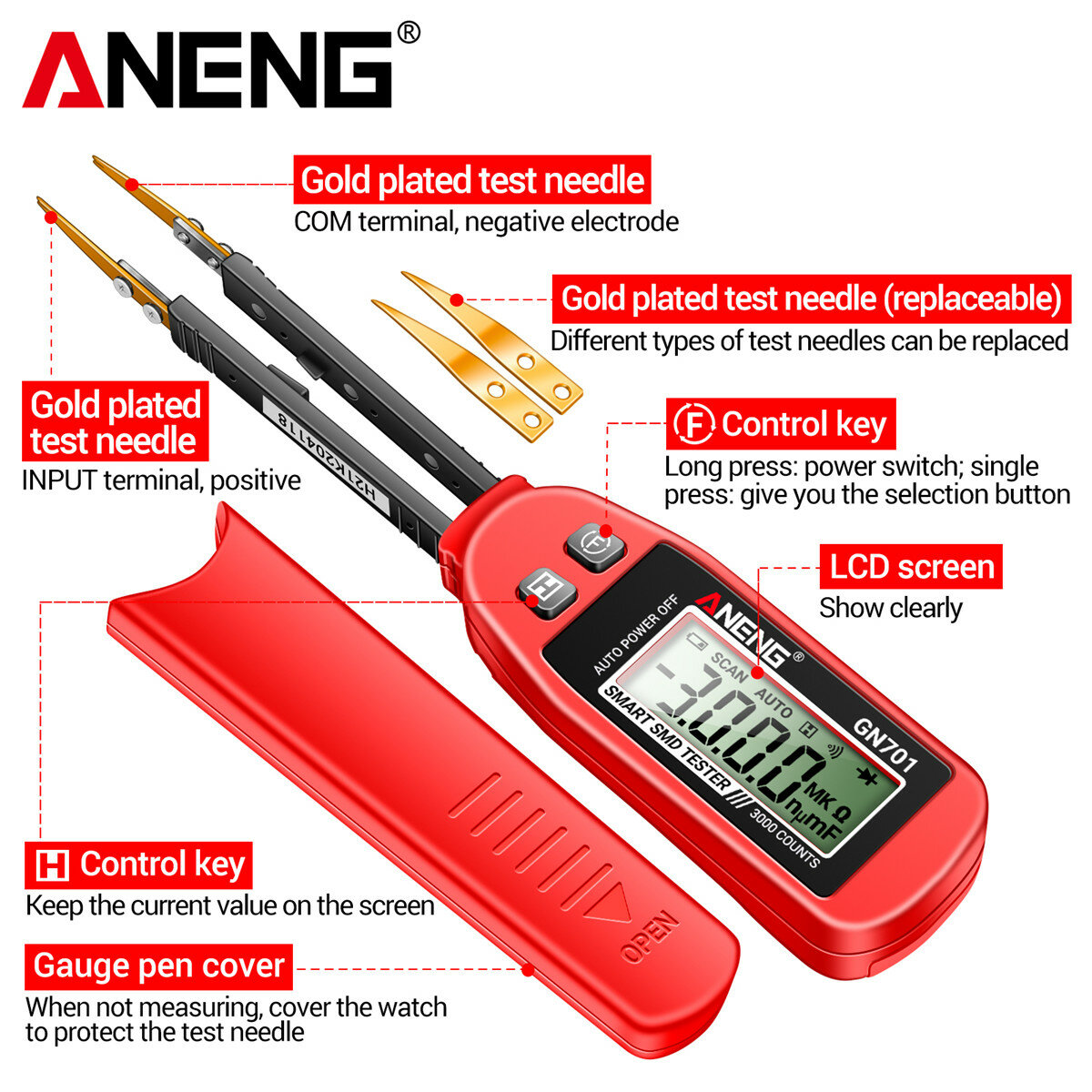

Simplified Usage with LCD Display: The clear LCD screen not only displays accurate readings but also aids in quick diagnostics with its 'OL' symbol, alerting users when there's an overload. It's like having an assistant that flags potential issues.

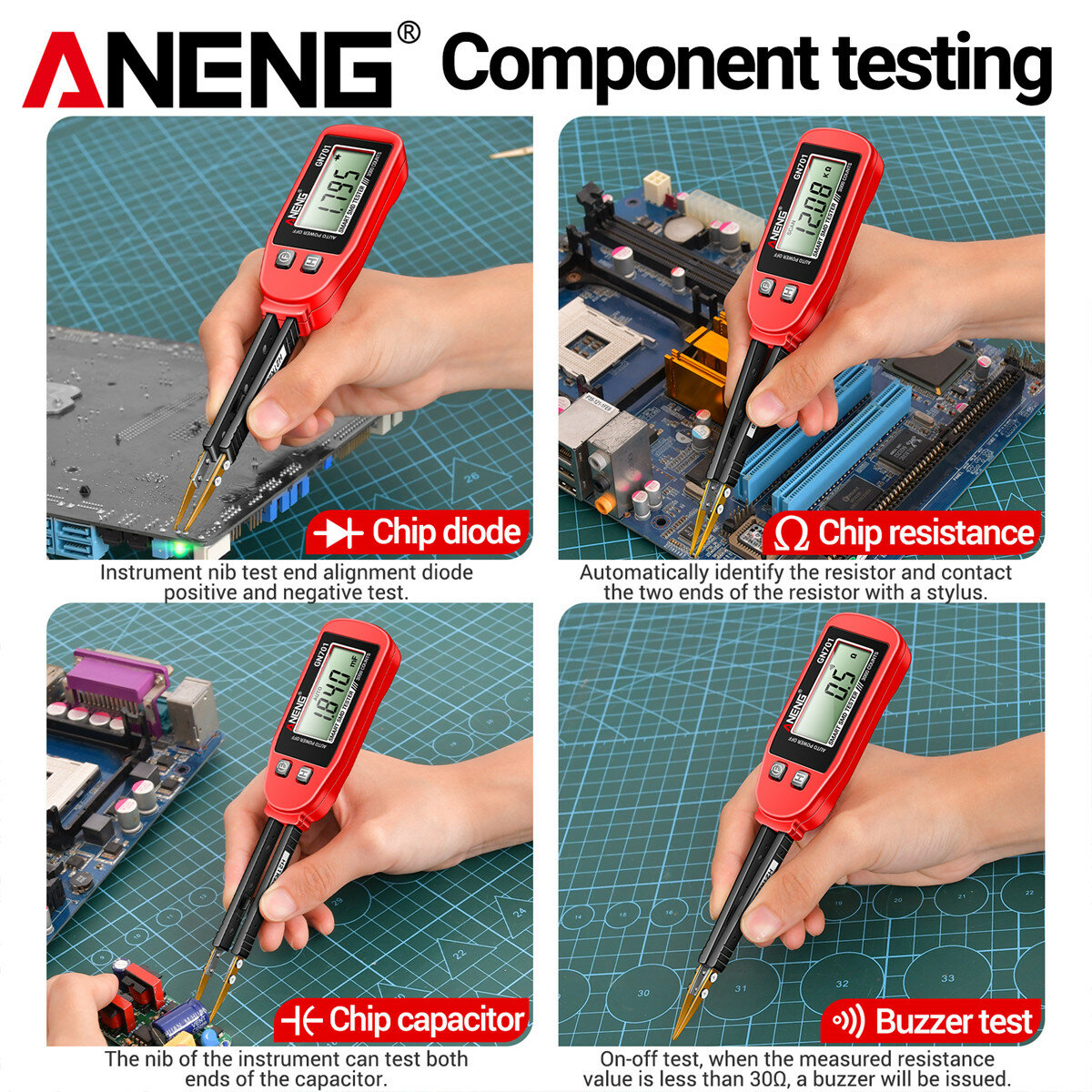

Versatile Diode Testing: This tester doesn't just identify in-built diodes. It can also effectively test them when they're on a board, ensuring all components of your electronics are functioning at their optimum.

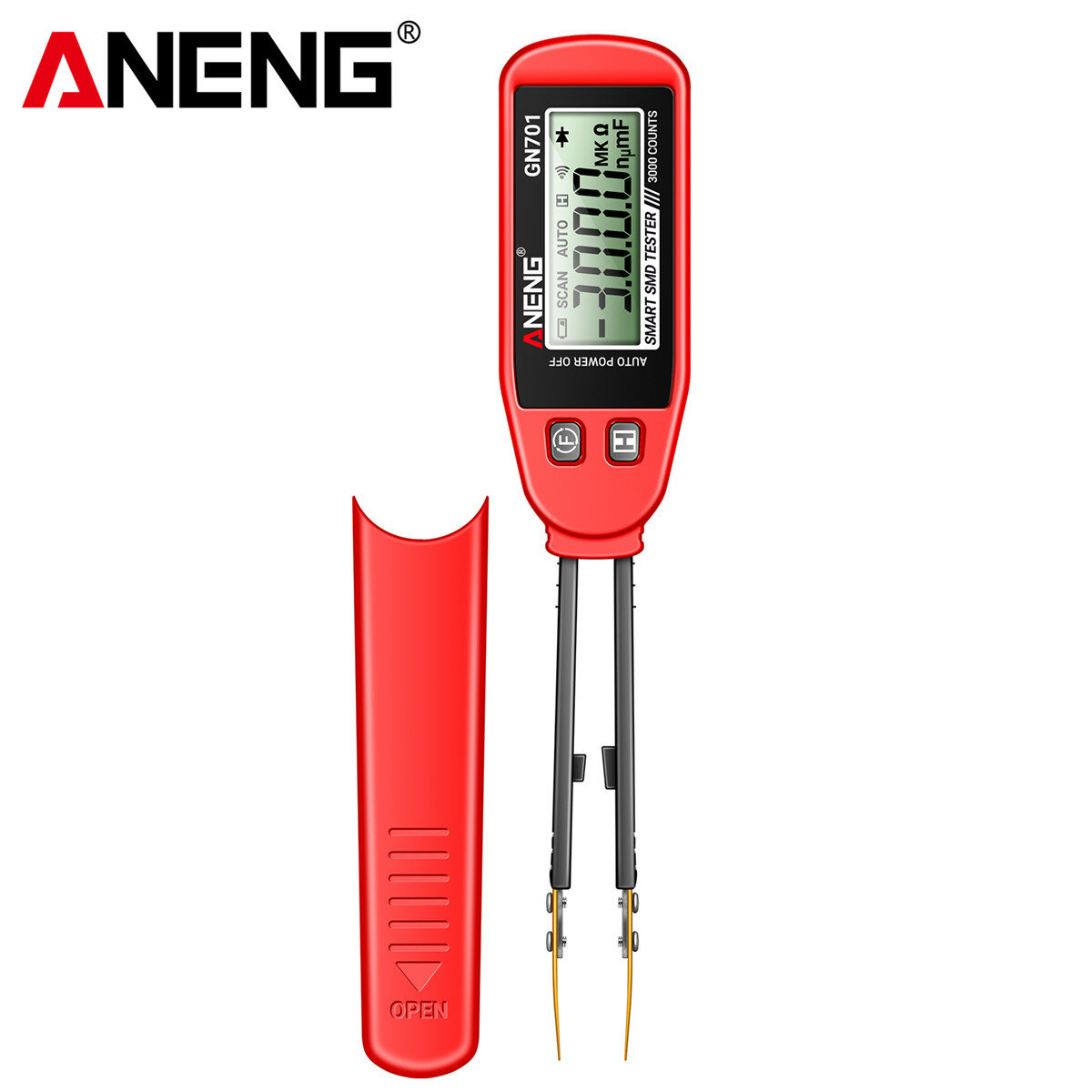

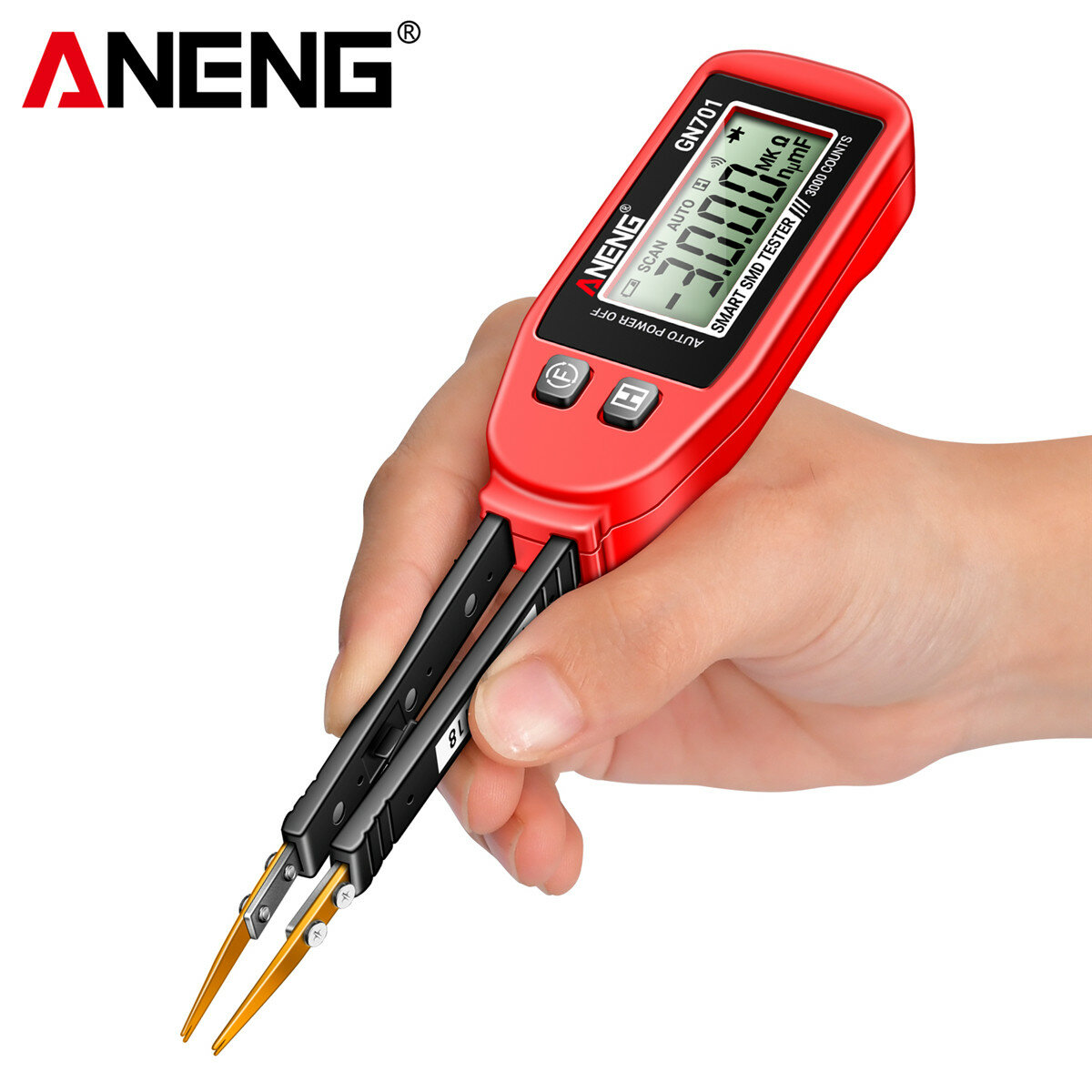

Handheld Convenience: The handheld design makes it supremely easy to test sheet components. It's lightweight, ergonomic, and designed for long hours of use without any discomfort.

Safety First: Operating and storage temperature parameters, coupled with humidity considerations, ensure that the tester remains in optimal condition. The security level adhering to the 2014/30/EU CAT II standards guarantees user safety.

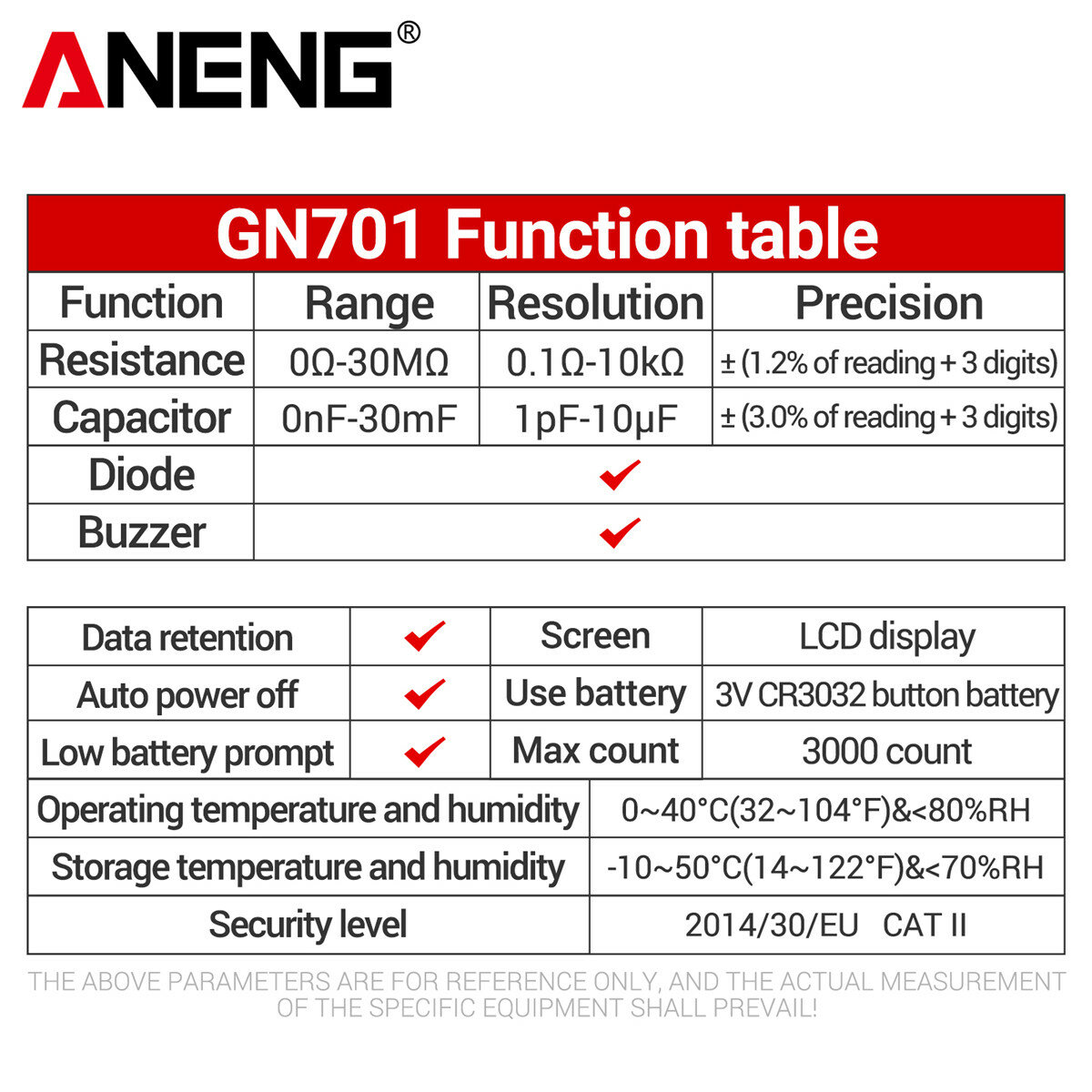

Function Range & Precision: Resistance: 0Q-30MQ with a resolution of 0.1Q-10kQ ± (1.2% of reading + 3 digits), Capacitor: OnF-30mF ± (3.0% of reading + 3 digits) and a range of 1 pF-10uF, Diode: Buzzer LCD display, Data retention.

Power Source: 3V CR3032 button battery.

Additional Features: Auto power-off, Maximum count, Low battery prompt with 3000 count.

Operating Conditions: 040°℃ (32104°F) & <80%RH; Storage Conditions: -1050°℃ (14122°F) & <70%RH.

Safety Standards: 2014/30/EU CAT II.

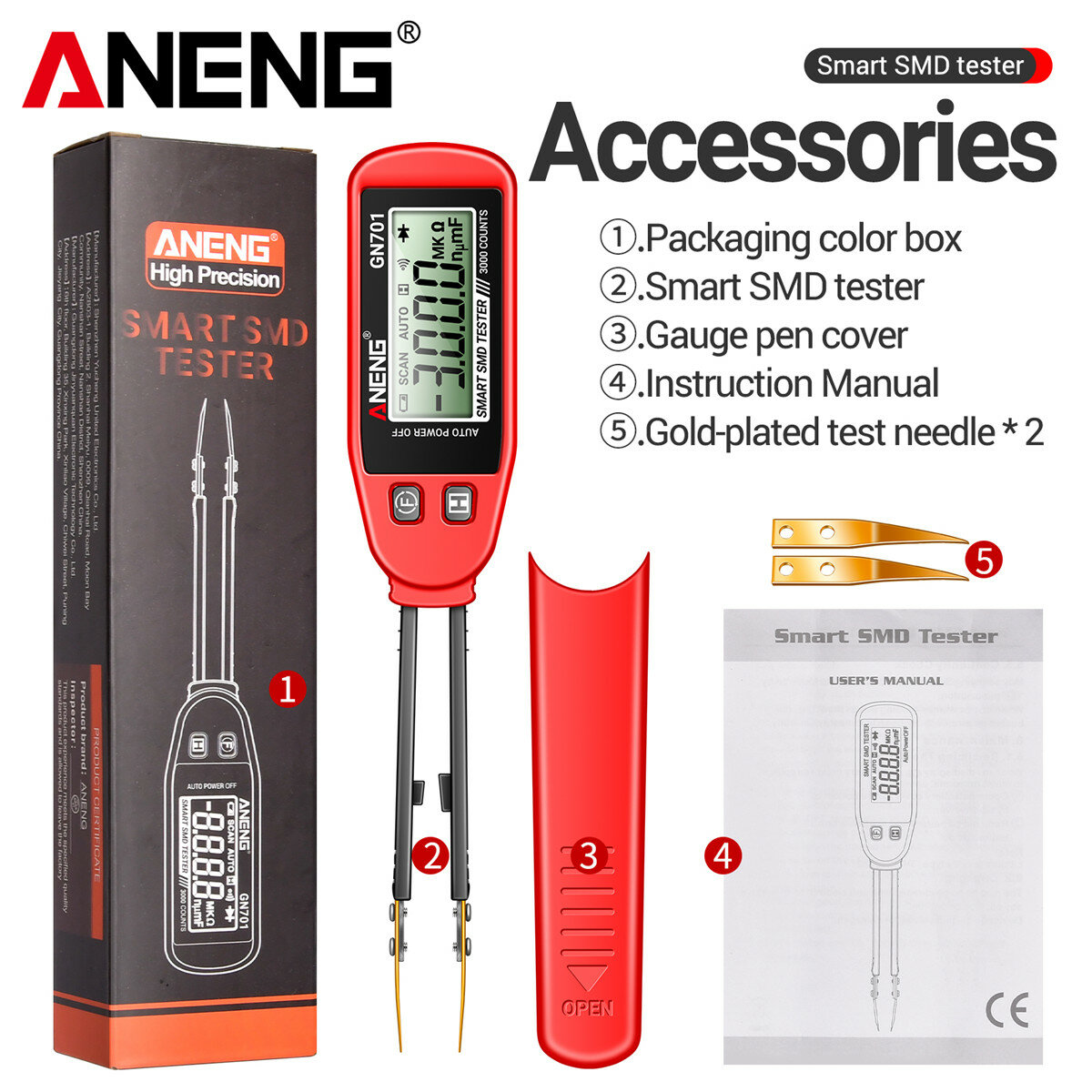

1 x Smart SMD tester ANENG High Precision

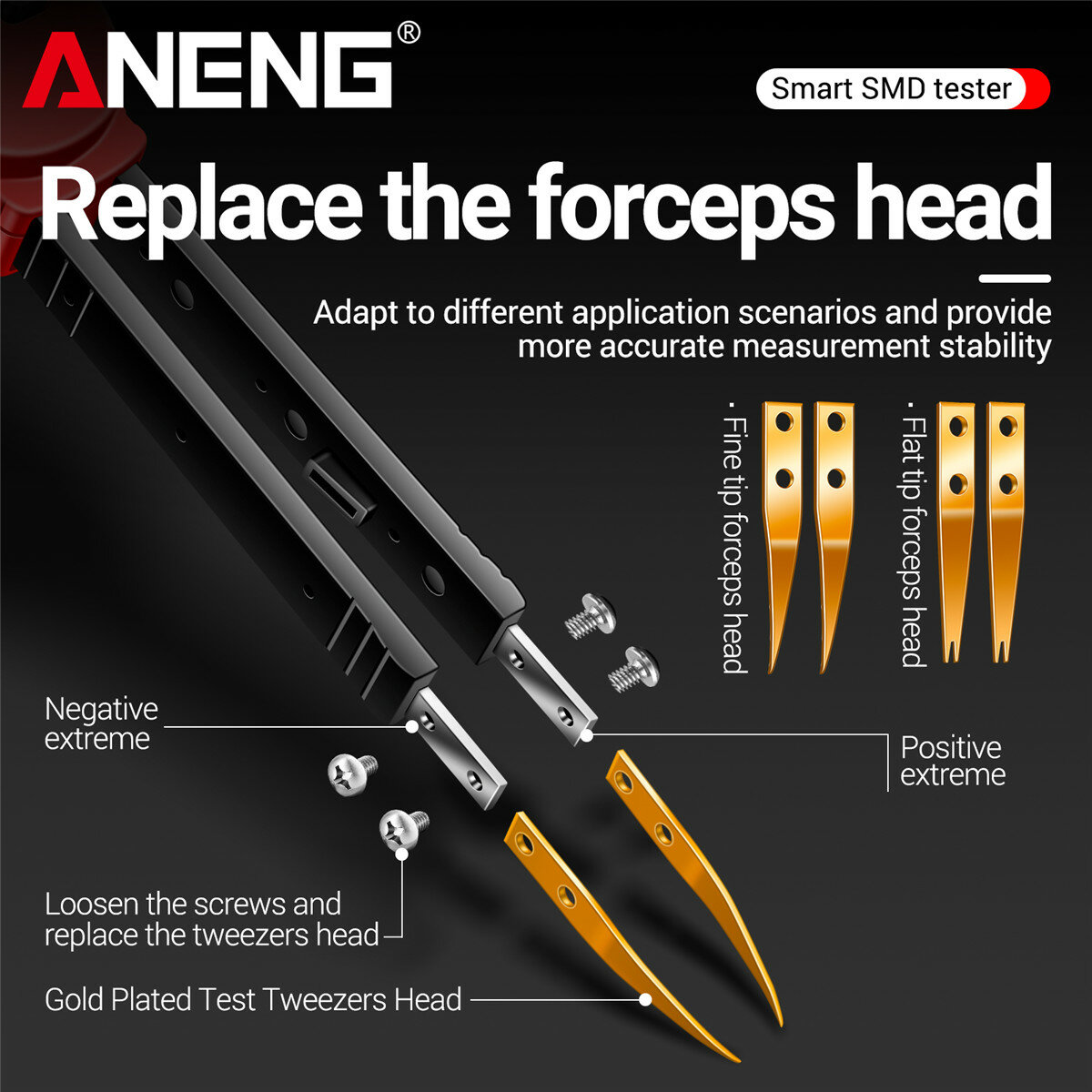

2 x Gold-plated test needle

1 x Gauge pen cover

1 x Instruction Manual

1 x Packaging color box
