ANENG PN104 Clamp Meter AC Current Voice Broadcast Multimeter AC DC Voltage Tester Car Amp Hz Capacitance NCV Ohm Tester Tools

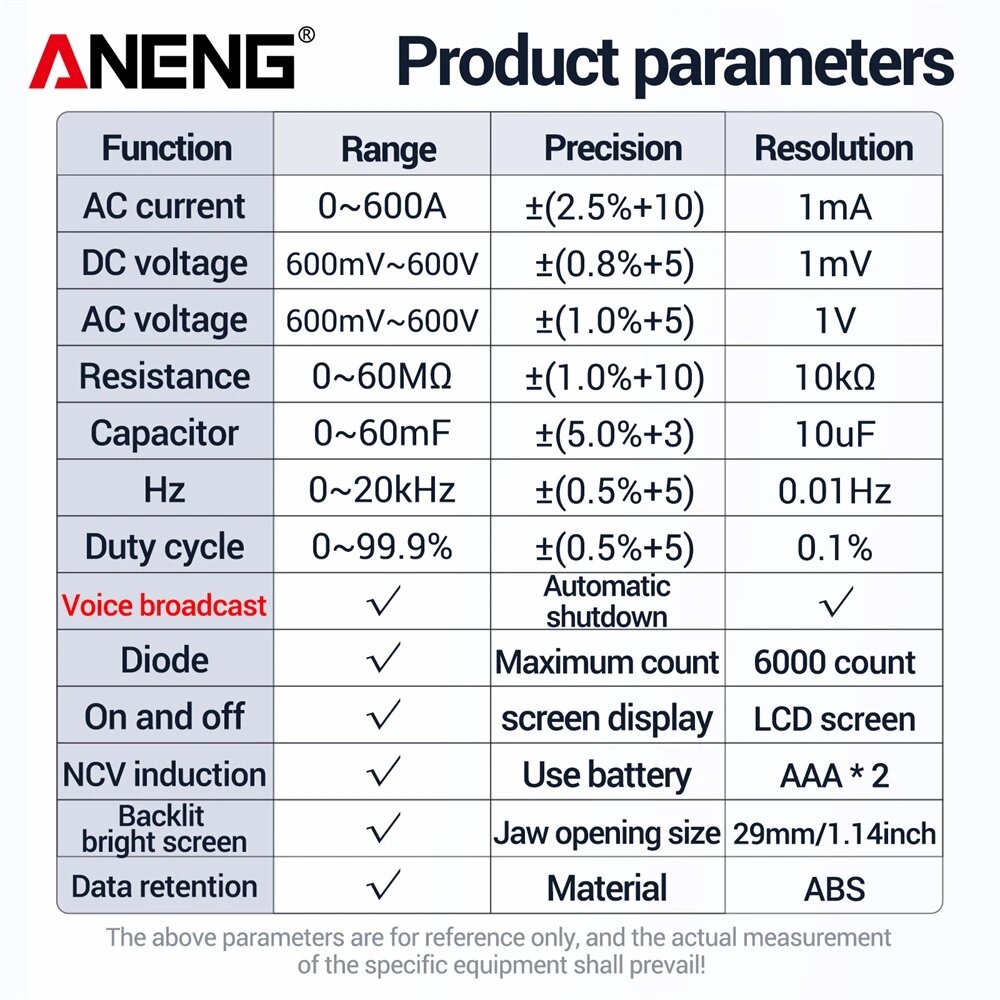

	600A	±(2.5%+10)
DC Voltage	6V/60V/600V	±(0.8%+5)	1mV
AC Voltage	6V	±(1.0%+5)	10mV
	60V		100mV
	600V		1V
Resistance	600Ω	±(0.8%+5)	0.1Ω
	6kΩ	±(0.8%+3)	1Ω
	60kΩ		10Ω
	600kΩ		100Ω
	6MΩ		1kΩ
	60MΩ	±(1.0%+10)	10kΩ
Capacitance	10nF	±(3.5%+20)	10pF
	100nF		100pF
	1uF		1nF
	10uF		10nF
	100uF		100nF
	1mF		1uF
	60mF	±(5.0%+3)	10uF
Frequency	1Hz/10Hz/100Hz/1kHz/200kHz	±(0.5%+5)	0.01Hz
Duty Ratio	0.1%-99.9%	±(0.5%+5)	0.1%

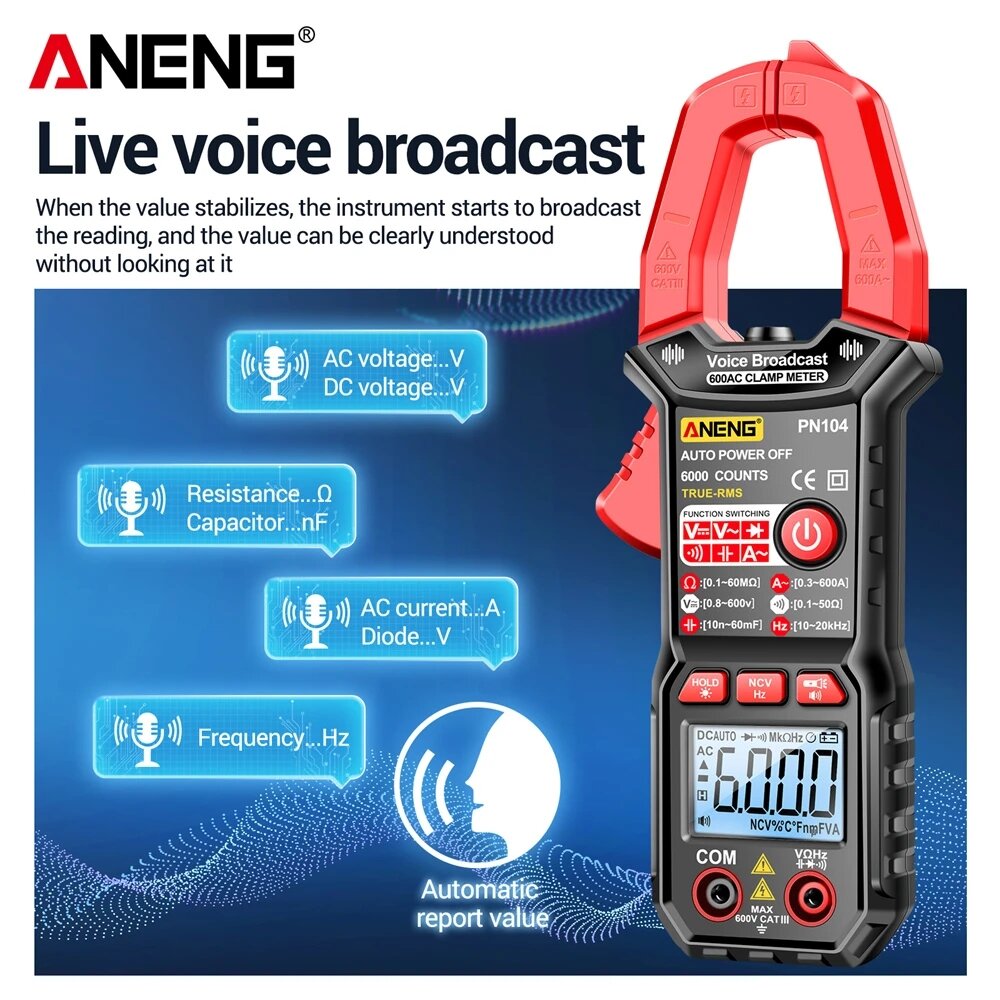

Voice Broadcast	√	Automatic shutdown	√
Diode	√	Maximum count	6000 count
On and Off	√	Screen display	LCD screen
NCV Induction	√	Use battery	(

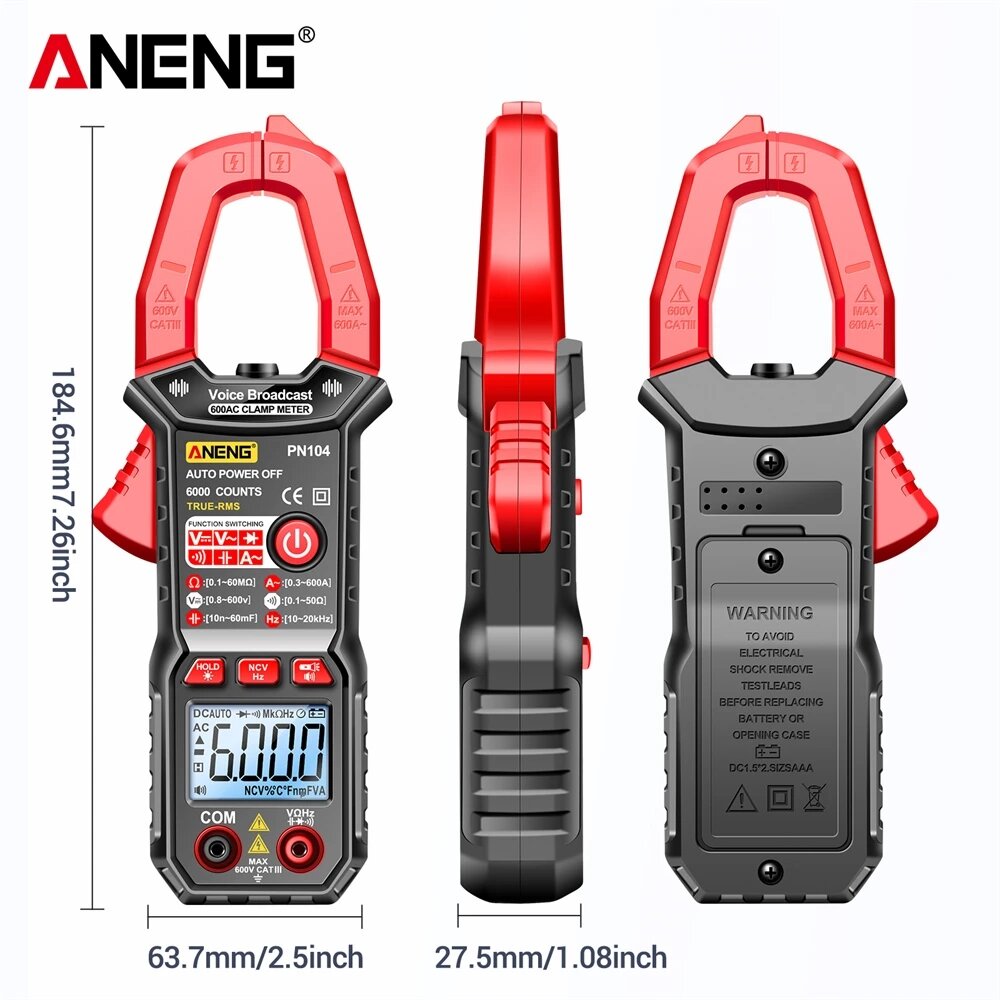

Backlit bright screen	√	Jaw opening size	29mm/1.14 inch
Data retention	√	Material	ABS

  Ranging:Auto NCV:Yes Diode:Yes Data Hold:Yes On and Off:Yes Display:6000 Counts(LCD) Product Name:Voice Clamp Meter Battery Type:AAA battery*2(not include)

Package included:
