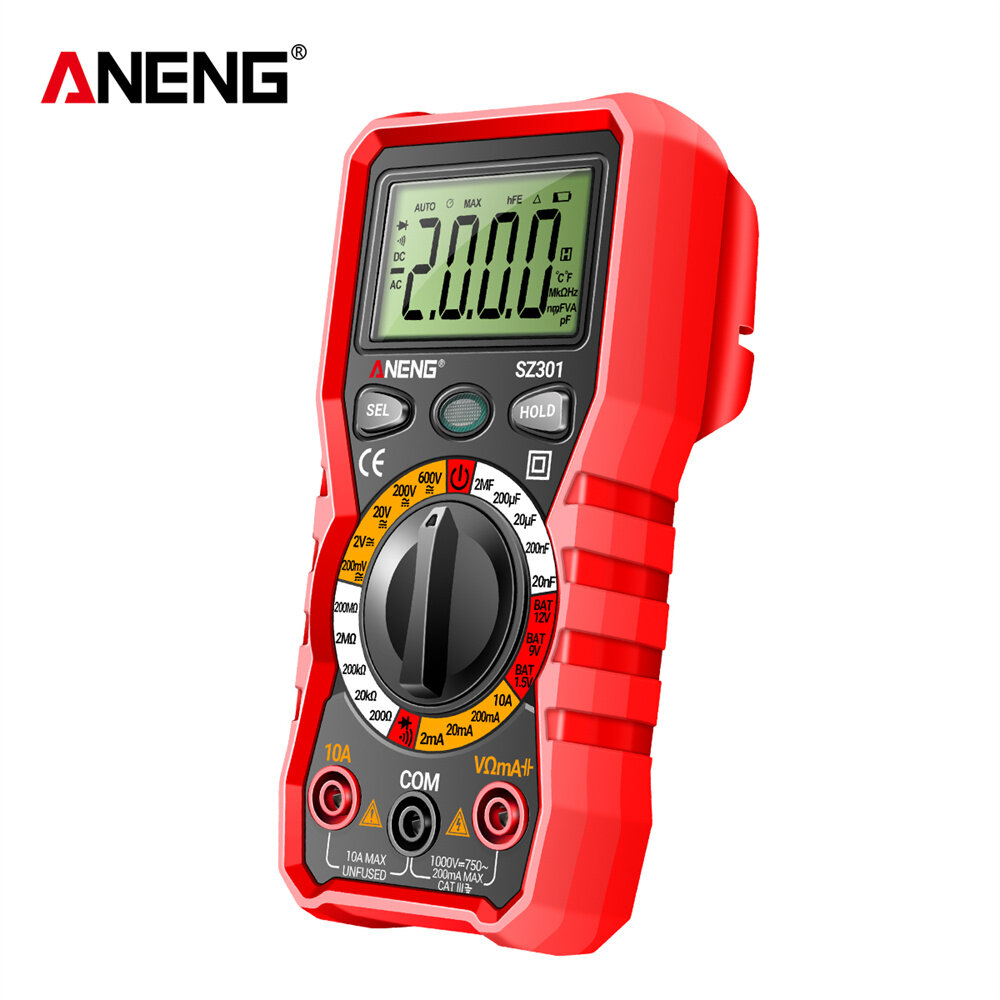

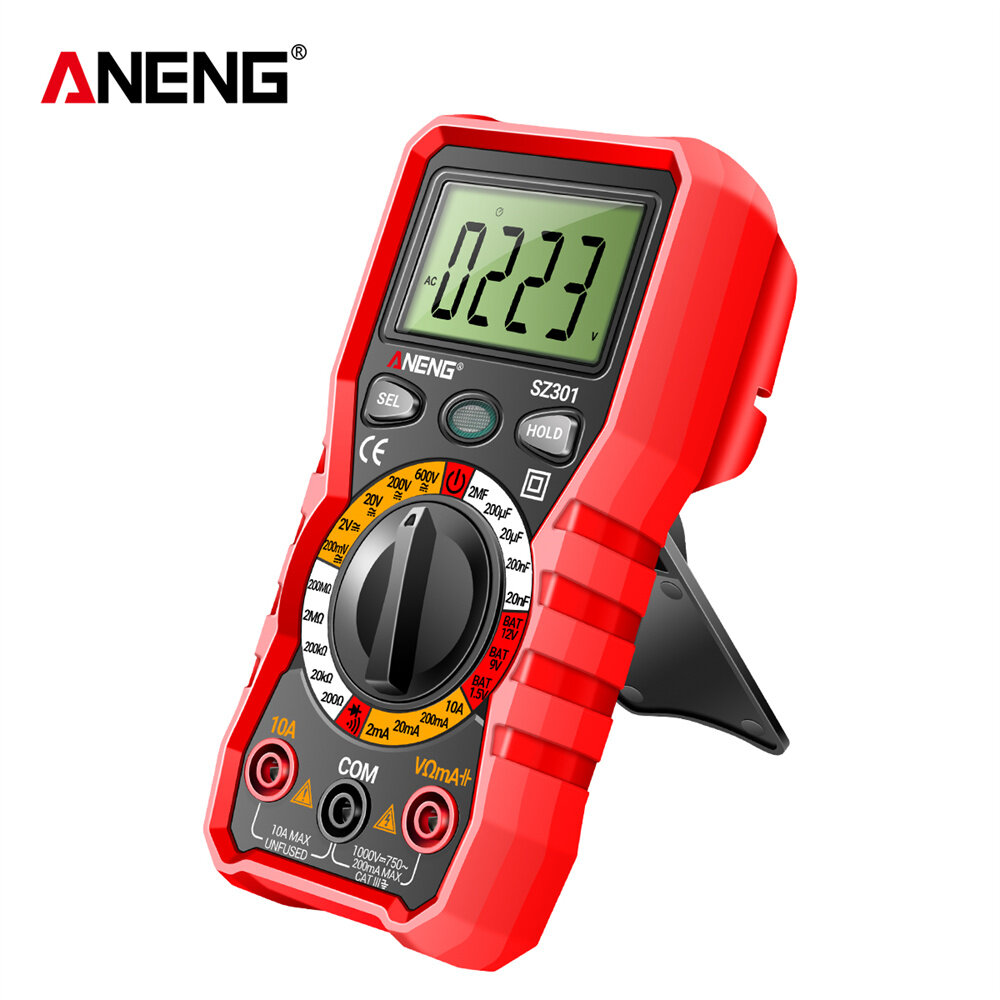

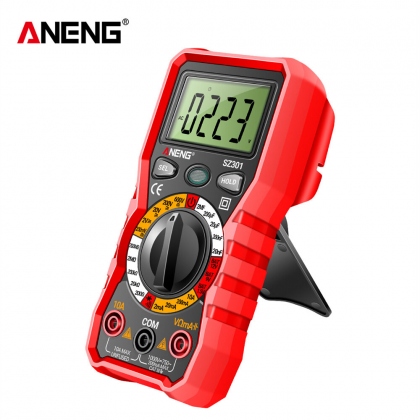

ANENG SZ301 Digital Multimeter AC/DC Votage Current Automatic Tester Electrical Resistance Ohm Ammeter Capacitance Meter COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

DC voltage：200mV/2V/20V/200V/600V 0.1mV/1mV/10mV/0.1V/1V ±(1%+5)

AC voltage：200mV/2V/20V/200V/600V 0.1V/1V ±(2.0%+10)

DC current：2mA/20mA/200mA/10A 0.001mA/0.01mA/0.1mA/0.01A ±(2.5%+5)

AC current：2mA/20mA/200mA/10A 0.001mA/0.01mA/0.1mA/0.01A ±(2.5%+5)

Resistance：200Ω/20kΩ/200kΩ/2MΩ/200MΩ 0.1Ω/10Ω/100Ω/1kΩ/100kΩ ±(4.0%+10)

Capacitance：20nF/200nF/20uF/200uF/2MF 10pF/100pF/10nF/1uF ±(5.0%+10)

Diode：YES

Low Powerhint：YES

Buzzer：YES

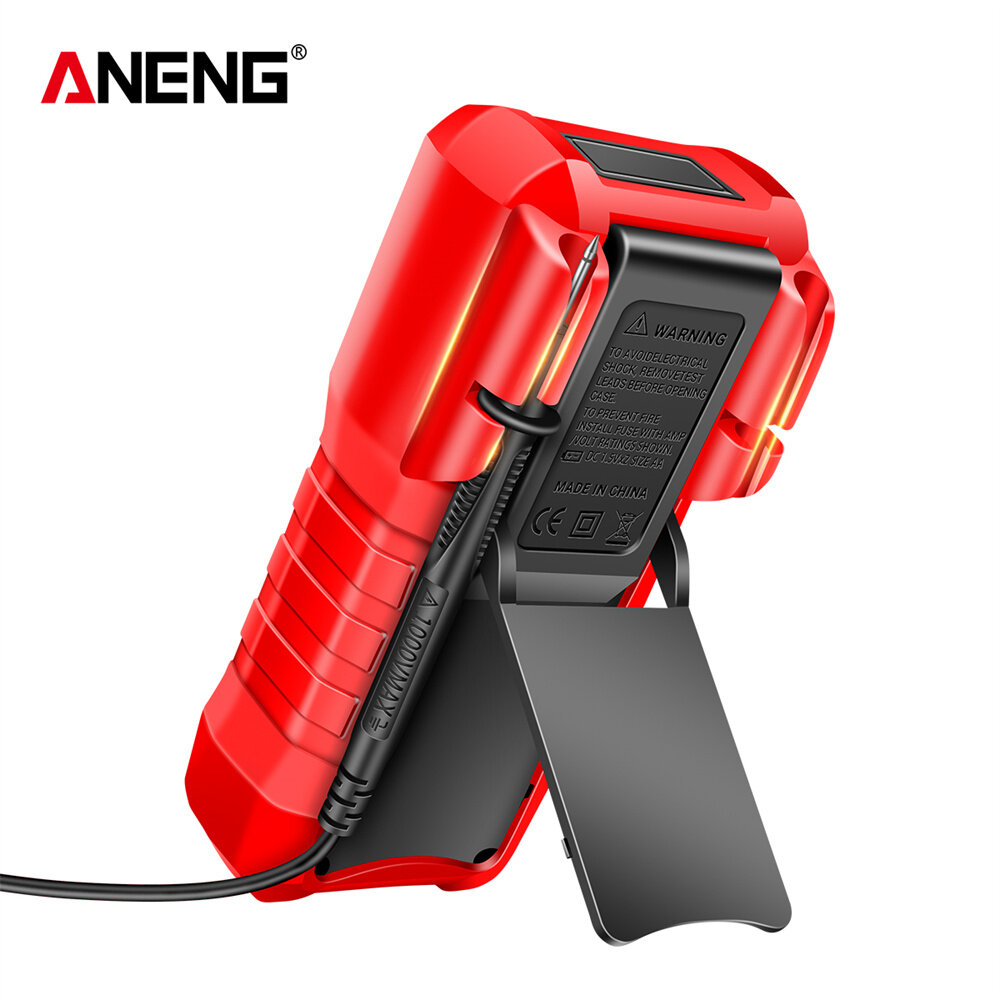

Back Support：YES

Data retention：YES

Back Pen Holder：YES

Automatic Closure：YES

Silicone Sheath：YES

Weight：155g

Screen Display：LED Screen

Battery：AA*2

Max count：2000 counts

Material：ABS/Silica Gel

Pen Material：PVC/Brass

Model：SZ301

Pen Total Length：74cm





1 x Multimeter

2 x Test lead

1 x User Manual
