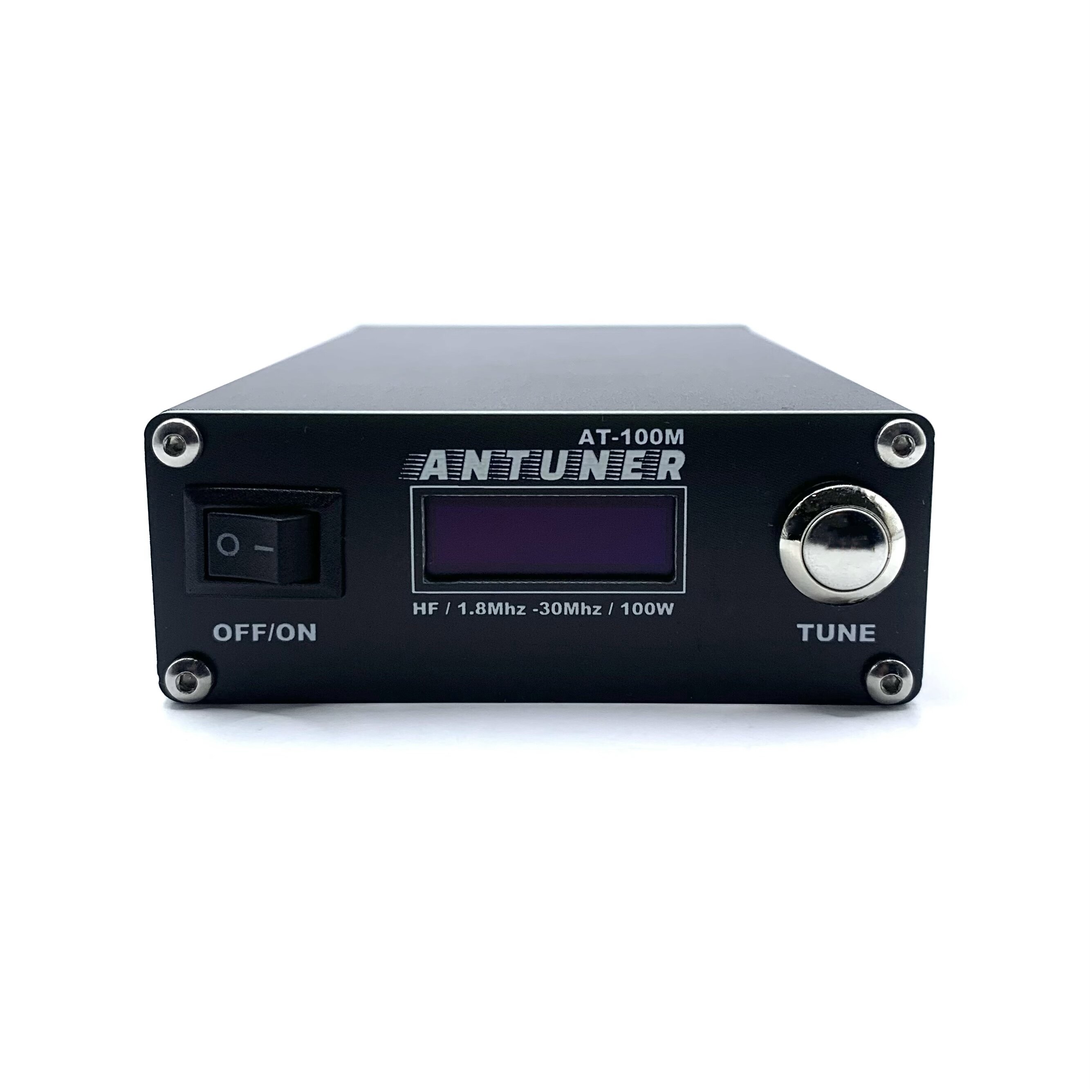

ANTUNER AT100M 1.8mhz-30mhz 100W Antenna Tuner Built-in Standing Wave Meter Power Meter For HF Radio USDX G1M FT-818 COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

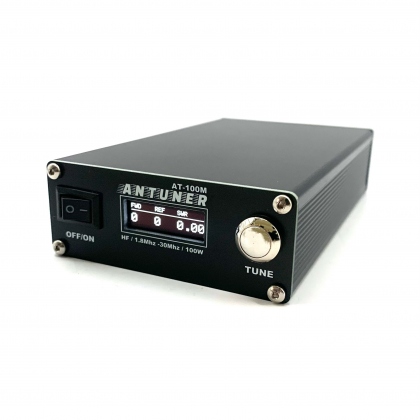

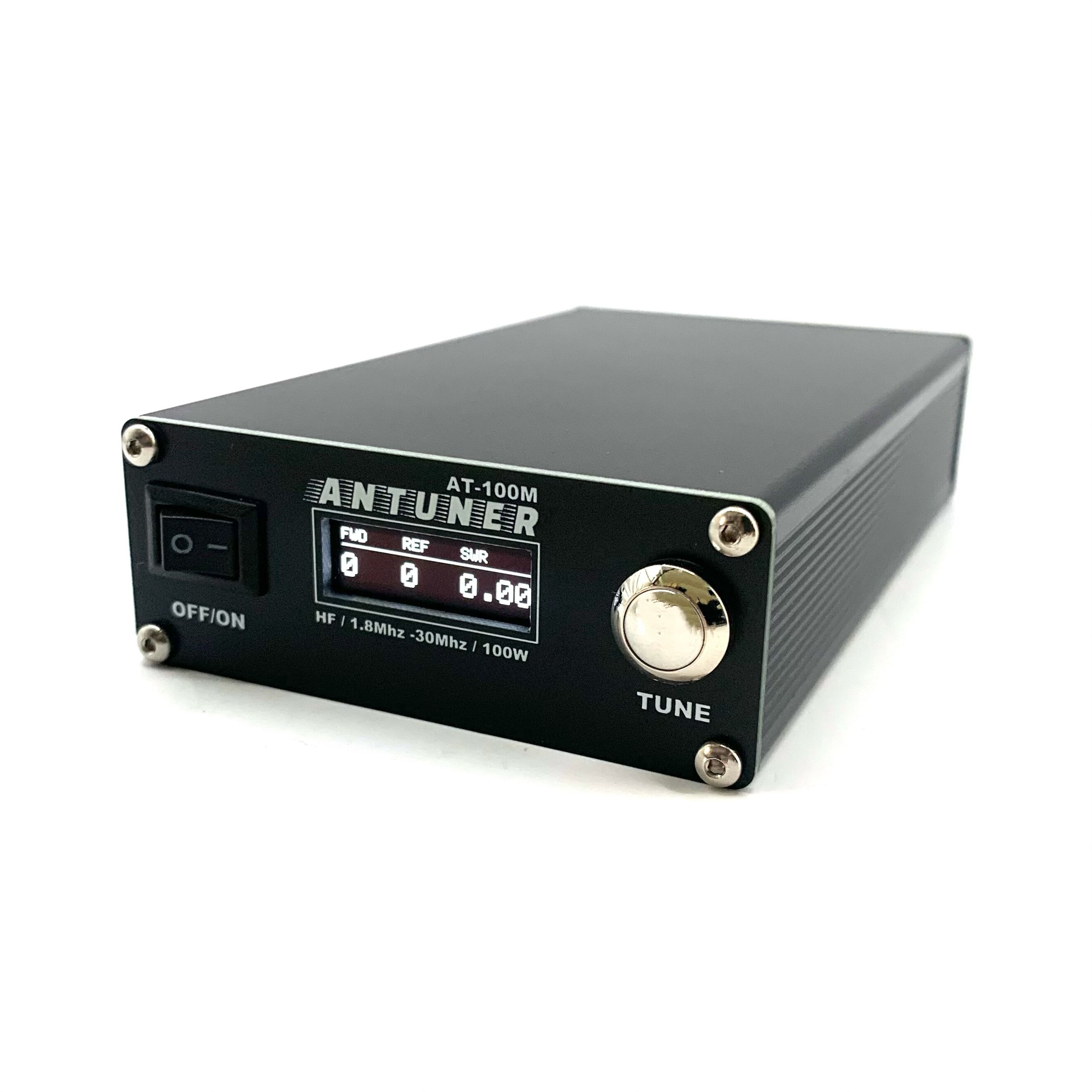

1. Built in standing wave meter and power meter function, high cost performance

2. High end components: imported magnetic ring, imported 1N5711 detector diode, imported ams1117 buck chip

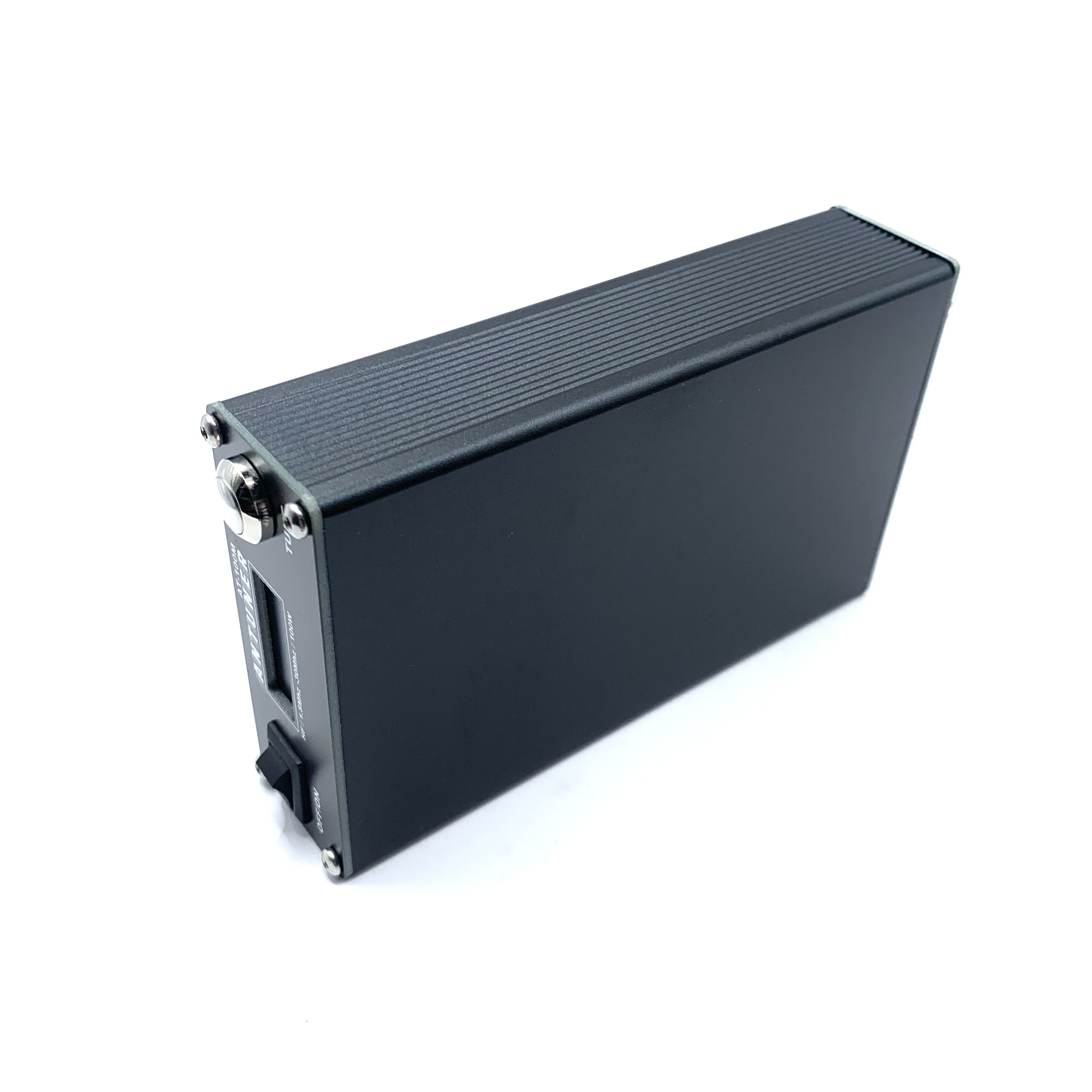

3. Super small volume, only 2.9cm thick x 7.4CM wide x 12cm long

4. Instead of directly applying open-source files, it has been completely designed to solve the problems of screen, random code and standing wave

5. Support 10 tuning results storage

6. Support firmware upgrade, and the function will be updated continuously in the future.

Features:

Before using its own tuning, be sure to switch on the minimum power of the power control room to prevent damage to the radio station or the sky conditioner;

When the radio is used or replaced for the first time, the standing wave power value of the equipment needs to be recalibrated. When the radio is inconsistent with the standing wave power value displayed by the equipment, the radio shall prevail.

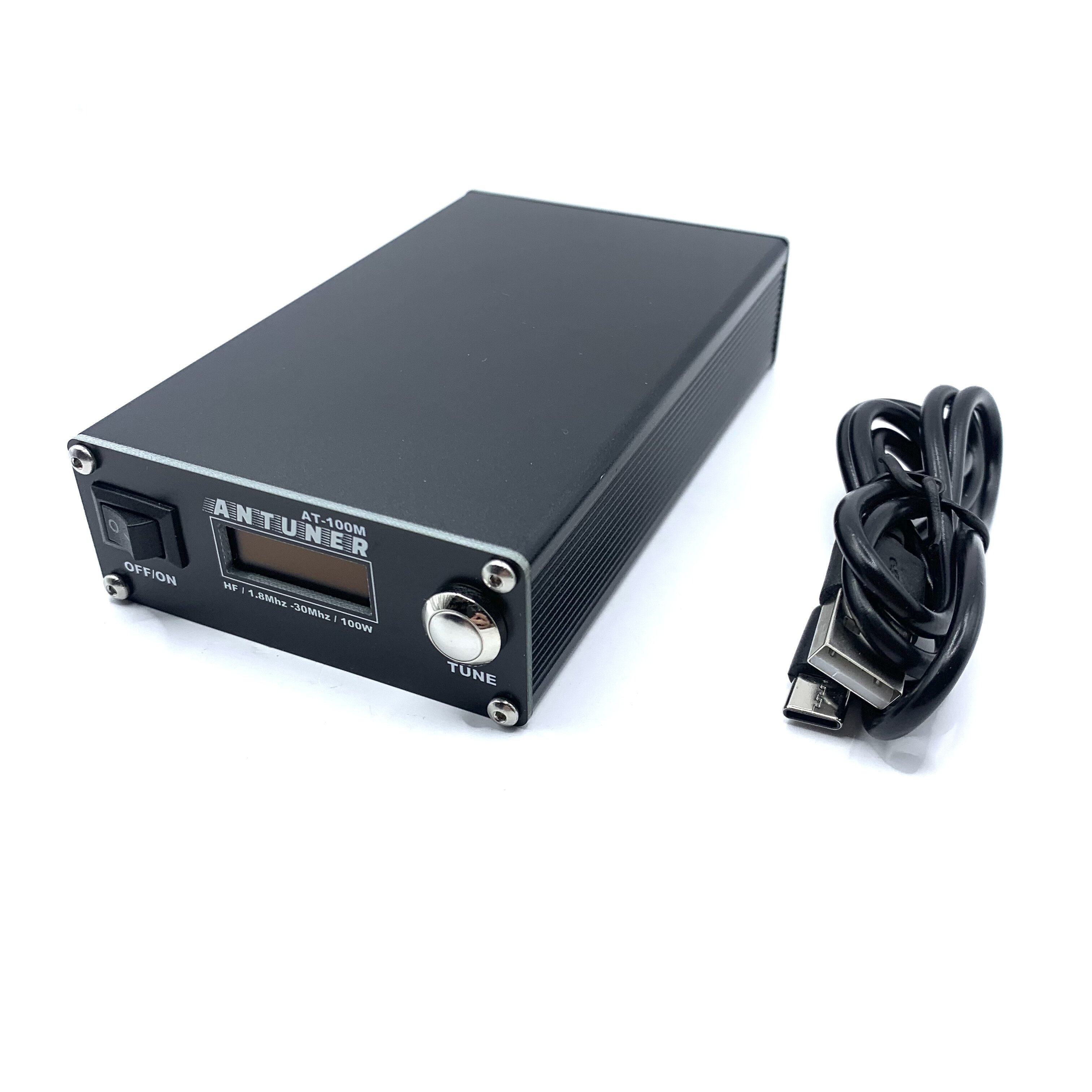

Please use the USB type-C charging cable attached to this product to charge. If you use other brands of USB type-C fast charging cable, you may not be able to charge.

Parameters:

1. Please connect the radio and antenna respectively;

2. The radio is set to the frequency range and minimum output power supported by the equipment. The working mode is FM / AM / CW or SSB;

3. Long press the button to realize tuning or abandon tuning;

4. Operate the radio station to keep the emission status. At this time, the equipment will automatically tune to the lowest standing wave and stop automatically

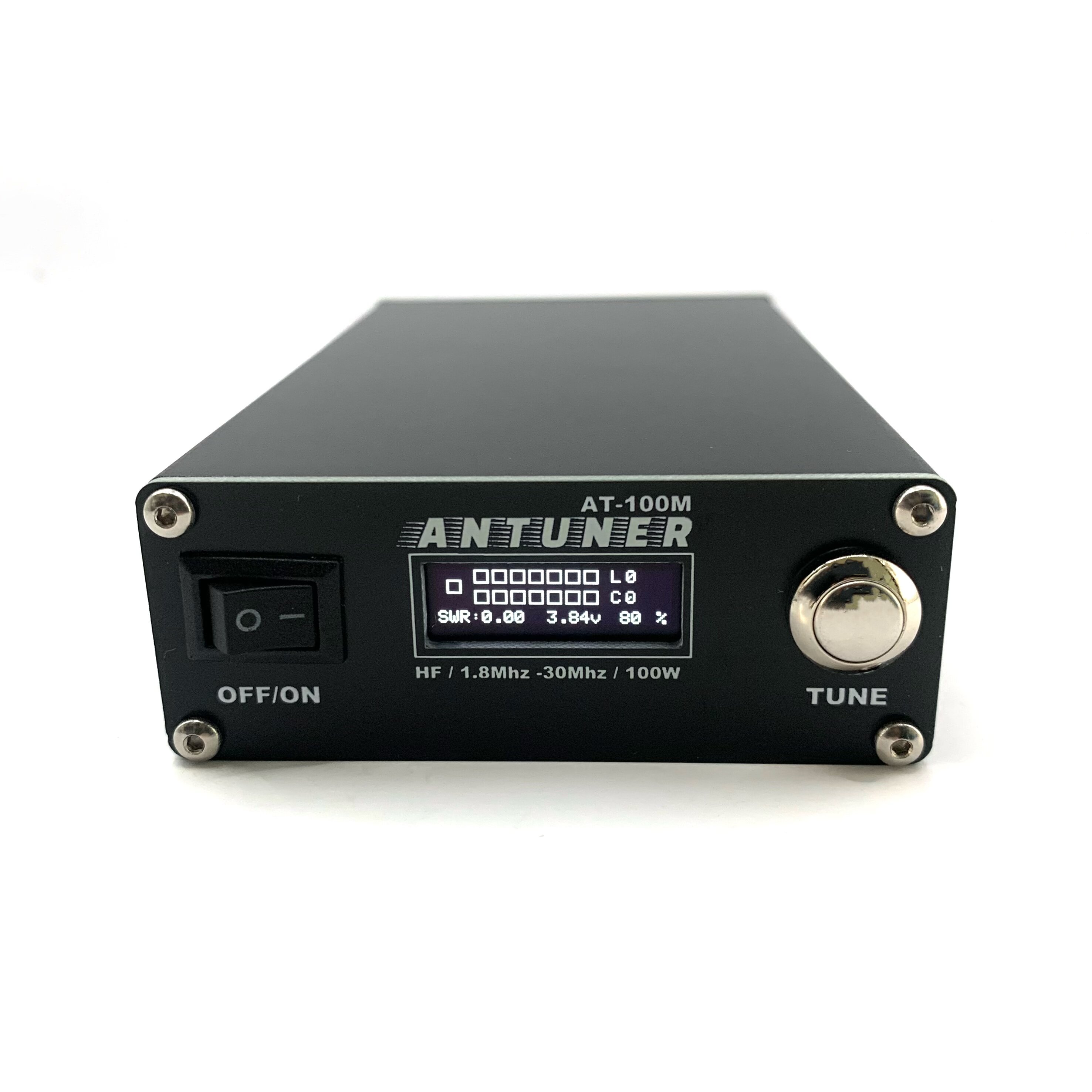

5. The screen shows that when the SWR value is 1.0-2.0, the tuning is successful;

6. Set the radio power to the maximum transmission power / frequency / mode supported by the equipment for calling

Shipping list:
