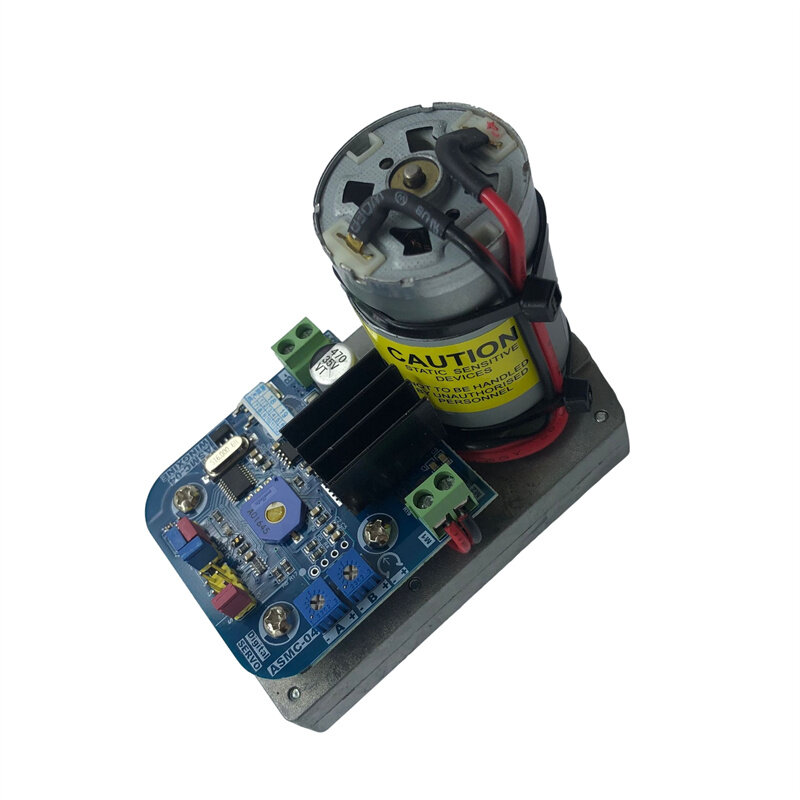

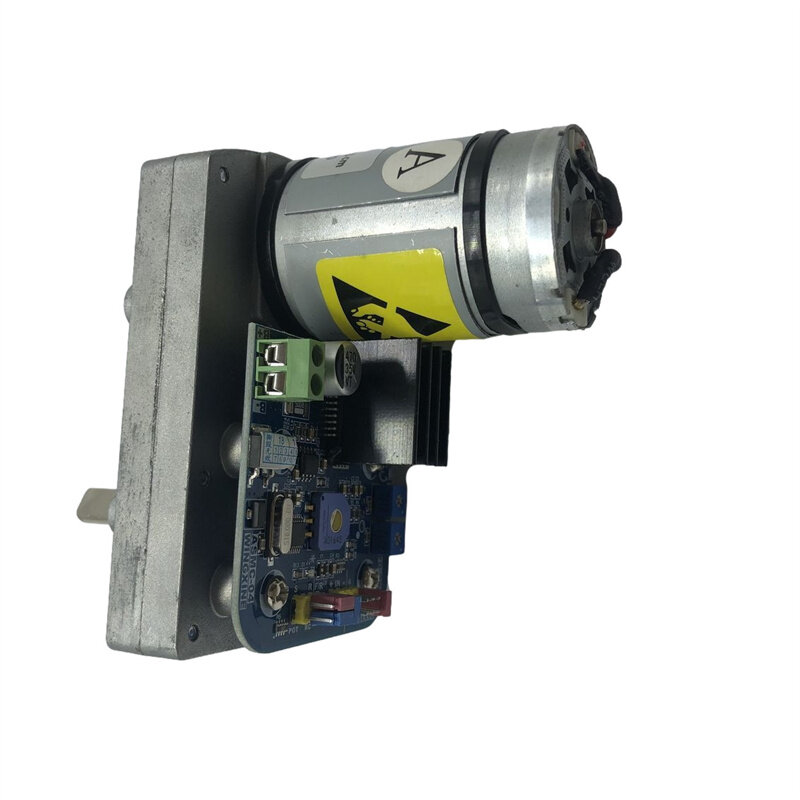

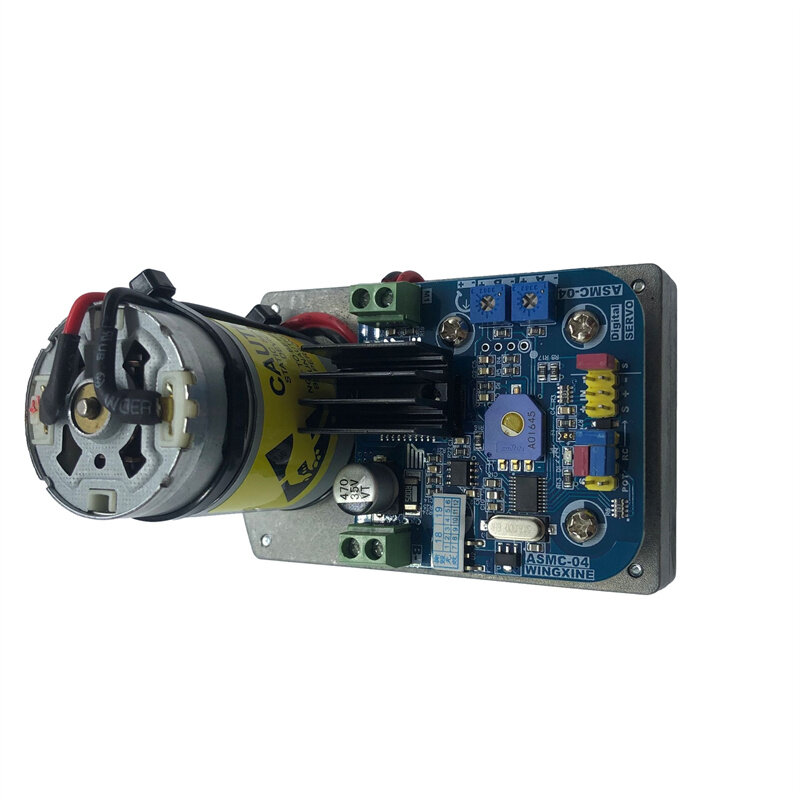

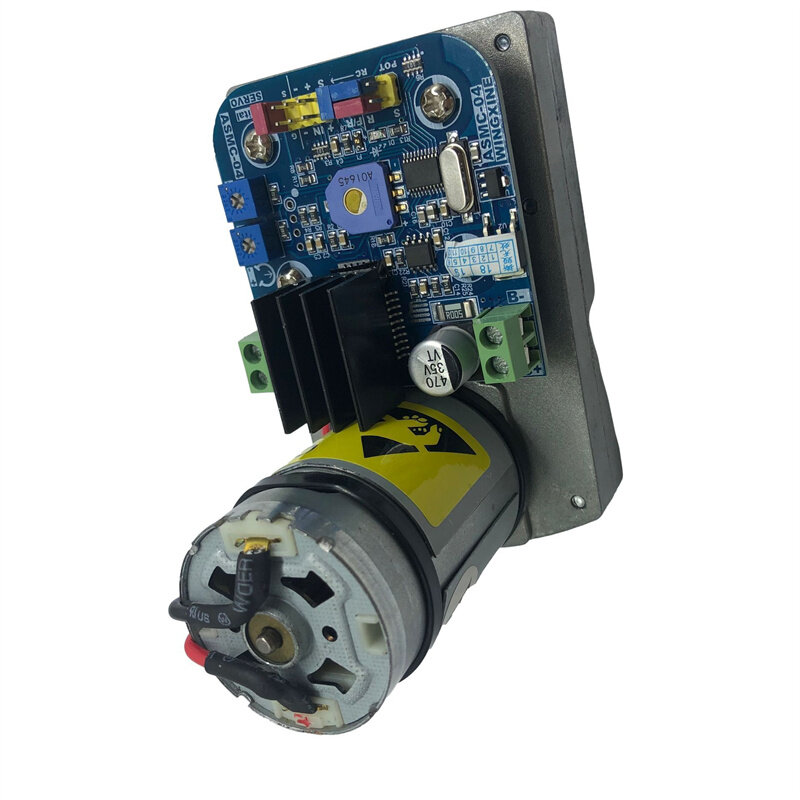

ASMC-04A Super Torque Digital Industrial Model Aircraft Steering Gear Robot Steering Gear Super Steering Gear COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Model	ASMC-04A
Working voltage	12V to 24V (DC)
No-load rotation current	<500mA
Maximum torque	110kg.cm (24V)
	1078N.cm(24V)
	55kg.cm(12V)
	539N.cm(12V)
Angular velorcity	0.12s/60° at 24V; 0.24s/60° at 12V;
Rotation angle	300°MAX (0 to 300° electronic limit adjustable)
Input mode	Pulse signal (remote control, multi-channel steering gear controller, microcontroller) or analog voltage signal (potentiometer)
Pulse signal input range	0.5ms-2.5ms suitable for all "multi-channel steering gear controllers", "1ms-2ms model aircraft remote controls", "microcontroller programmingArduino", etc.
Voltage signal input range	0V to +5V
Control accuracy	0.32°
Weight	530g
Gear material	Steel
Overall dimensions	95.5mm x 60.5mm x 102.6mm

1. High power and high torque control suitable for medium and large-sized robots.

3. Superior maximum torque output of up to 110kg.cm at 24V.

5. Built with robust, high-quality steel gear and optimized for control accuracy of 0.32°.

Package Include:

1x ASMC-04A Steering Gear

1x 20cm Signal Cable
