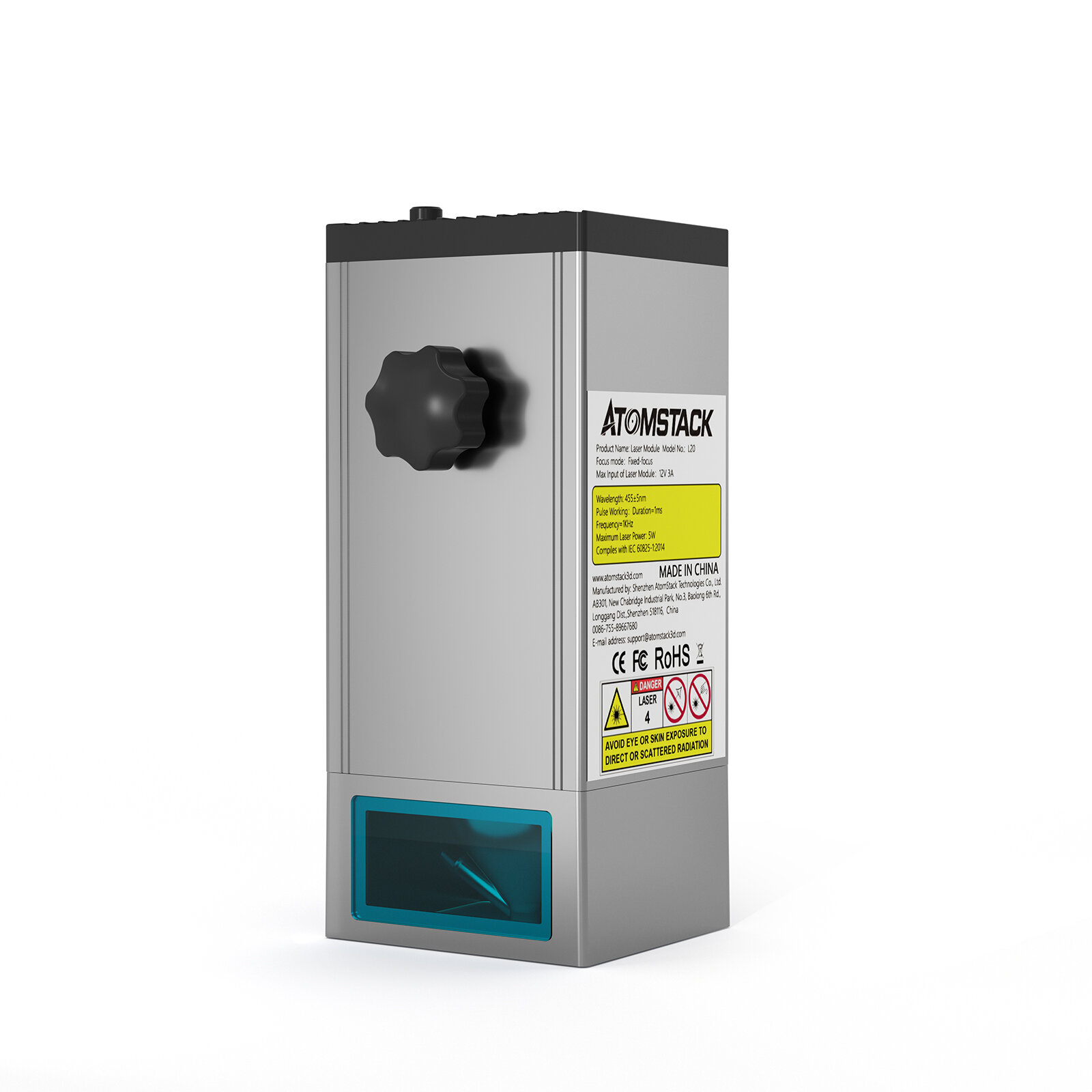

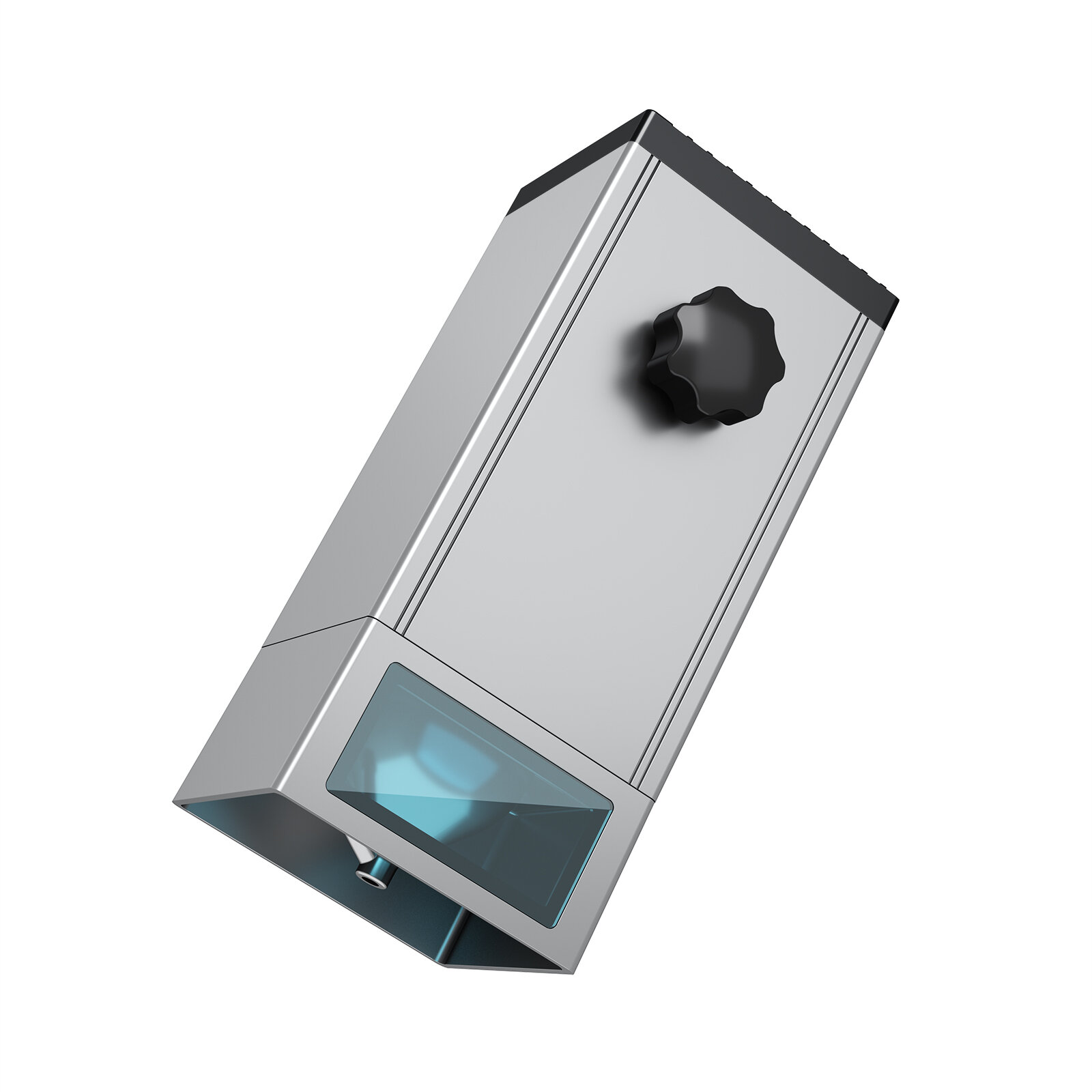

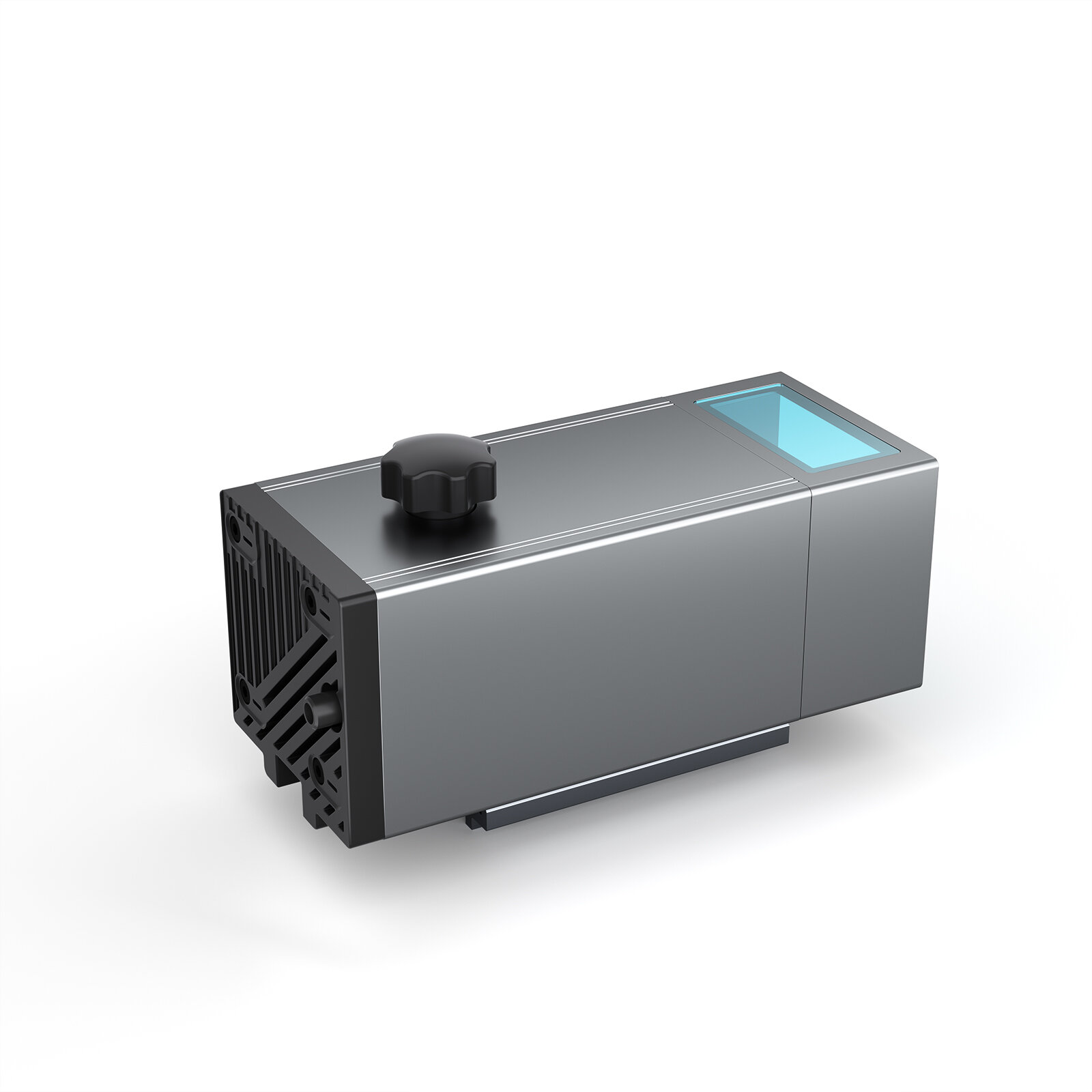

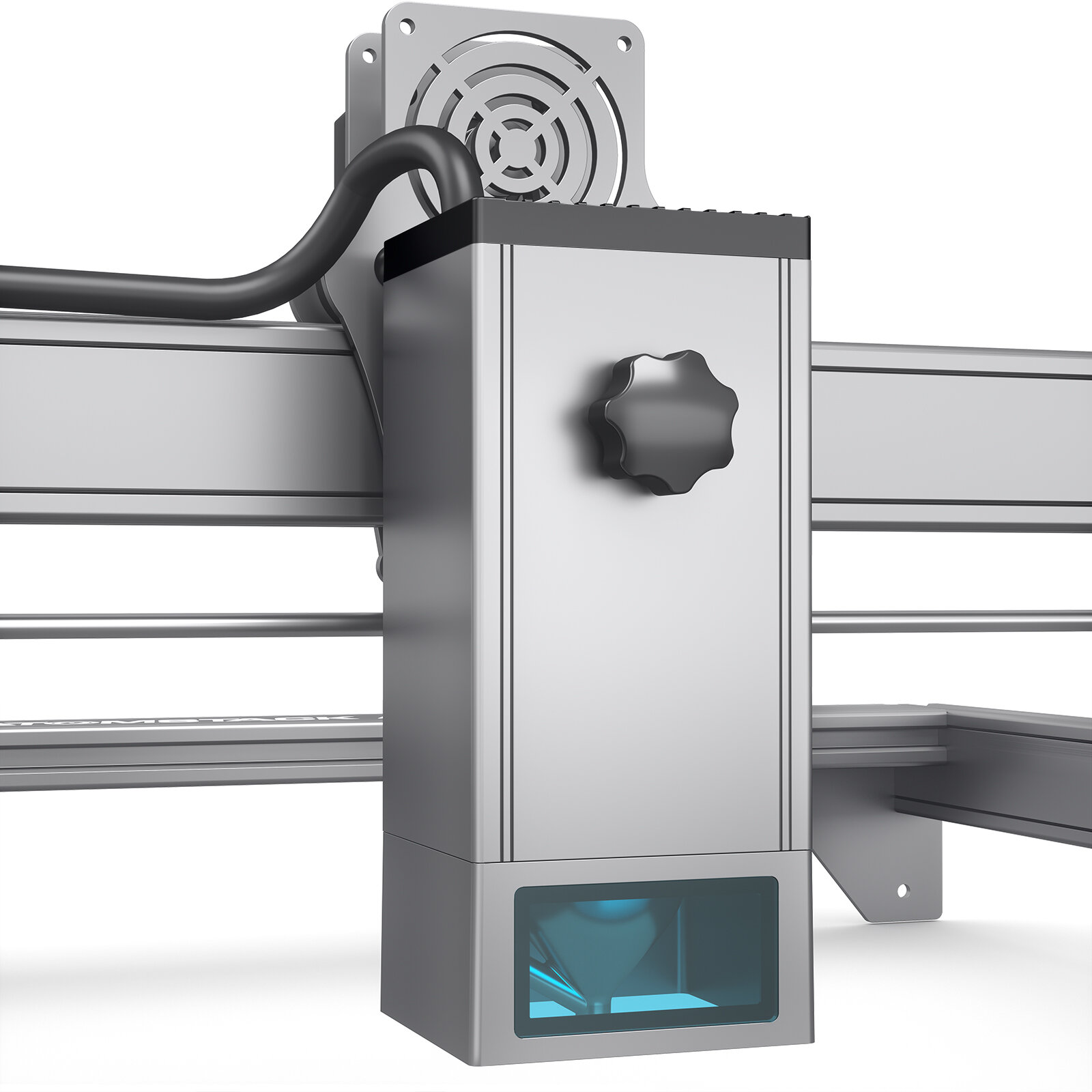

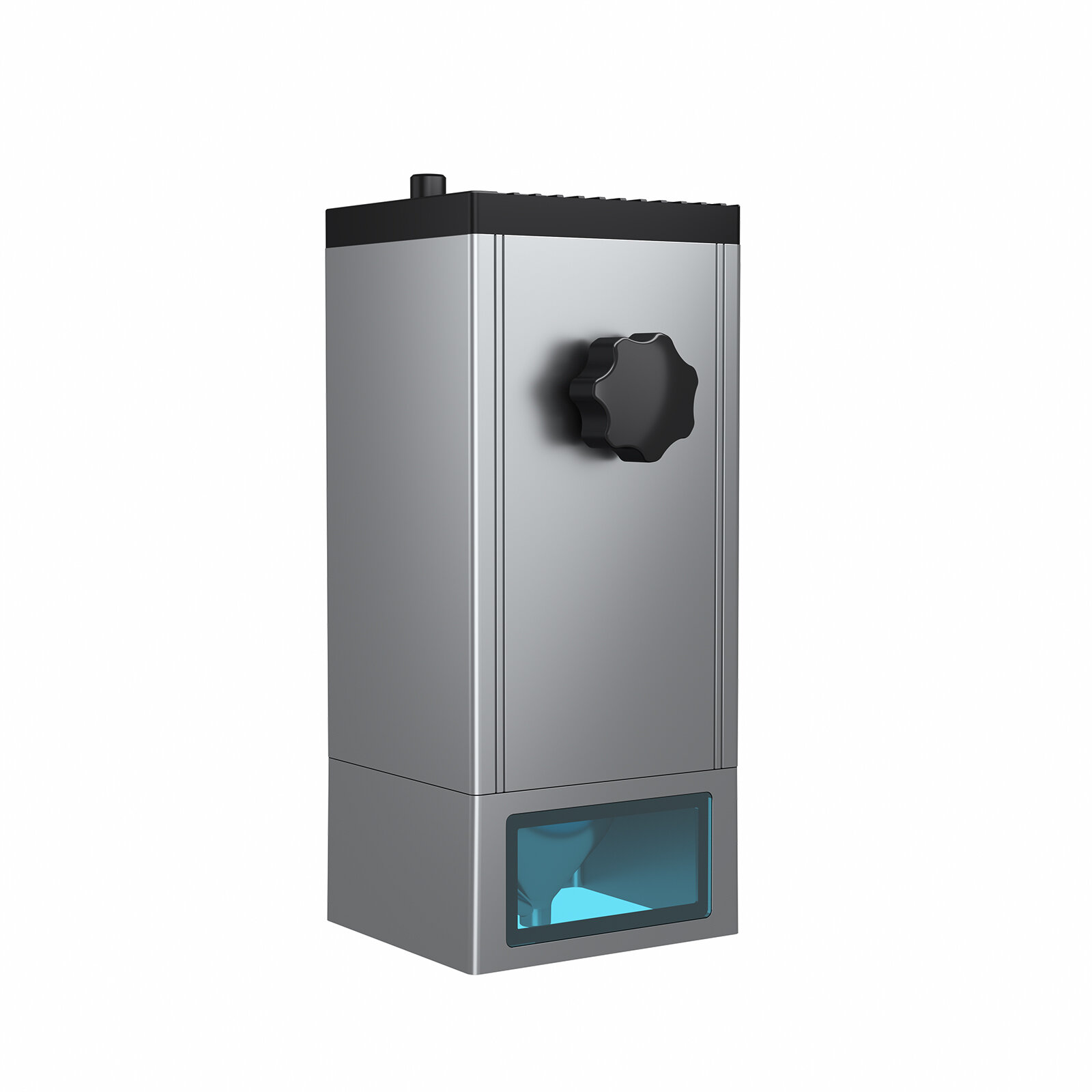

Atomstack M100 20W Quad Laser Module With Air Assist System COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

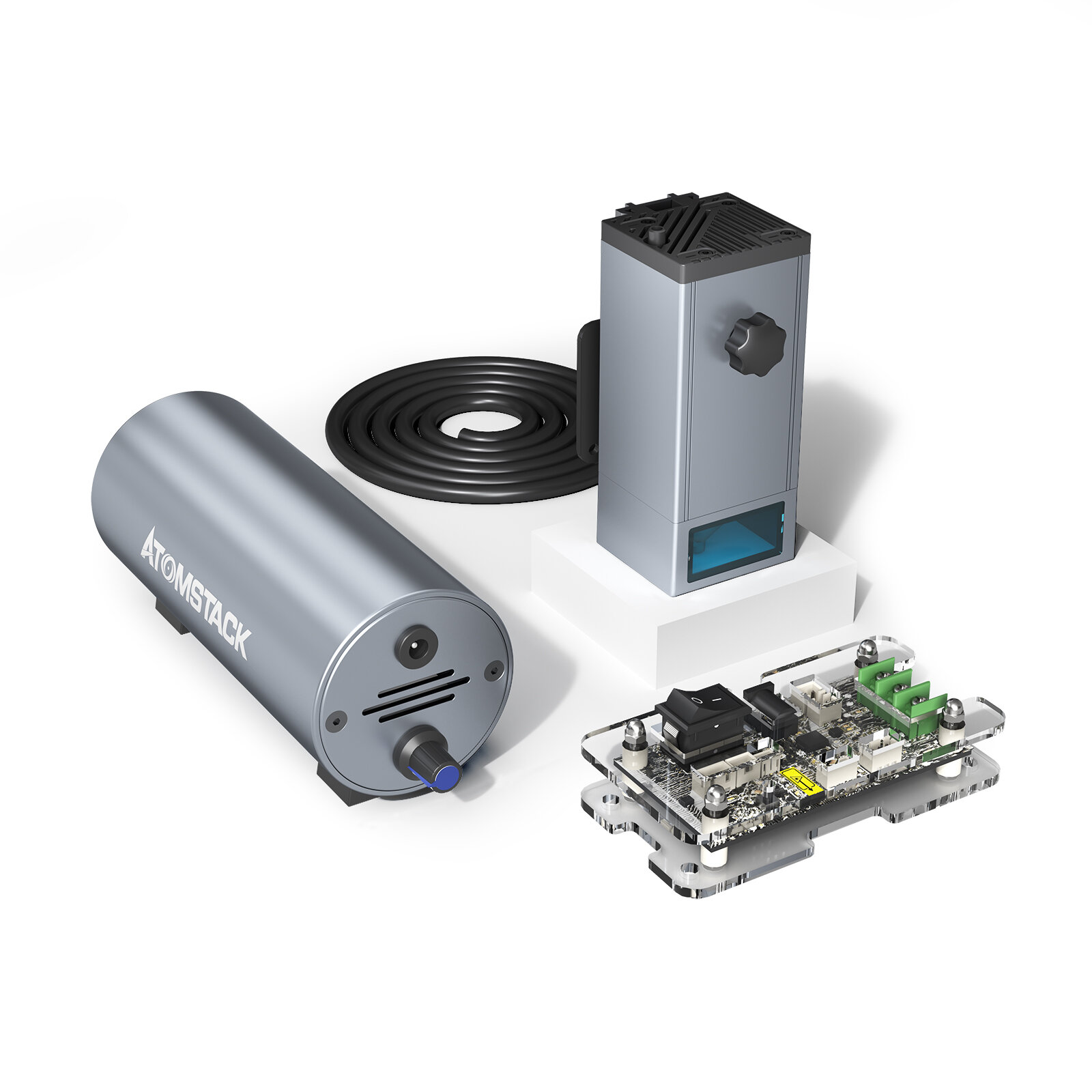

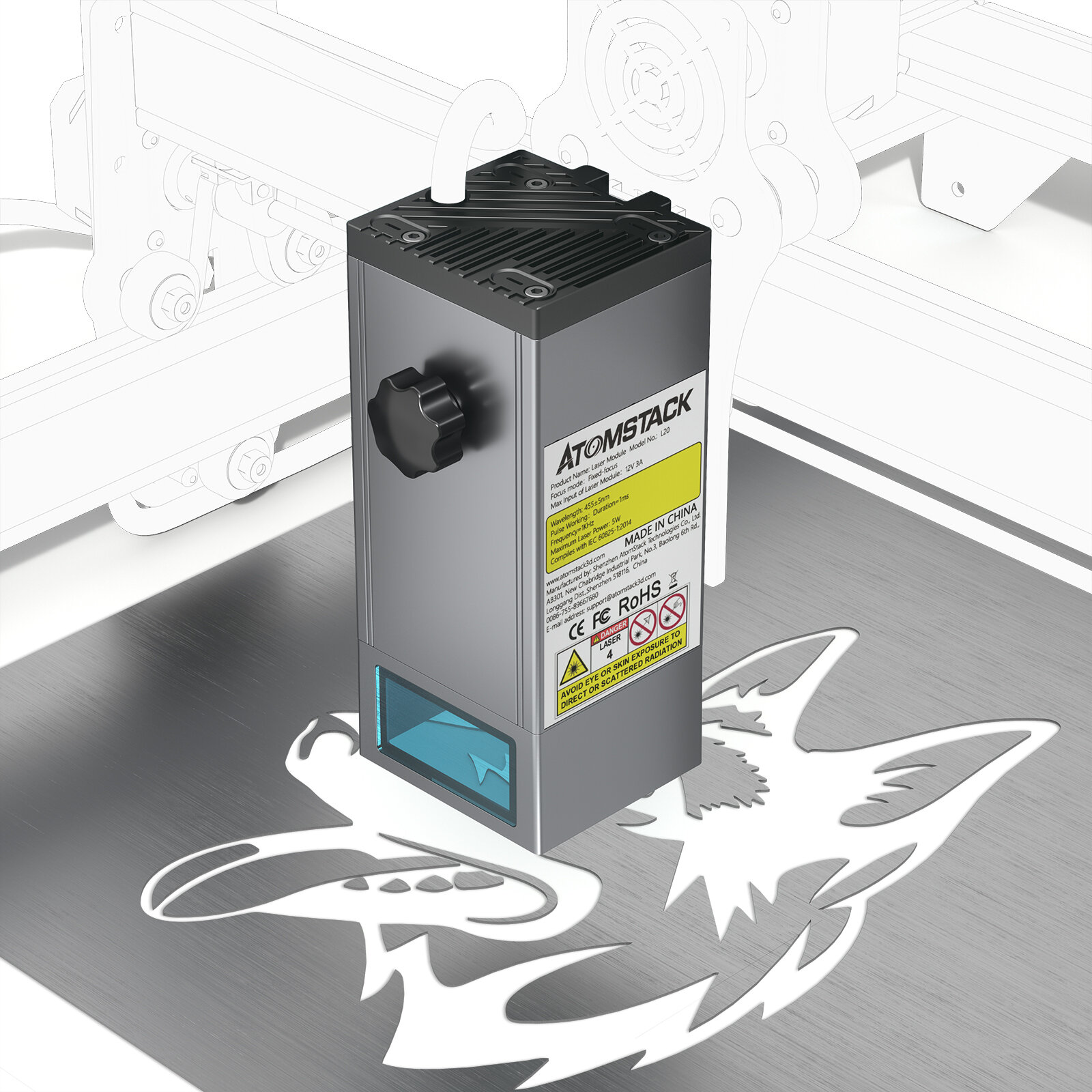

Description:- The World's First Quad-core Diode Laser- 12mm Solid wood Cutting in One-PASS- 8mm Acrylic Cutting in One-PASS- It can even cut 0.05mm thin sheet metal- Built-in Powerful air assist kit
X7 Pro, X7 40W
Features:
Brand: AtomstackModel: M100Machine Power: 130WLaser Power: 20WProduct Material: Aluminum 6061 AnodeHousing Size: 140*65*60mmCircuit Board Size: 44*52mmCircuit Board: V/PWM Modulation BoardWire Rod: 22# 2P2.54 Terminal Reverse Wire 80mmOptical Lens: φ6/glassFan: 24VLaser Beam Mode: SpotWorking Mode: Pulse WorkLightspot Size: 0.08*0.1mmWorking Time: 10000HWorking Temperature: 0℃~70℃Storage Temperature: -40℃~85℃Sintering Temperature: 2000~2400℃Product Net Weight: 715g
1. The laser light emitted by the laser module is likely to injure persons'eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.2. Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply, please set the output voltage to zero.  The adjustment of the current should be slowly increased or decrease to avoid damaging the device.3. Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.4. Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.5. When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.6. When the operation temperature of the laser diode is over 70degree, please do well heat dissipation of it.7. This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
