BSIDE A5X Digital Smart Multimeter Measurement Test Meter Temp Multitester 3-Results Display Current Tester VFC V-Alert Live Wire Capacitor Ohm Diode Hz Voltage Meter

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features:

Concise Appearance

Digital Display

Multiple Measurement Functions

Intelligent Amp Identification

V-Alert Non- Voltage Measurement

Data-hold Function

Wide Applications



Specifications:

Screen Display	Black and white screen	High definition color screen

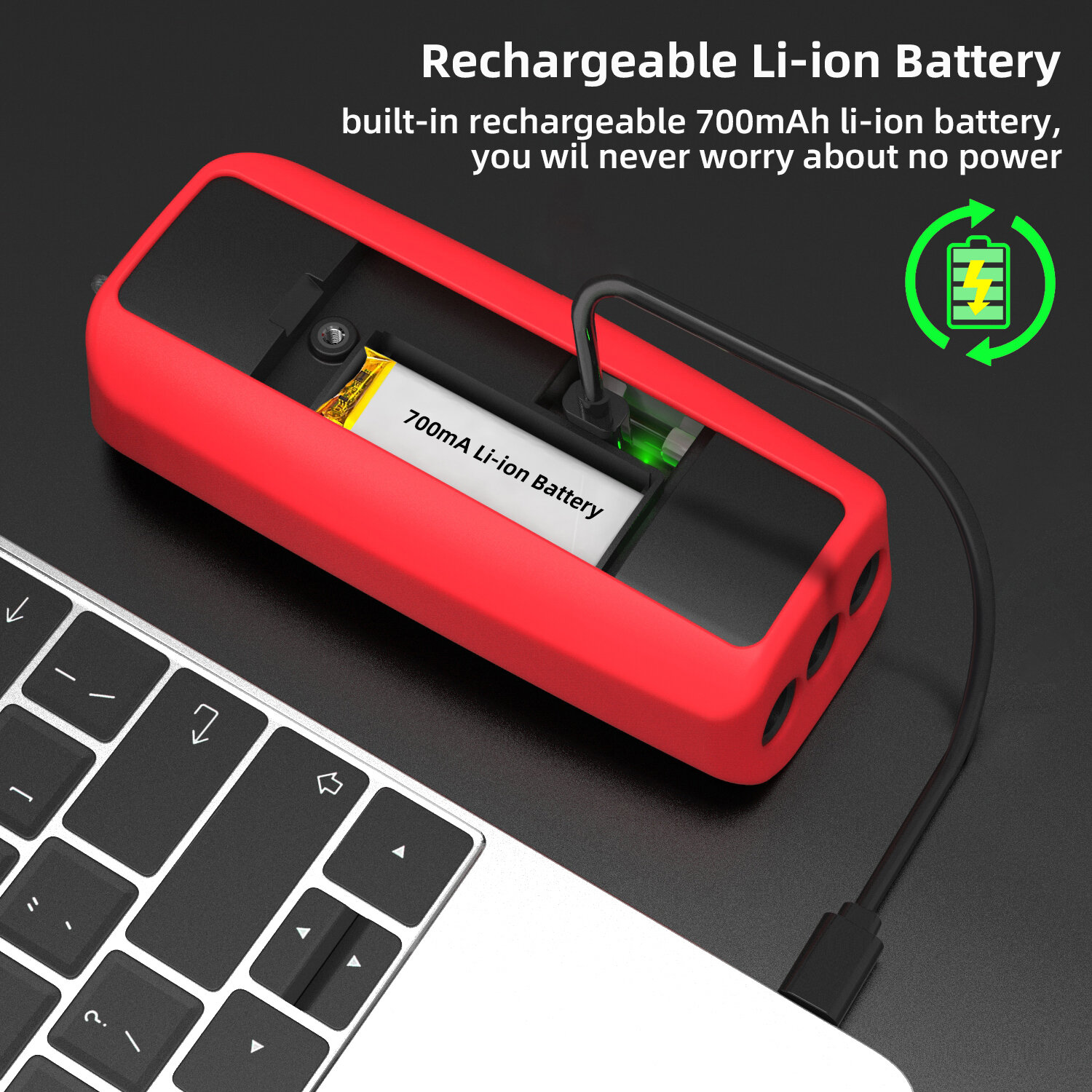

Power Supply	1.5V AAA battery x 2	Built-in 700mAh lithium battery (direct charging)
	DC: 1~610mA± (1.5%+3) (resolution 0.1mA)

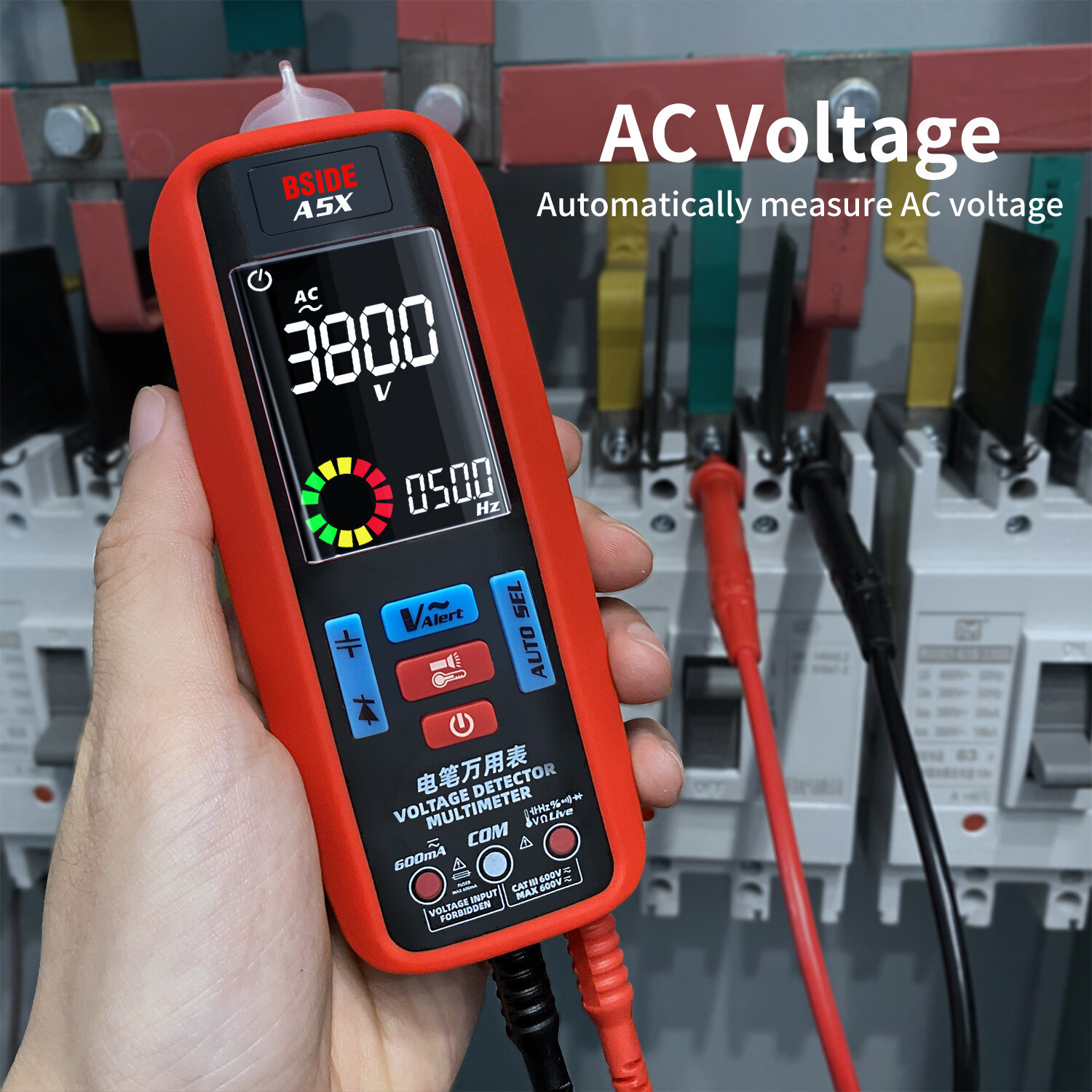

Voltage Measurement
	AC: 0.8~620V± (1.2%+5) (resolution 0.01V)
	10~620V± (4.0%+3) (resolution 1V)
	0Hz~9999Hz± (2%+10) (resolution 0.001Hz)
	0.1Ω~60MΩ± (1.2%+3) (resolution 0.1Ω)
	0.5μF~60000μF± (4.5%+10) (resolution 0.001μF)
Diode Testing	Light-emitting diode < 3.0V automatically lights up
Live Zero Fire Line Identification	live line: the simulated bar is full, the buzzer is colored, and the neutral line has no response
	Red backlight is on	No red backlight



Package Included:

1 x Multimeter

1 x Test Leadss

1 x Thermocouple

1 x Screwdriver

1 x Portable Bag

1 x User Manual
