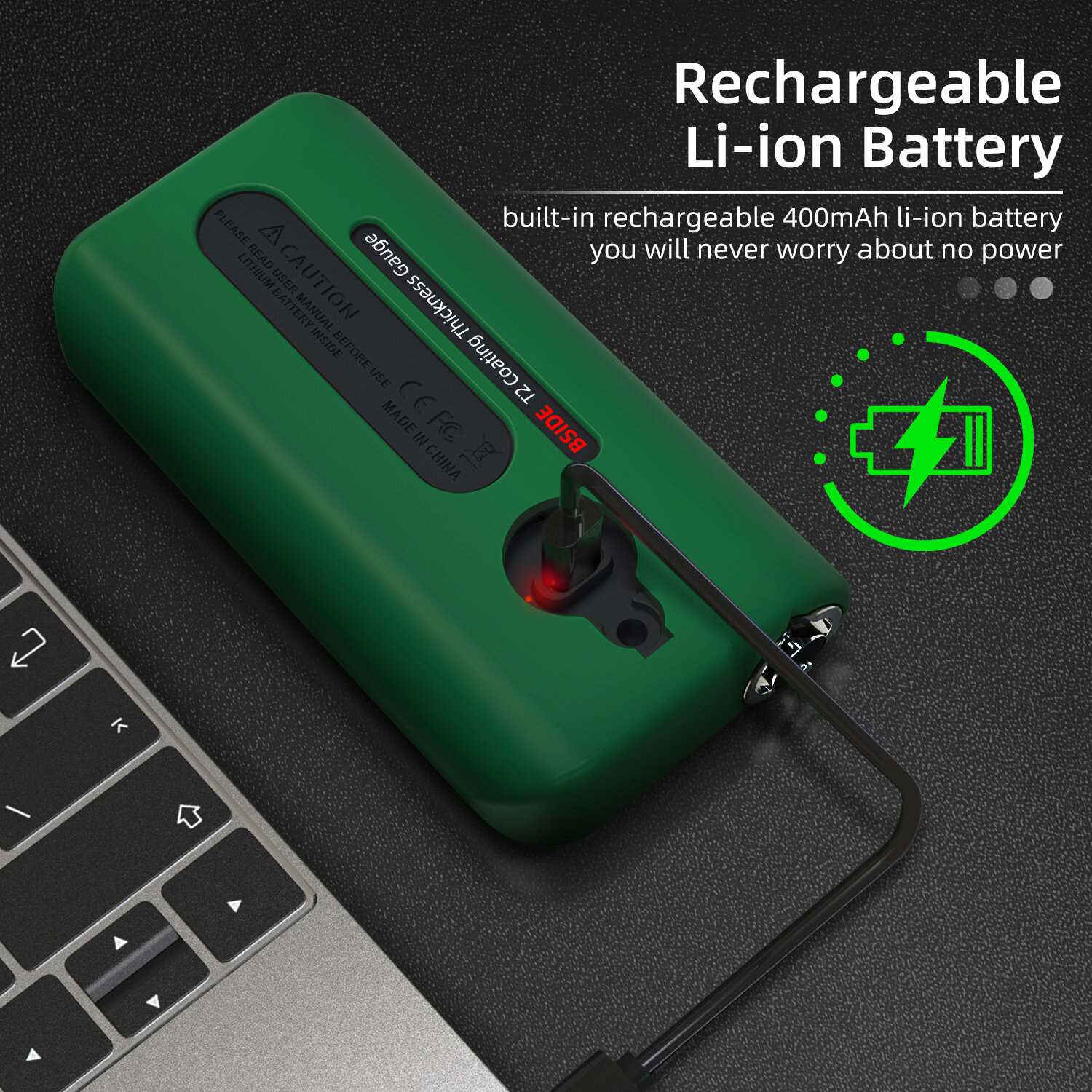

[Rechargeable and Convenient]: The BSIDE rechargeable coating thickness gauge comes with a rechargeable battery and a charging cable, ensuring that you never have to worry about running out of power during your measurements.

[NFe-Probe/Current]: The paint depth tester can also measures the thickness of nonconductive coating layers covered on nonferrous substrate. Such as, (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel).

[Fe-Probe/Magnetic Induction]: The car paint mill thickness gauge can measures the thickness of non-magnetic coating layers on magnetic substrate. Such as (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).

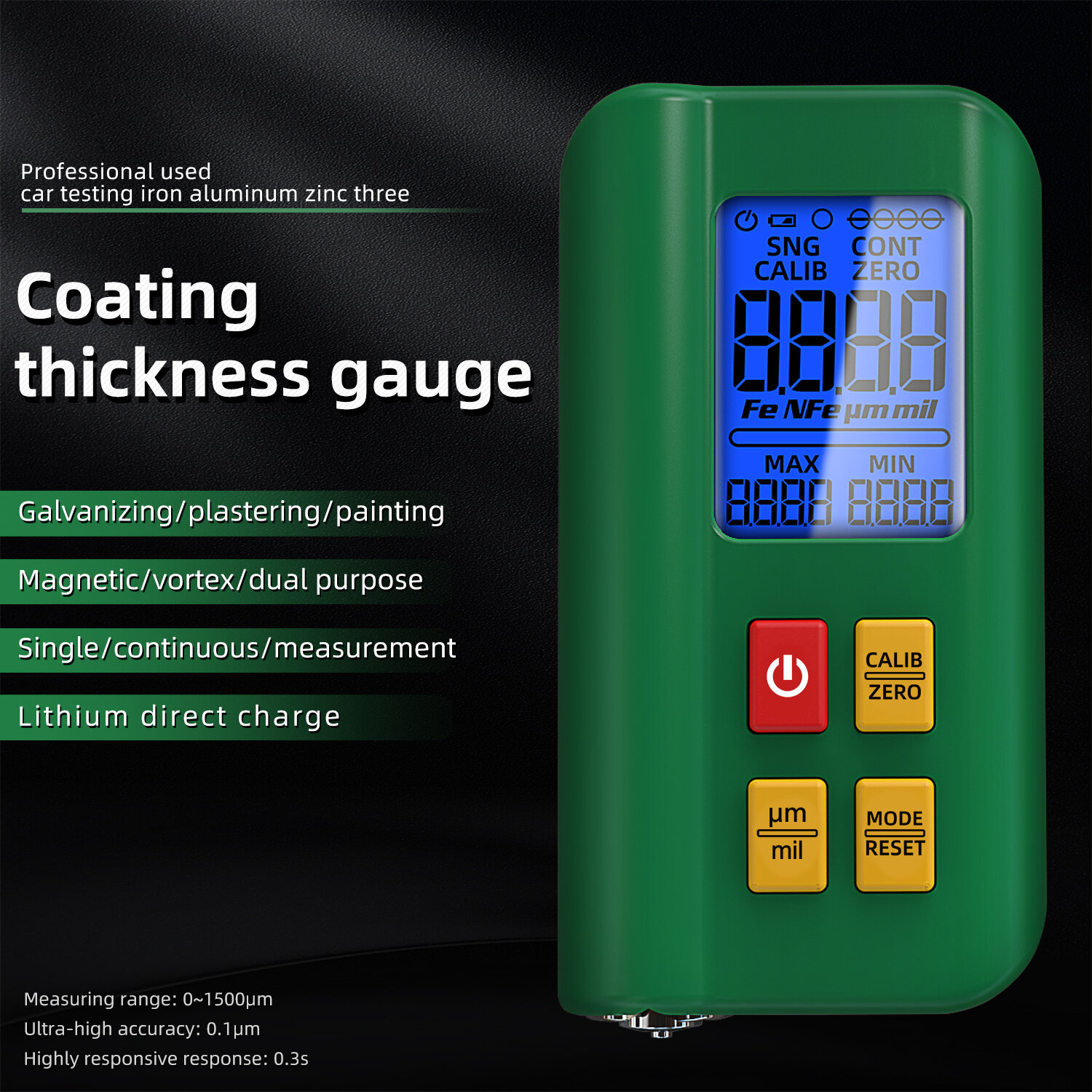

[High Precision]: Mearsuring range: 0-1500µm (0-59.1mils); Resolution: 0.1µm/0.01mils; Accuracy: Fe-probe ±(3%+2µm), NFe-probe ±(3%+2µm). µm and mil unit switchable.

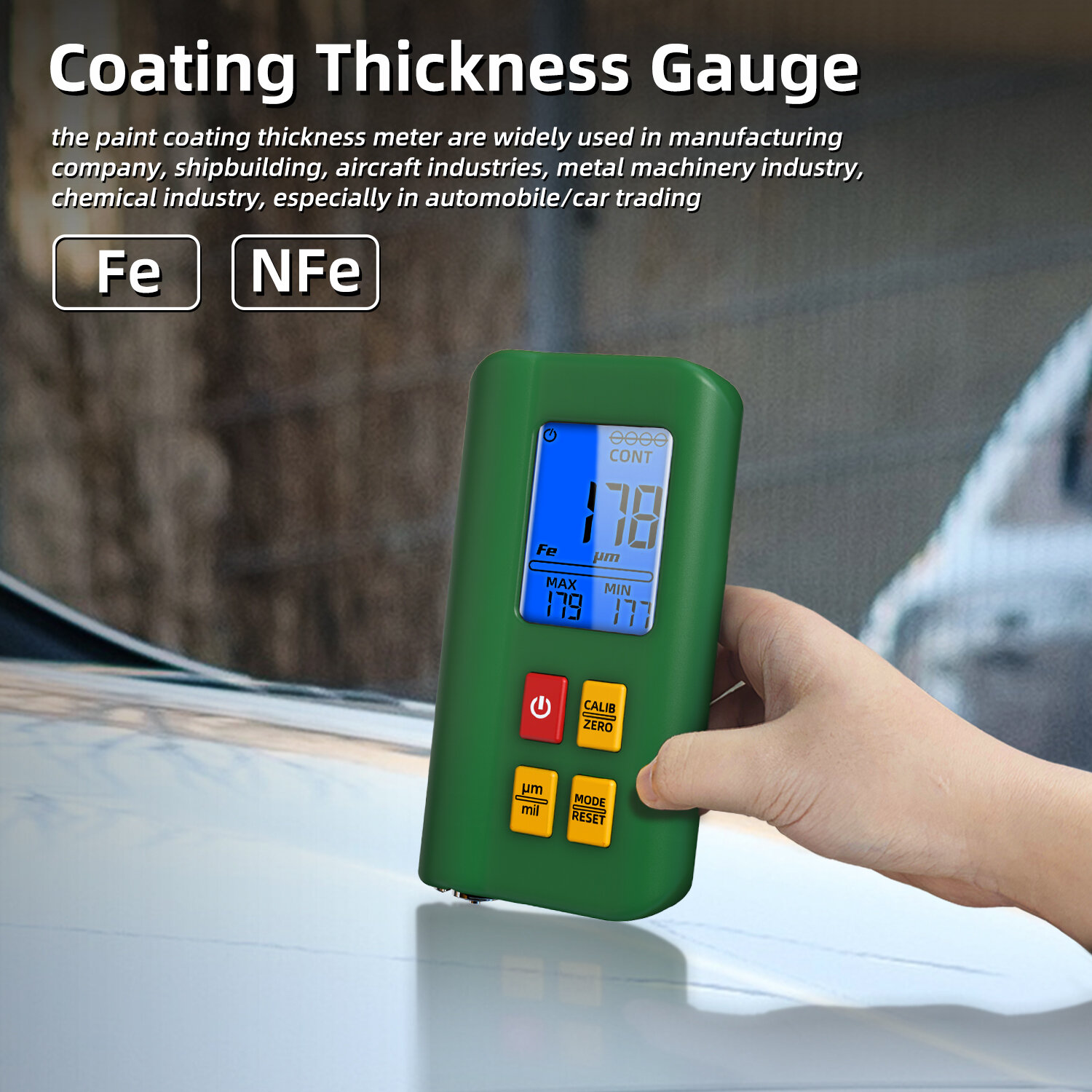

[Wide Application]: The digital coating thickness meter are widely used in manufacturing company, shipbuilding, aircraft industries, metal machinery industry, chemical industry, especially in automobile/car trading.



Non-ferrousprobe (Aluminum/copper,etc non-magneticsubstrate): current effect

Ferroprobe(ironbased materials):Electromagnetic induction

Testing range: 0~1500μm

Precision: ±(3%+2μm)

Resolution ratio: 0.1um

Minimum substrate: thickness: 0.5mm

Calibration: Zero calibration, Multi-points calibration

Unit: um, mil

Minimum convex of concave: 1.5mm

Minimum of curvature of concave surface: 25mm

Minimum measuring area diameter: 6mm

Operating environment: Temperature: O~40°℃ (32~104°F) ,humidity: 20%~90%RH,No strong magnetic field.

Battery: 3.7V 400mA

Operating altitude: ≤2000m

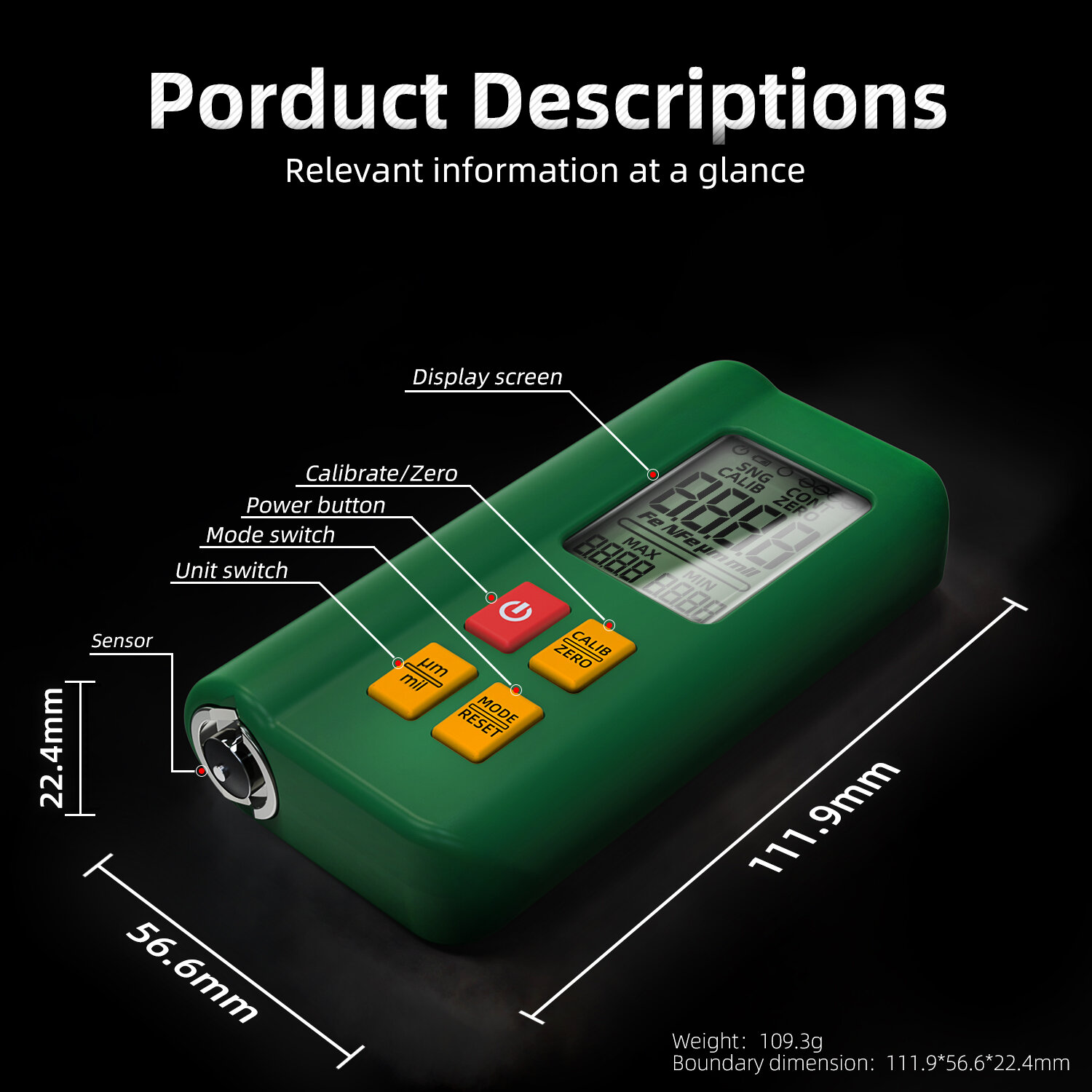

Boundary dimension: 111.9*56.6*22.4mm

Weight: 109.3g

1 x Thickness Gauge

2 x Calibrated Substrate

5 x Calibrated Thickness Sheet

1 x Charging Cable
