BSIDE ESR02PRO Digital Transistor SMD Components Tester Diode Triode Capacitance Inductance Meter COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:

1. Two key operation, automatic shutdown. 2. A key operation, boot test, a key to get. 3. Automatically test the pin element and display them on the LCD. 4.1602 LCD screen with LCD (12864 LCD backlight). 5. Test speed, active ingredient test: 2 seconds (in addition to the larger capacitor capacitance measurement also takes a long time, the measurement time is one minute is normal). 6. Only 20na off current. 7. Automatic detection of . 8. Automatic identification element pin arrangement. 9. Bipolar transistor current amplification factor and base-emitter threshold voltage measurement. 10. Identify the Darlington transistor by the base emitter threshold voltage and the high current amplification factor.

Resistance: 0Ω-50MΩ

Resolution: 1pf Inductance: 0.01mH-20H
Not included

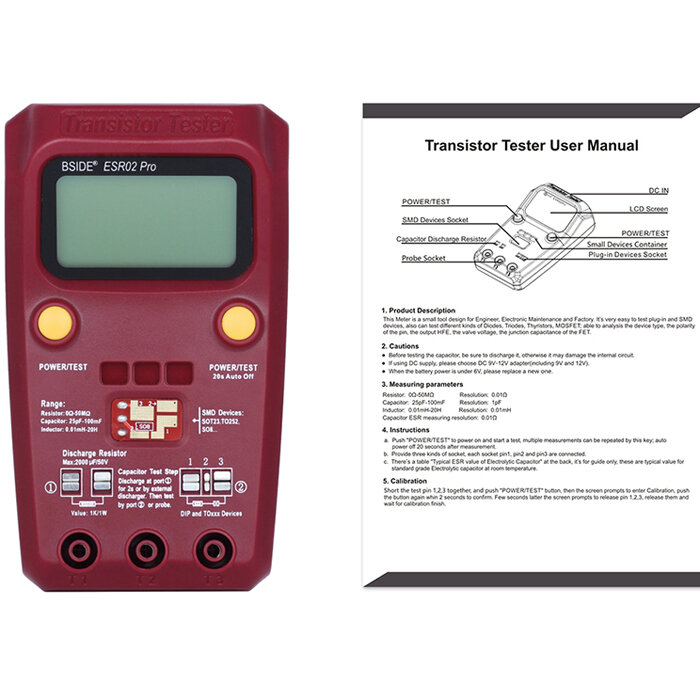

Instructions:

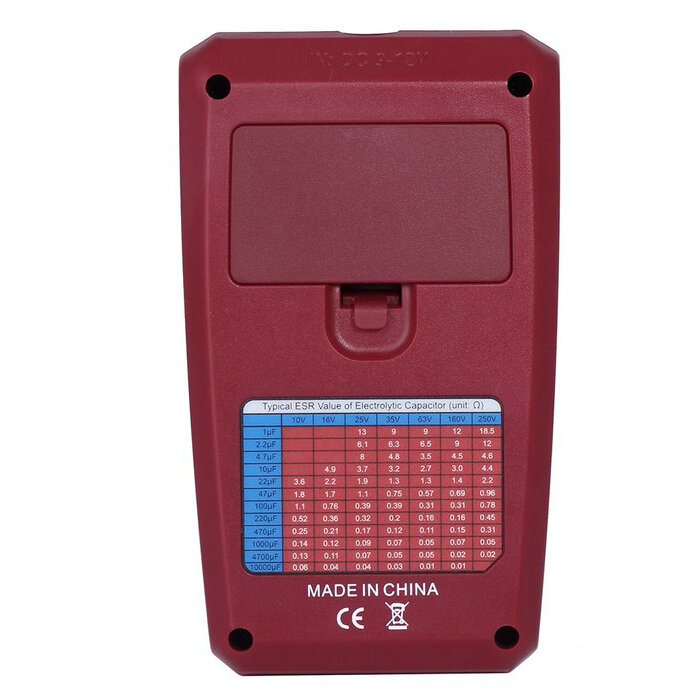

1. Press the "boot / test" can be achieved boot and a test function, multiple tests can be repeated by this key; measured after 20 seconds, no operation automatically shut down. 2. The instrument provides patch, plug-in and external table three measurement methods, each way 1,2,3 feet are the same correspondence. 3. The device does not need to distinguish between the order of discipline, the measurement will be completed after the completion of each pin corresponding to the device function. 4. The instrument printed on the back of the electrolytic capacitor corresponding to the ESR typical reference table, the table is for reference only, please refer to the data published by the manufacturers. 5. Calibration Short to 1, 2, 3 test points, press the "boot / test" button, the screen prompts whether to enter the calibration, in 2 seconds by "power on / test" button to confirm, enter the calibration. After the screen prompts to disconnect 1, 2, 3 test points, continue after the break until the end of the prompt calibration.

Precautions: Packing Included:

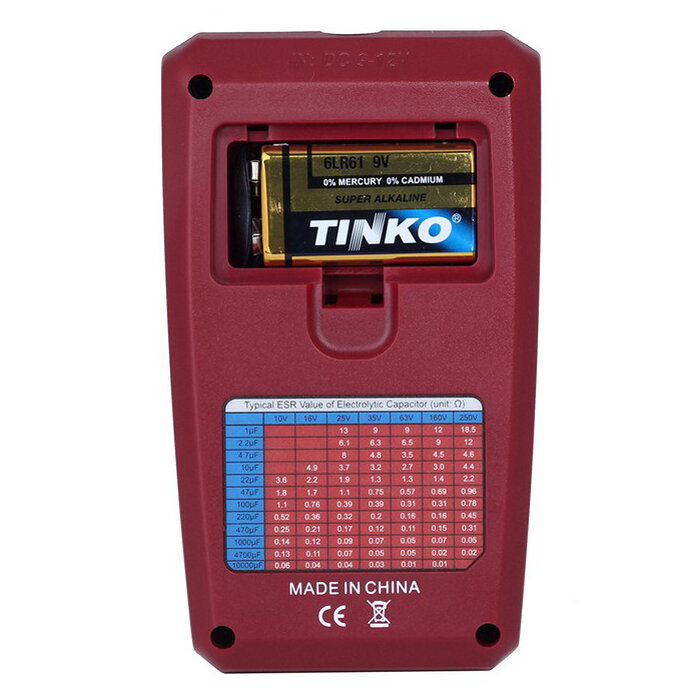

  Battery is not included










,,,,
