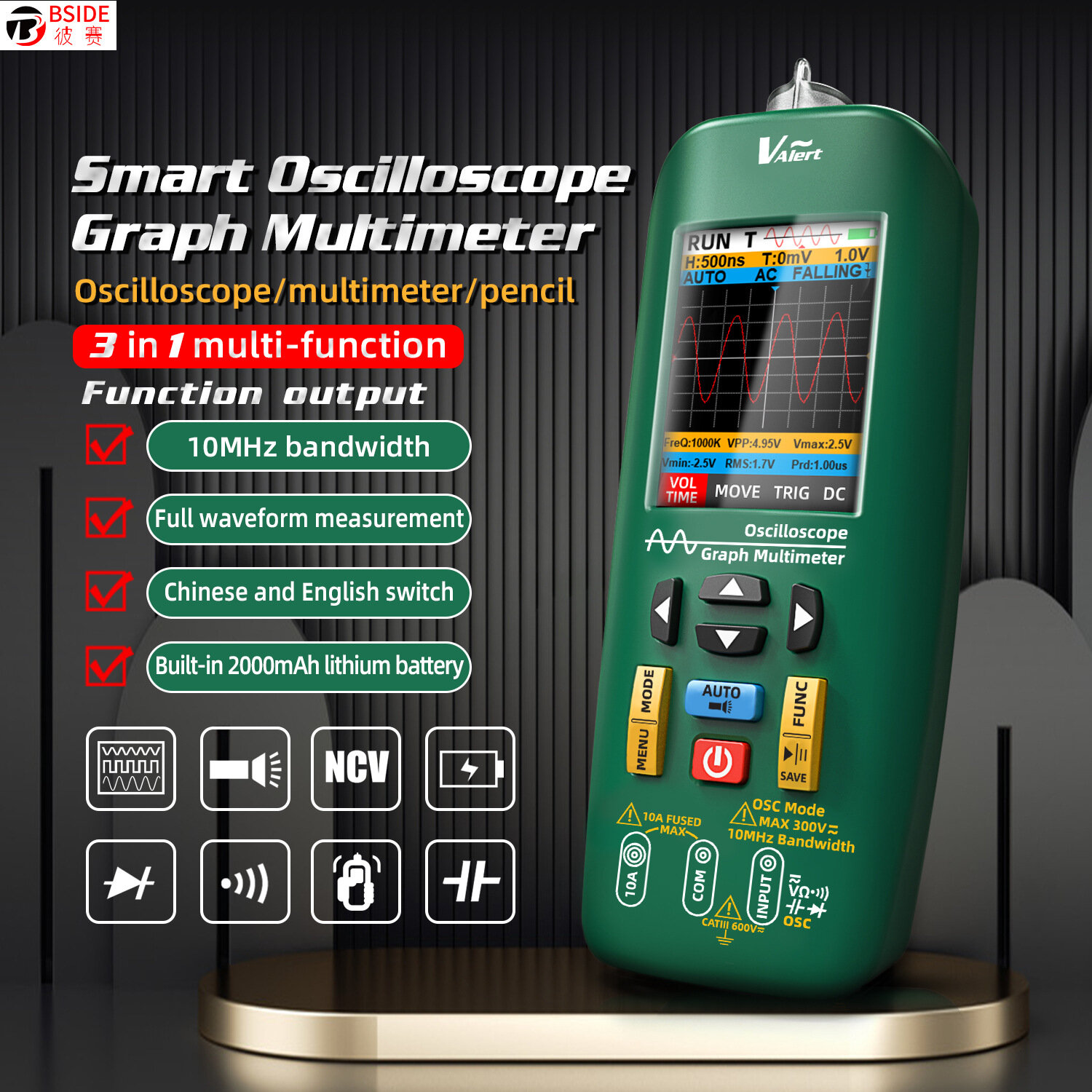

BSIDE O1 3-in-1 Smart Oscilloscope Graph Multimeter Function Oscilloscope Multimeter Electric Pen 10MHz Bandwidth 2.8" TFT Color Display 2000mAh Lithium Battery High Accuracy Convenient Portable

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

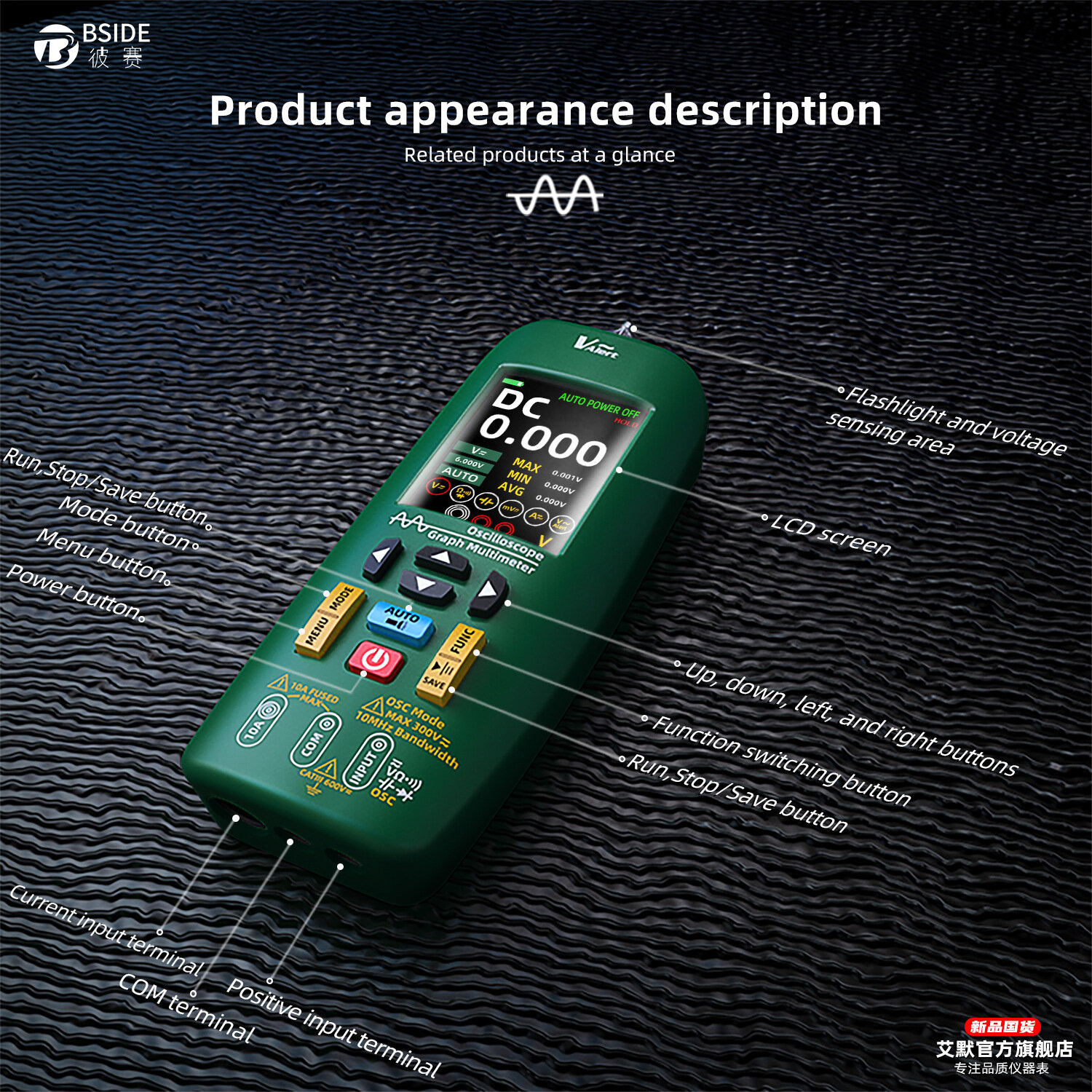

The Smart Oscilloscope Graph Multimeter is a high-capacity 3 in 1 multi-functional tool that functions as an oscilloscope, multimeter, and pencil, providing an integrated solution for complex electronic challenges.

This device is equipped with a 10MHz bandwidth and a 48MSa/s sampling frequency for full waveform measurements, delivering accurate and instant measurements.

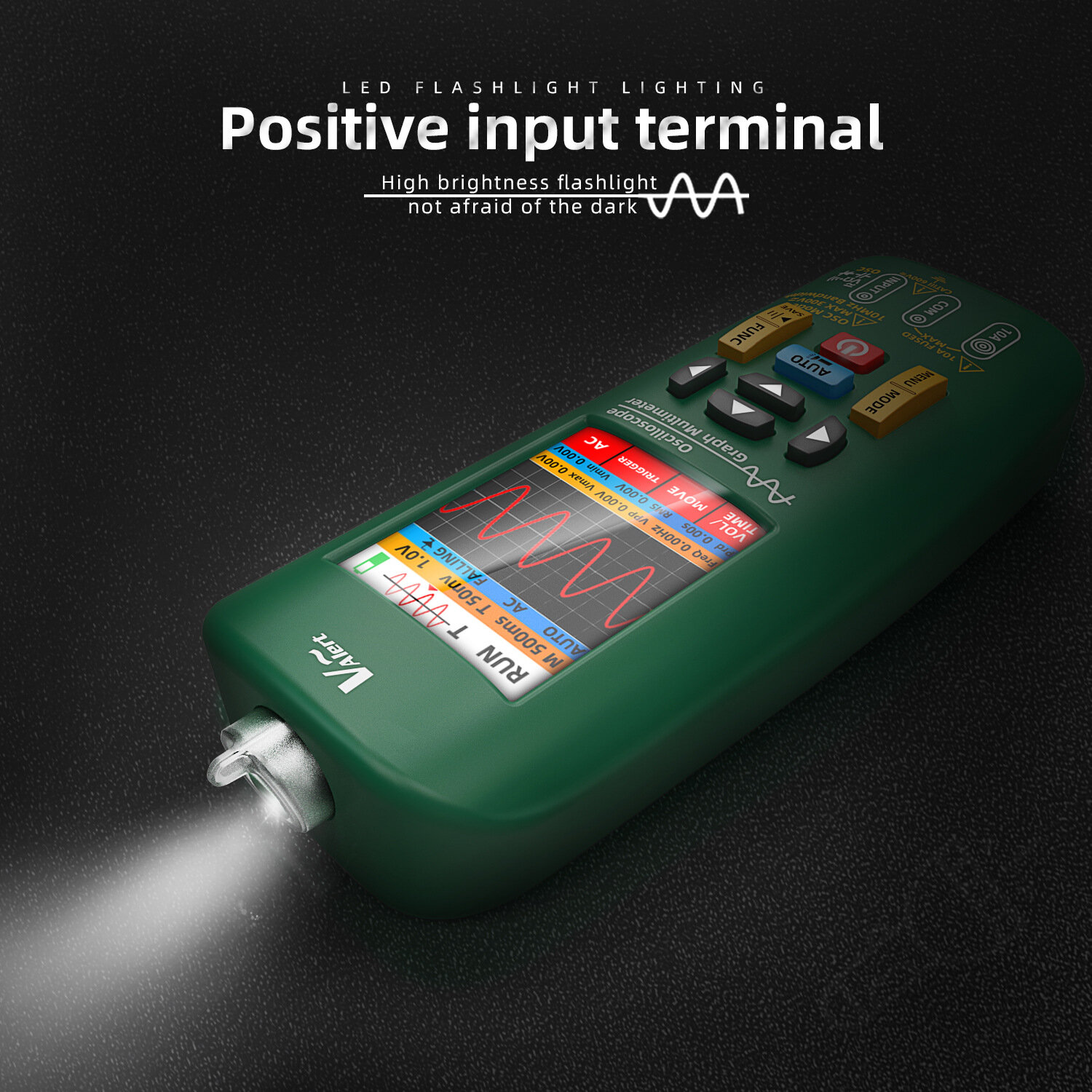

The oscilloscope offers a positive input terminal and an advanced trigger mode which supports automatic, normal, single shot. The trigger edge functions on both rising and falling edges.

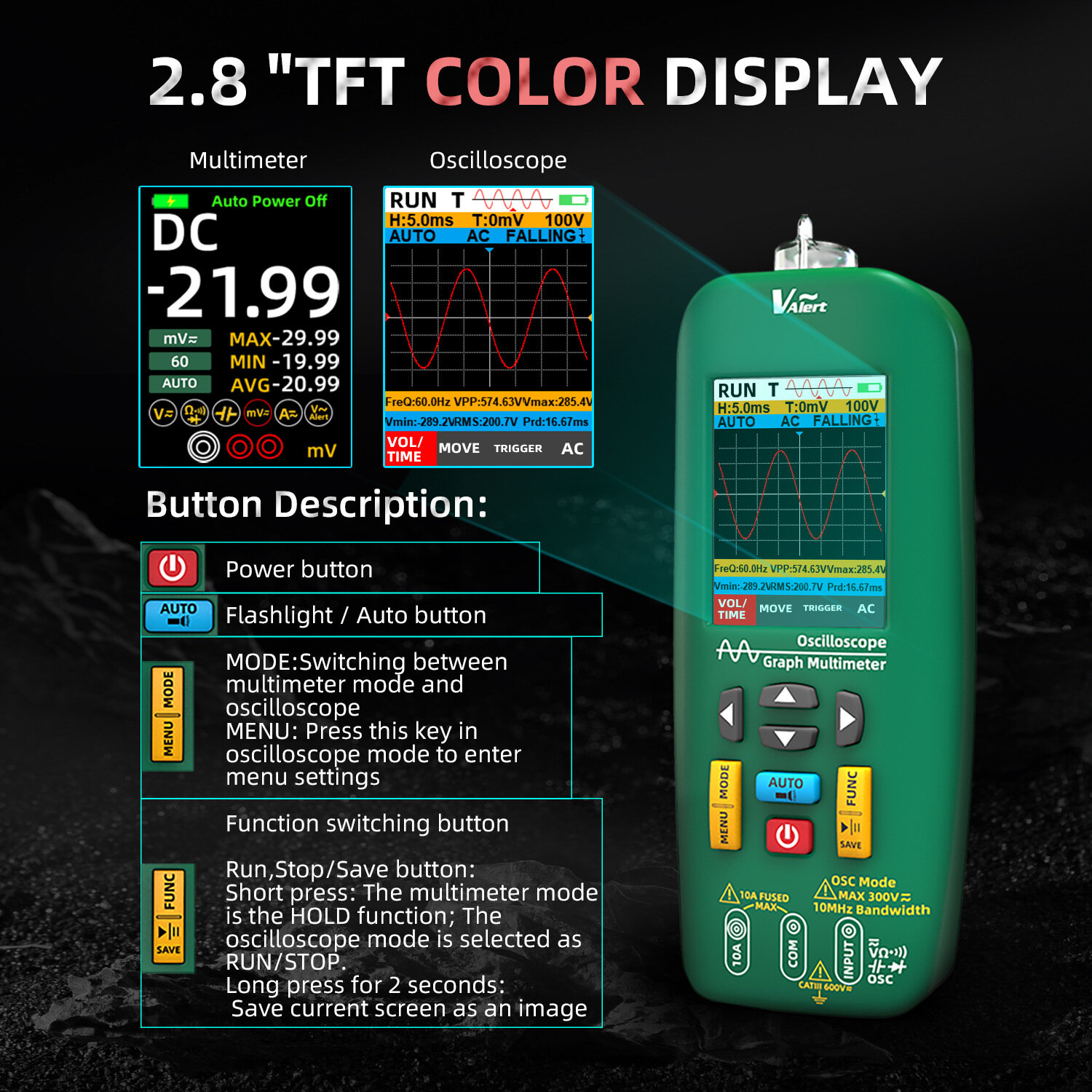

It comes with an easy-to-read 2.8" TFT color display and supports switching between English and Chinese, catering to a wide range of users globally.

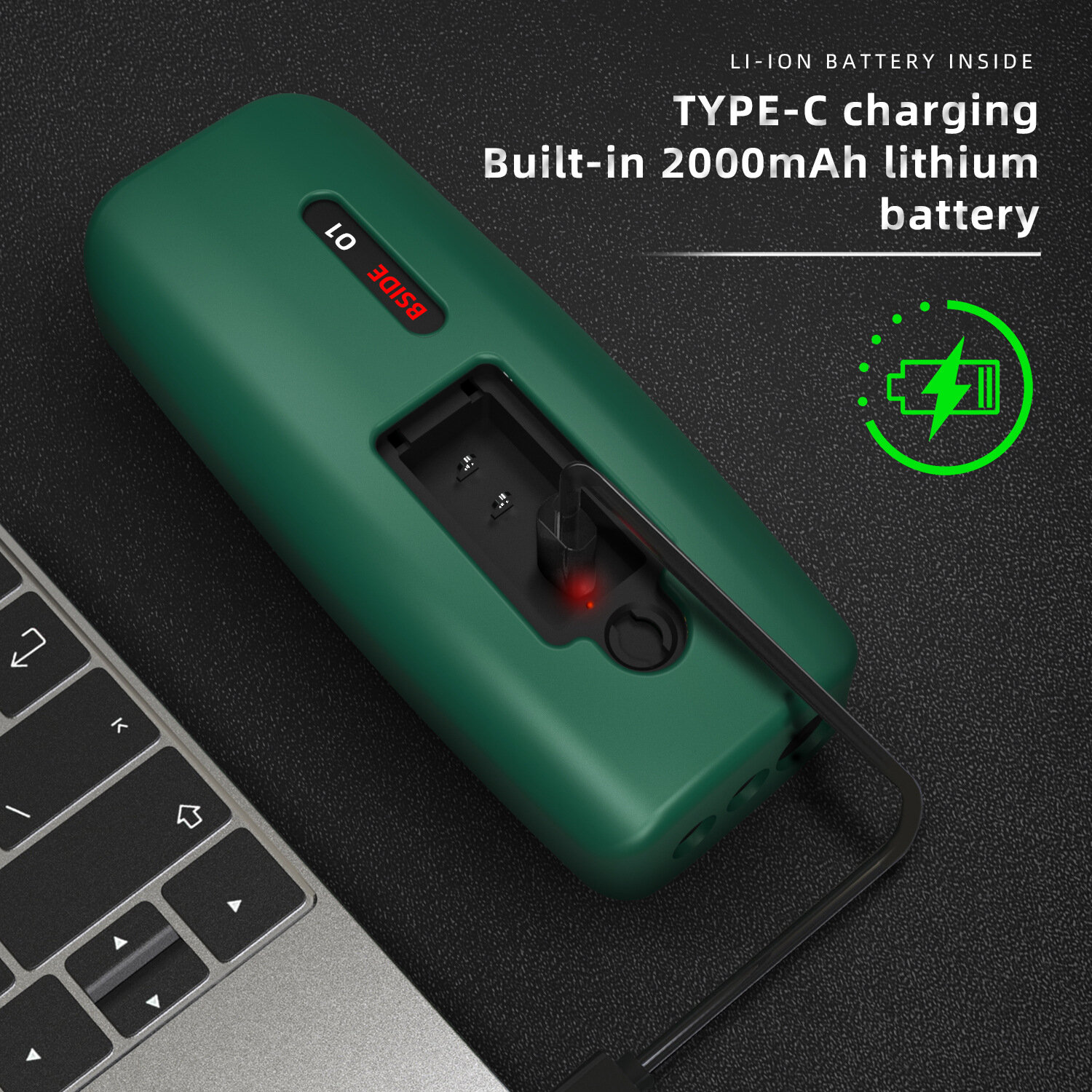

Powered by a built-in 2000mAh lithium battery, this tool ensures extended usage time even in demanding working conditions.



Color: Green

Model: O1

Function: Oscilloscope, Multimeter, Electric Pen

Combination: Three-in-one graphical table

Display: 2.8" TFT Color Display

Power: Built-in 2000mAh lithium battery

Characteristics
	10MHZ
Sampling frequency
Coupling
	1MQ
Ratio
	±300V
Horizontal
	1.5Sa/s - 48MSa/s
Sweep
	20ppm
Sampling depth
Sensitivity
	> 10Hz
Sampling depth
	±3%
Measure
	Frequency, period, peak to peak, maximum, minimum, rms value
Trigger Mode
	TriggerRising edge, falling edge

1 x Smart Oscilloscope Graph Multimeter

2 x Probes

1 x Charging Cable

1 x User Manual
