BSIDE U6X Digital Clamp Meter Multifunctional Testing Device 0-620V with Infrared Temperature Sensing Diode Measurement Compact Ideal for Electrical Troubleshooting and Repair

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

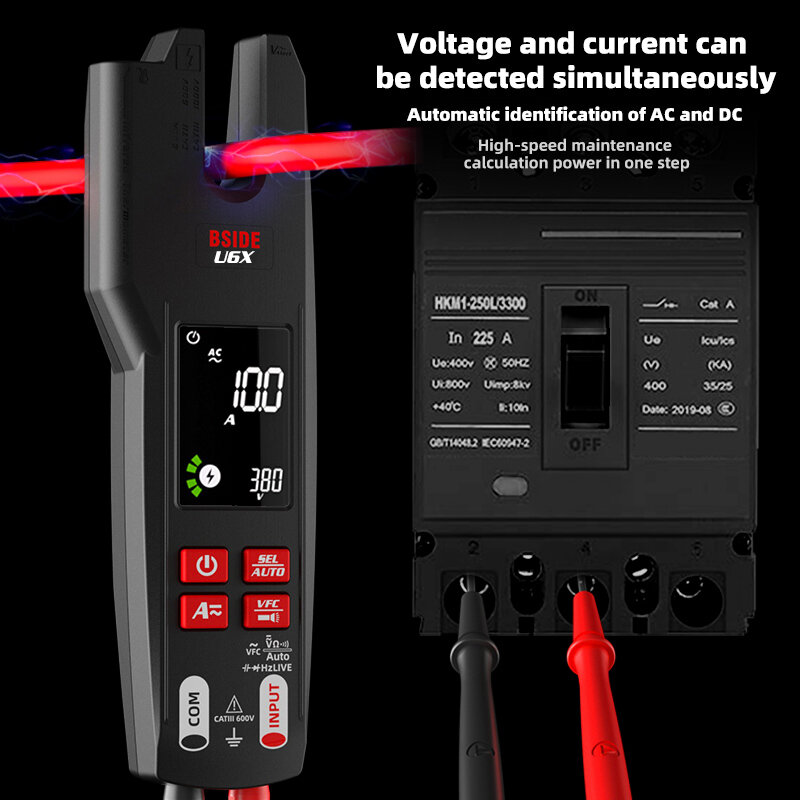

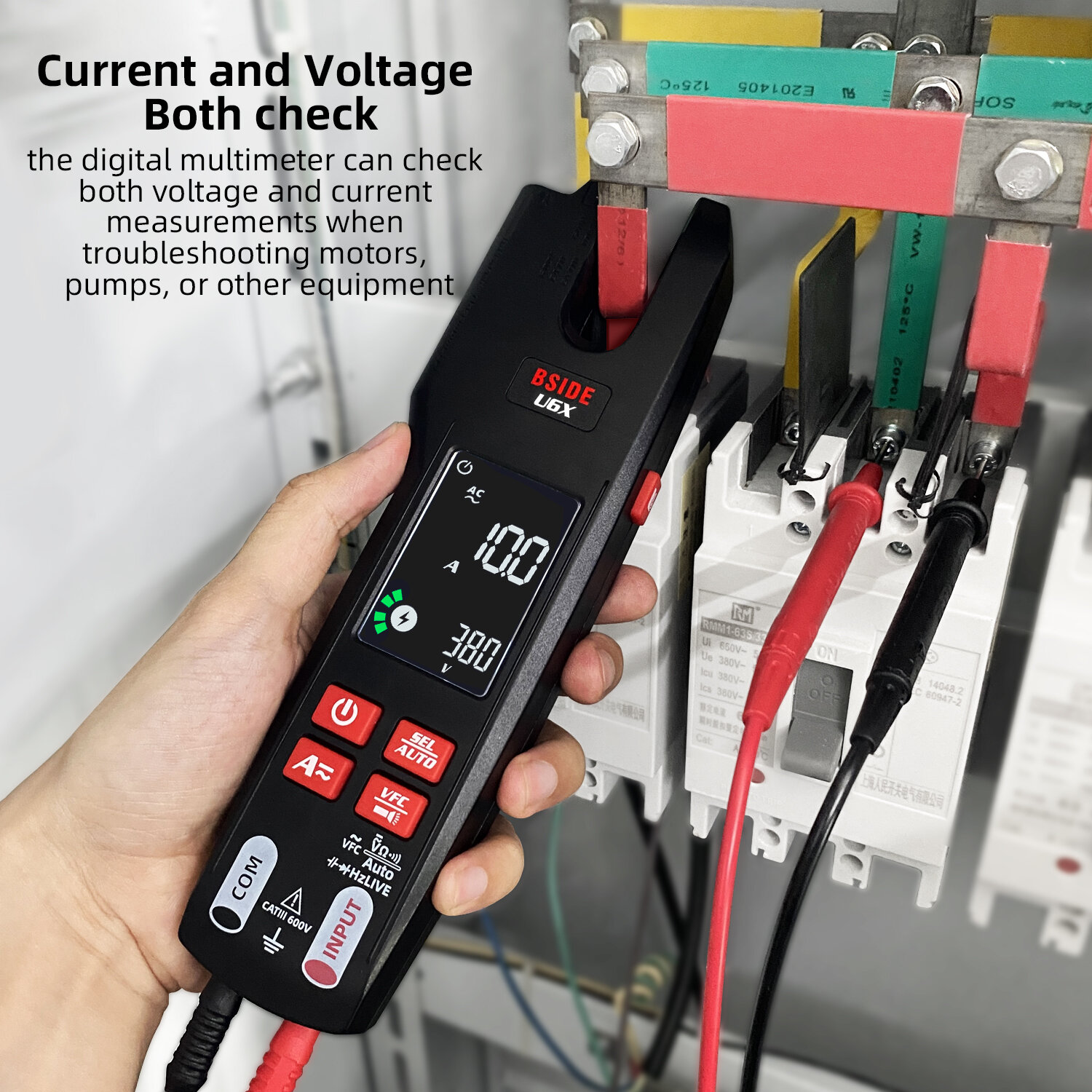

Multi-functional TESTING: The U6X Function0~620V testing device sports a range of features including AC & DC voltage and current testing, resistance, capacitance and frequency measurements. The digital clamp meter is a perfect tool for troubleshooting motors, pumps, or other equipment.

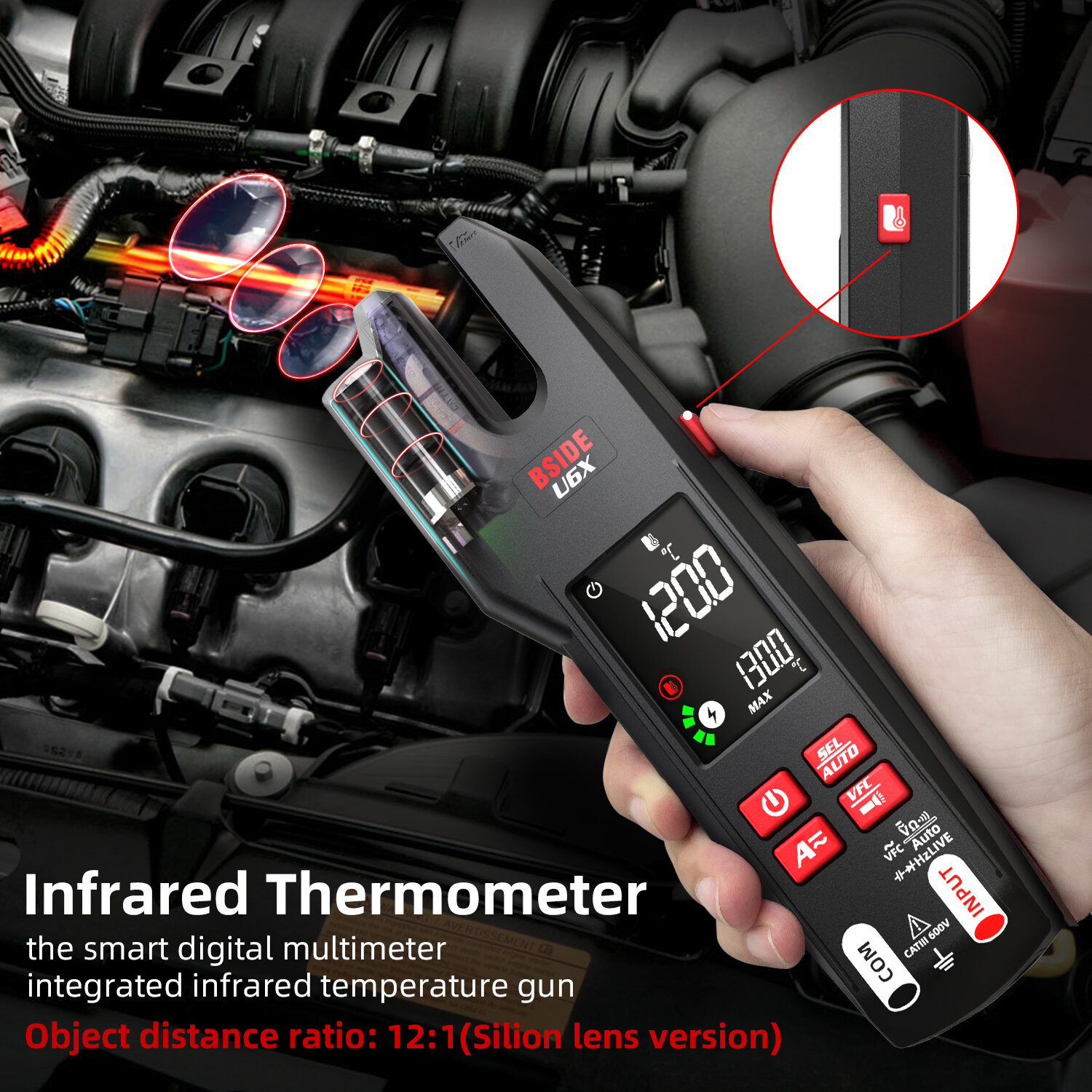

Infrared Temperature sensing: The device is equipped with an infrared thermometer that can gauge temperature in a range of -20℃ to 400℃, making it a versatile tool in varied conditions.

Diode Measurement: It's also equipped with a function for testing diodes within 2.0V, offering maintenance and repair professionals an all-in-one testing solution.

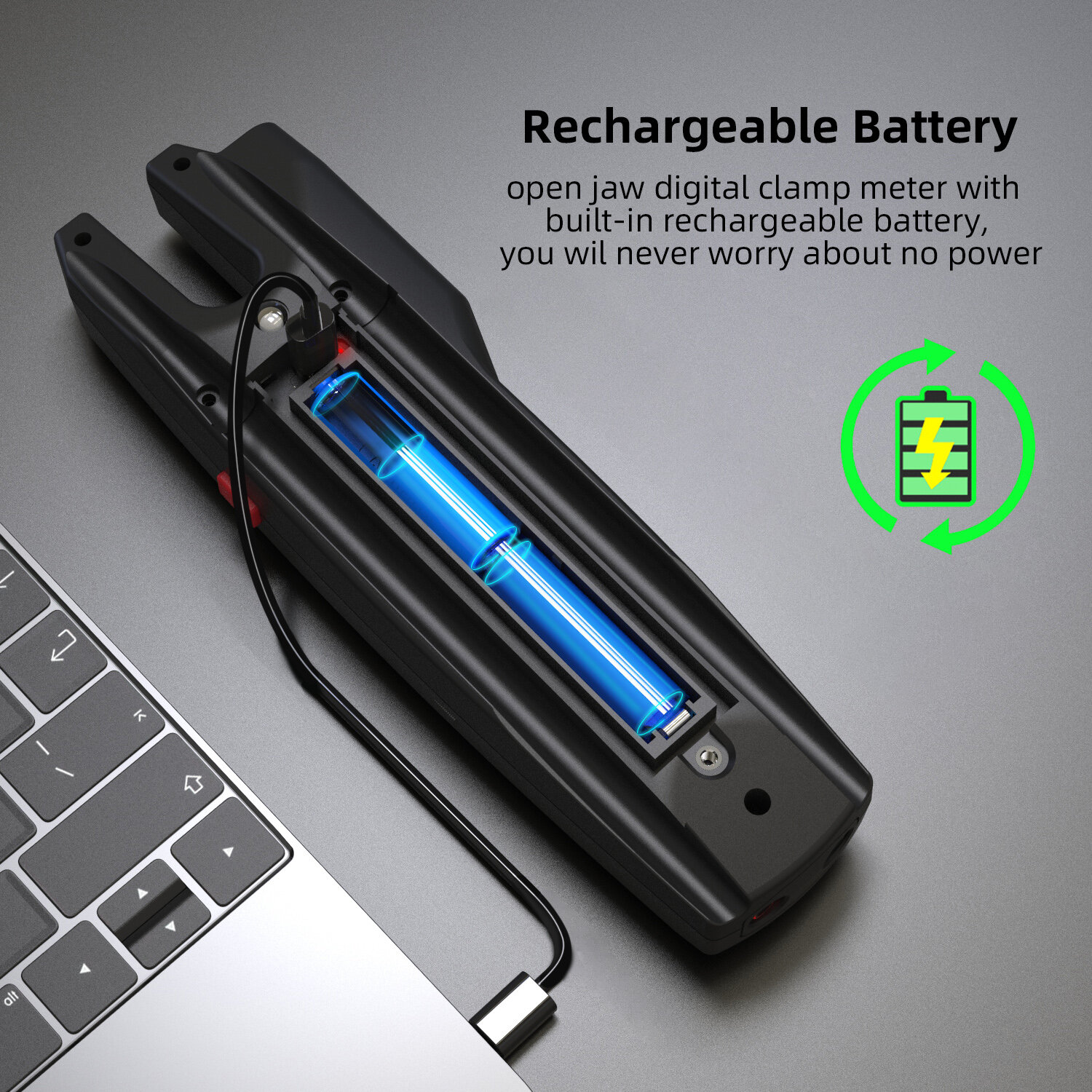

Rechargeable battery: Sporting an in-built rechargeable battery, this clamp meter ensures that you never have to worry about running out of power in the middle of a task.

Portable and durable: Weighing in at just 216g, and sized at a convenient 210×63.7×33mm, the U60+U6XFunction0~620V clamp meter is easy to pack, carry, and use.



DC Voltage: 0.5~620V (Auto Mode)

AC Voltage: 0.5~620V (Auto Mode)

Resistance: 0~10.00MΩ

Capacitance: 1000μF~10.00mF

Current: 1~600A (DC), 1~600A (AC, 40~200Hz)

Frequency: 10~1000Hz

Infrared temperature measurement: -20℃~0℃

Power: 2 X AA Nickel-metal hydride battery or Alkaline battery

Size: 210×63.7×33mm

Weight: 216g



1 x U6X Digital Clamp Meter

1 x Set of Test Leads

1 x User Manual
