BSIDE ZT-M0 Digital Multimeter True RMS 6000 LCD Smart/Manual DC/AC Current Voltage Capacitance Resistance Temperature Test COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

1. High Resolution Large Screen 3 Line Display: High resolution large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar; or celsius, fahrenheit and analog bar.

2. VFC Function: VFC function can measure the output voltage of inverters.

3. Manual & Auto Mode Integrated Design: Not only suitable for traditional manual switching operation, but also suitable for beginners' no-switching operation.

4. Battery Test & Output Function: Battery test function can more accurately measure battery performance;  Generator can output pulse train up to 5MHz.

5.Dual Back Probe Holder Design: The probes can be fixed in the holder for easy single-hand measurement; or the probe concealed in the holder to prevent being hurt, safe to carry.





Brand: BSIDE

Model: ZT-M0

Itemname: Digital Multimeter

Color: Blue

Size: 17.6x9.1x4.7cm

Ture RMS: YES

Maximum display : 6000 counts(ZT-M0)

Operating mode：Smart/Manual （ZT-M0）

ZT-M0 uses traditional LCD display

Has DC/AC current voltage, capacitance, resistance, temperature, battery (1.5/9V/12V), diode, frequency, duty cycle, continuity, dangerous voltage induction and other test functions.

Material：ABS/PVC

Update Rate：3 times/second

Data Hold：YES

Backlight : YES

Battery Test：YES

Low Battery Indication：YES

Auto Power Off：YES

Operating temperature: 0-40°

Operating humidity: Less then 75%.

Storage temperature:- 20~60°

Operating humidity: Less then 80%

Battery type: 1.5V AA batteryx3 (Not Included)

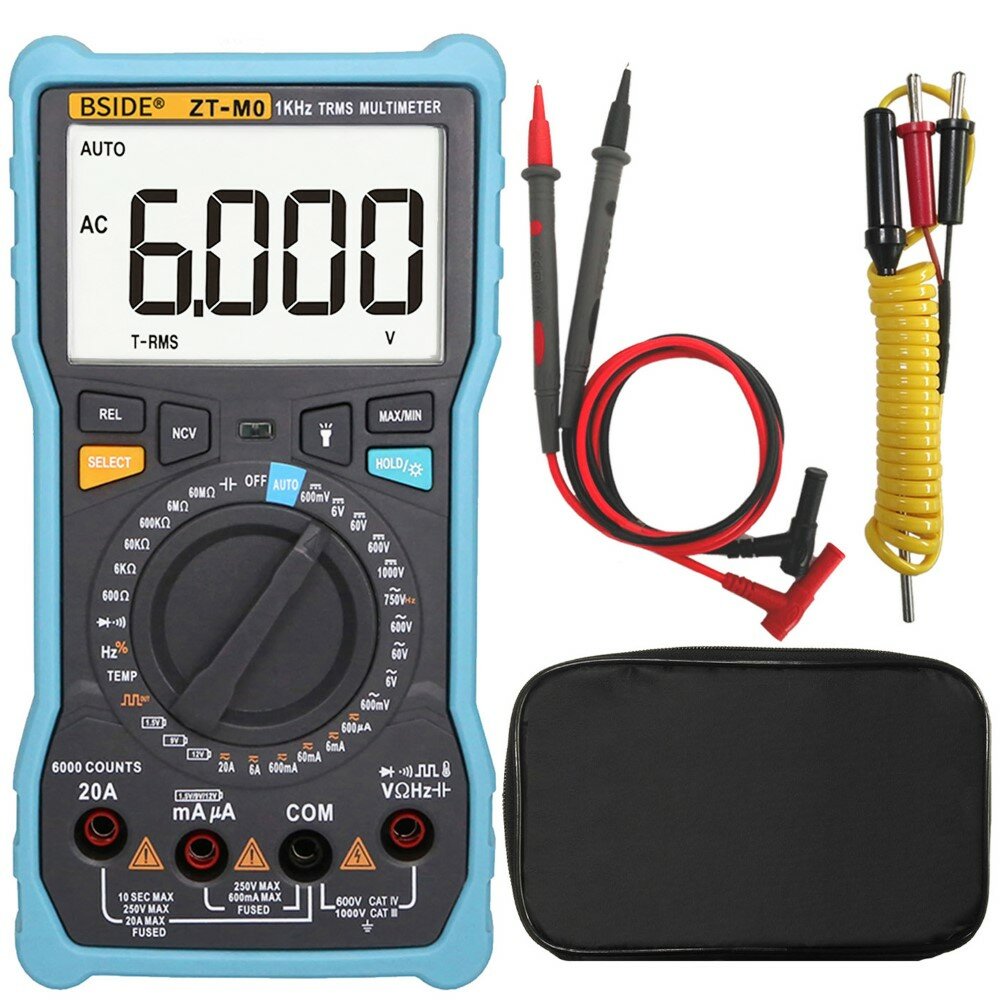

1 x Packing box

1 x Host

1 x English manual

1 x Test lead

1 x Cloth bag

1 x Temperature probe



- There might be little error of size for manual measurement.

- The colors deviation might differ due to different monitor settings, please kindly understand.
