[EBTN LCD Display]: EBTN LCD display greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.

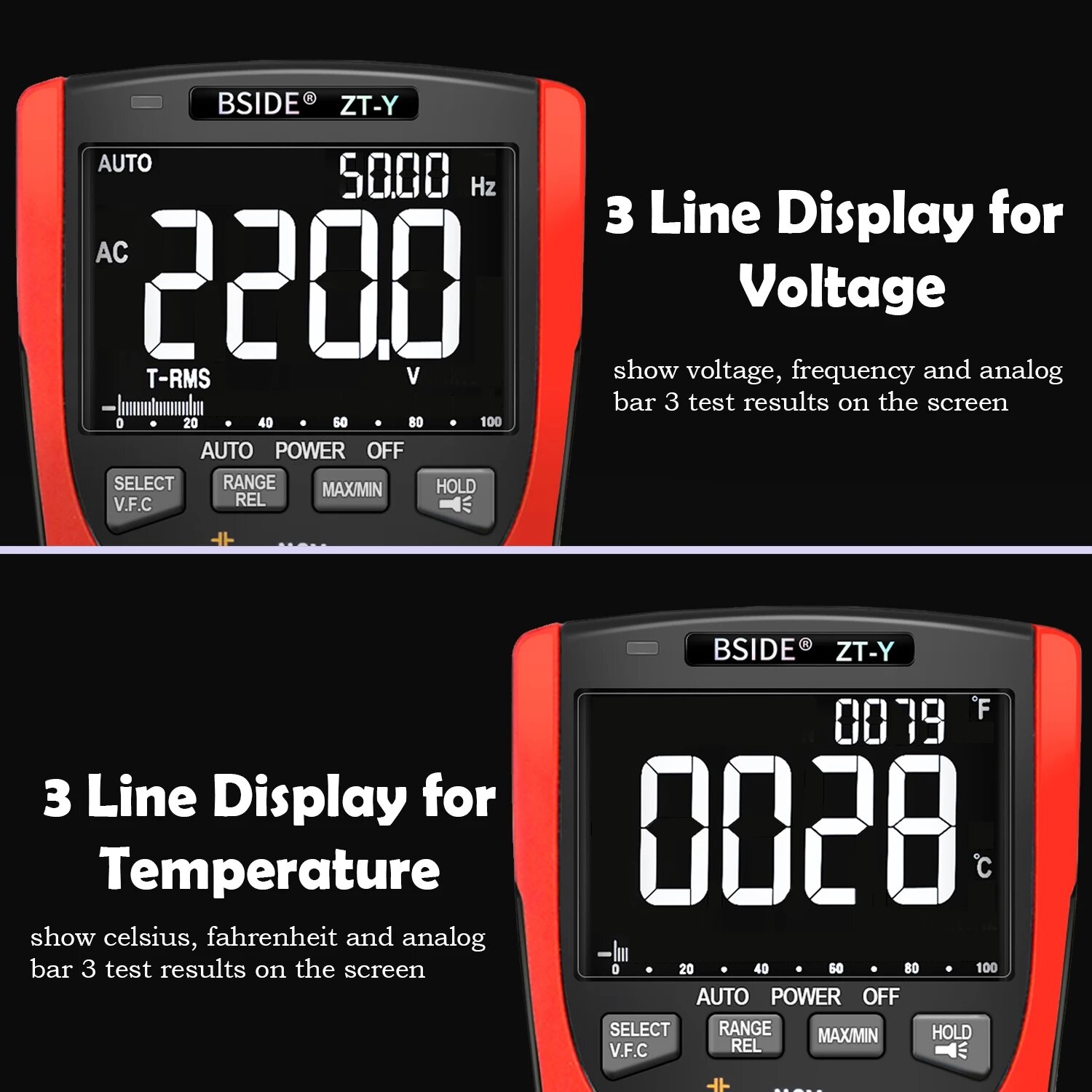

[Large Screen 3 Line Display]: Large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar.

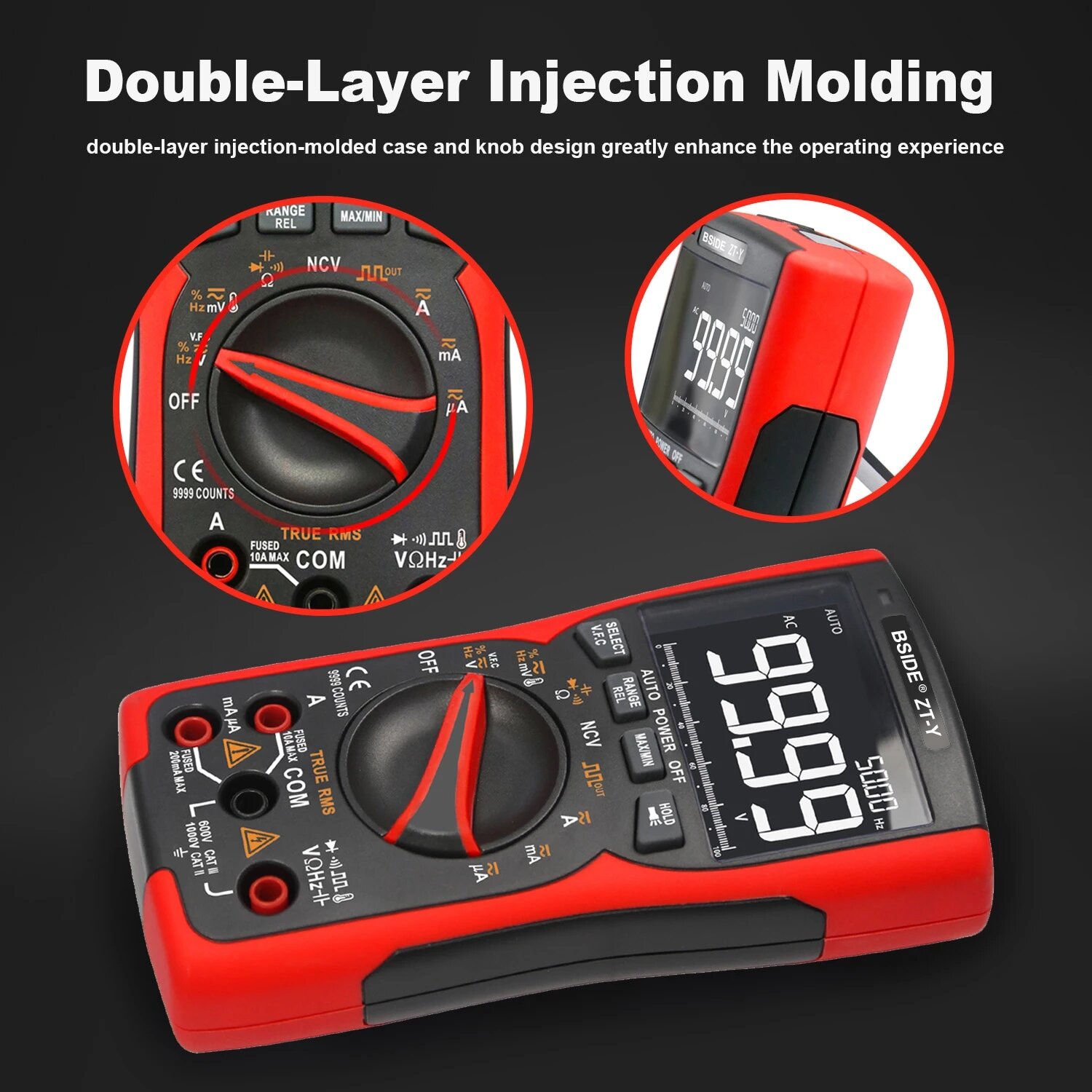

[Double-Layer Injection Molding]: Double-layer injection-molded case and knob design greatly enhance the operating experience, you can switch the knob smoothly.

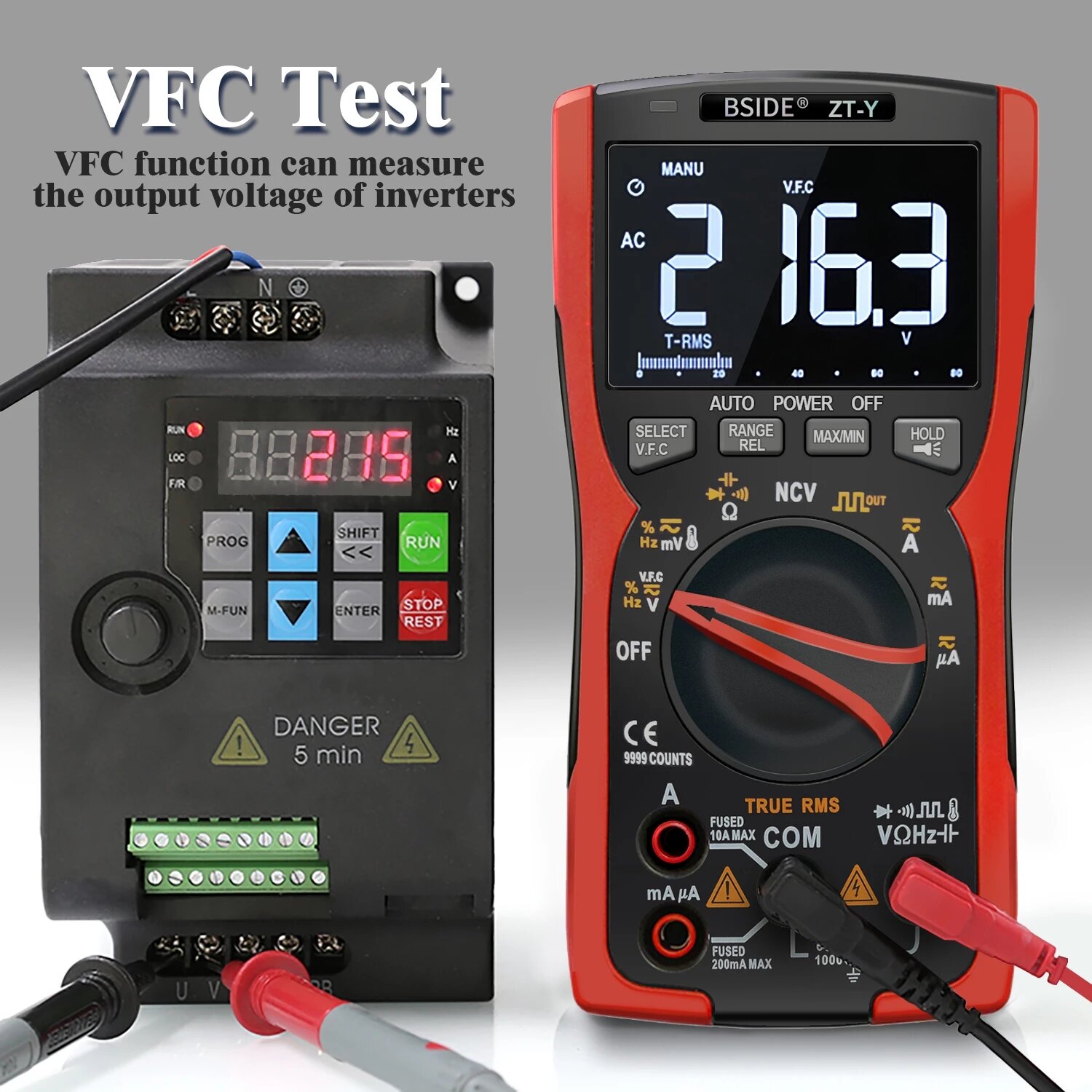

[VFC Function]: VFC function can measure the output voltage of inverters.





Features:



Display: 9999 counts

DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3)

AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V ±(1.0%+3)

DC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.0%+3)

AC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.2%+3)

Resistance:

99.99Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ ±(0.5%+3);

9.999MΩ ±(1.5%+3); 99.99MΩ ±(3.0%+3)

Capacitance:

9.999nF ±(5.0%+20); 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5);

9.999mF ±(5.0%+5)

Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000 MHz ±(0.1%+2)

Duty Cycle: 1%~99% ±(0.1%+2)

Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)

Diode: show the forward voltage

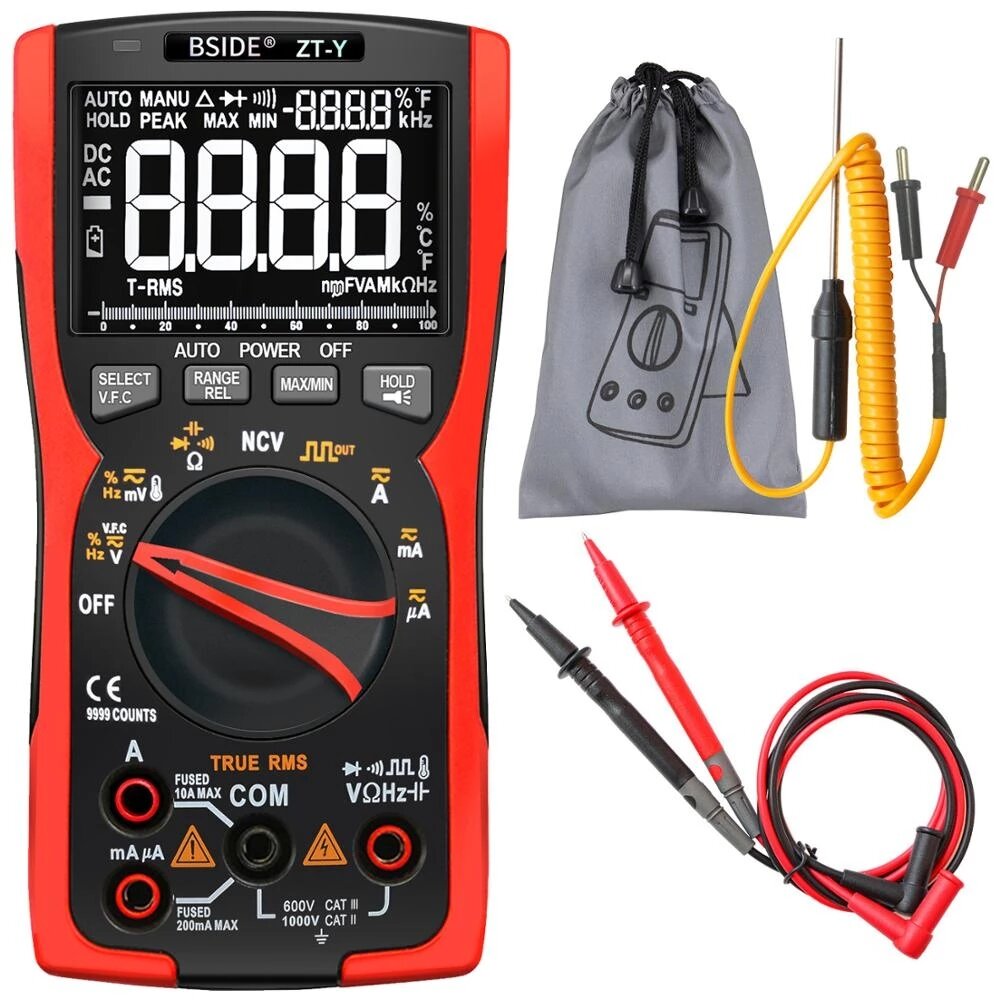

1 x Digital Multimeter

1 x Test Leads

1 x Thermocouple

1 x Carrying Case

1 x User Manual
