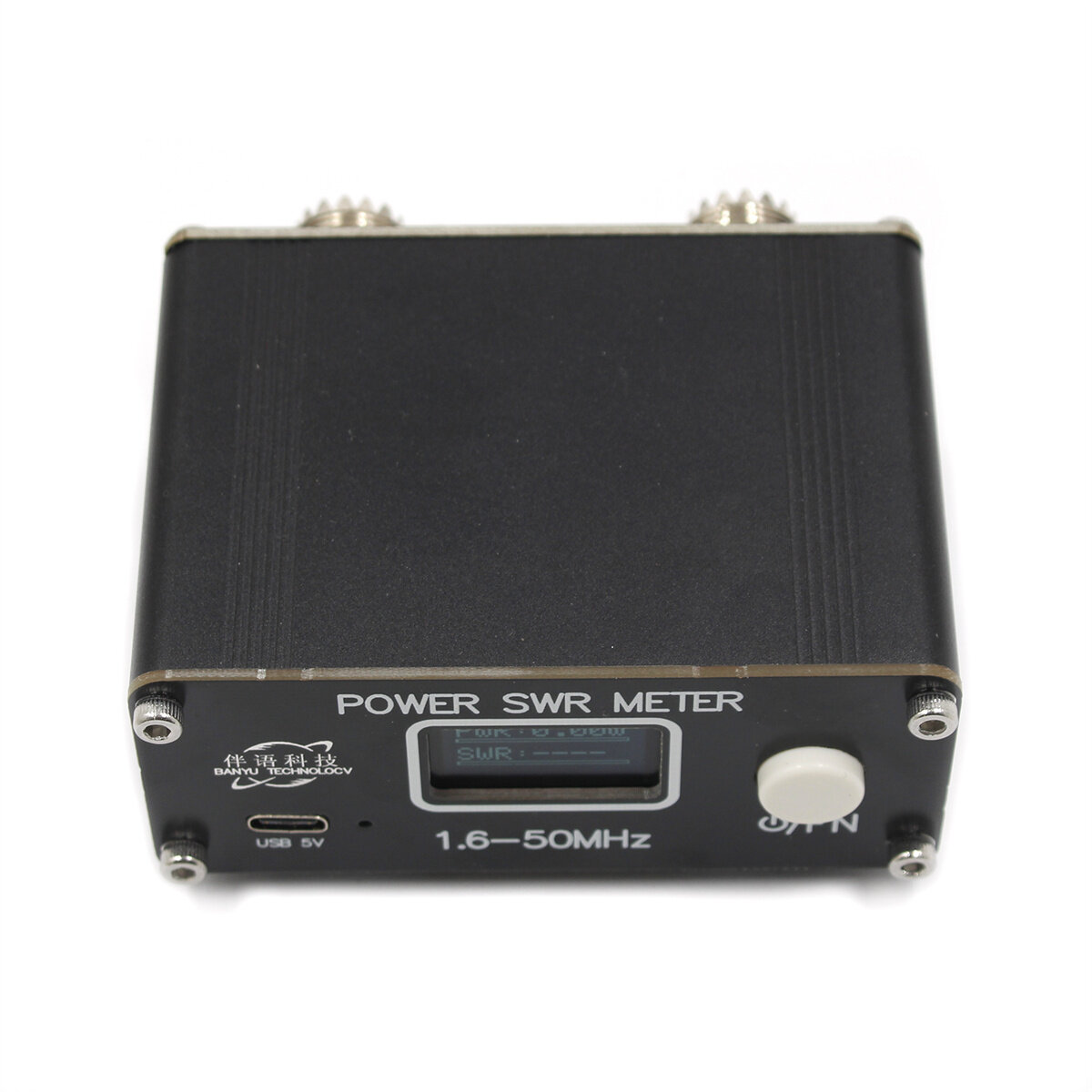

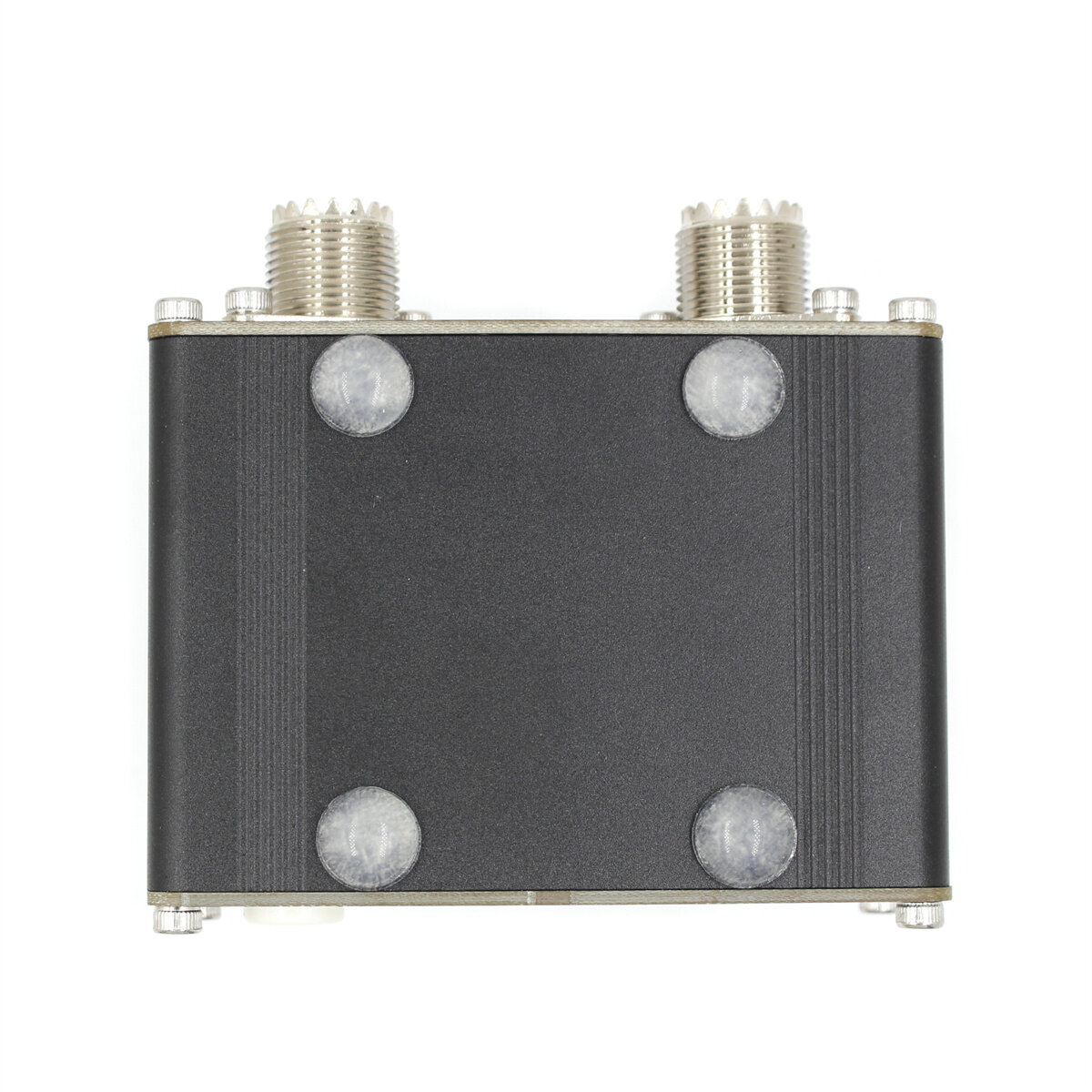

CP Version QRP 150W 1.6-50MHz SWR HF Short Wave Standing Wave Meter SWR / Power Meter FM/AM/CW/SSB Mini COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

According to the fitting algorithm of detector diode characteristics, the accuracy is better than ± 5%.





The standing wave is greater than 2.0 intermittent beep alarm, and the standing wave is greater than 3.0 continuous beep alarm.





Built-in lithium battery can be used for more than 50 hours at a time.




Parameters:

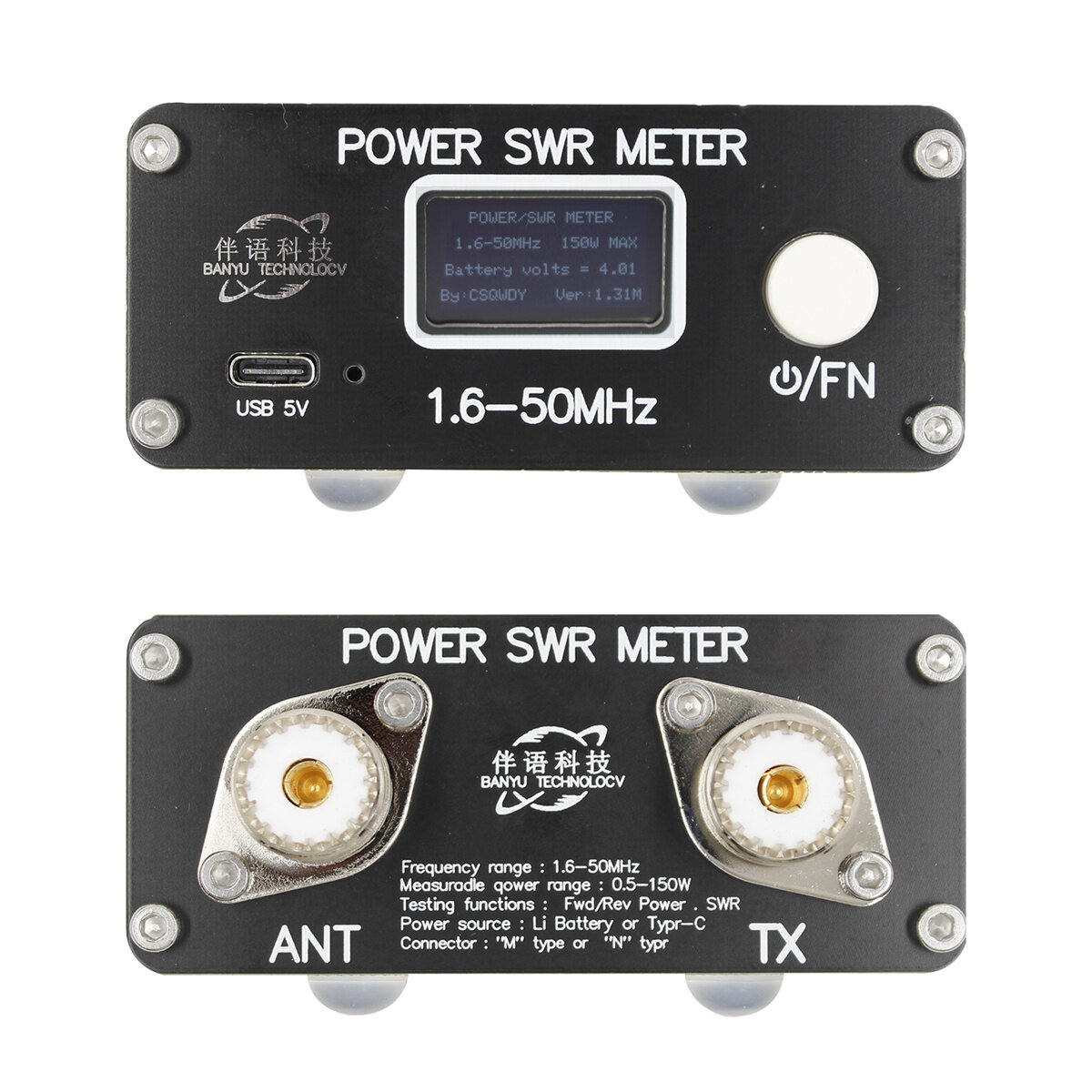

Frequency range: 1.6-50MHz





Standing wave measurement range: 1.0-99.9





Insertion standing wave: 1.6-30MHz ≤ 1.02; 30-50MHz≤1.05





Impedance: 50 Ω

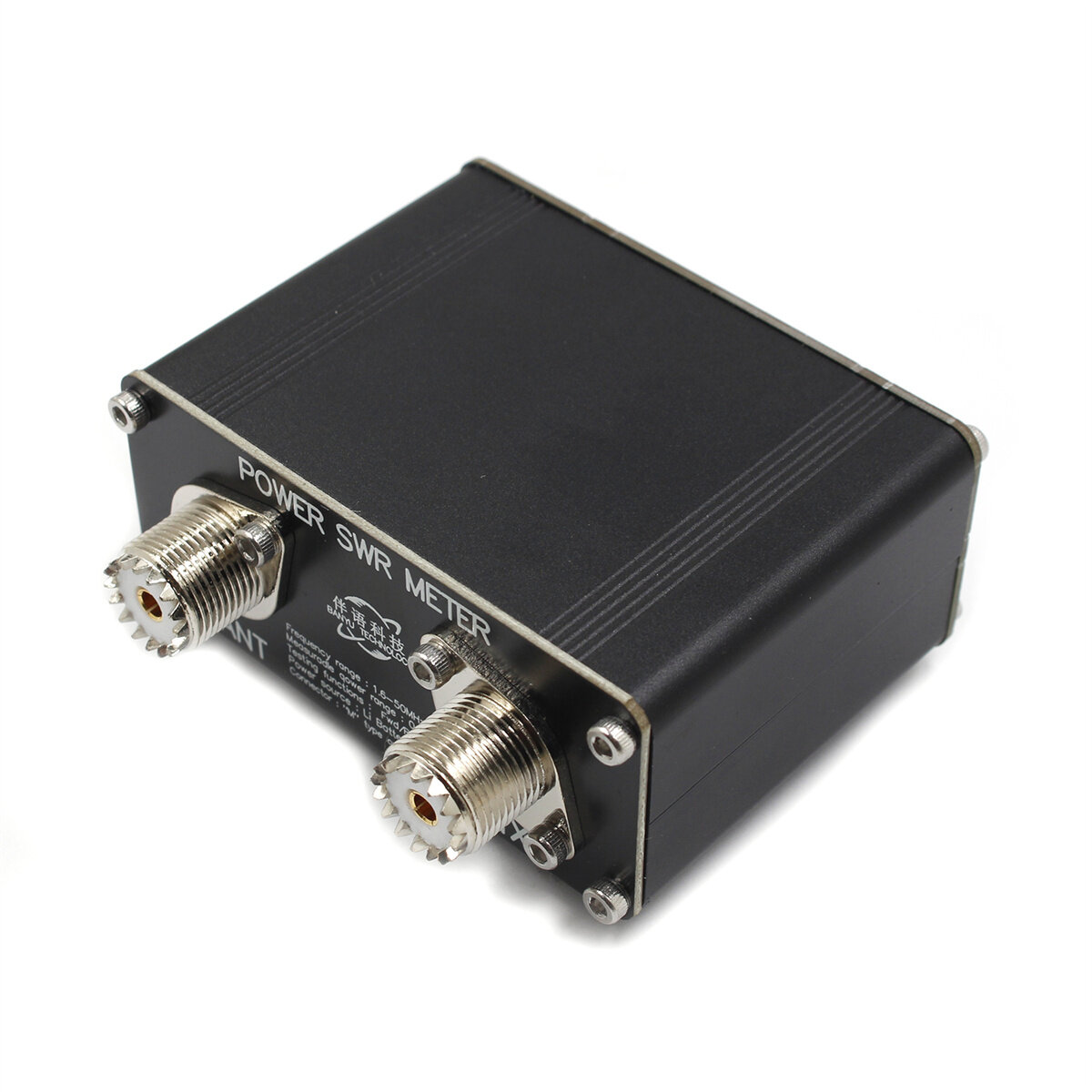

RF interface type: SL16-M





Power supply: built-in 3.7V/900mAh rechargeable lithium battery or USB type-c

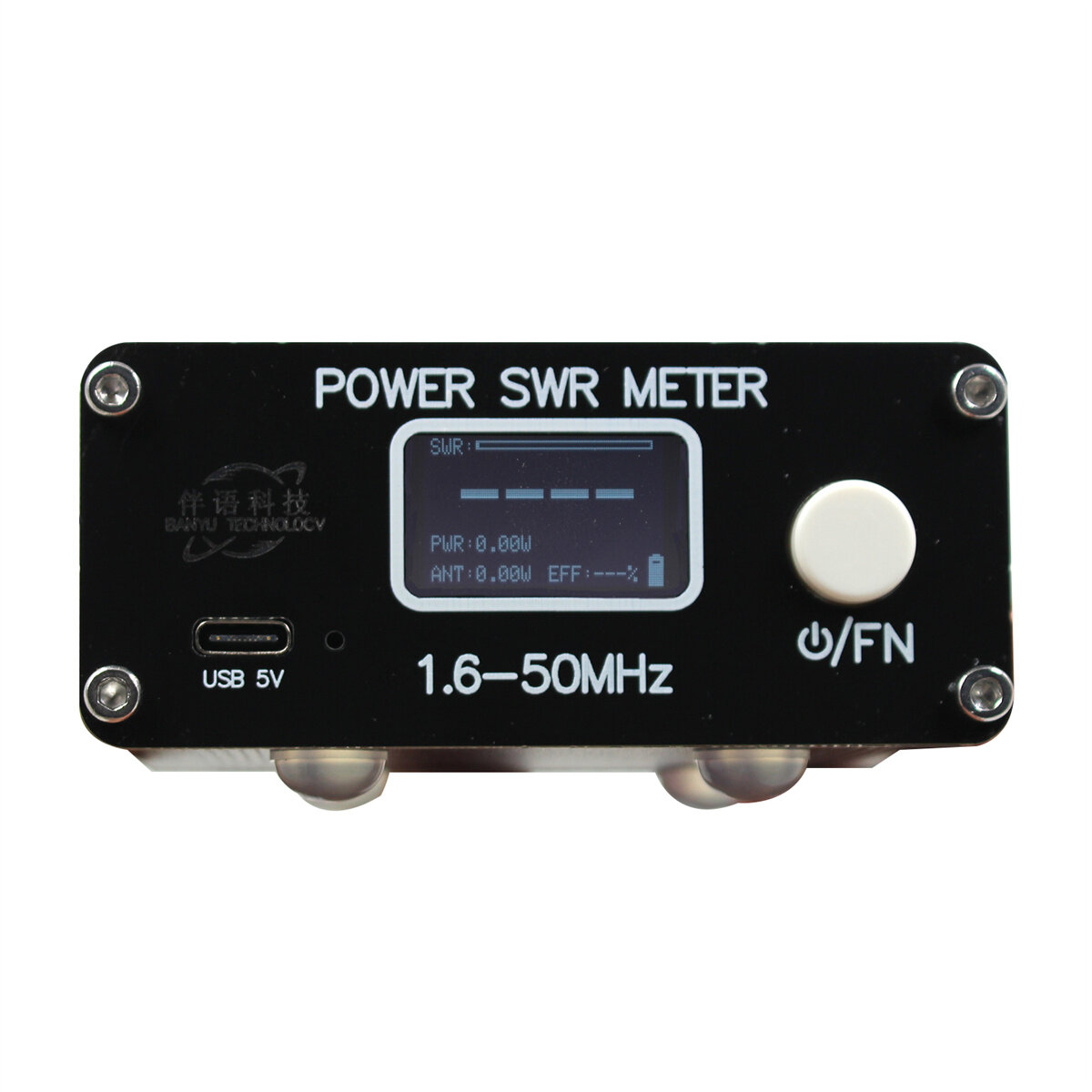

Screen size: 0.96 inches





Data communication: USB type-c

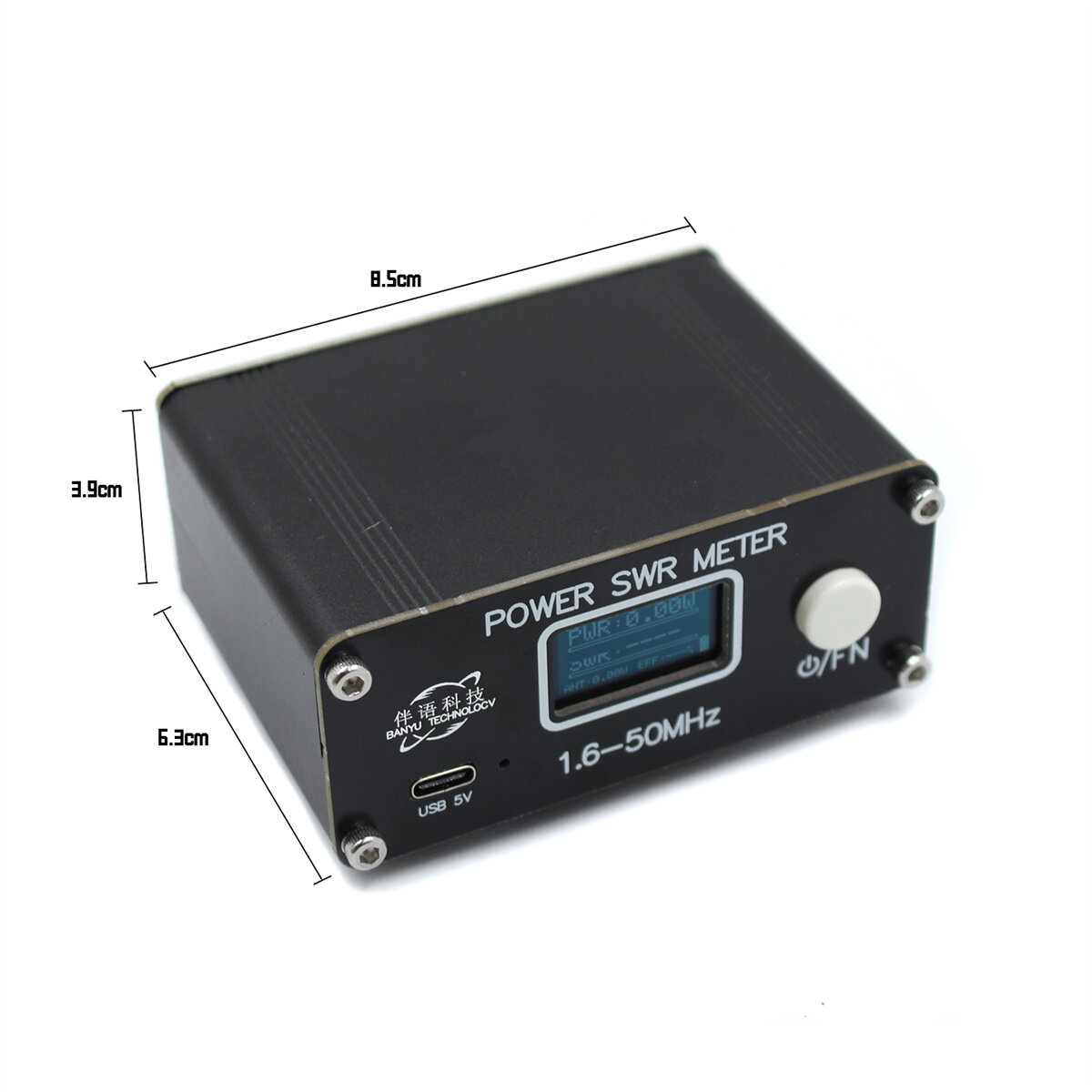

Net weight of complete machine: 190g




Special reminder:


the above parameters have been measured by professional instruments and are true and effective. 150W continuous detection; More than 500W will damage the detection components.


Brief introduction:

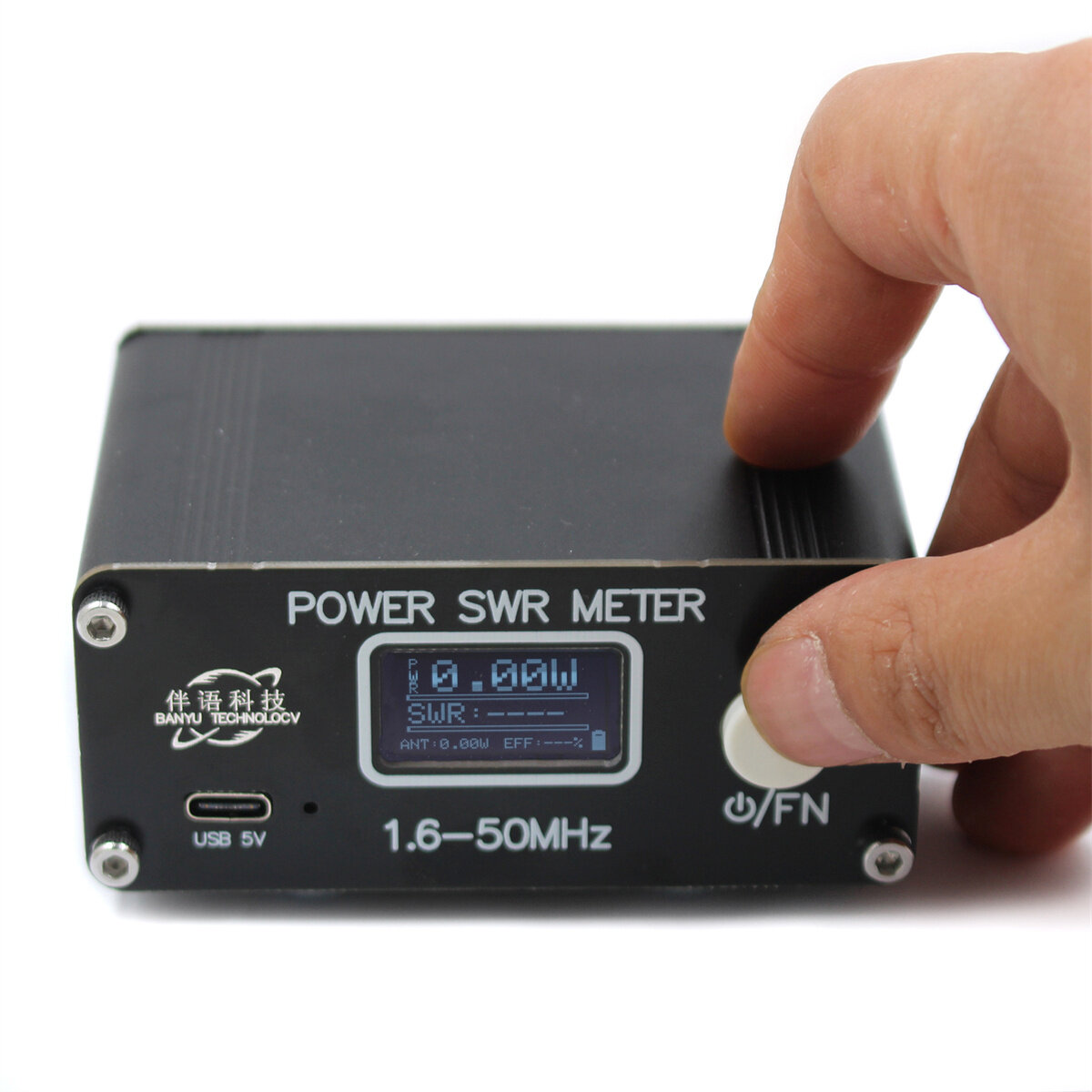

Long press on/off, short press on/off to switch the display interface, and double click on the switch for standing wave alarm; Three-click to switch between normal mode and peak hold mode.





The charging red light shows that the light is off when it is full.

Package Included:
