DC10-60V 30A 1500W To 12-90V Boost Converter Step Up Power Supply Module COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

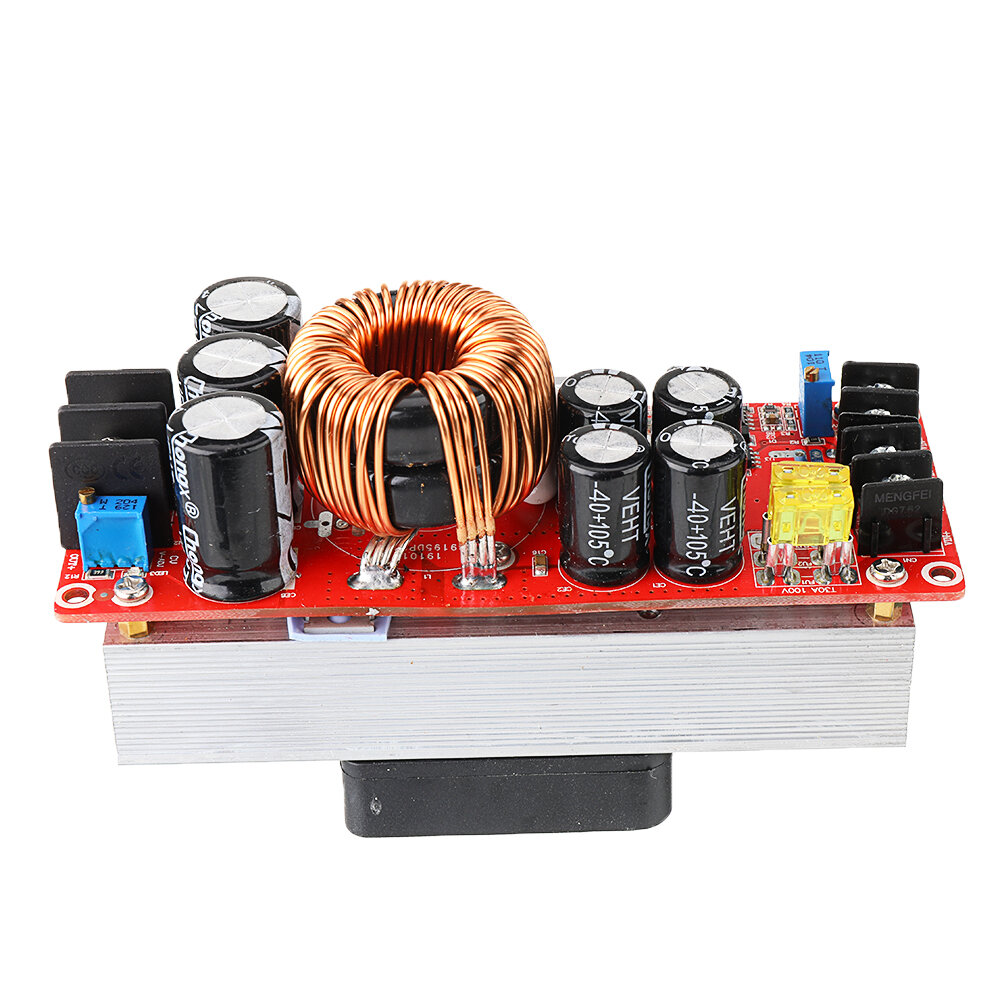

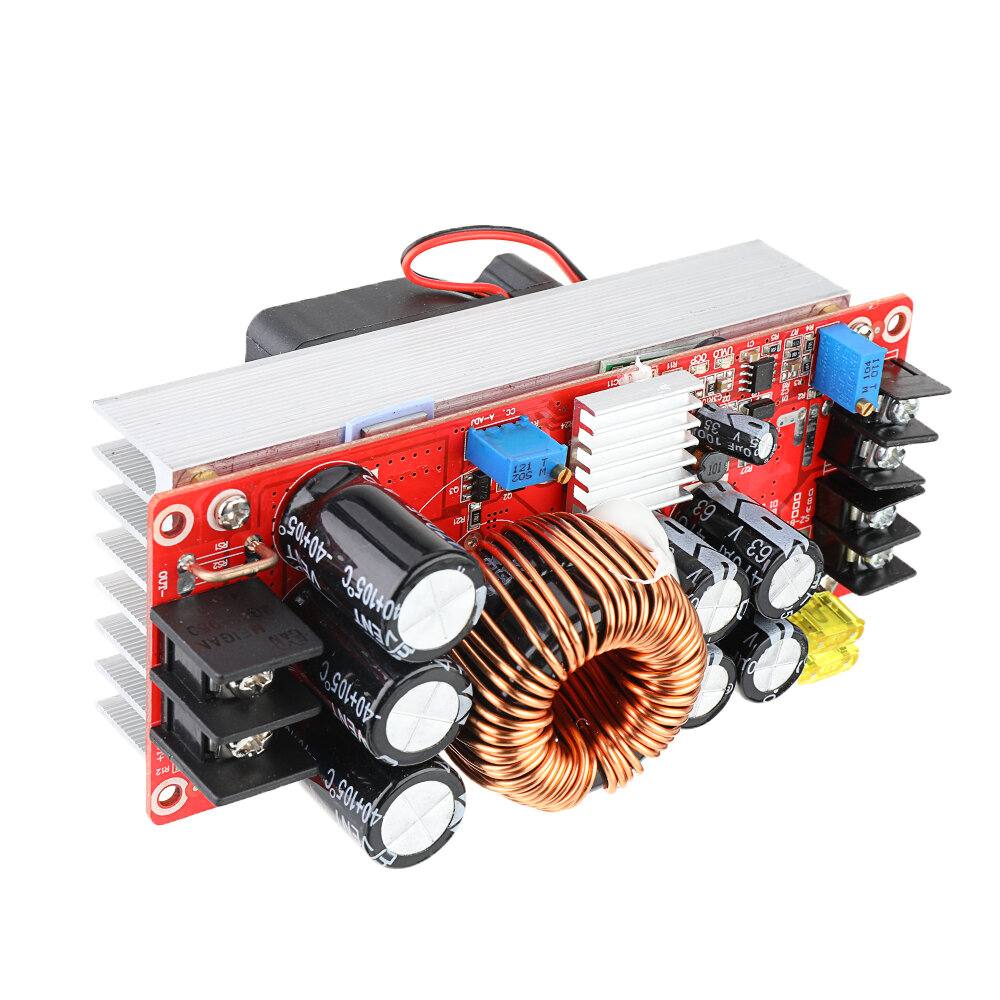

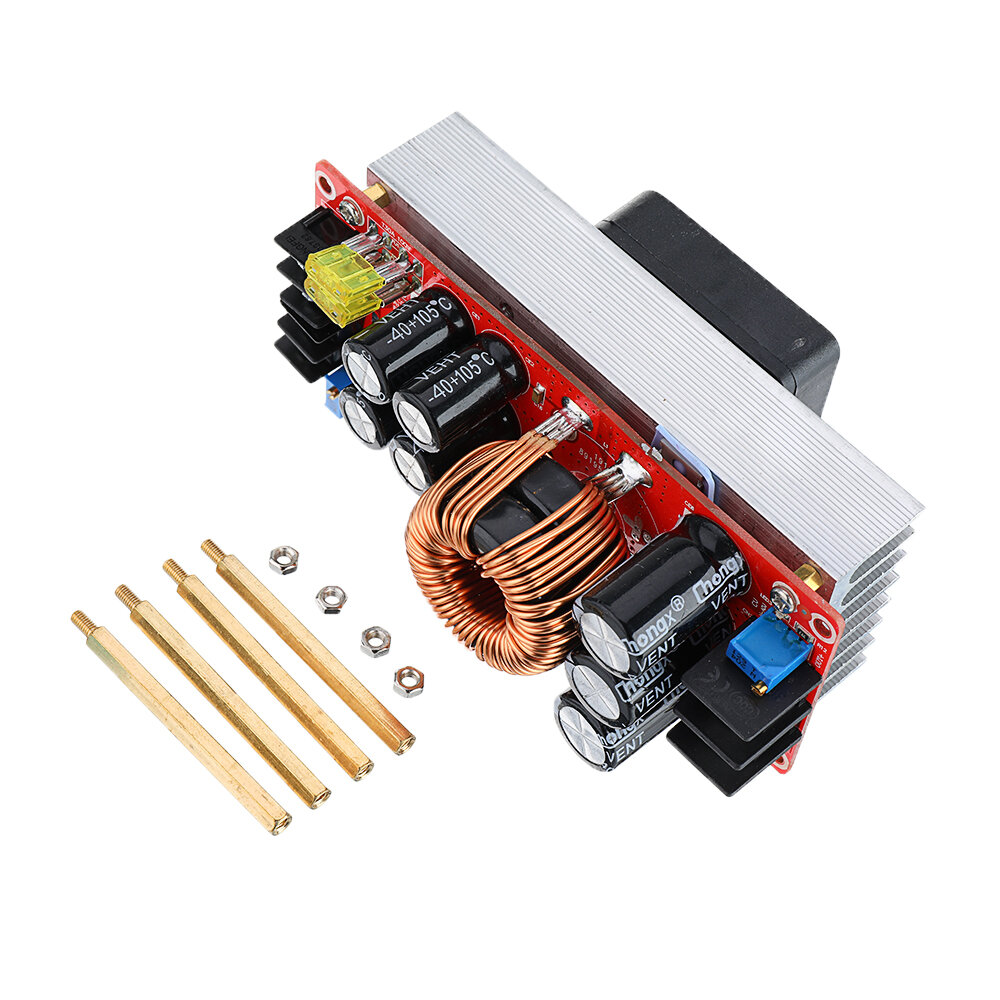

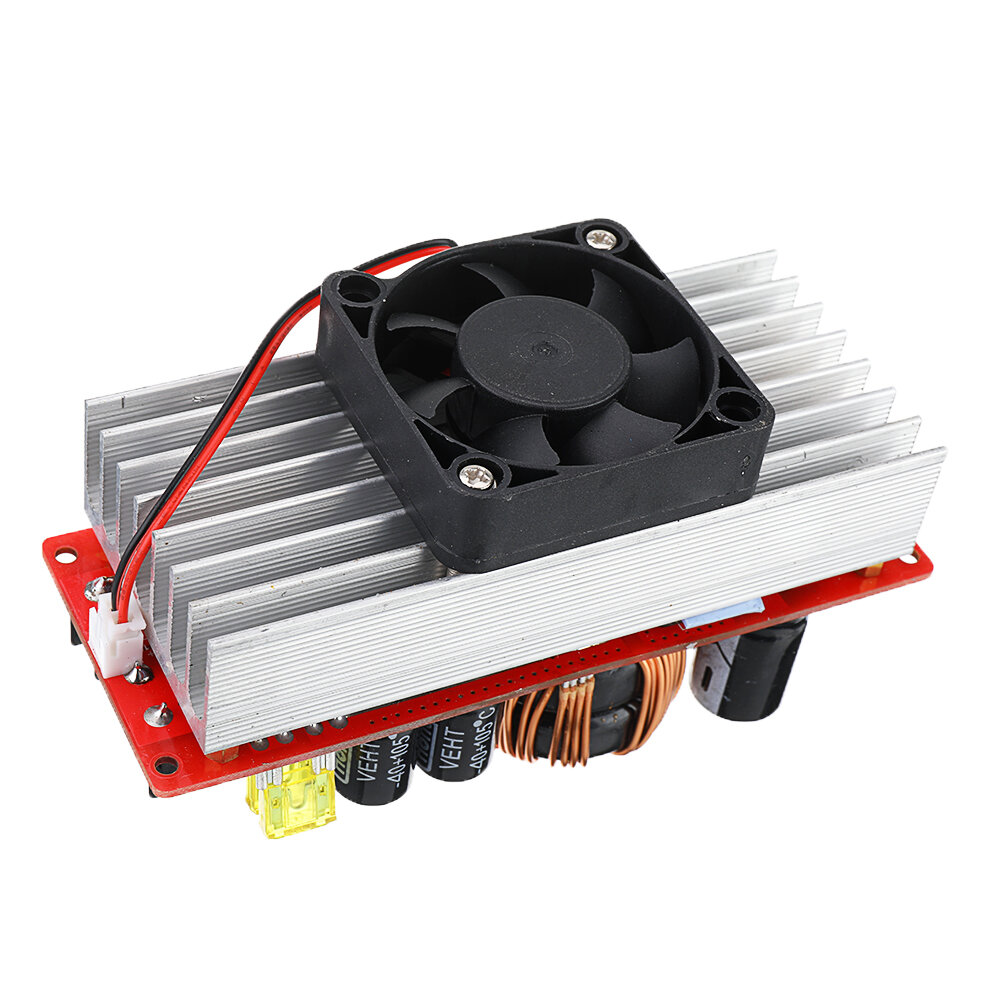

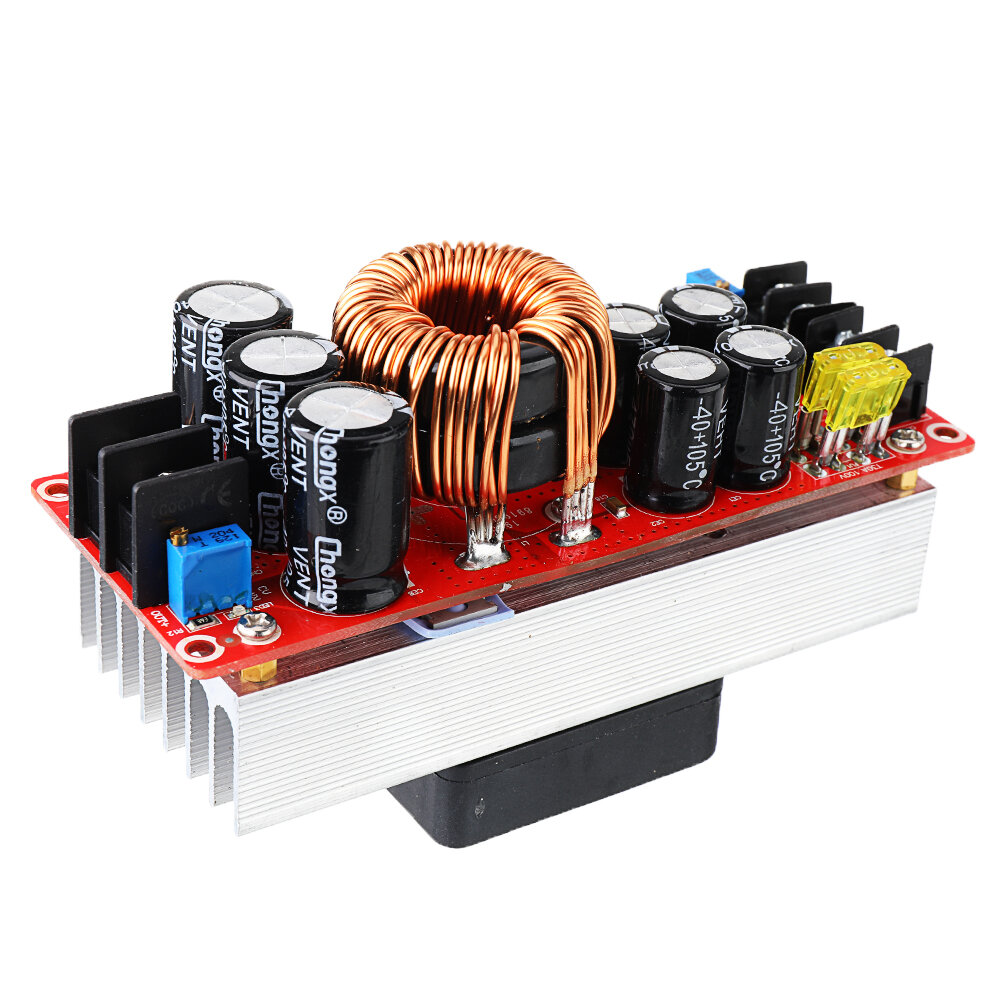

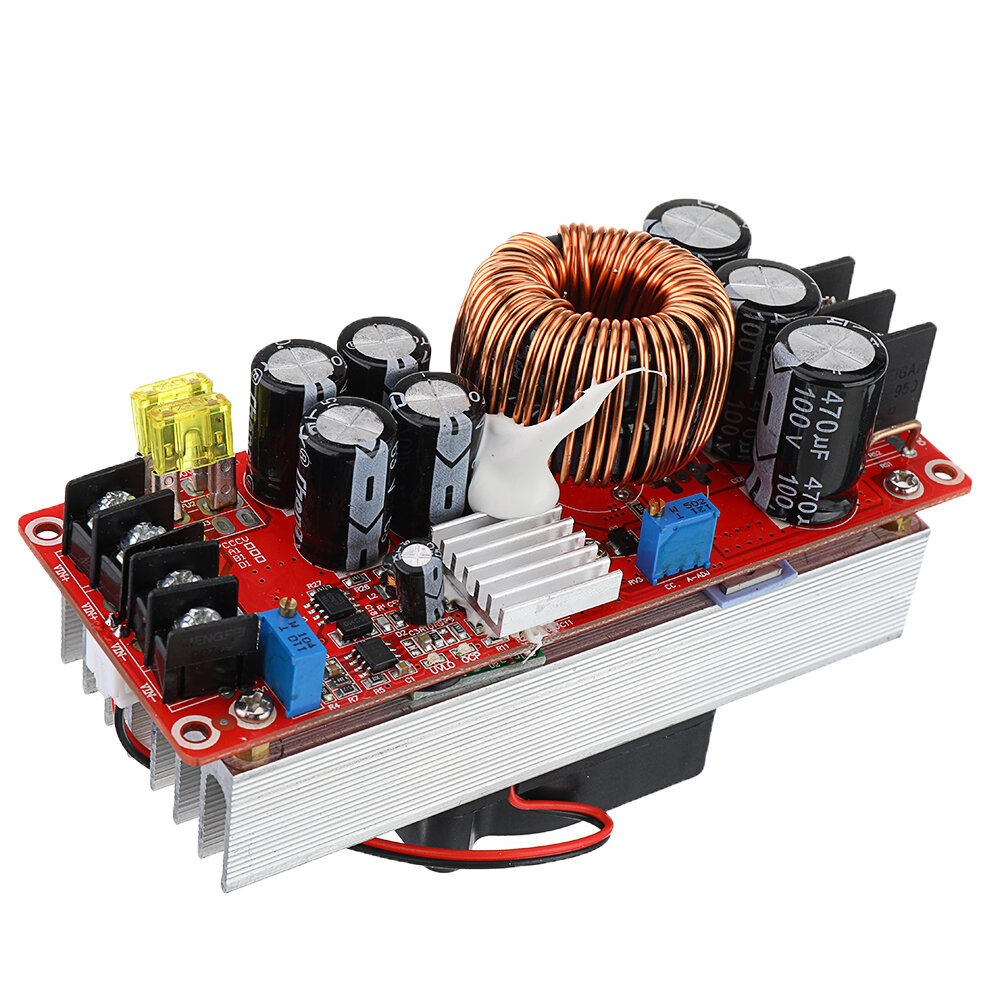

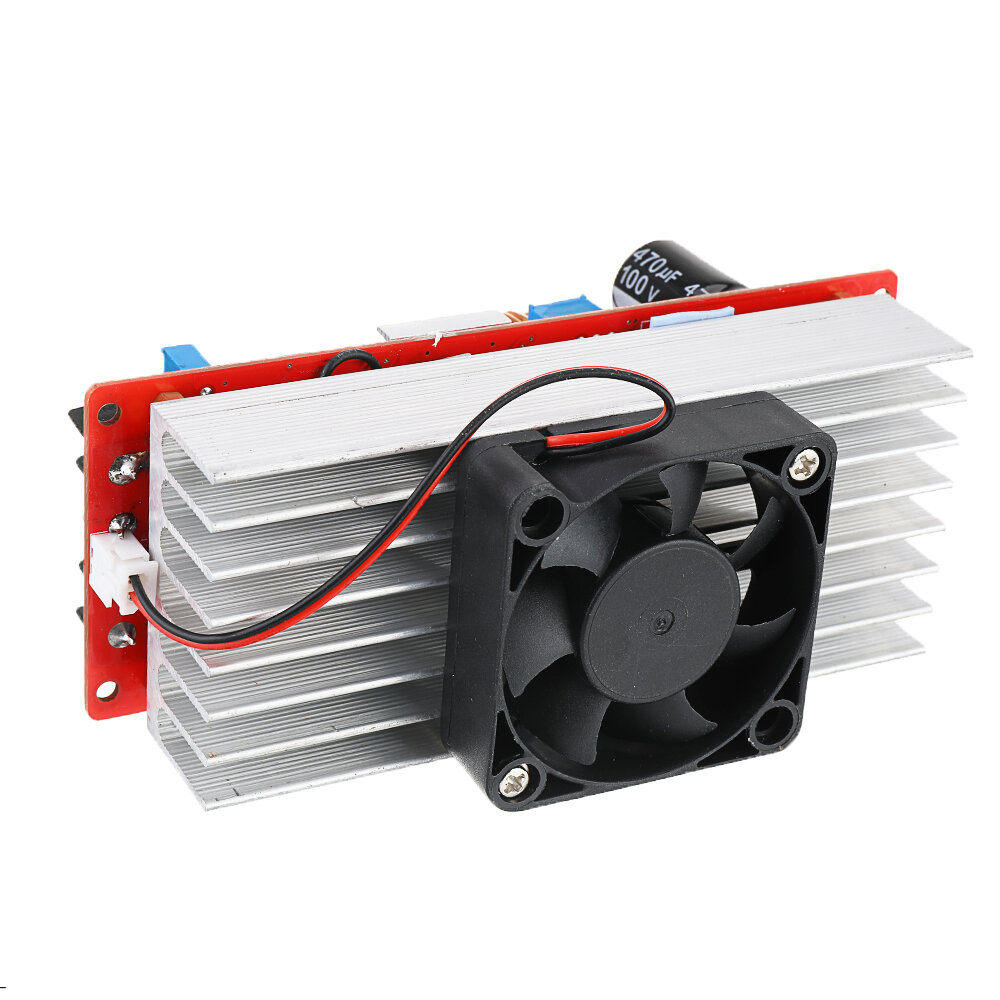

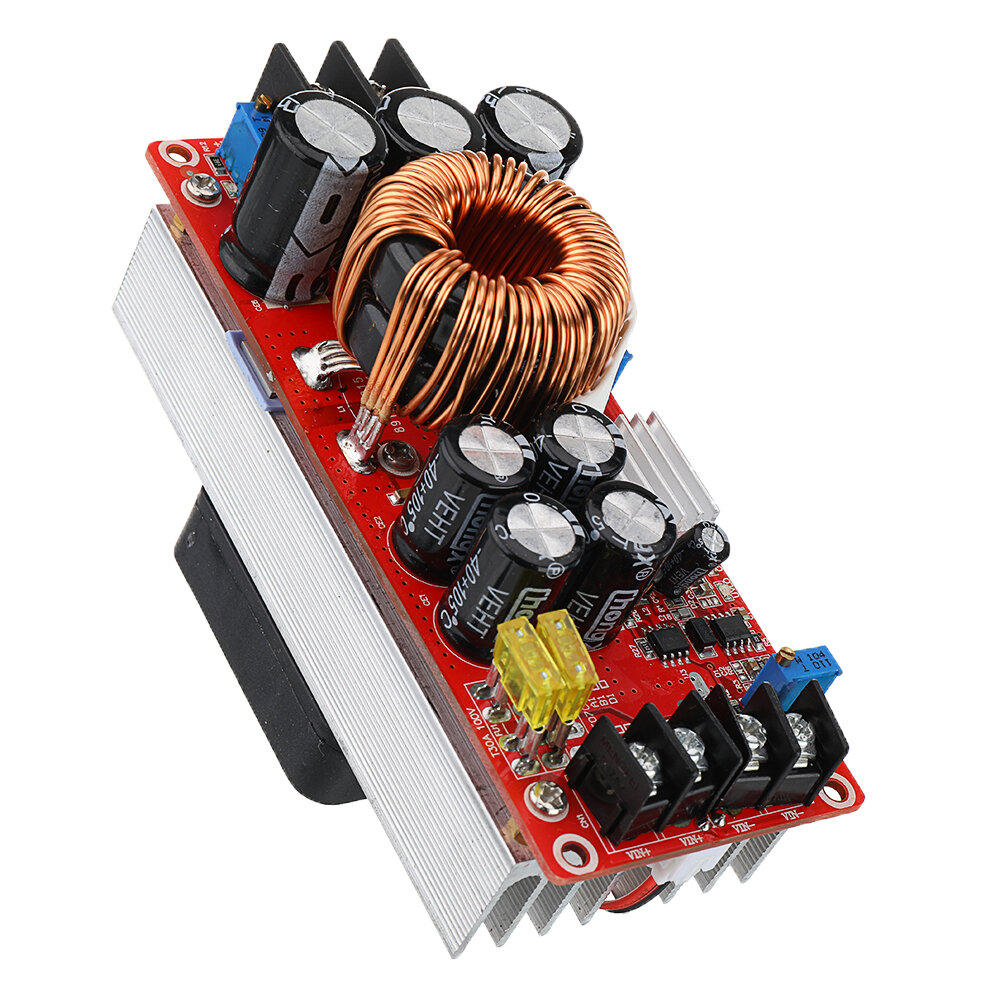

Module model: SZ-BT07CCCV-D1 Module name: 1500W boost constant current module Module nature: Non-isolated boost module Input voltage: DC10-60V Input current: 10-30V input voltage, maximum current 30A                        31-60V input voltage, maximum current 25A Static working current: 15mA (12V liters 20V, the higher the output voltage, the quiescent current will increase) Output voltage: 12-90V continuously adjustable (default output 19V. If you have a multimeter buyer can adjust it) Output current: 20A MAX , More than 15A, please strengthen the heat dissipation (related to the input and output voltage difference, the larger the differential pressure, the smaller the output current) Constant current range: 0.8-20A (+/-0.3A) Input anti-reverse connection: Yes (150A power MOS anti-reverse) Low battery protection: With (8-50V adjustable) self-recovery Working temperature: -40~+85 degrees (enhance heat dissipation when the ambient temperature is too high) Working frequency: 150KHz Conversion efficiency: 92%-97% (efficiency is related to input, output voltage, current, differential pressure. Low differential pressure) Input overcurrent protection: Yes (input over 35A, automatic protection, power does not boost) Short circuit protection: Yes (input 30A fuse) Double short circuit protection, safer to use. Input reverse connection protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time) Installation method: 4 3mm copper columns Wiring method: Terminal block (please use high current pure copper wire) Module size: 130mm x 52mm x 84mm (length x width x height) (high copper column and fan), 130mm x 52mm x 67mm (length x width x height) (high without copper column and fan) Module single weight: 490 grams Output power: = input voltage * 30A, such as: input 12V * 30A = 360W The maximum power when inputting 12V is 360W Input voltage *30A For example: input 24V * 30A = 720W, that is: the maximum power is 720W when inputting 24V

Power Description:

When the power supply is unloaded, use a flat-blade screwdriver to adjust the output terminal "V-ADJ" potentiometer clockwise to increase, counterclockwise to small, due to the large output capacitor capacity, the output voltage is adjusted from high voltage to low voltage. The reaction will be slower. The adjustment of the instrument is smaller. (The default output voltage is adjusted to 19V) Adjust the "CC A-ADJ" potentiometer counterclockwise for about 30 turns, set the output current to the minimum, connect the load such as the LED battery, and adjust the "CC A-ADJ" potentiometer clockwise to the current you need. For battery charging, after the battery is discharged, it is connected to the output, and adjust the CC A-ADJ to the current you need. When charging, be sure to use the discharged battery to adjust the battery. The more the charge, the smaller the charge current. The default output is ESC to 3A. (Do not adjust the current by short-circuit output. The circuit structure of the boost module cannot be adjusted by short circuit.)

Input low battery protection adjustment:
Applications:

1. DIY a power supply, 12V can input and output can 12-50V adjustable.

3. As the car power supply for your laptop, PDA or a variety of digital products supply.

5. Solar panel regulator.
