DeepVNA 101 10K-1.5GHz Vector Network Analyzer HF VHF UHF Analyzer SWR Meter Upgraded from NanoVNA-F COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

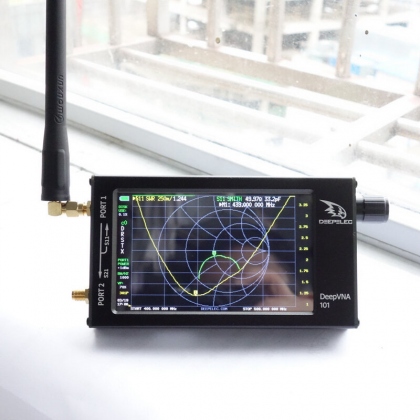

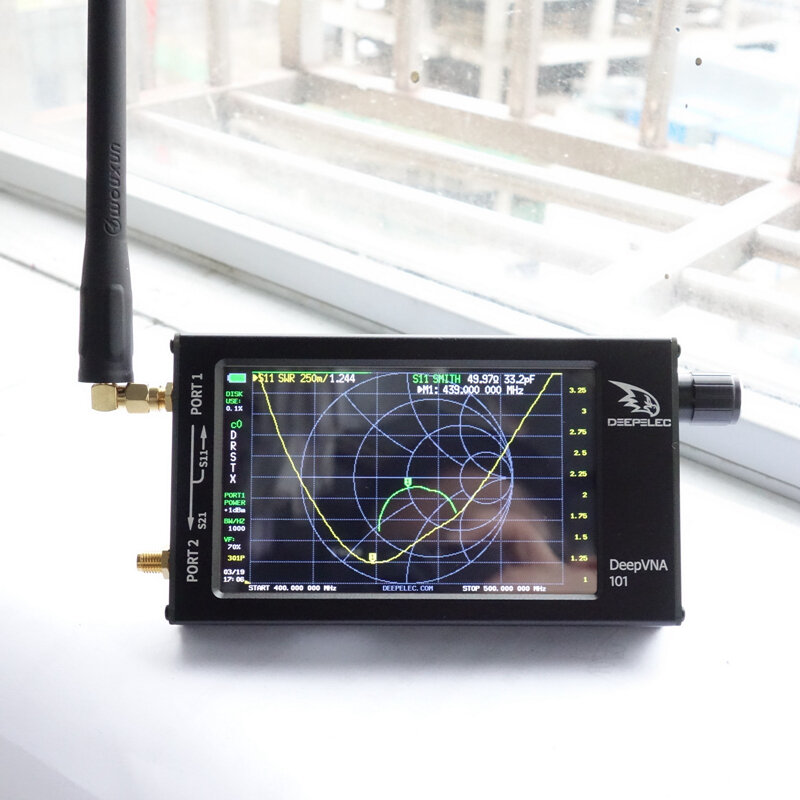

This is a vector network analyzer, which can measure the S-parameters of circuit. It can carry out transmission test and reflection test. The device can be used to test insertion loss, return loss, fault location (TDR function), antenna standing wave, impedance, filter response and so on.
Improvements:
1. RTC real-time clock and perpetual calendar2. The measurement data file name is in the form of YYMMDD_HHMMSS3. The frequency setting can choose the start and end or the center span mode4. The boot sound can be turned on or off
Specifications:

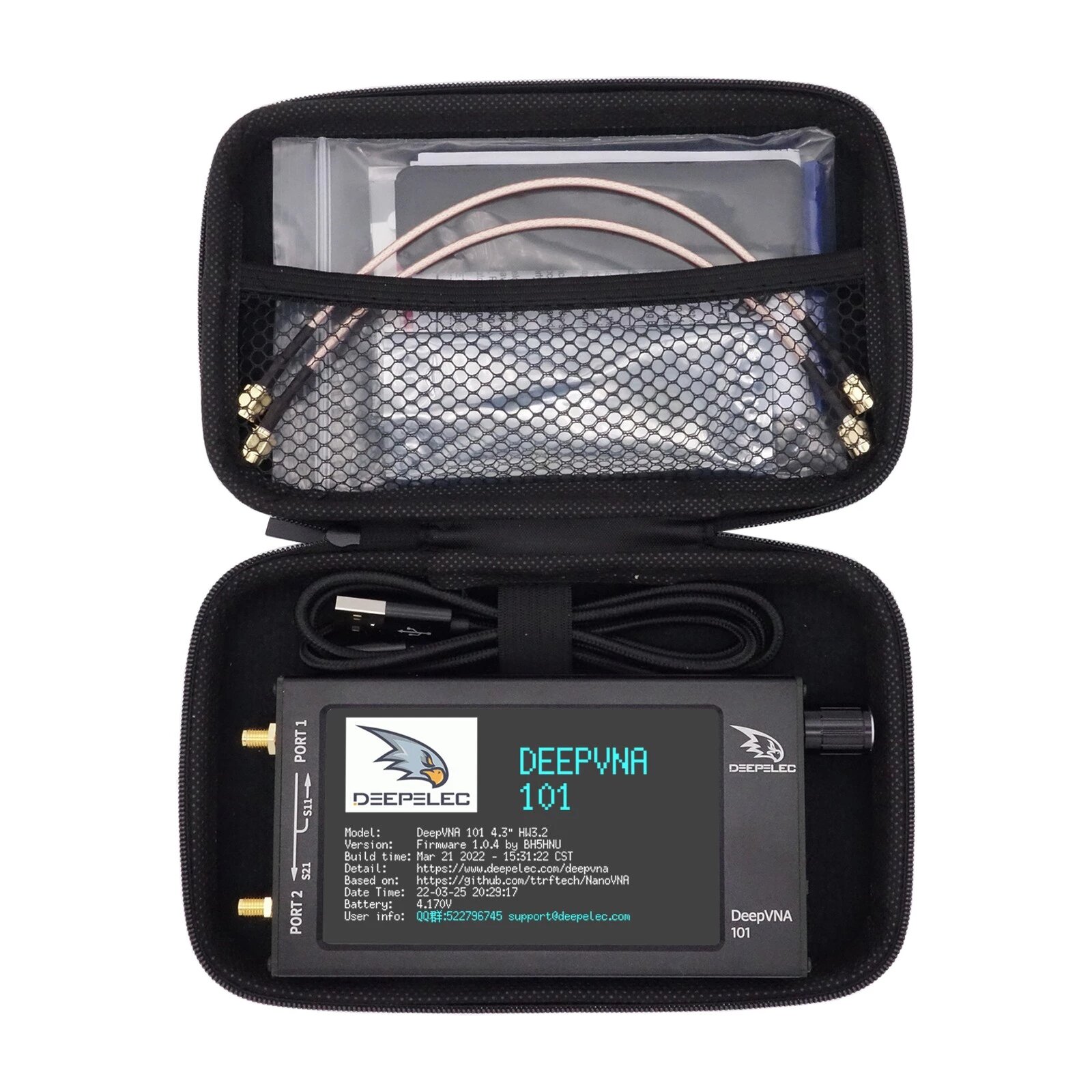

1. DeepVNA 101 with 4.3" screen x 12. USB type-c data cable x 13. 20cm/7.9" RG316 RF cables (SMA male to male) x 24. SMA male calibration piece - OPEN x 15. SMA male calibration piece - SHORT x 16. SMA male calibration piece-LOAD (SWR<1.025 within 4GHz) x 17. SMA-JJ male to male connector x 18. SMA-KK female to female connector x 19. SMA-JKW male to female right angle connector x 110. Machine foldable stand x 111. Stylus x 112. Quick start guide x 1
