DFRobot FlameWheel Robot 2WD Remote Control Robot Kit Support iOS App Control with TT Motor/6~10V Control Board COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

- Imported Ozon wood as raw material - The structure fully utilizes Luban's wisdom to achieve less screws and simplifies the assembly process for the user. - After the installation is completed and the battery is attached to this "weight block", the tumbler balance principle is fully utilized, and the center of gravity is changed by a powerful and powerful motor to realize the movement of the flameWheel. - In the process of self-assembling and reviving the hot-wheel robot, the child has a deeper understanding and study of the principles of mechanics and electronics.



- Dimensions: 120 x 120 x 85mm - Operating Voltage: 6 - 10V - Operating Current: 0 - 3A - Operating Temperature: 0 - 60°C - Master controller: Romeo BLE mini control board - Range: Open area within 30m -  bluetooth remote update program - Microprocessor: ATmega328P - 2-way 1.5A current H-bridge motor driver interface - Drive: two differential drive - Motor no-load speed: 230 ± 10% rpm - Max Speed: 1 m/s
 

 

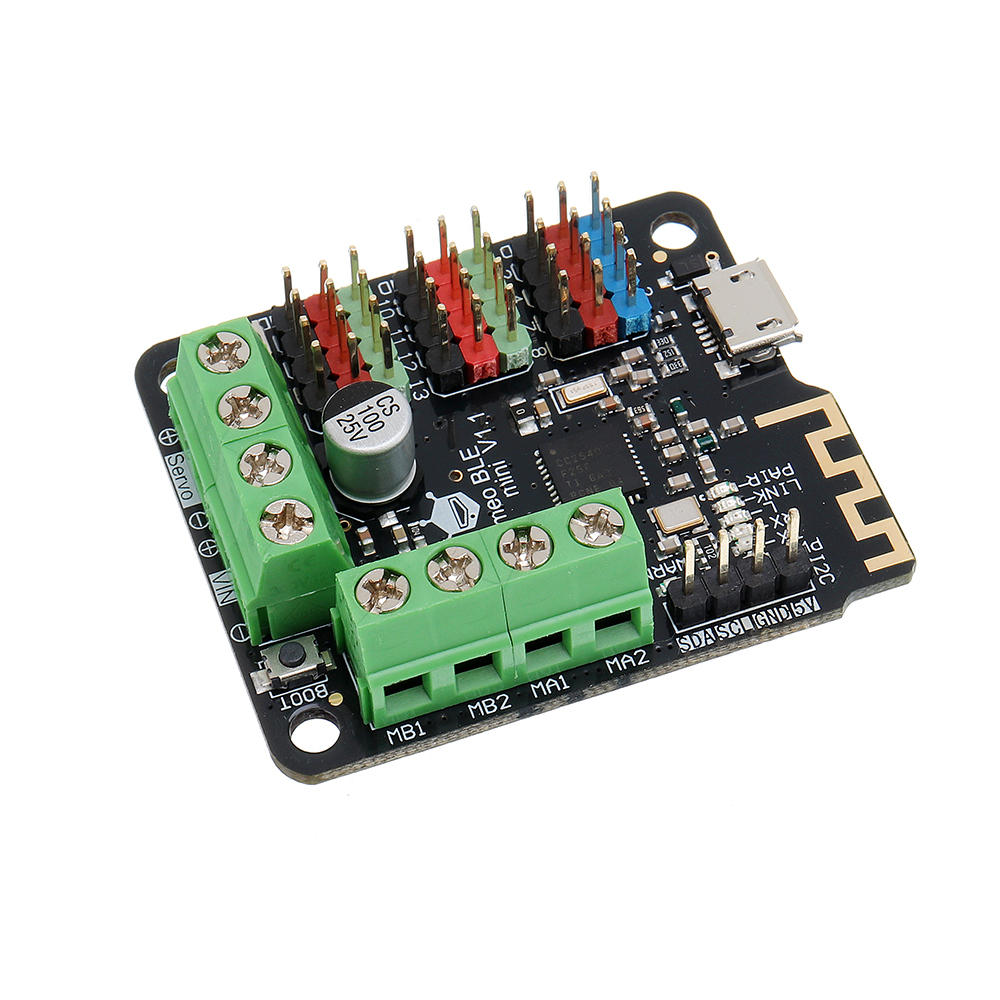

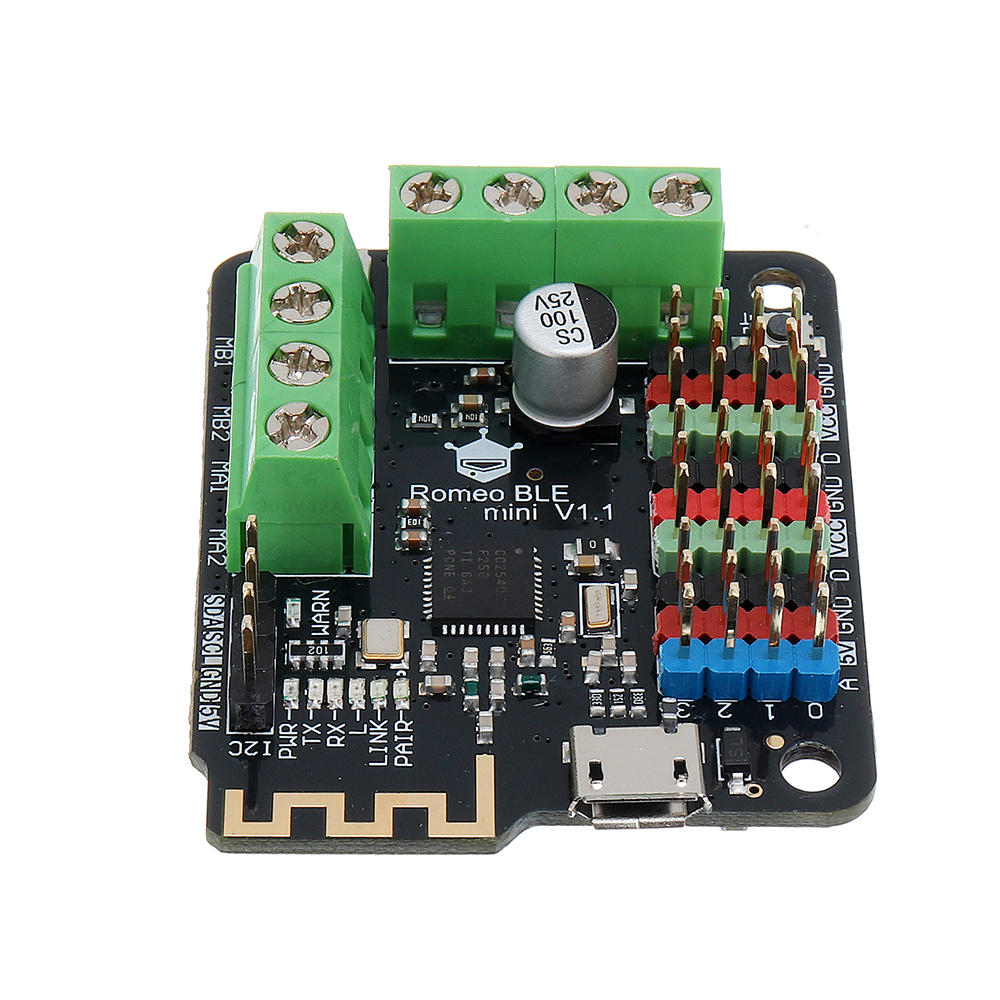

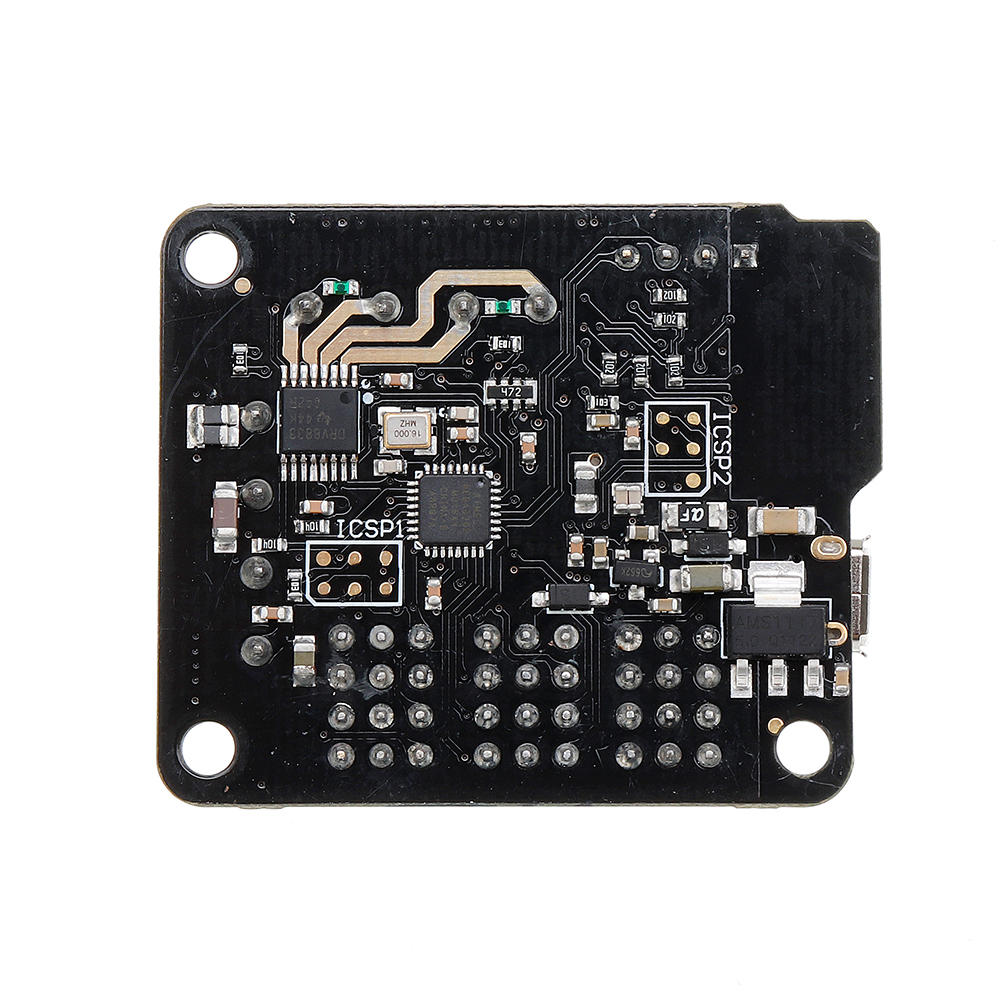

• Romeo Mini x 1

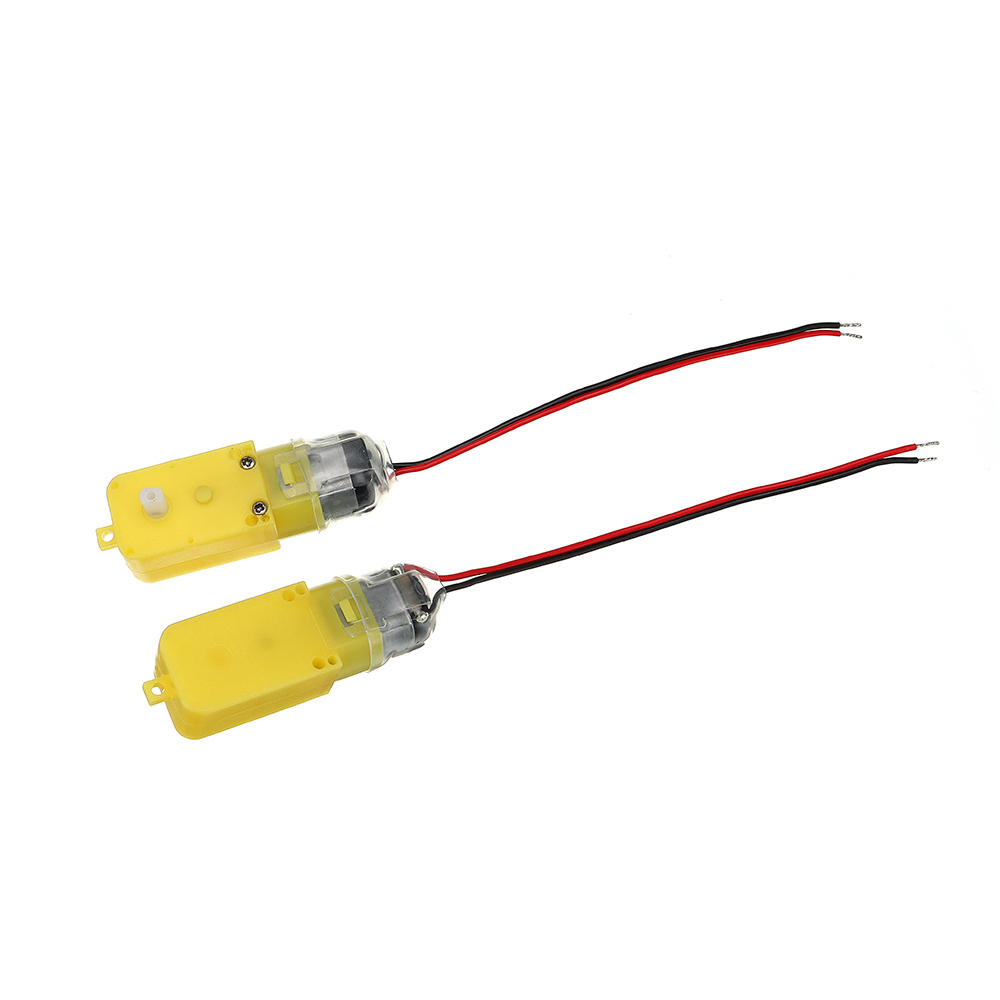

• Motor x 2

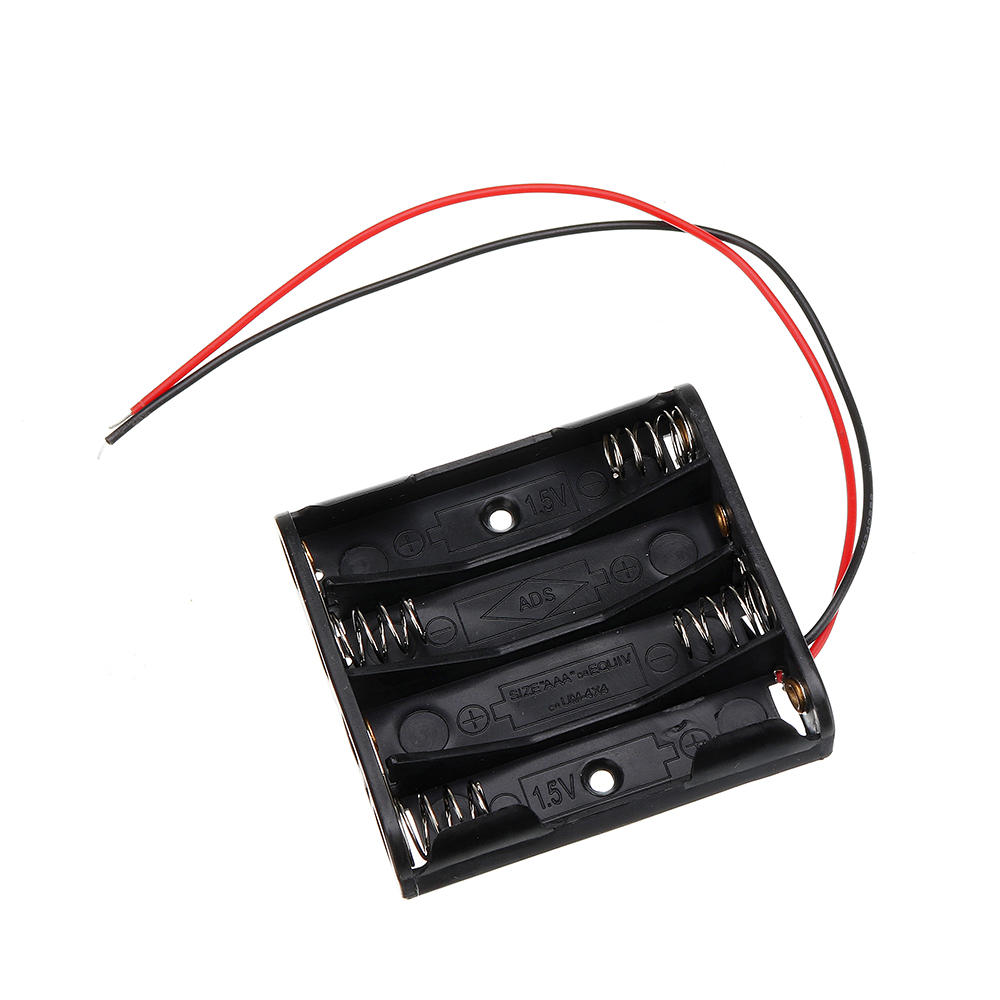

• 4 x AAA Battery Holder x 1
• AAA batteries x 4

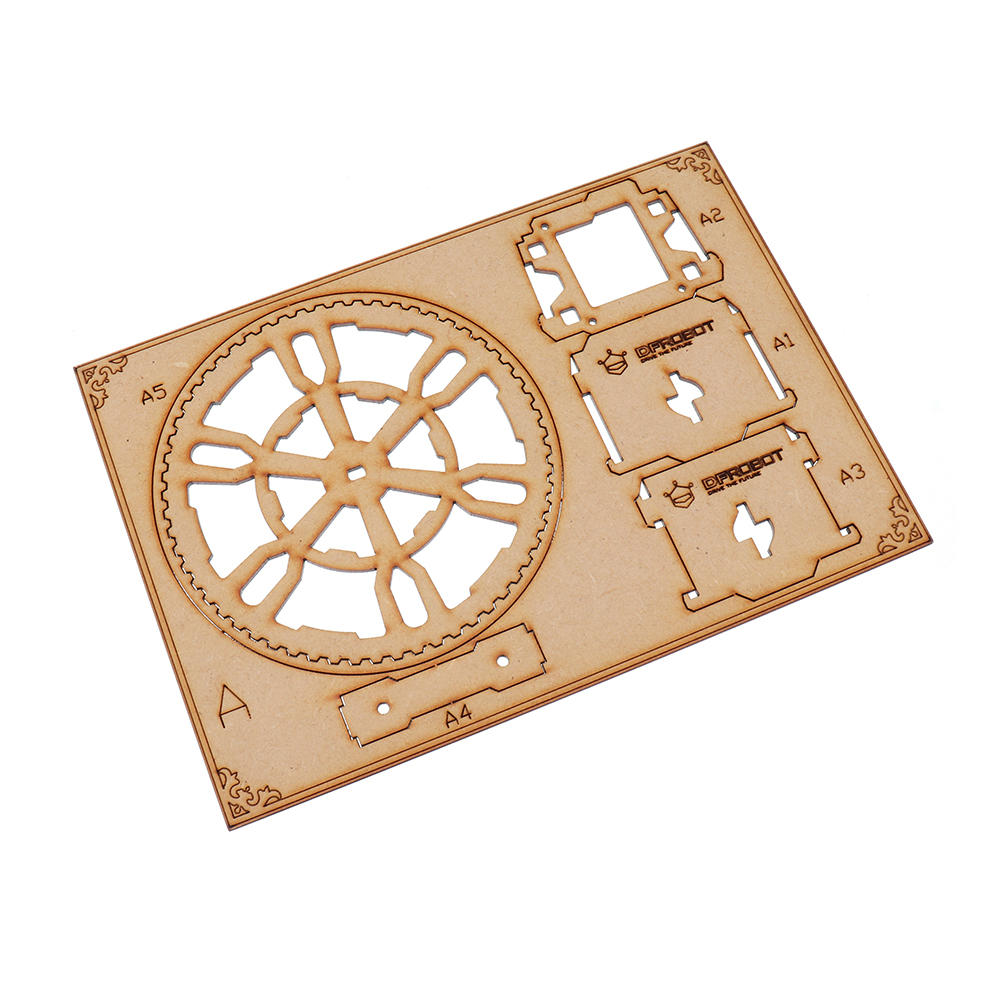

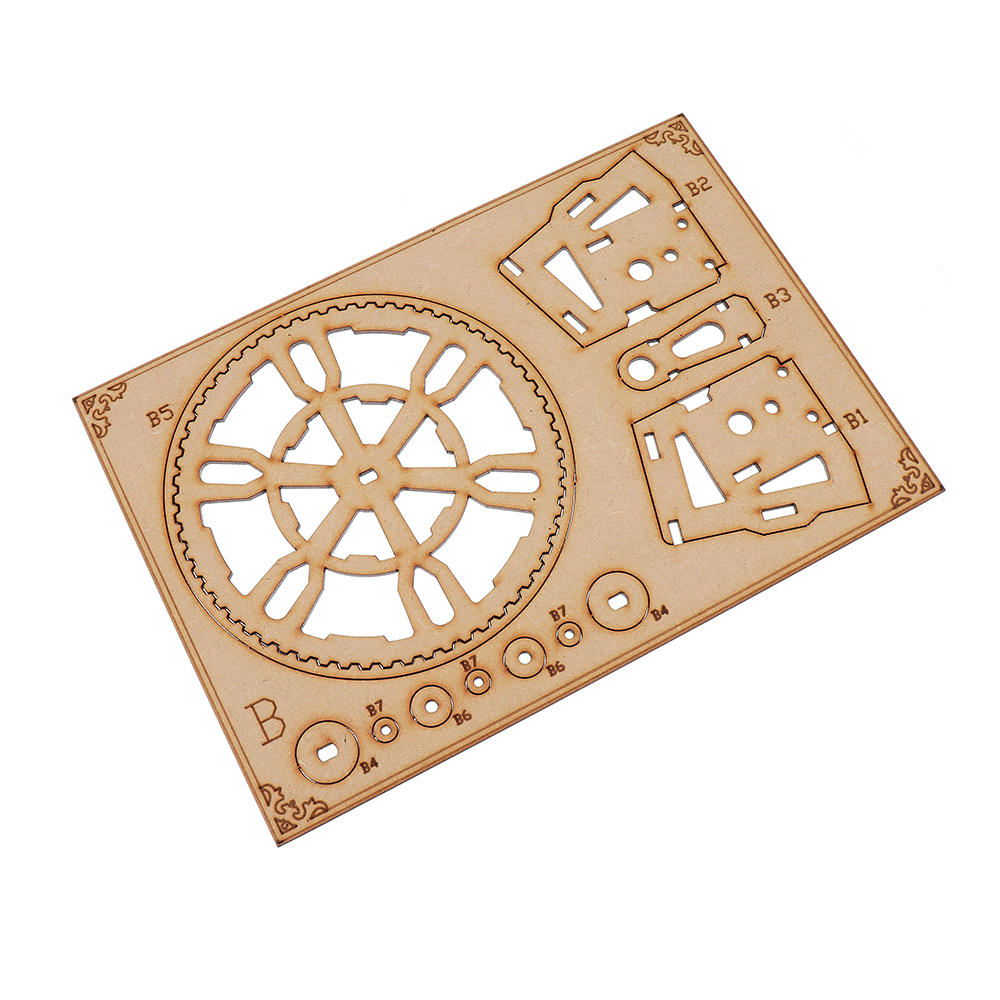

• Cut Wood Frame
• Silicone Ring x 1
• Screws
• Small Phillips Screwdriver x 1

 
Click to download Arduino IDE 
●  Android App Download 

Note:
1. This product is suitable for children and adolescents aged 8 years and over. Children under 6 years old should be accompanied by parents. 2. The battery connection must be confirmed again and again. Do not reverse it. Otherwise it will burn out the control board. 3, the current APP only supports iOS client, Android client is under development!
Package Included:
