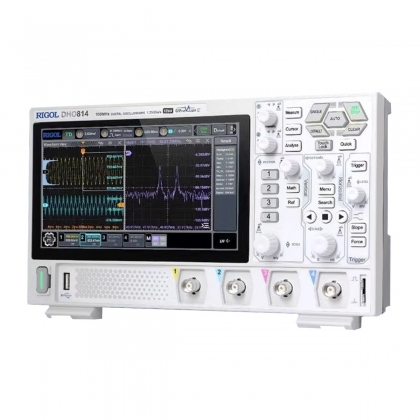

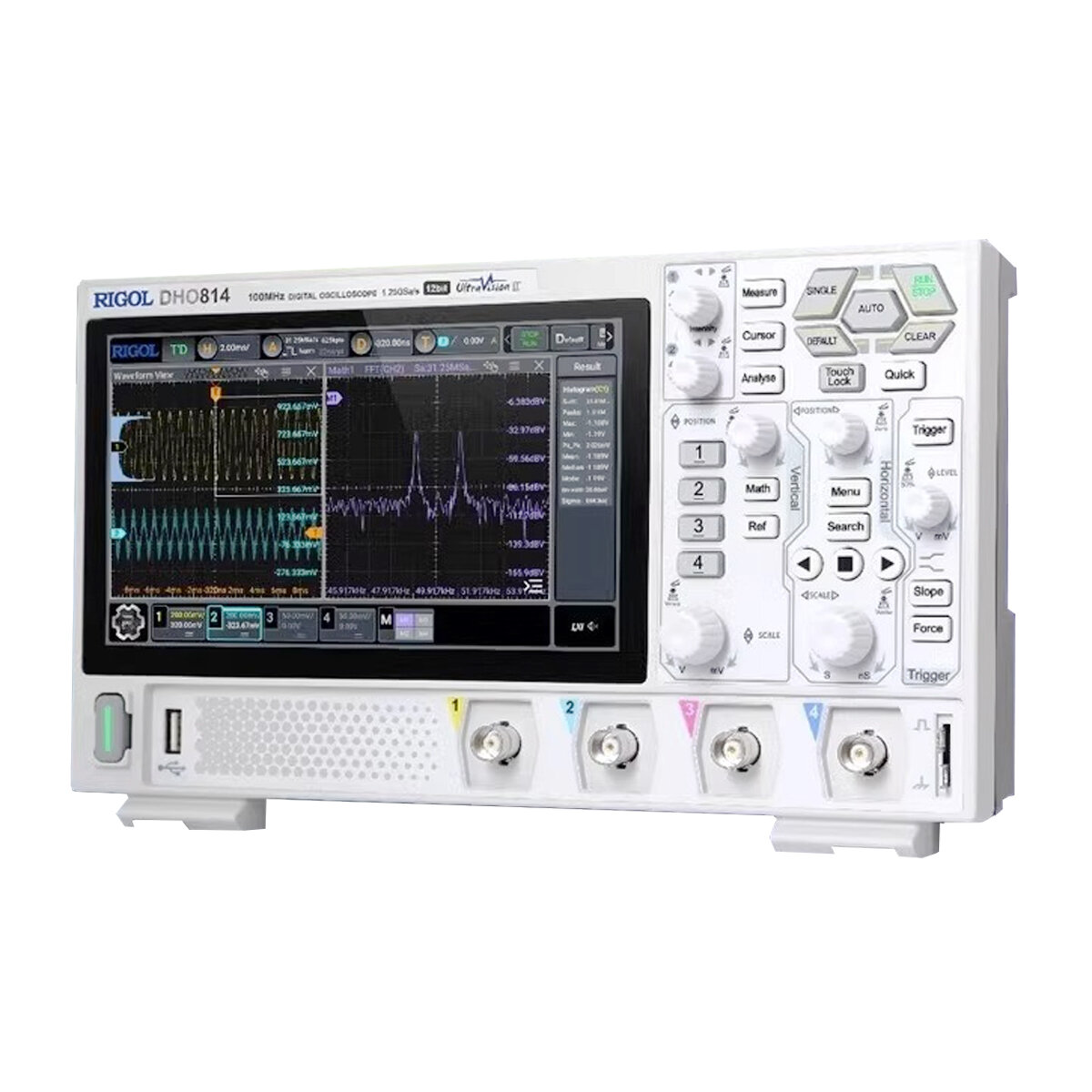

DHO804 Digital Oscilloscope High Performance 70MHz Frequency Band Sampling Rate Versatile USB & HDMI-compatible Connectivity Advanced 1,000,000 wfms/s Waveform Capture for Precise Analysis and Testing

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Ultra High-Resolution: The Digital Oscilloscope DHO804 comes with a 12-bit hardware for acquiring high-resolution data, making it a precise tool in analyzing signal variations.

High Sampling Rate: This oscilloscope offers a real-time sampling rate of 1.25 GSa/s, providing you with the most accurate waveforms for your experiment or testing purposes.

Advanced Waveform Capture: With up to 1,000,000 wfms/s waveform capture rate in UltraAcquire mode, it ensures no single disturbance or abnormality in your signal will be missed.

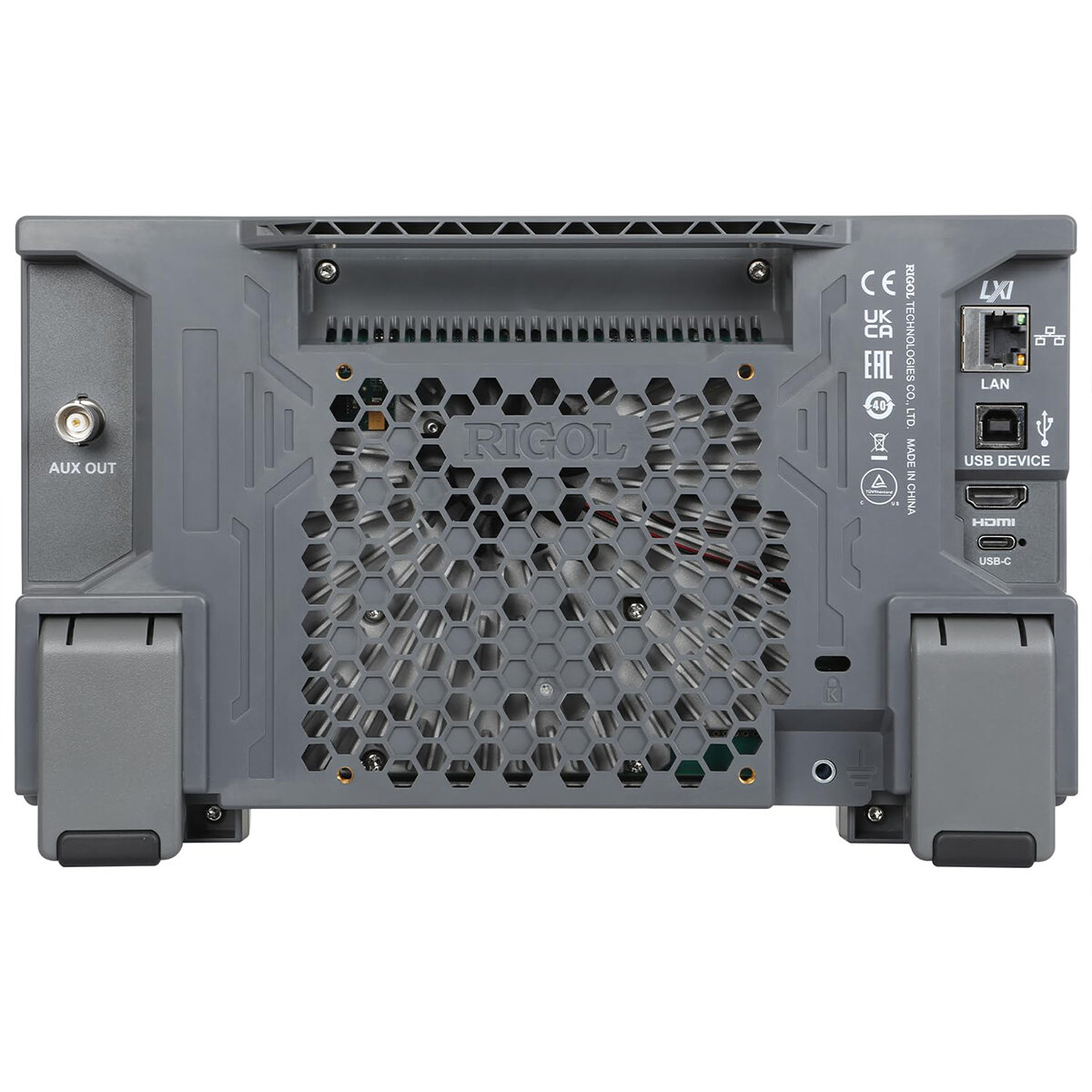

Versatile Connectivity: The device is equipped with USB Device & Host, LAN, and HDMI ports, giving you multiple options for data transmission and device connection.

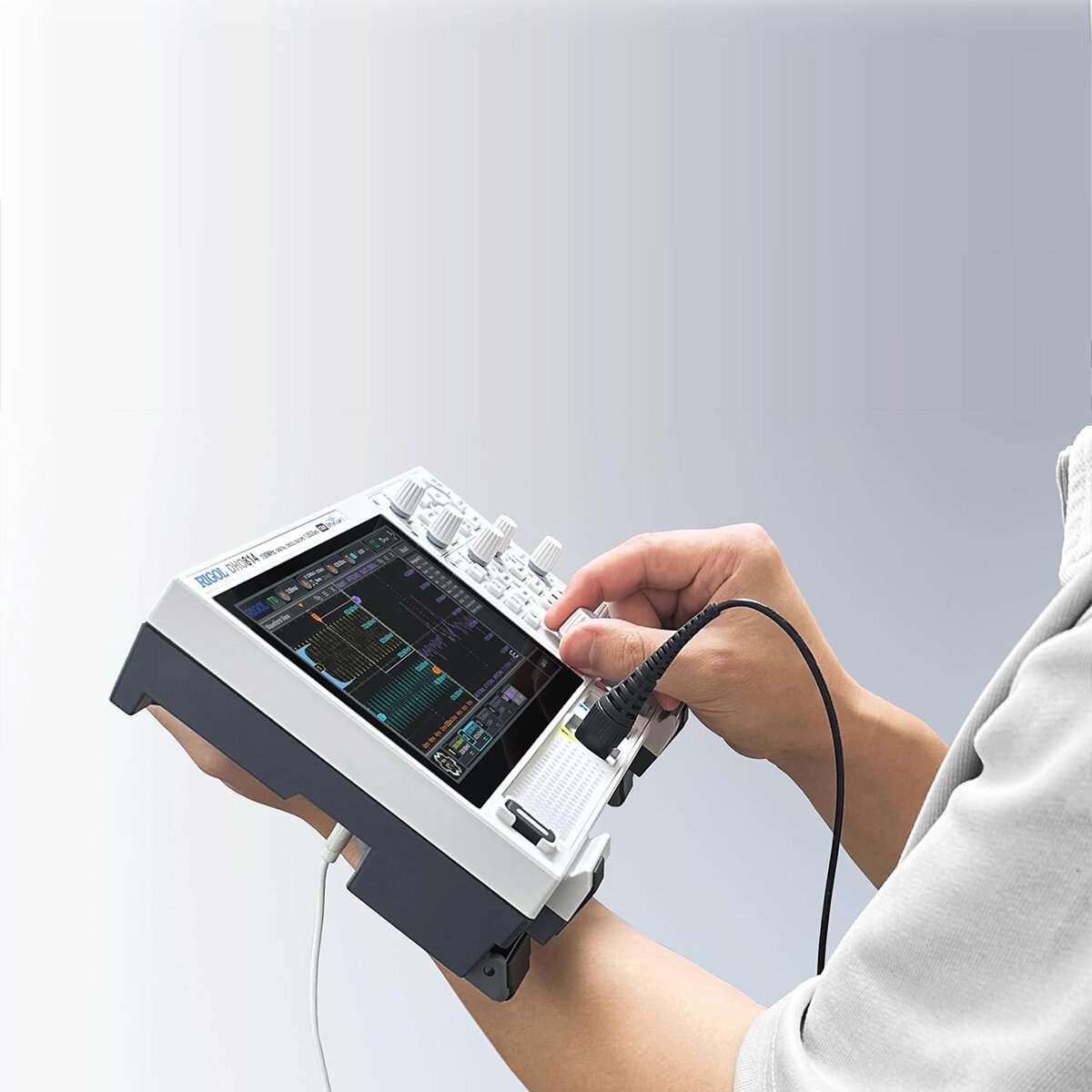

Readability: Featuring a 7-inch 1024*600 high-definition touch screen for clear visibility and easy operation, this oscilloscope is designed to make every session user-friendly and productive.



Frequency Band: 100MHz

Vertical Resolution: 12-bit

Sample Rate: Maximum 1.25 GSa/s

Storage depth: 25Mpts

Waveform Capture Rate: 1,000,000 wfms/s

Analog Channels: 4

Vertical Sensitivity Range: 500 μV/div to 10 V/div

Product Weight: 1.78 kg (3.9 lbs)

Dimensions: 265.36 x 161.75 x 77.38 mm (10.5 x 6.4 x 3.0 inches)

Power Interface: Type-C

Screen: 7 inch 1024 * 600 HD Touch Screen



1 x Digital Oscilloscope DHO804

1 x Power Cable

1 x USB Cable

1 x Ground Wire

4 x Probes
