DHO914 Digital Oscilloscope 125MHz Frequency Band 12-bit Vertical Resolution 1.25 GSa/s Sample Rate 4 Analog Channels High-Definition Touch Screen USB LAN HDMI-compatible Connectivity Professional Fun

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Advanced Technology: This Digital Oscilloscope comes with an impressive 125MHz frequency band, a 12-bit vertical resolution and a maximum 1.25 GSa/s sample rate. It has four analog channels, making it an ideal tool for professional and DIY use.

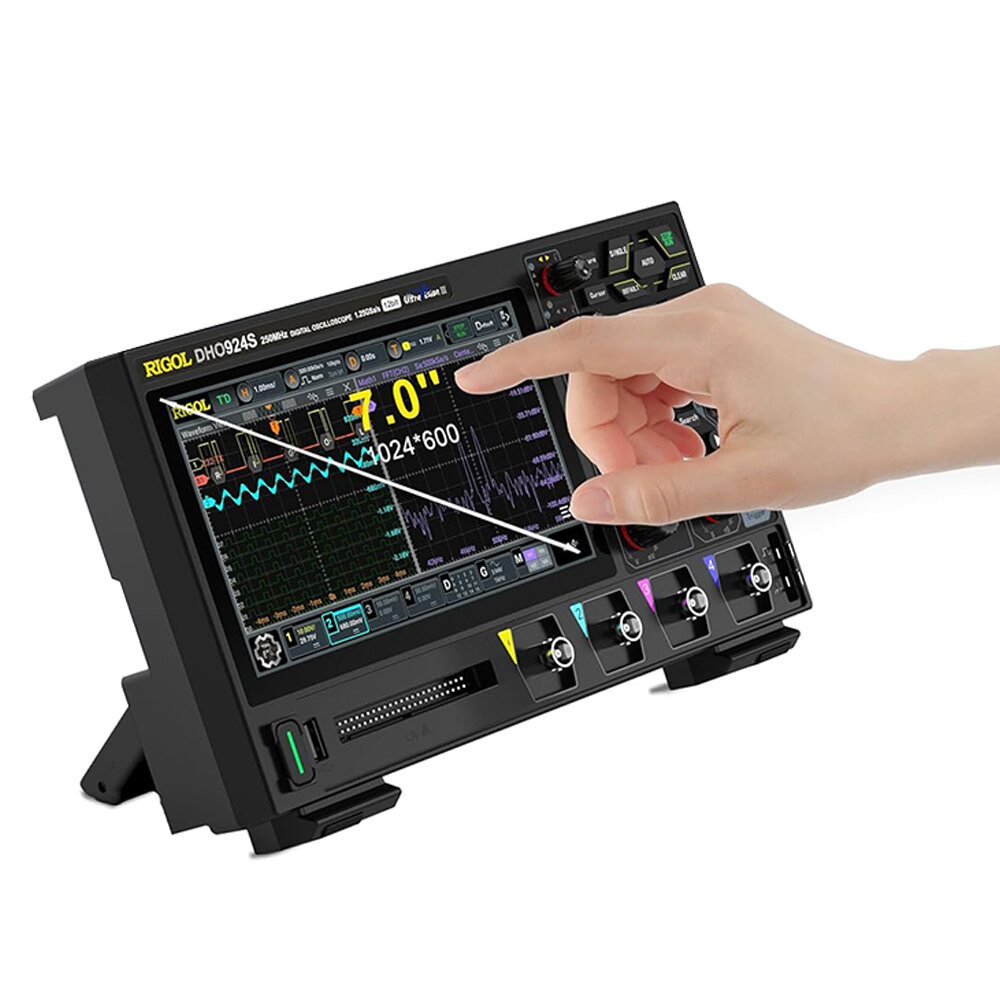

High-Quality Display: The oscilloscope features a 7-inch 1024 x 600 high-definition touch screen, providing users with real-time data. The gray scale digital real-time brightness function enhances the display for easy reading and data interpretation.

Robust Functions: From an arbitrary wave/function generator to digital signal analysis, this tool offers an array of functions in one unit. It also includes a waveform search and navigation function, enabling quick identification of signal abnormalities.

Exceptional Performance: The  Oscilloscope ensures ultra-low background noise to ensure signal purity. It can capture small signals without any miss and its ultra Aqua mode offers a waveform capture rate of up to 1 million wfms/s.

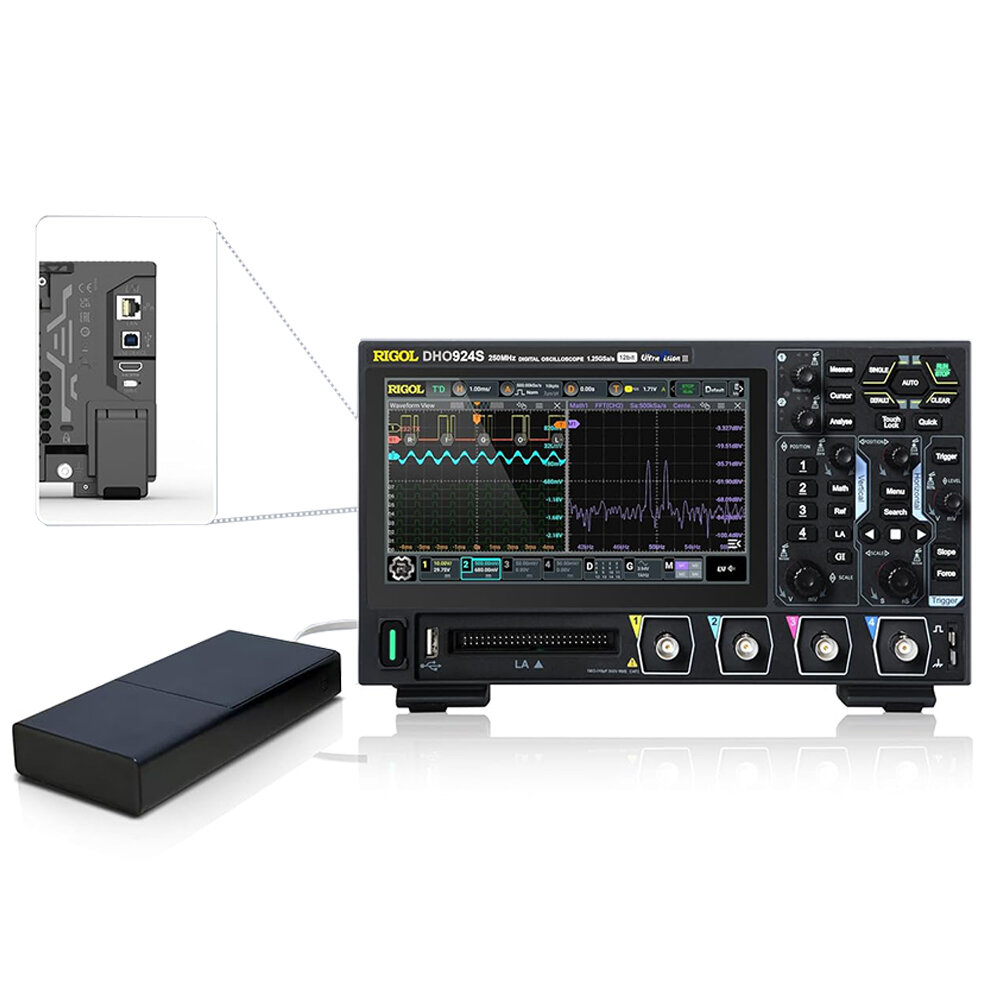

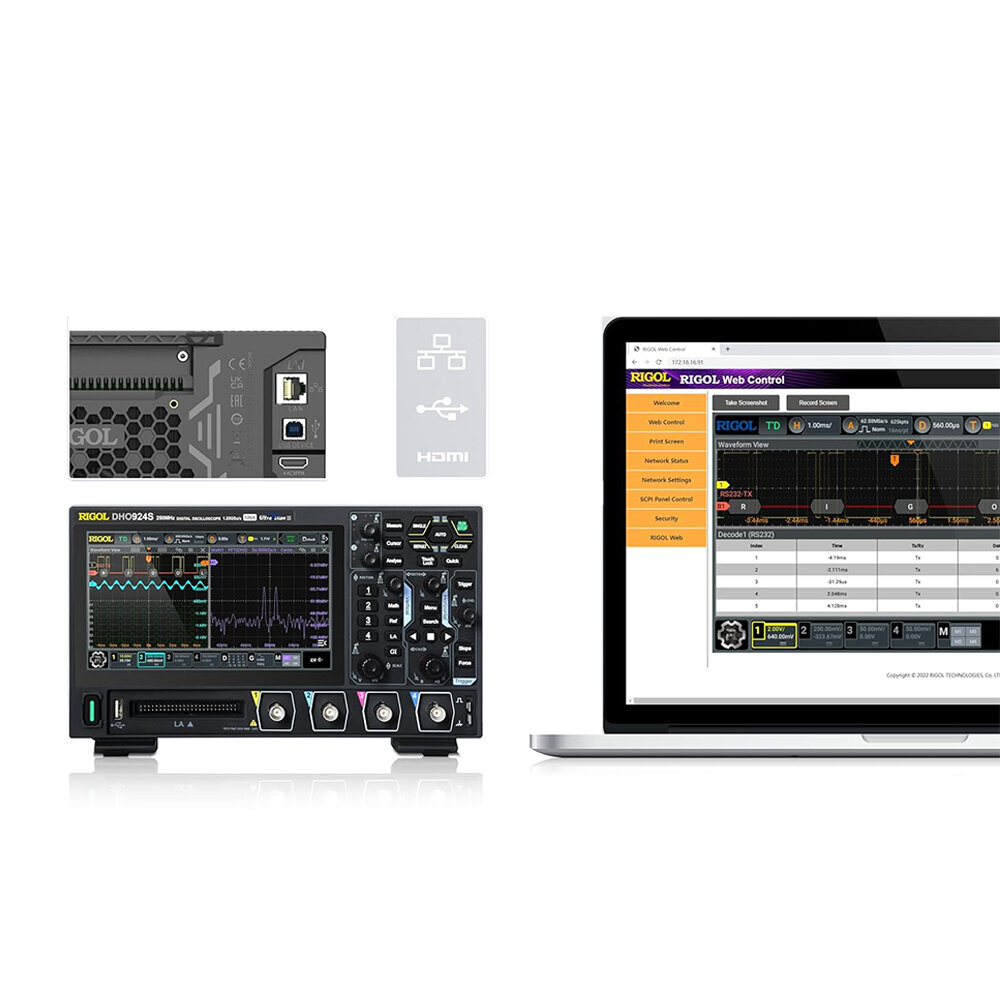

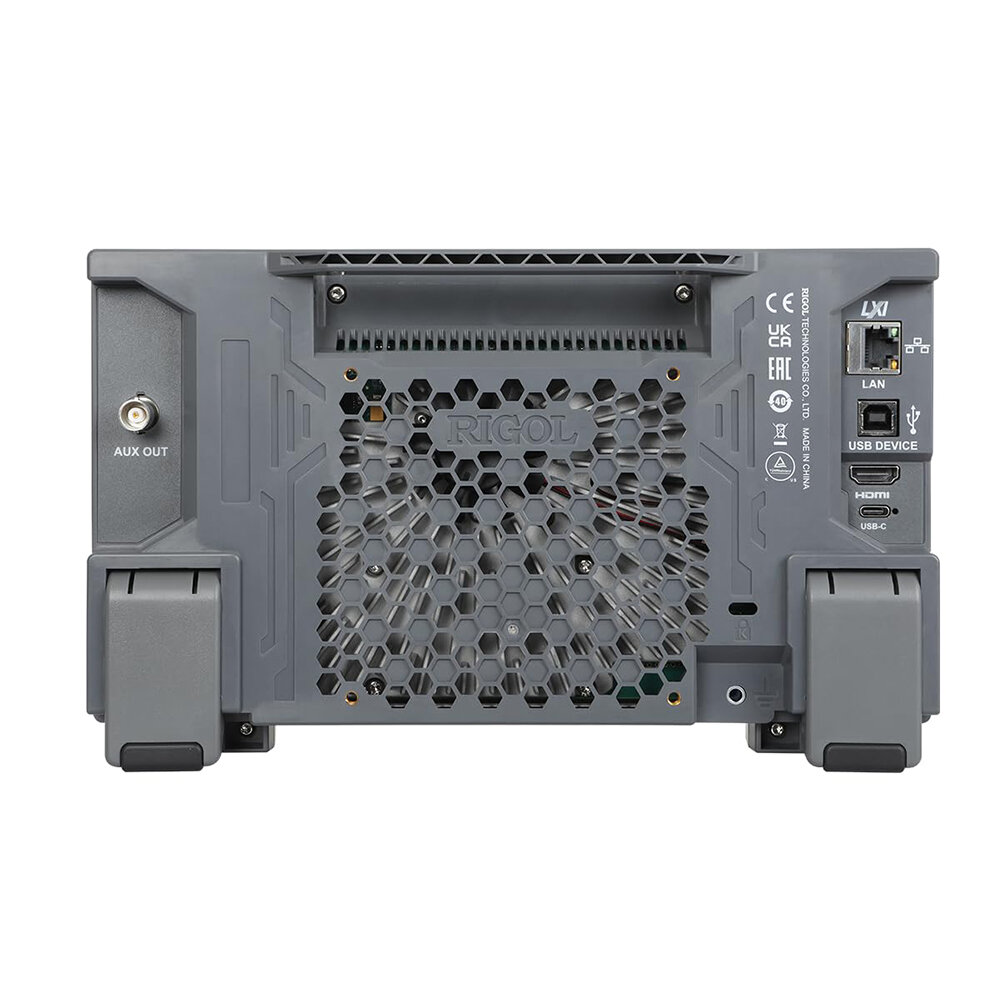

Easy Operation: All models come standard with USB Device & Host, LAN, and HDMI ports. Its new Flex knob design enhances user-friendliness. Additionally, it supports an online version upgrade function for enhanced convenience.



Model: DHO914

Frequency Band: 125MHz

Vertical Resolution: 12-bit

Maximum Sample Rate: 1.25 GSa/s

Analog Channels: 4

Digital Channels: 16 (optional)

Storage Depth: Up to 50 Mpts

Vertical Sensitivity Range: 200 μ/div to 10 V/div

Weight: 3.9 lbs (1.78 kg)

Dimensions: 10.5 x 6.4 x 3.0 inches (265.36 x 161.75 x 77.38 mm)

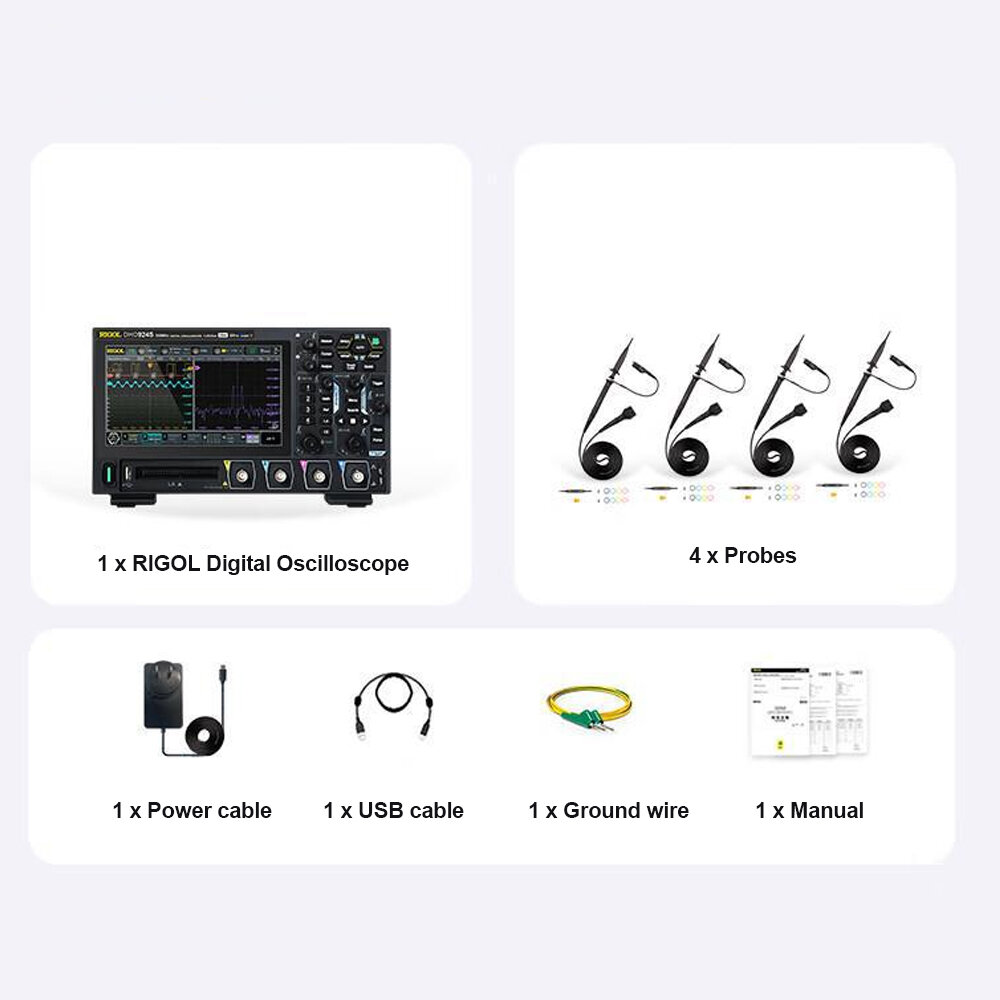

1 x RIGO Digital Oscilloscope

1 x Power cable

1 x USB cable

1 x Ground wire

4 x Probes
