DS1202Z-E Digital Oscilloscope, 200Mhz Bandwidth 2 Channels, 1GSa/s Sampling Rate 24Mpts Memory Depth USB/LAN Interfaces for High-Speed Signal Processing and Accurate Results

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

1. High Bandwidth: This DS1202Z-E Digital Oscilloscope offers a 200MHz bandwidth, enabling high-speed signal processing and providing accurate results.

2. Dual Channels: With 2 analog channels, this device allows users to record and observe two separate input signals simultaneously, maximizing efficiency.

3. Advanced Sampling Rate: It features a real-time sample rate up to 1 GSa/s and a memory depth of up to 24 Mpts, ensuring comprehensive data collection and high-resolution waveform output.

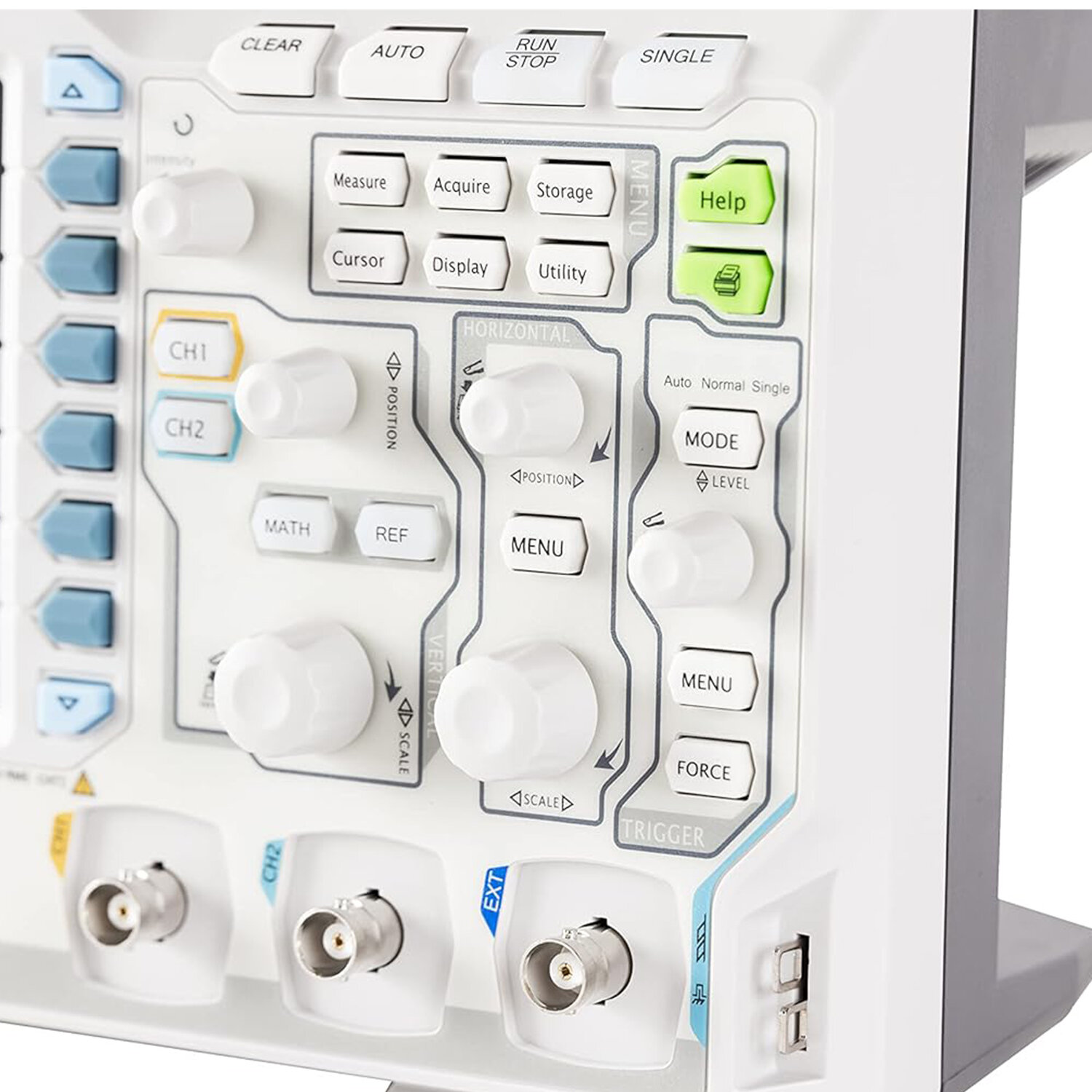

4. Multifunctional: DS1202Z-E includes various trigger and bus decoding functions, offering flexibility for different measurement and analysis needs.

5. Enhanced Display: It features a 7 inch WVGA TFT LCD with intensity graded color display, providing clear and detailed visual representation of waveforms.

Power Source: Corded Electric

Color: White

Item Weight: 2.89 Kilograms

Item Dimensions: 12.33 x 6.33 x 4.82 inches

Analog channel bandwidth: 200 MHz

Analog channels: 2

Real-time sample rate: 1 GSa/s

Memory depth: 24 Mpts

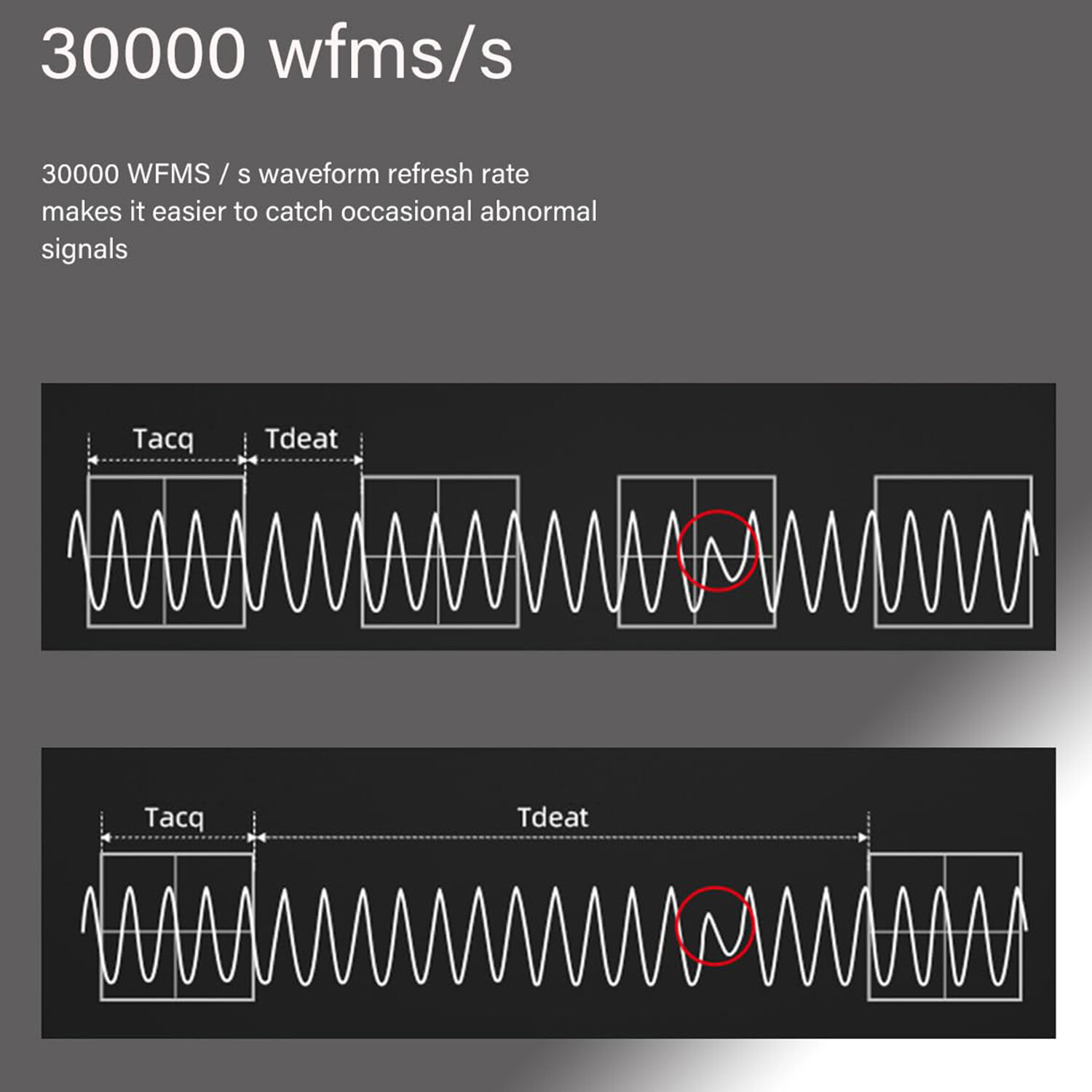

Waveform capture rate: 30,000 wfms/s

Hardware real-time waveform recording and playback: 60,000 frames

Low noise floor, vertical scale range: 1 mV/div to 10 V/div

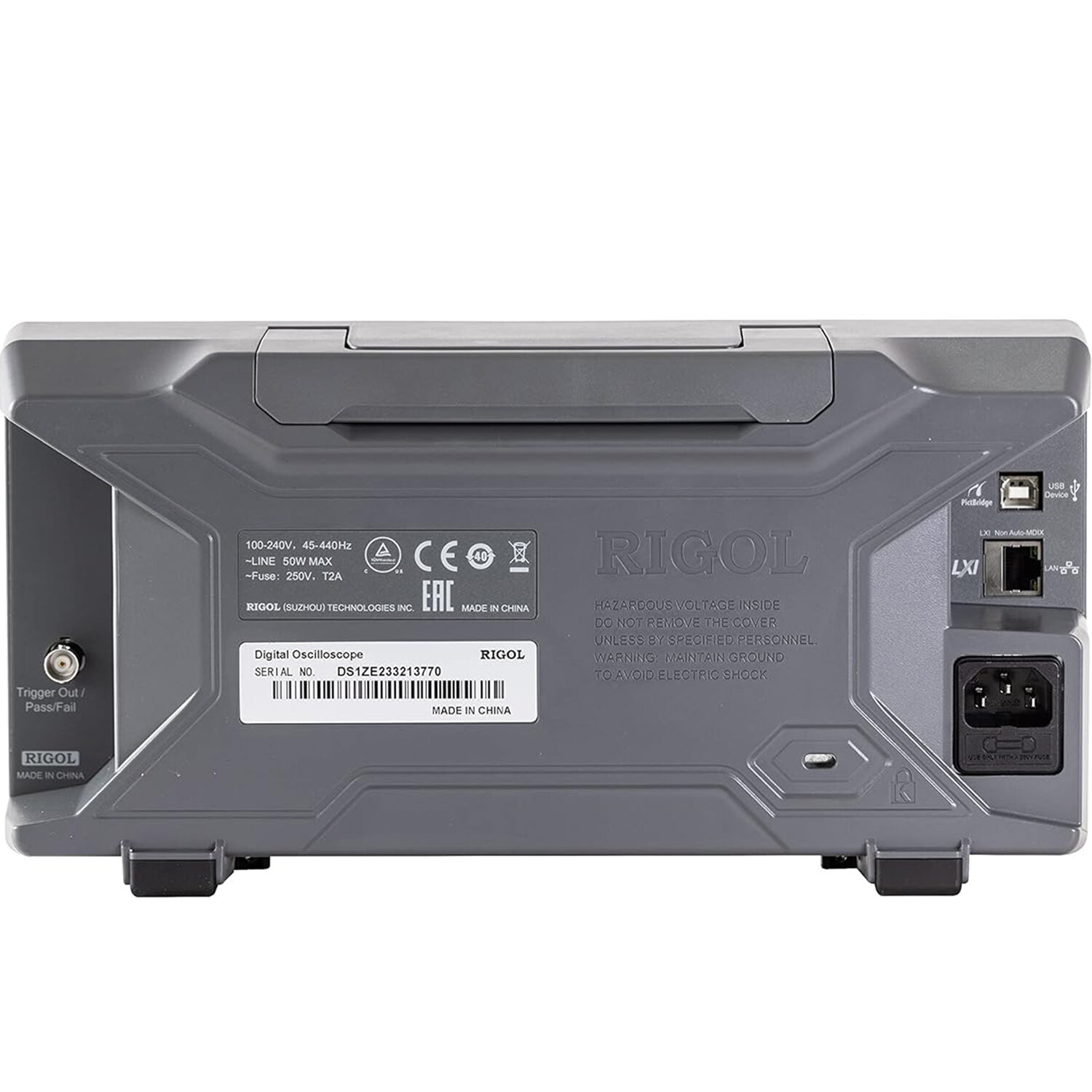

Interfaces: USB Host&Device, LAN (LXI), AUX

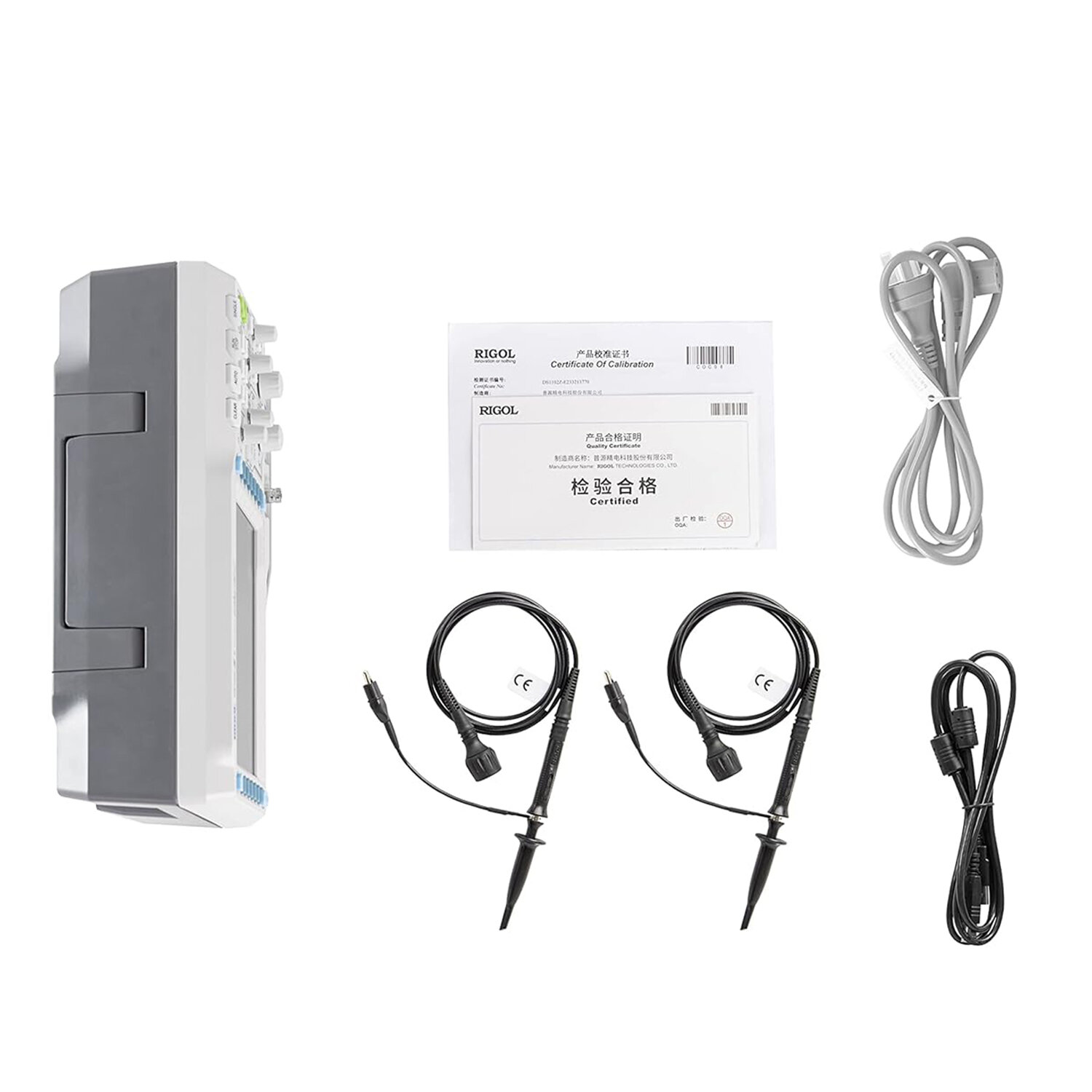

1 x DS1202Z-E Digital Oscilloscope

1 x Power Cord
