>>Please Click Here to Download the English User Manual<<

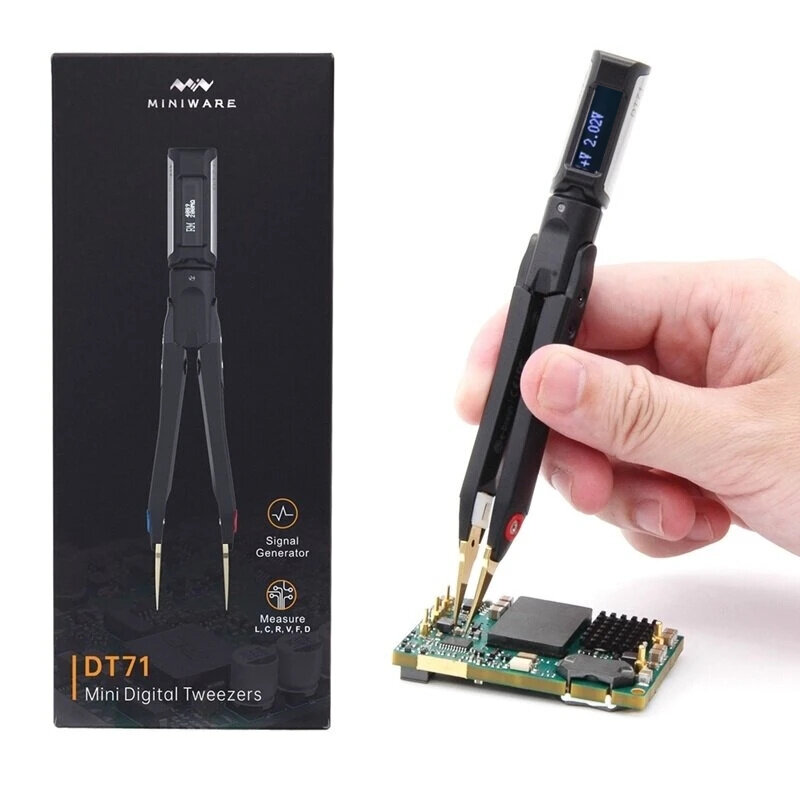

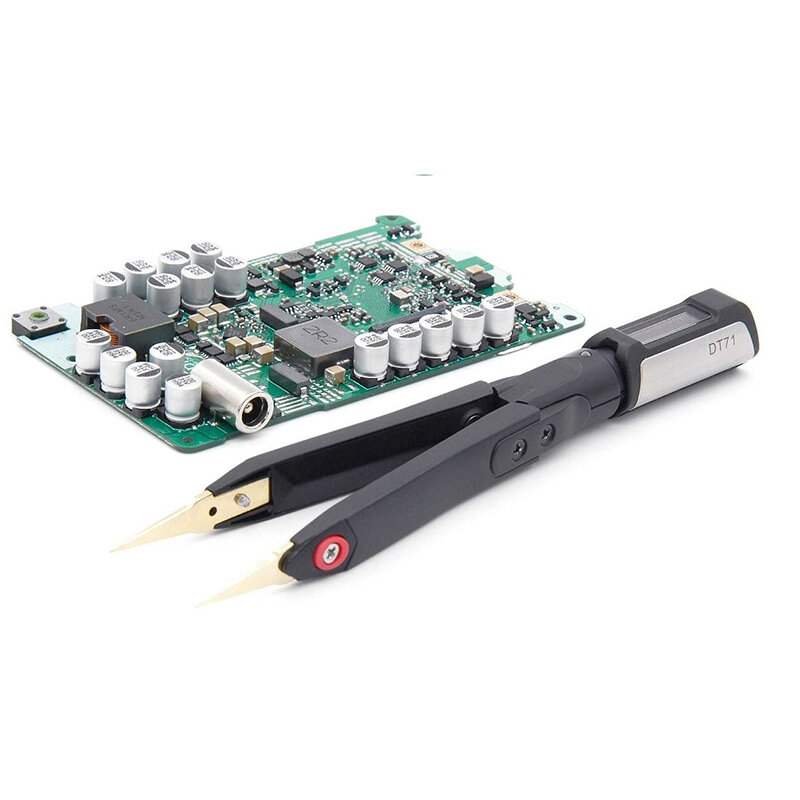

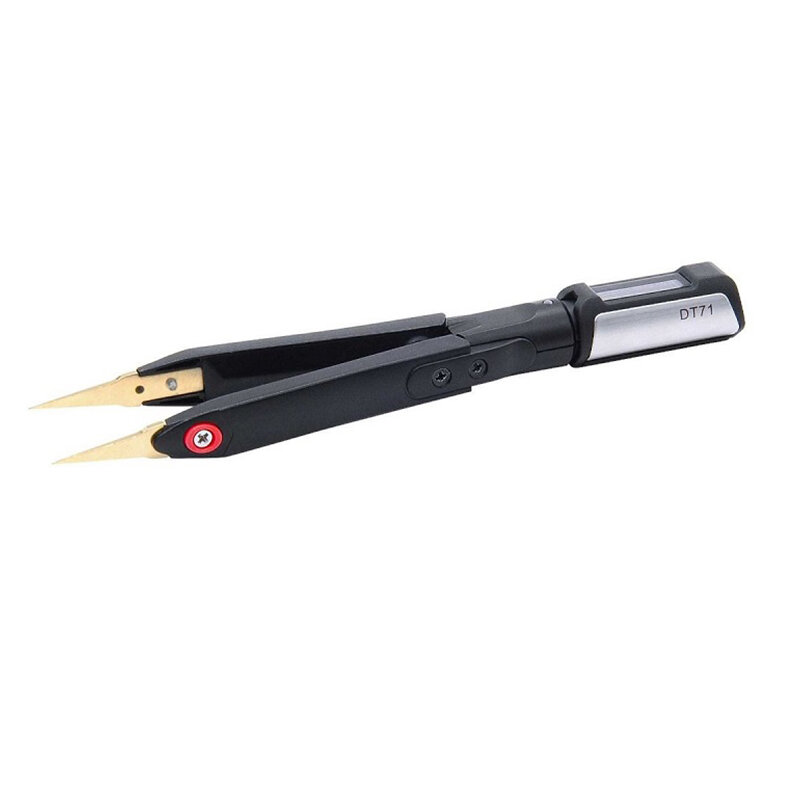

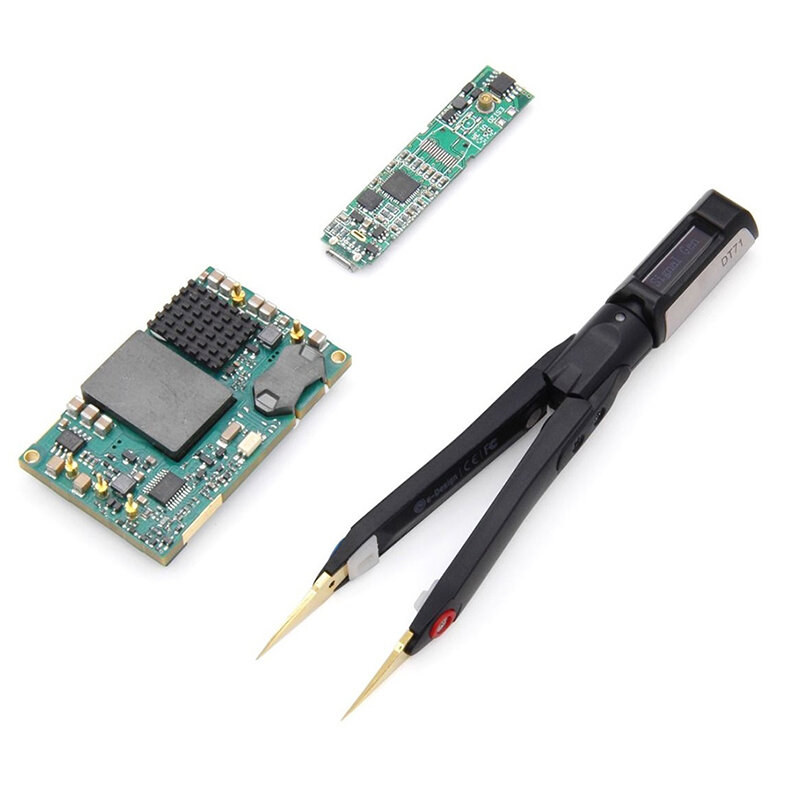

• DT71 Mini Digital Tweezers is a tool for multi-function measurements with full differential input measurement. DT71 has a unique trinary structure, which can be separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined.

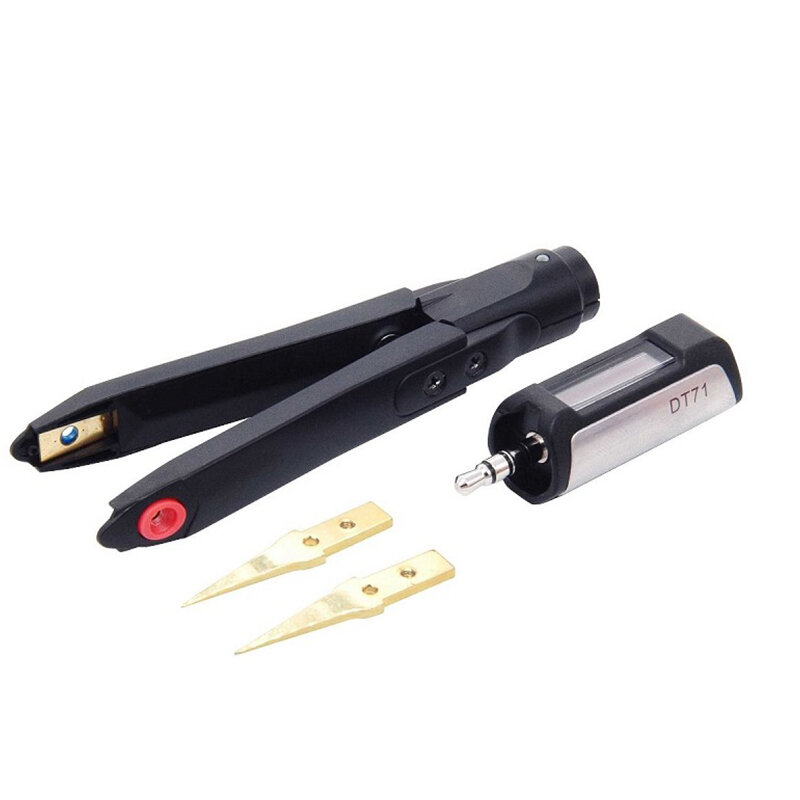

• Innovative trinary structure: separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined.
• 360° rotatable controller with OLED screen, with good viewing angles.
• Smart gesture recognition with automatic identification of left/right-hand operation and adjusting the screen orientation accordingly.
• Hidden touch button on top of the controller, which makes it easy to operate with only a light touch.
• Test arms use magnetic elasticity to provide an easy clipping, ergonomic, and long-lasting structure.
• Built-in dual lithium batteries in test arms, balancing both arms and providing a longer standby time.
• Several kinds of gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages.

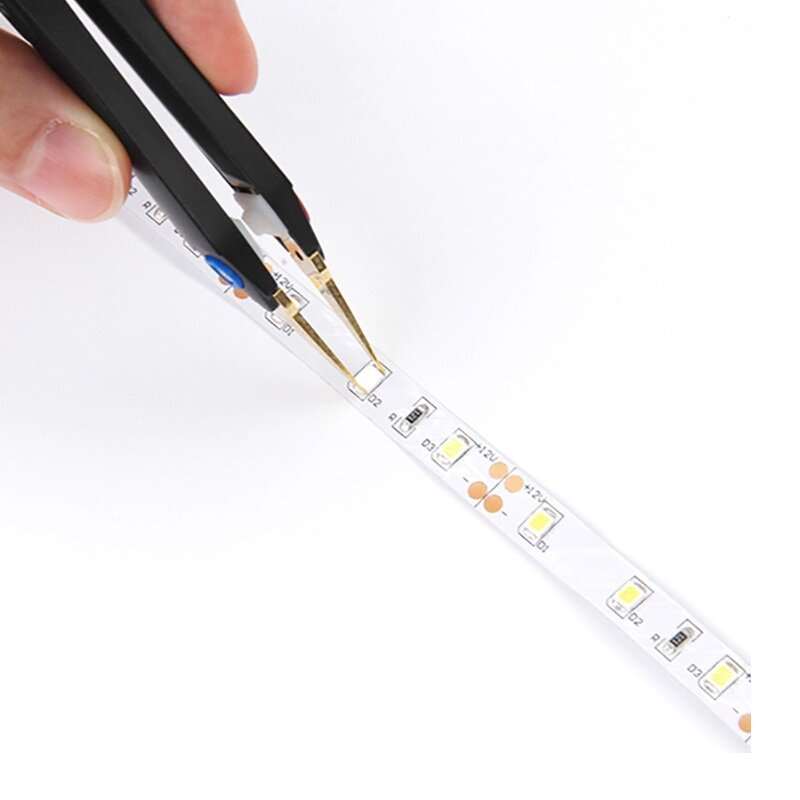

• Automatically identify SMDs including resistor, capacitor, inductor, and diode, showing both main and secondary parameters.
• A built-in signal generator can output a variety of waveform signals.

Operation time	10 hrs (in continuous operation)
Charging time	2 hrs
Display	96*16 OLED
Measurement
Resistance	0.1Ω~1KΩ	0.1Ω	0.5%+2
	1KΩ~2000KΩ	1KΩ	0.5%+2
Inductance	1uH~1000uH	1uH	5%+3
	1mH~50mH	1mH	5%+3
Frequency	10Hz~1KHz	10Hz	0.1%+3
	1KHz~20000KHz	1KHz	0.1%+3
Diode	silicon diodes, Schottky diodes, LEDs (+0.1~3V)	0.1V	1%
Max input voltage	-5V~+50V
Source Impedance	1MΩ
Automatic Identification	Yes
Designated measurements	Yes
Continuity and Diode testing	Yes
Signal generator	SINE	Support: 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz
	NOISE	Support: 100KHz
	USER	Support: 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz
	PULSE	Support: 100KHz, 0KHz, 20Khz, 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz

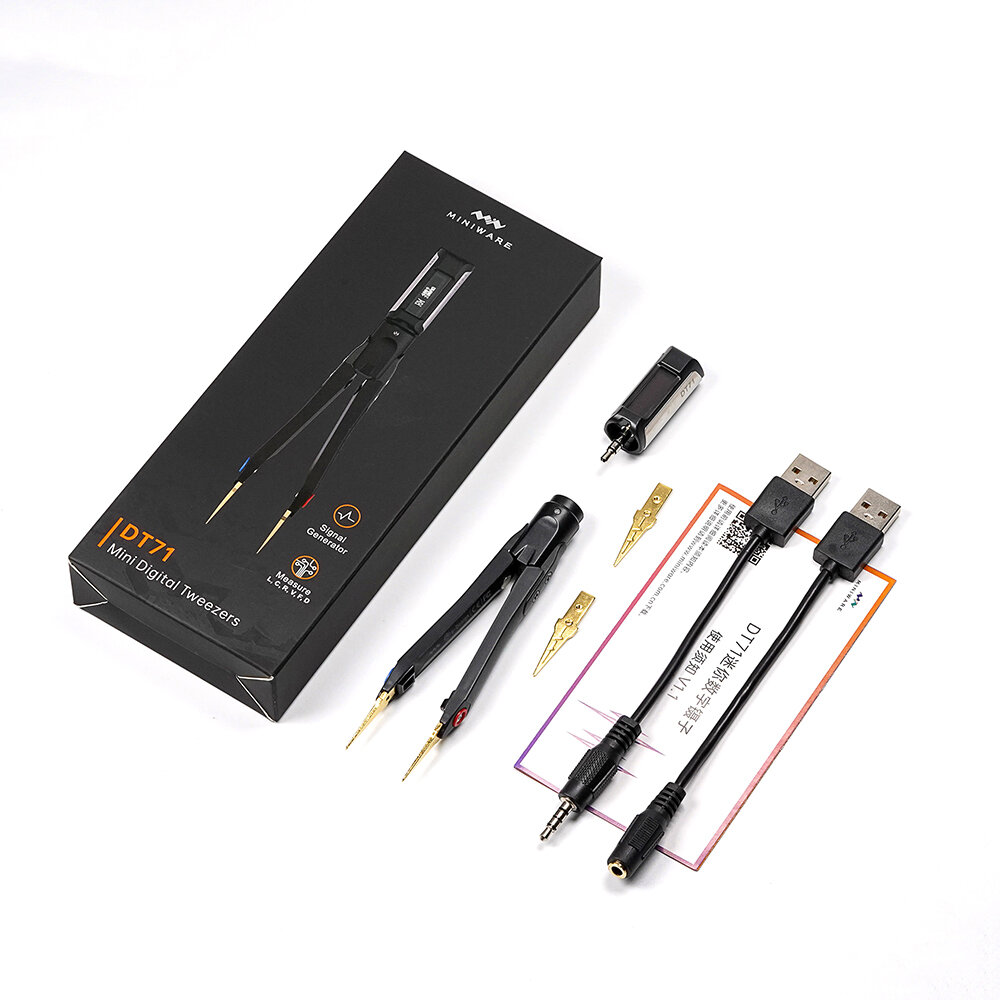

Package includes:

1 x DT71 Controller

1 x Test Arms

2 x Tweezer Tips

1 x Data Cable

1 x Charging Cable
