ELEGOO® SATURN MSLA 4K 8.9" MONOCHROME LCD Resin 3D Printer UV Photocuring LCD Resin 3D Printer with 4K Monochrome LCD/Matrix UV LED Light Source/Off-Line/WLAN Print/ Print Size 192x120x200mm

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

• - Saturn 3D printer comes with an 8.9inch 4K Monochrome LCD with an HD resolution of 3840 x 2400, reducing the layer printing time to 1.5s-2s, which is 60% faster than Mars Pro yet still delivers outstanding printing results.
• - Saturn has a large printing volume of 192*120*200 mm/7.55in*4.72in*7.87in, and you can print multiple full-sized models at the same time, which can dramatically improve your productivity.

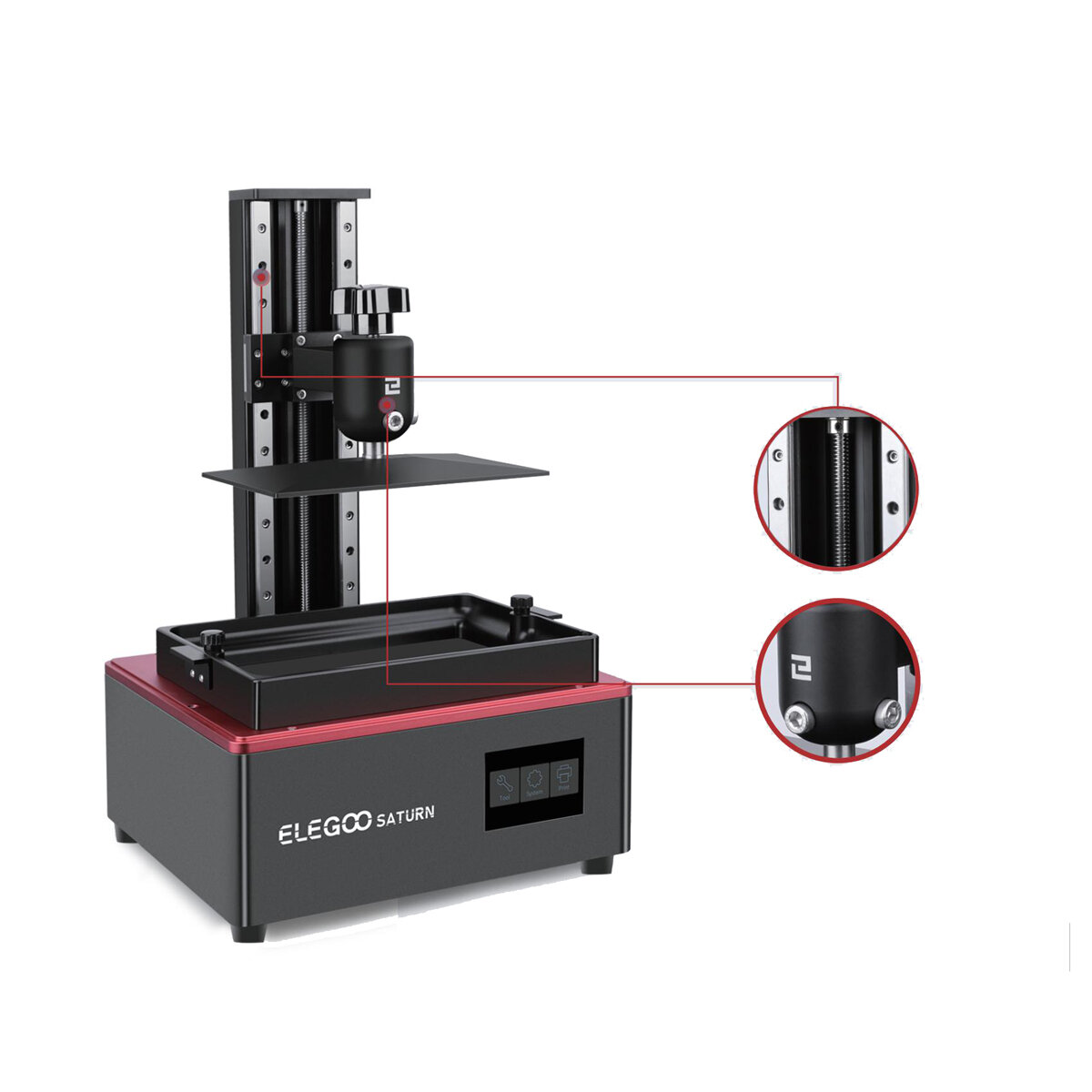

• Higher precision and easier printing - Z-axis utilizes a double linear guide way structure, which can achieve steadier motion and greatly enhanced moving accuracy. With the Ethernet port on the back and 4 GB built-in data disk, Saturn now supports file transfer through your local area network, which is very handy for fast printing.
• - Matrix light source consists of 54 UV LED lights with uniform light emission, ensuring superior print results and a more accurate printing size. The set screws on the build plate assure long-lasting leveling, no need for frequent calibration, and the sandblasted surface provides a much stronger adherence, especially when printing large 3D models.
• We provide a 1-year warranty on the whole printer (4K LCD, FEP film, and tool kit excluded).

Some File for you to download:

* Firmware

Latest Firmware: Click to download

https://youtu.be/NJhucYuSjjk

3.Machine Parameters: Click to Download

*Caution:

*How to update:
Step 1 - Copy the file to the root directory of the USB flash drive

Step 3 - Print the file on the printer to update.

* Video Tutorials

Click to Download USB DRIVE FILES (MANUAL & SLICING SOFTWARE INCLUDED)

* Resin Setting

 for ELEGOO resin on ELEGOO Printers:  ELEGOO Printers Resin Setting Sheet

2.  for most brands resin on ELEGOO Saturn Seires Printers (Contributed by our community members):

Resin Settings for ELEGOO Saturn Series Printers

• System: EL3D-3.0.1
• Operation: 3.5-Inch Touch Screen
• Slicer Software: Chitu DLP Slicer
• Connectivity: USB
• Technology: LCD UV Photocuring
• Light source: UV Integrated LED lights (wavelength 405 nm)
• XY Resolution: 0.05 mm(3840*2400)
• Z Axis Accuracy: 0.00125 mm
• Layer Thickness: 0.01-0.15 mm
• Printing Speed: 30-40 mm/h
• Power Requirements: 110-240V 50/60Hz 24V4A 96W
• Printer Dimensions: 11.02in (L) * 9.44in (W) * 17.55in (H)/28 cm(L)*24 cm (W) * 44.6 cm (H)
• Build Volume: 7.55in (L) * 4.72in (W) * 7.87in (H) /192 mm (L) * 120 mm (W) * 200 mm (H)
• Weight: 22 Lbs (10 Kg)
