Description:

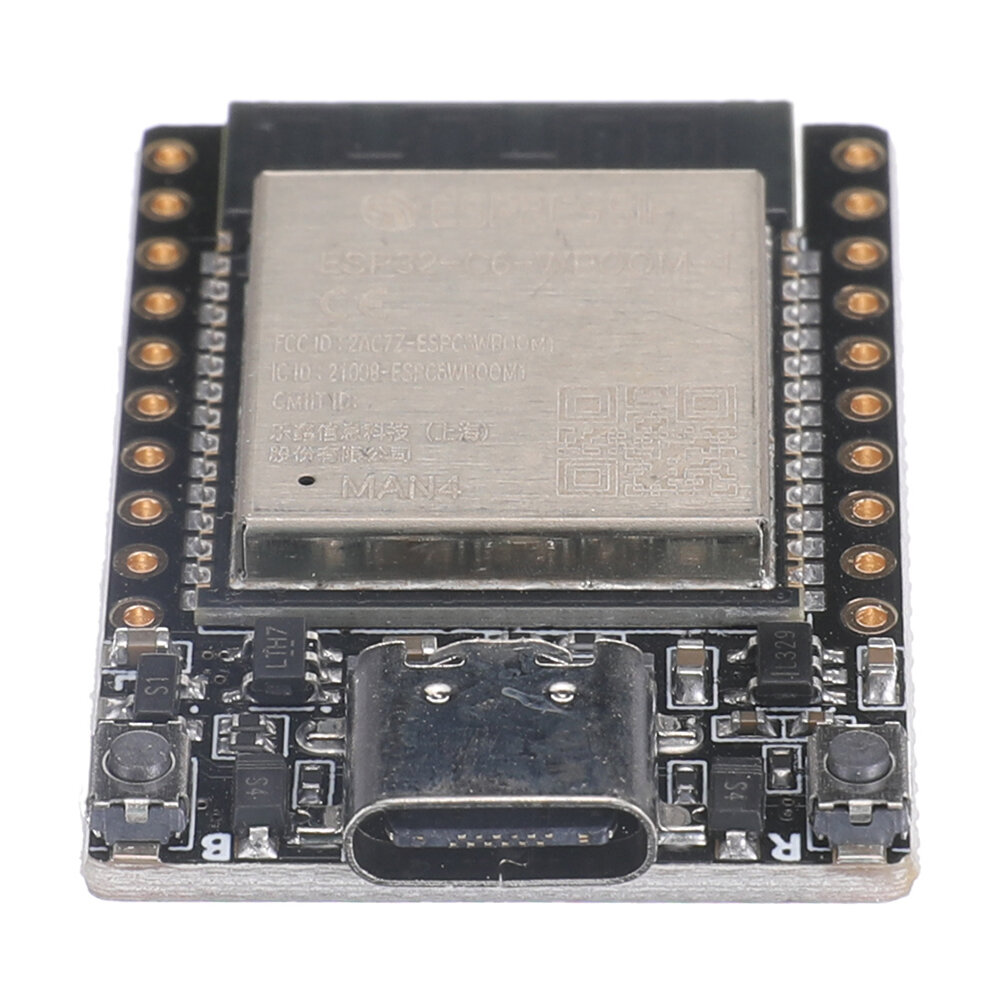

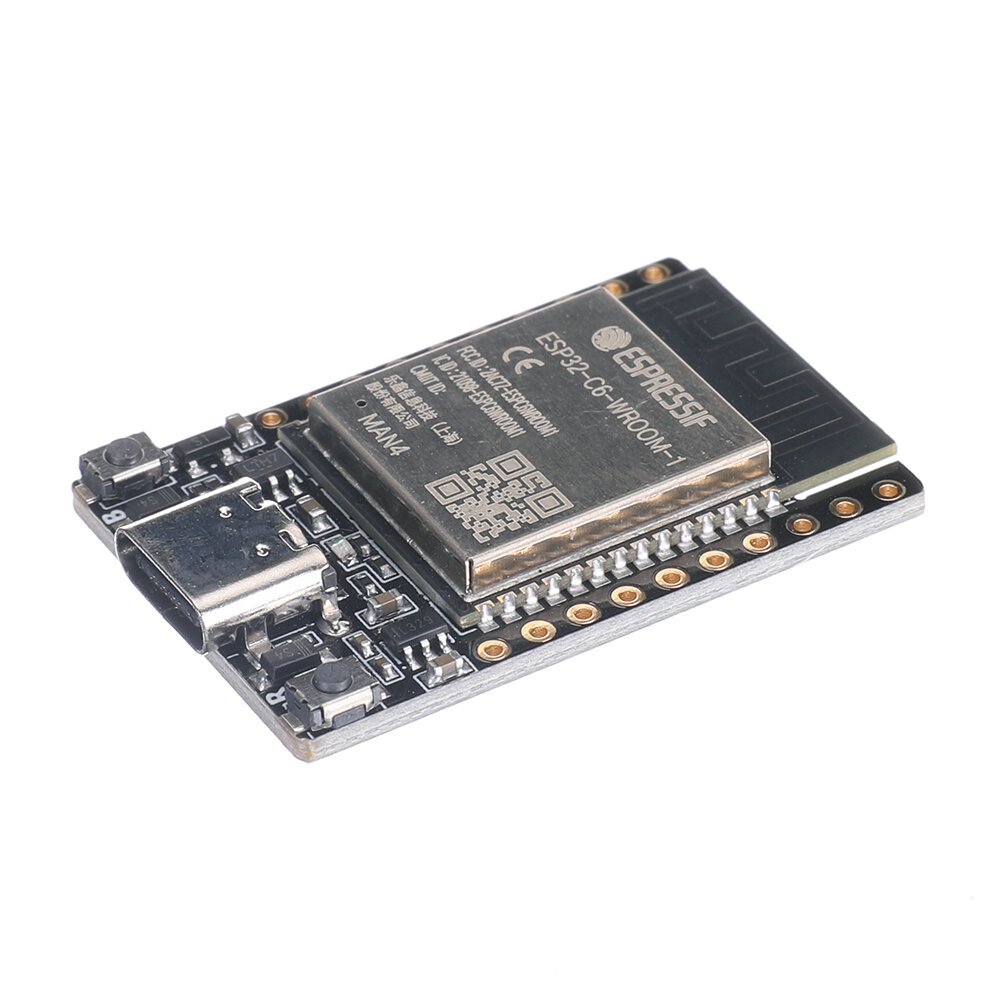

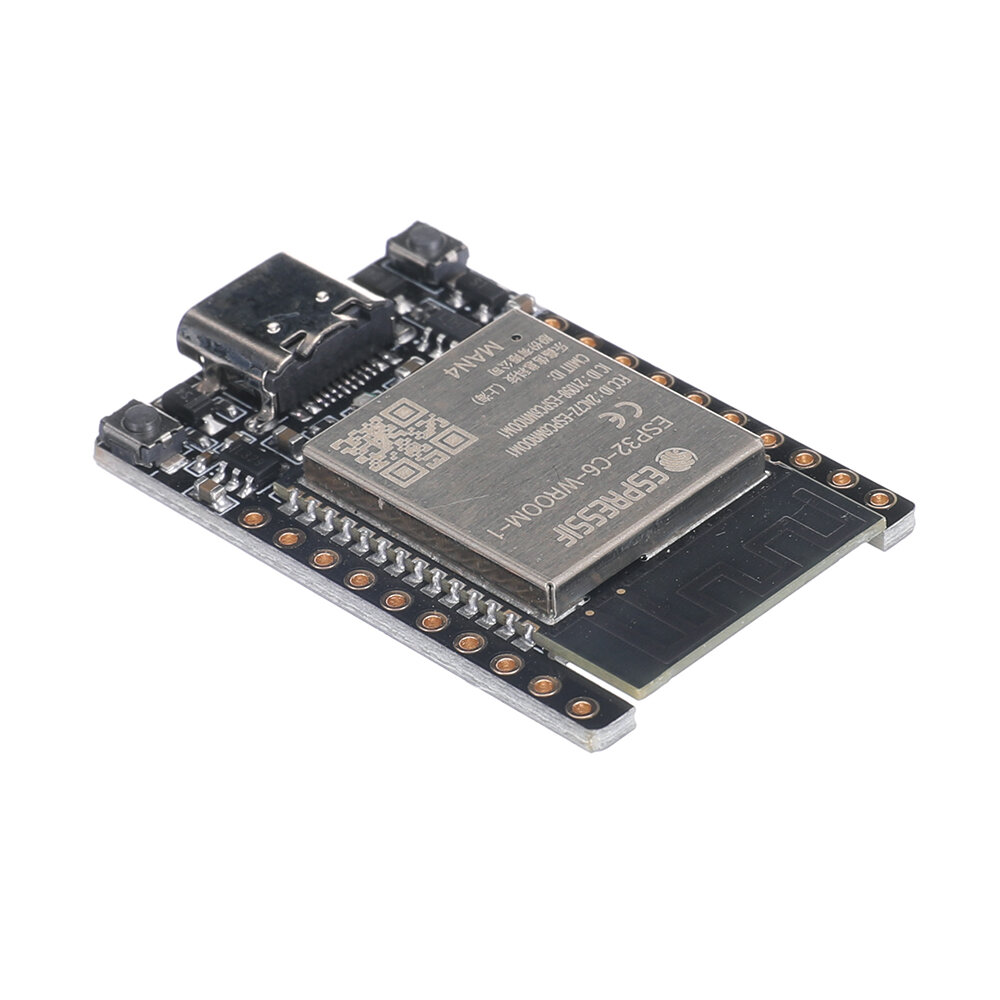

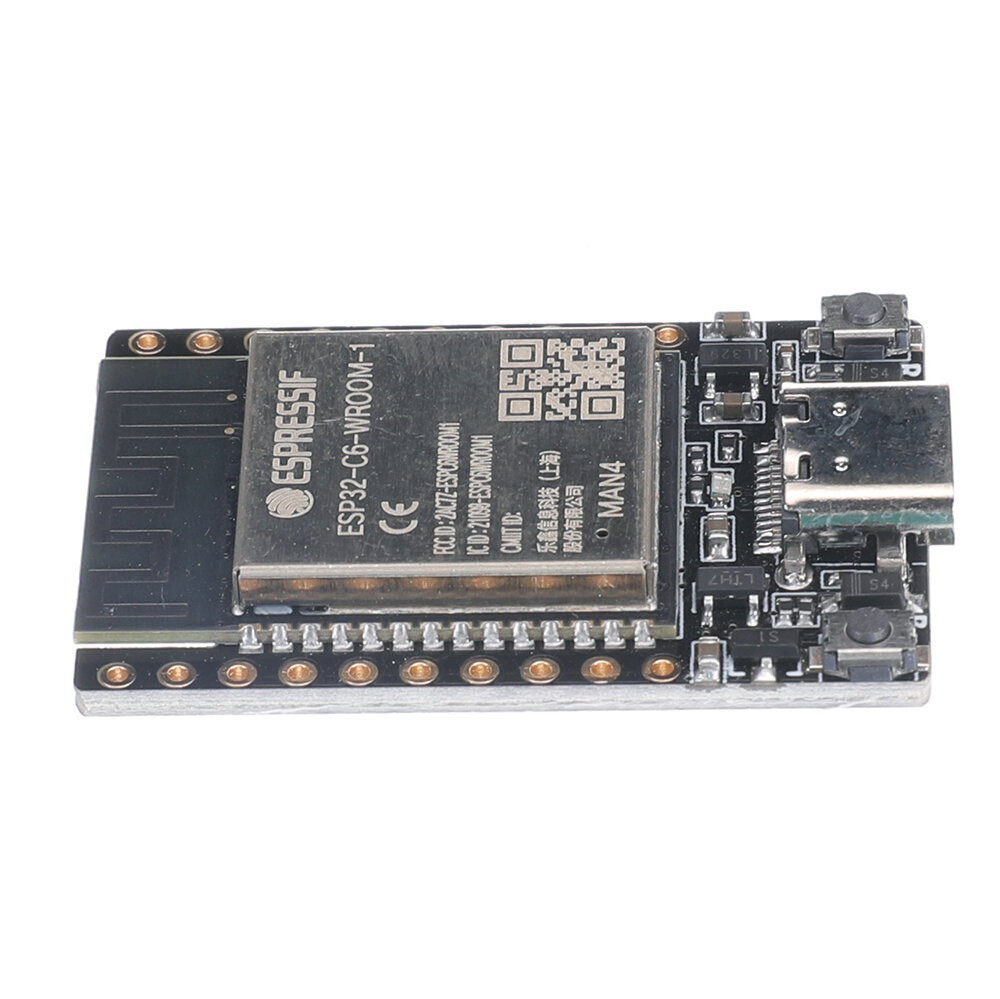

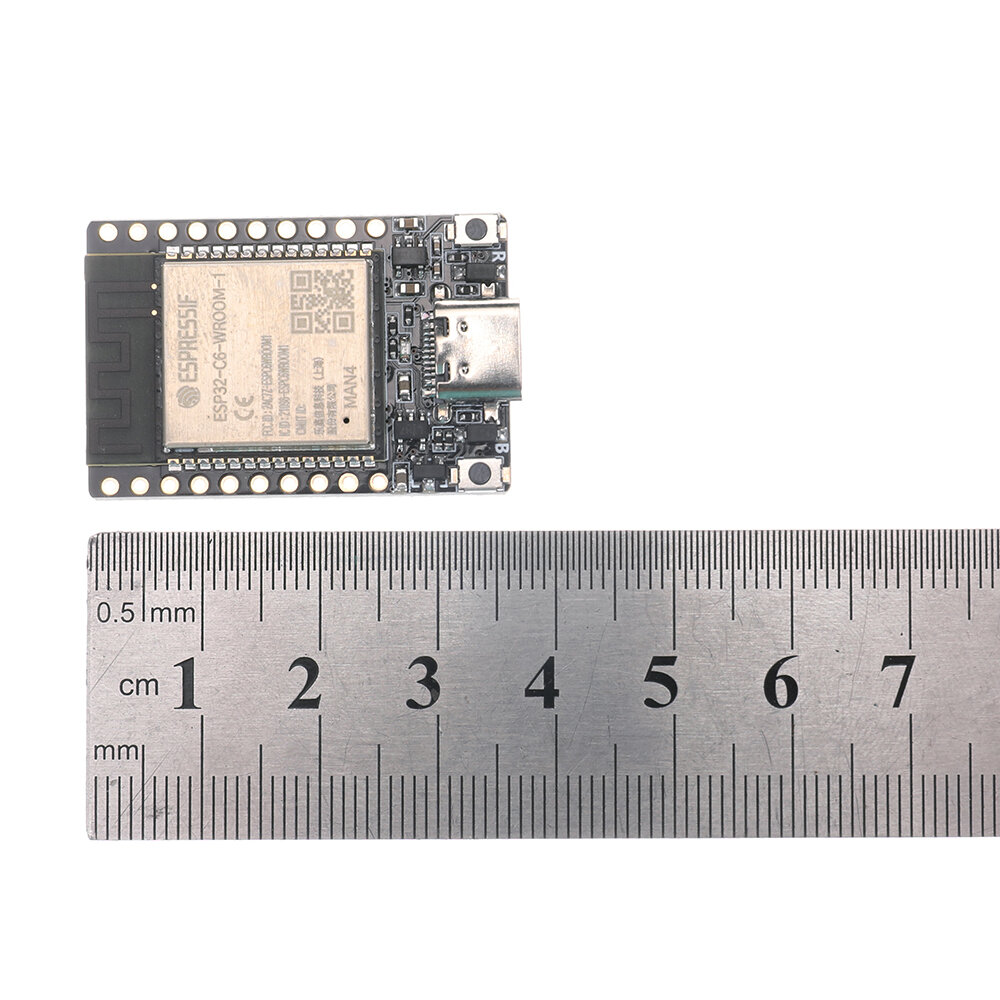

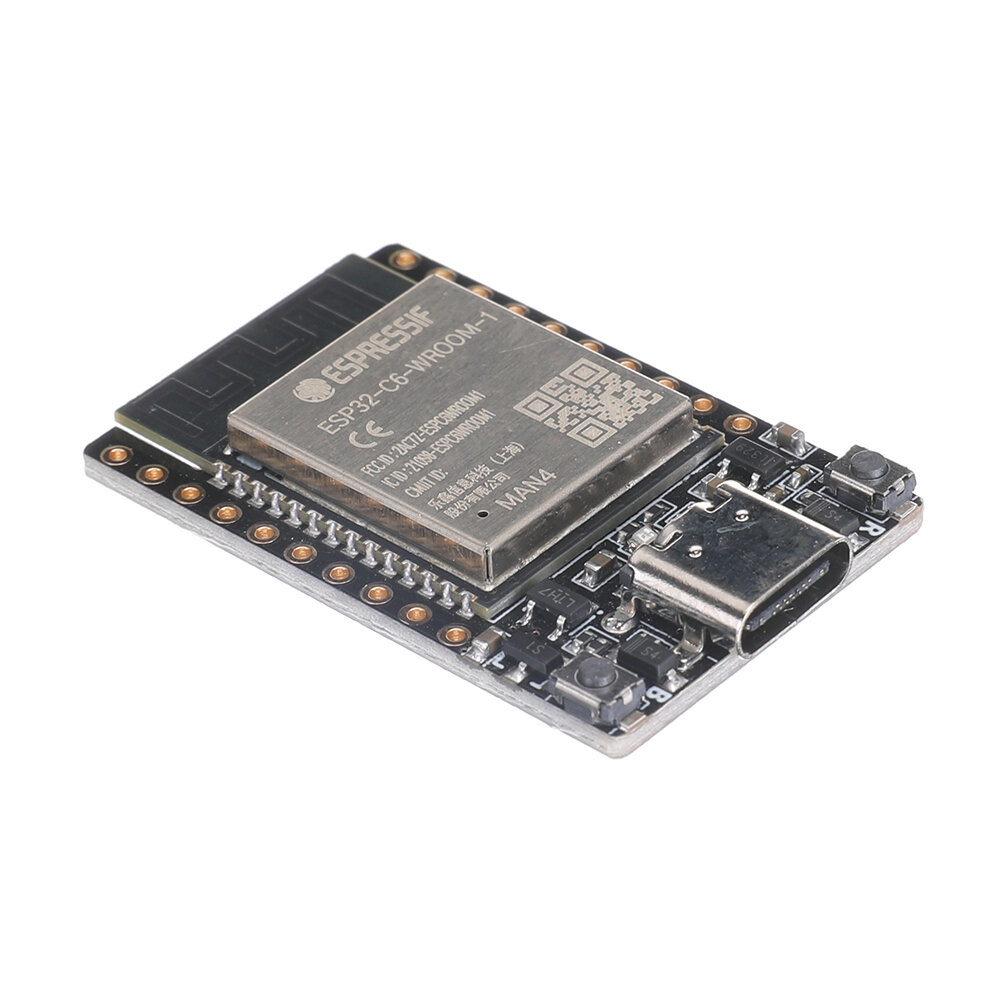

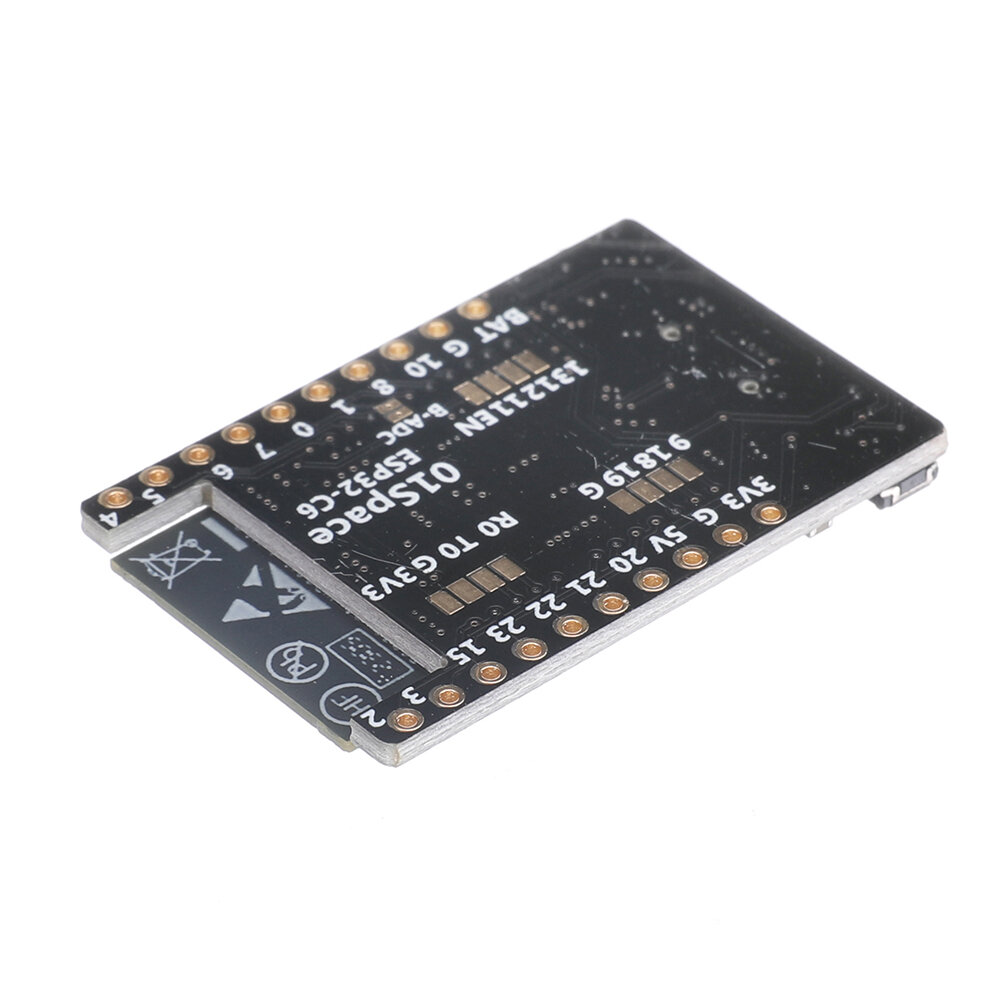

The ESP32-C6 Development board is a versatile Wi-Fi, IEEE 802.15.4, and Bluetooth LE module with powerful features. It uses the ESP32-C6 chip, equipped with RISC-V 32-bit single-core processor, has 4 MB external SPI flash memory, and integrates rich peripherals, including SPI, UART, I2C, on-board antenna, and up to 23 GPIO and other interfaces. Integrated lithium battery charging chip. Rich peripherals and high performance make this module ideal for smart homes, industrial automation, healthcare, consumer electronics, and more. Equipped with RISC-V 32-bit single-core processor, the operating frequency is up to 160 MHz with 320 KB ROM,512 KB SRAM,16 KB Low-power (LP) SRAM Support IEEE 802.11ax protocol, IEEE 802.11 b/g/n-compliant Support Bluetooth BLE 5 Integrated lithium battery charging chip Rich peripheral interfaces, including 23 GPIOs, UART, I2C, I2S, RMT (TX/RX),LED PWM, etc.
